GD150/300/450/600 candy making machine

Product Overview

Description

GD150/300/450/600 candy making machine





FEATURES:

1)       PLC /computer process control available;

2)       An LED touch panel for easy operating;

3)       The production capacity from 150 kgs/h to 600kgs/h;

4)       The contacting food parts are made of hygienic Stainless Steel

5)       Optional (mass) flowing controlled by Frequency inverters ;

6)       In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;

7)       Dosing pumps for the automatic injection of colors, flavors and acids;

8)       One set of extra chocolate paste injection system for making chocolate-central candies(optional);

9)       Use  AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;

10)  “two/three-color stripe depositing”, “two /three–color double layers depositing”, “central filling”, “clear” hard candies and etc. can be made.

11)  Moulds can be made according to the candies samples provided by the customer.

HARD CANDY SAMPLES MADE ON GD MACHINES:



Striped candies        Clear candy   Butter Scotch  Central-filled





TECHNICAL SPECIFICATIONS:

Model	GD150	GD300	GD450	GD600
Production capacity   kg/h (based on 6gm candy)	150	300	450	600
Max. of the product      g	6	6	6	6
Speed of stroke        n/min	55~68	55~68	55~68	55~68
Steam consumption    kg/h Steam pressure        Mpa	250 0.2~0.6	300 0.2~0.6	400 0.2~0.6	500 0.2~0.6
Electric power needed	18kw/380V	27kw/380V	34kw/380V	42kw/380V
Compressed air consumption Compressed air pressure	0.2m3/min 0.4-0.6Mpa	0.25m3/min 0.4-0.6 Mpa	0.3m3/min 0.4-0.6Mpa	0.4m3/min 0.4~0.6Mpa
Conditions needed for the cooling system: 1.Room temperature(°C) 2.Humidity (%)	20~25 55	20~25 55	20~25 55	20~25 55
Gross weight      Kgs	4500	5500	6500	8500

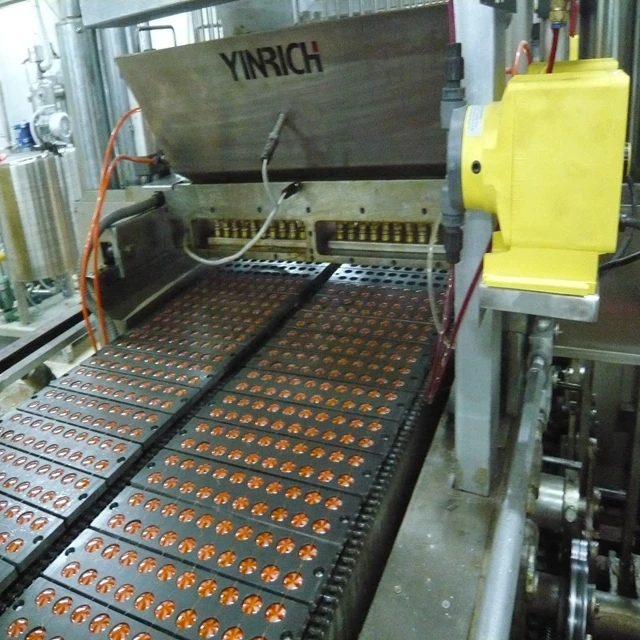

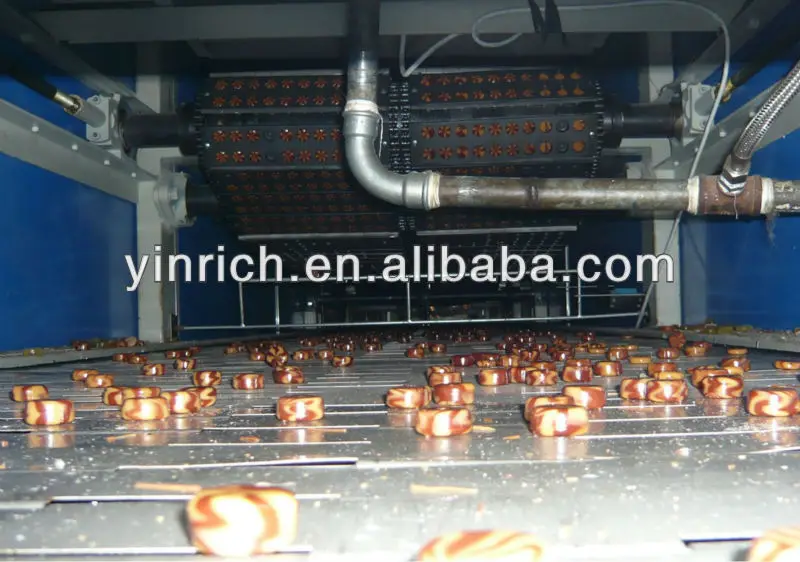

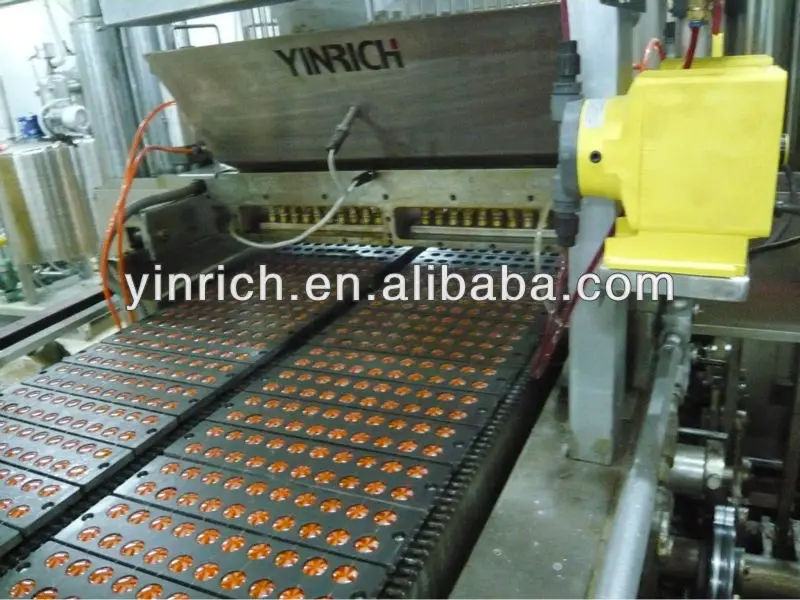

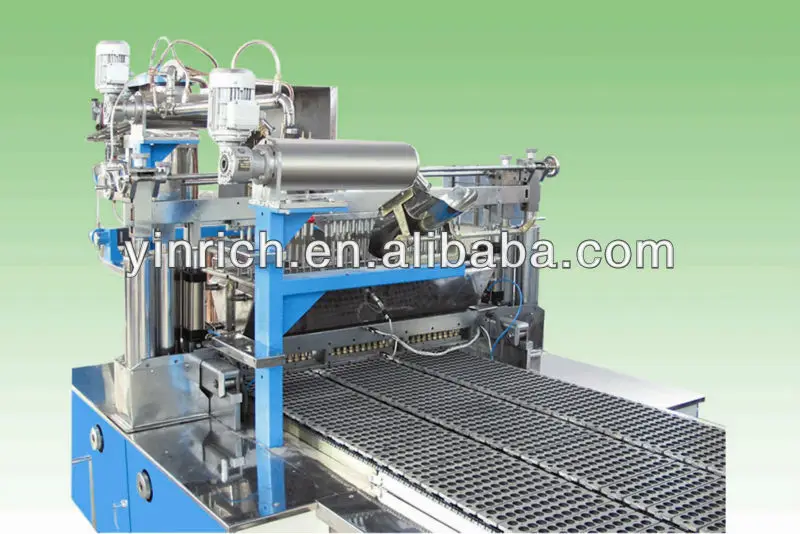

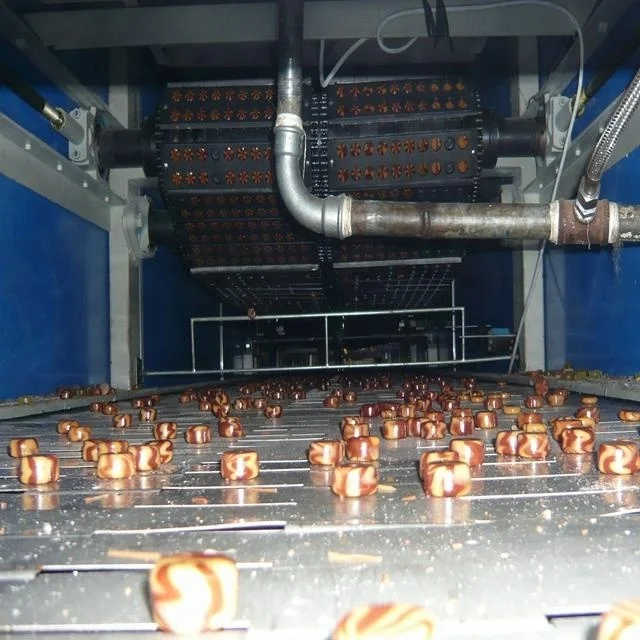

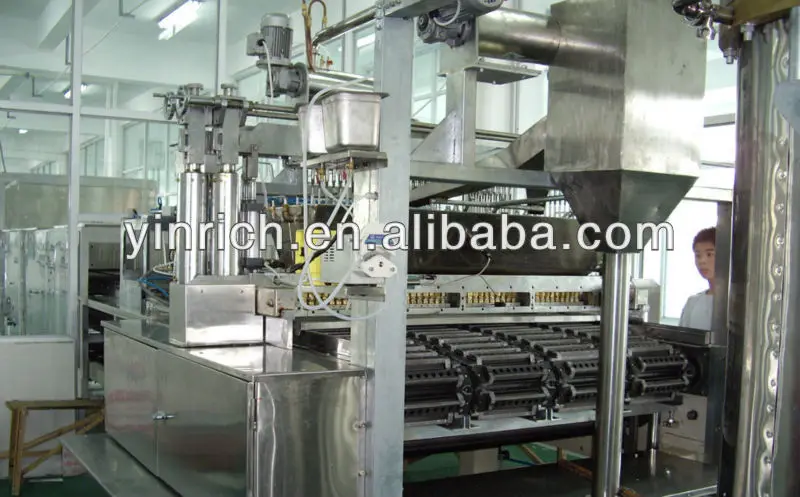

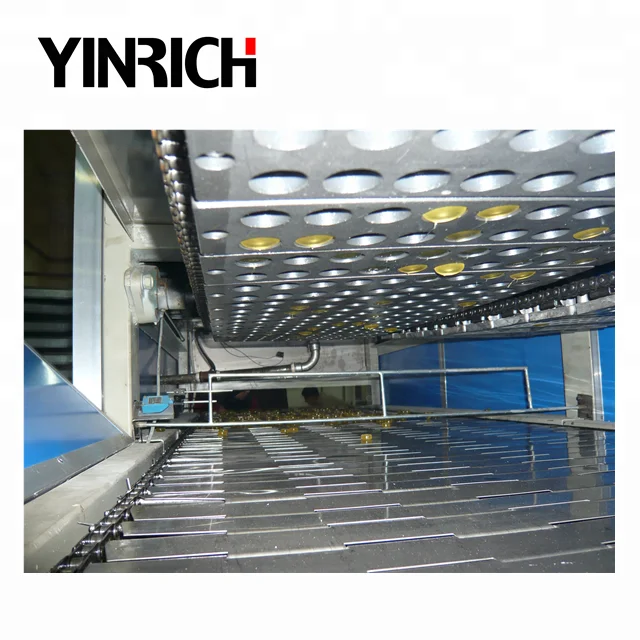

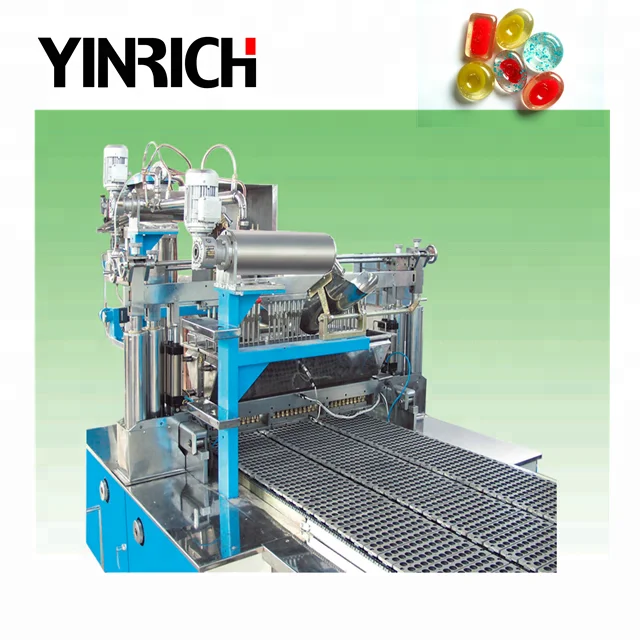

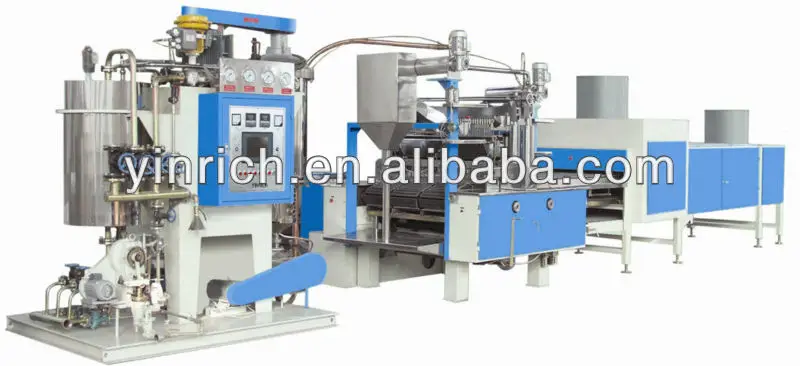

PHOTO SHOWS OF THE MACHINE:



CONTACT INFORMATIONS:



BEIJING YINRICH TECHNOLOGY DEVELOPING CO.,LTD.



Contact Person:   Ms Candice Yu

Cell Phone:  +86-13426119109

Tel: +86-10-64018055/+86-10-56545970

Fax: +86-10-58823057



We are looking forward to establishing long-term business relationship with you!
