Sight glass flow indicators

Product Overview

Description

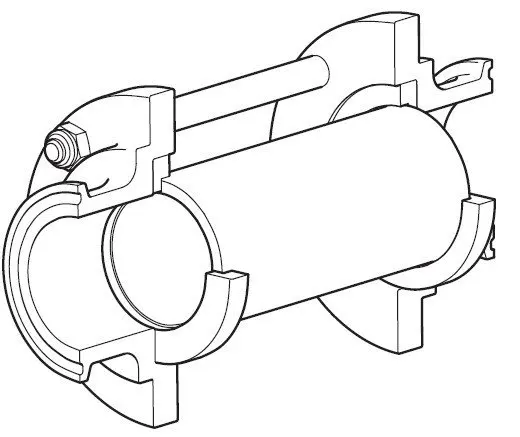

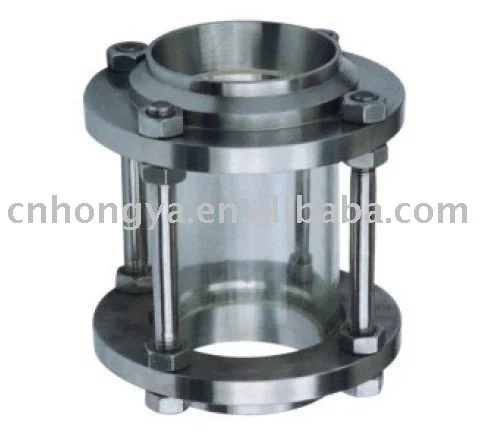

Sight glass flow indicators





Description:

Sanitary sight galss is a full view,full port sight galss suitable for wide range of high quality applications in the food,medical,beverage industries.The unit is designed in accordance with the 3A standard and is manufactured from SS316L stainless steel and tough

borosilicate.



Feature::





1)Standard:DIN,3A,SMS,ISO,IDF

2)Material:SUS304&SUS316L

3)Size:1"-4"&DN25-DN100,we can be according to your requirements to produce

4)Joint Code:Threaded,welded,clamped,union



Advantageous:

1)Meet FDA specification

2)Polished stainless steel sanitary connection

3)Suitable for SIP/CIP

4)Imposing minimal assitional pressure drop in the line.

5)Rated to 10bar&constructed with borosilicate glass cylindars.

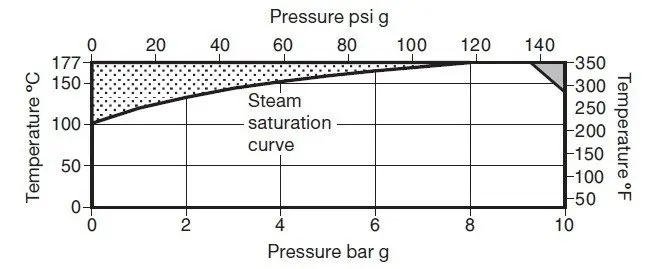

Pressure/temperature limits:





Body design conditions                                                                                        PN10

Max allowable pressure:10bar g @ 140C                                   (145psi g @ 284 F)

Max allowable temperature:177C @ 9.2bar g                            (350 F @133 psi g)

Min allowable temperature:3254C                                                                    (-425F)

Max operating temperature for saturated steam service:6 bar g          (87 psi g)

Max operating temperature:165C @6bar g                                  (329F @ 87 psi g)

Designed for max cold hydraulic test pressure of:                 15bar g(217 psi g)



Package:Packaging for this products is conducted in a clean enviroment,segregated from other non stainless steel products.Inlet and outlet connections are caped and product is sealed in a plastic bag or shink wrapped.

Intallation:

1)Chek materials,pressure and temperature and their max valumn

2)Determine the correct installation situation and direction of flow

3)It can be fitted in both horizontal and vertical lines.
