LDM 100 Laser Diameter Measuring Gauge / Laser Gauge

Product Overview

Description

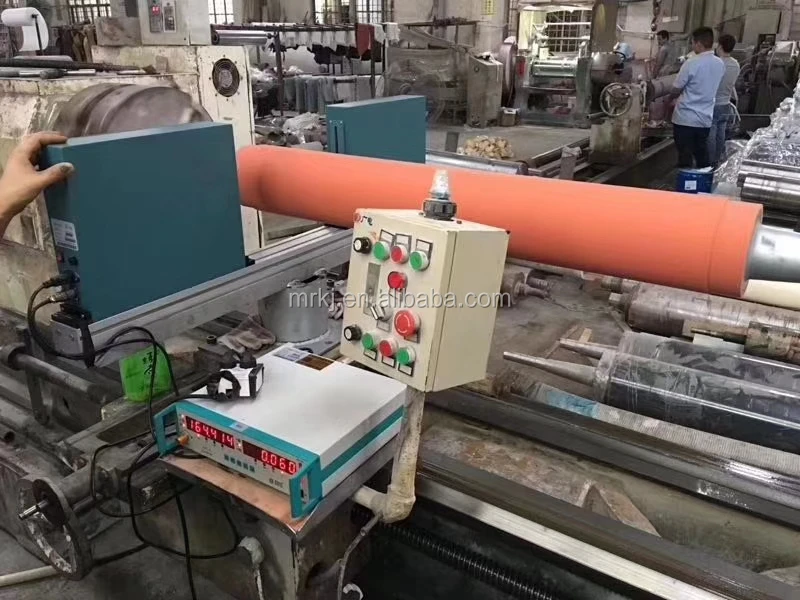

Laser Diameter Measuring Gauge is the high-accuracy survey installment that uses the laser scan to carry on contacts the on-line survey. Mainly used in a variety of wires, cables, pipe production line, the measurement of outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can aloe be applied to the outer diameter of  workpiece and size measurements.



Model	LDM-25		LDM-50		LDM-100B	LDM-150
Measuring Range	0.2-20mm		0.2-45mm		0.2-95mm	0.2-145mm
Min Size	0.2mm		0.2mm		0.2mm	0.2mm
Max Size	20mm		45mm		95mm	145mm
Accuracy*	±0.001		±0.002		±0.002	±0.01
Repeatability**	0.5μm		0.5μm		0.5μm	1μm
Resolution	0.001mm		0.001mm		0.001mm	0.001mm
Dimension	48.5x20x8.5cm		48.5x20x8.5cm		62x25x6cm	92x29x9.5cm
Units of Measurement	mm		mm		mm	mm
Power	~220V±15%, 50-60HZ
Temperature	-10~40℃
Humidity	<85% RH
Gauge Head  Serial I/O	Standard: RS485  Options:RS232 / USB
Communication Protocol	Modbus/Profibus
Presets	Diameter, +Tol,-Tol, Alarm Setting
Transparent Measurement	Option	Option		Option		Option
Control Output
Serial I/O	RS485
Analogues Output	16 bit ±10V DC Output
Relay Output	2 Volt Free  (Status, Upper Tolerance, Lower Tolerance)





Survey way: Laser scanning method

Laser unit: Red visible semiconductor laser

Laser work function: <2mW

Working voltage: 220V±10%

Operating temperature: -10~40°C

Environment: <95%RH

Work way: Continuously

Consumes the electricity: <30W

External dimensions:

LDM-80/LDM-150 Measuring head: 910mm×80mm×292mm



The Device with the following Characteristics

1. Can be connected PLC, industrial computer.

2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.

3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
