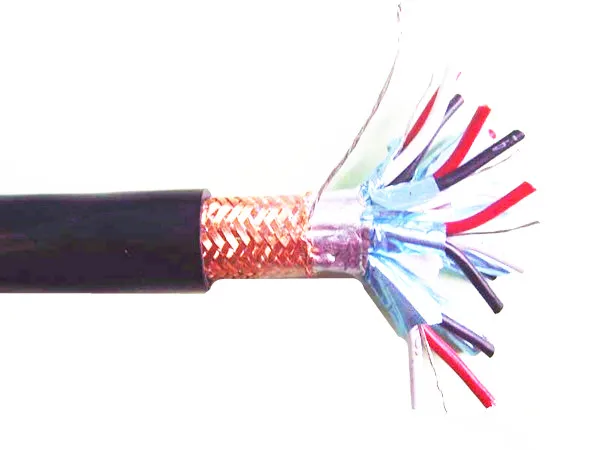

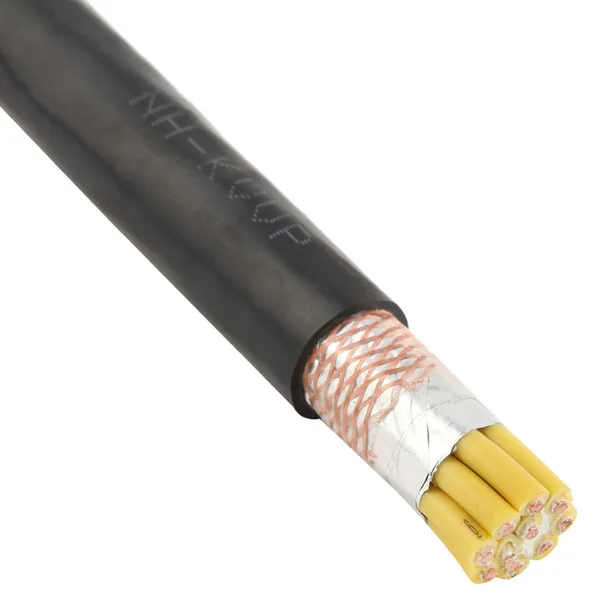

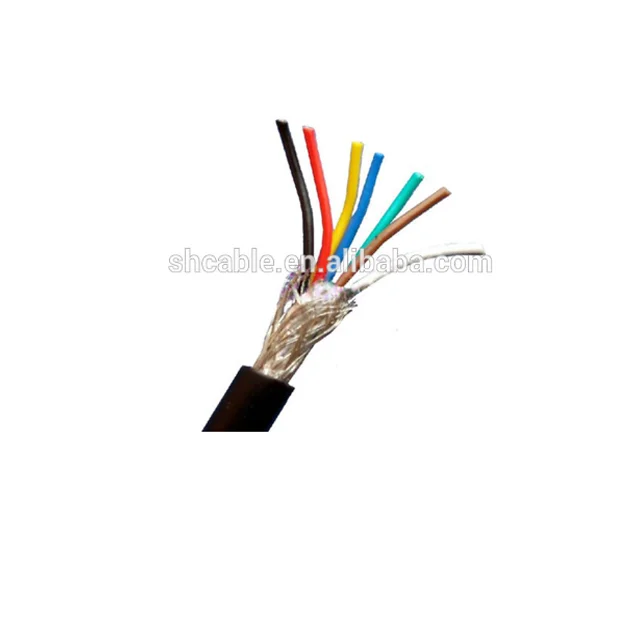

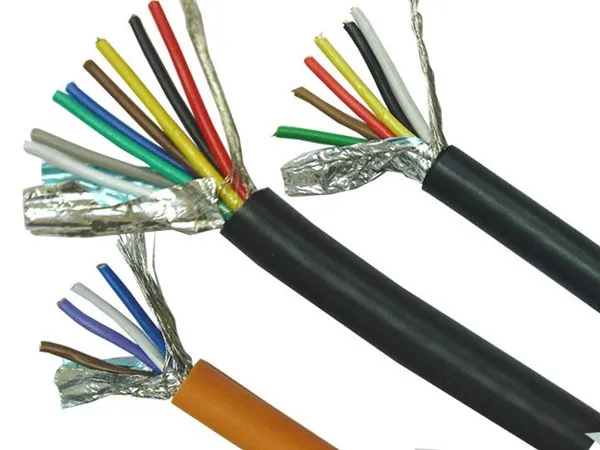

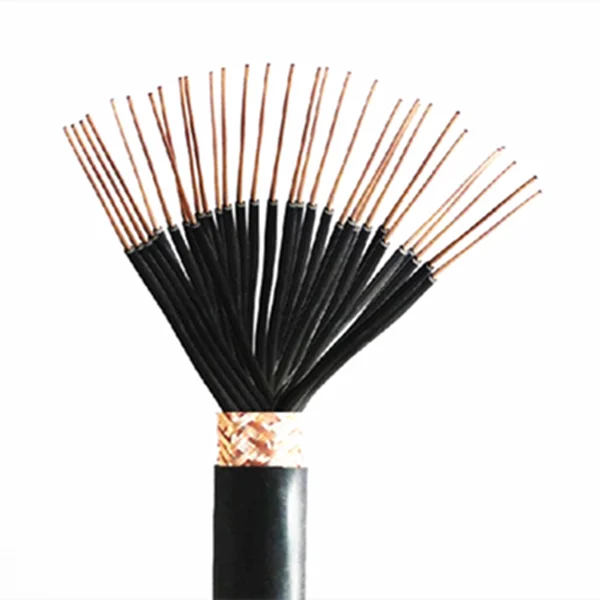

volume audio control cable with copper flexible conductor

Product Overview

Description

                               volume audio control cable with copper flexible conductor



A. Standard

1 CCC CE ISO Approval
2 Professional QC inspection

B. Application

used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction under the circumstance that the rated voltage is up to 450/750V AC.

C. Character and Relevant Parameters

1. Long-term service temperature of the cable conductor: 70 0C

2. Rated voltage: 450/750V

3. Cable lying temperature ≥0 0C

4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61

5. Minimum bending radius: Non armored ≥ out diameter of cable 6 times; Armored layer or copper tape shielded ≥ outer diameter of cable 12 times

Shielded layer soft cable ≥ outer diameter of cable 6 time

6. Insulation: PVC

7. Jacket: PVC

8. Conductor: copper

D. Our service:

We can also customize the electrical wire and cable as your request! You can decide the core count and cross section of the conductor, as well as the jacket and insulation.
