mobile mini mix wet concrete batching plant with silo 60 ton
US $48000-$50000

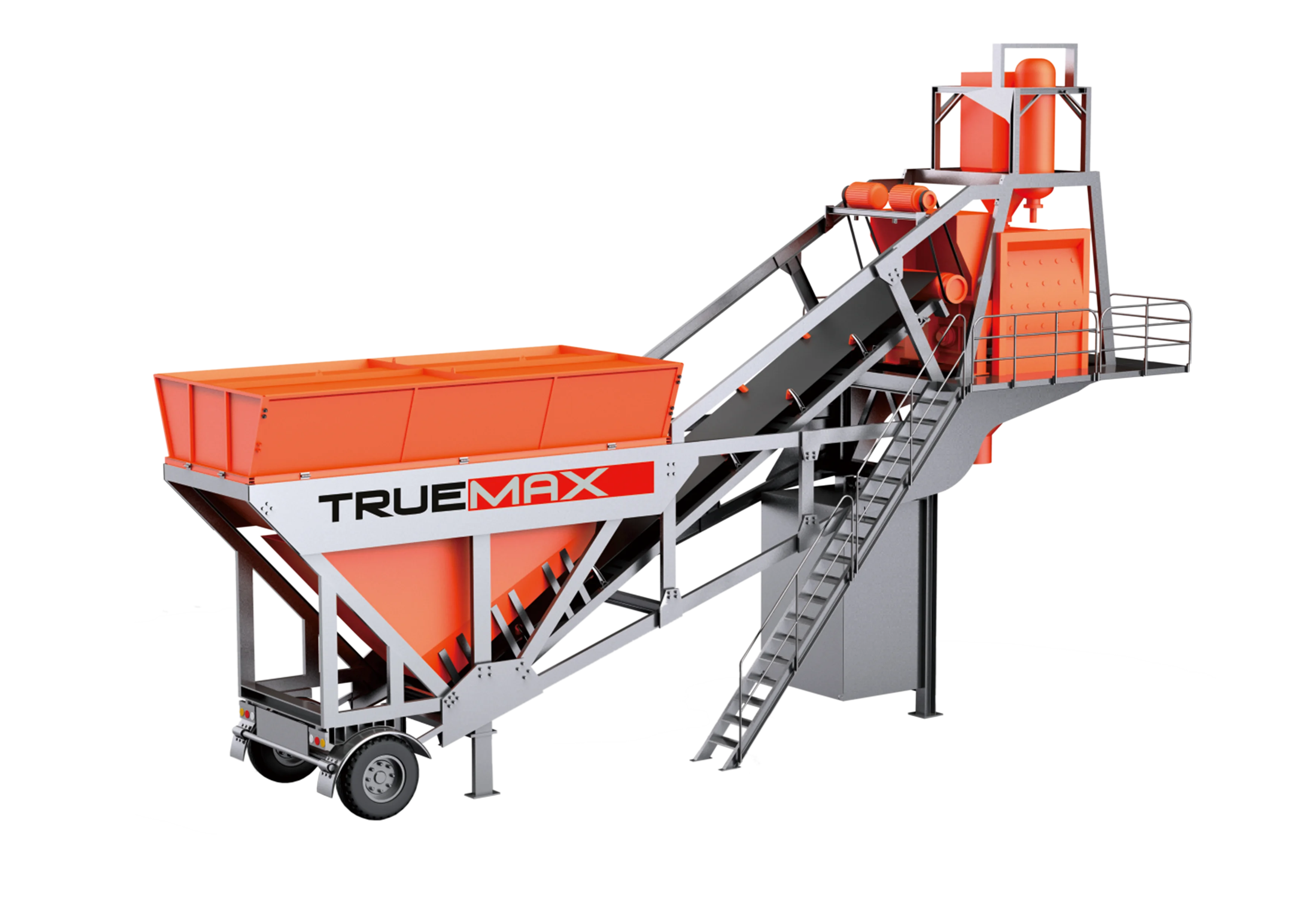

CBP60M/CBP60S small cement mixer automatic stationary mobile mini concrete batching plant prices for sale
- Category: Concrete Batching Plant >>>
- Supplier: Hangzhou Truemax Machinery & Equipment Co. Ltd.
Share on (348352271):
Product Overview
Description
Product Information
Mobile Concrete Batching Plant | |||
ITEMS | UNITS | CBP60M ( HSZY60 ) | CBP60S ( HZS60 ) |
Theoretical Productivity | m³ | 60 | 60 |
Mixer Model | / | JS1000 | JS1000 |
Motor Power | kw | 2*22 | 2*22 |
Nominal Capacity of Mixer | L | 1500 | 1500 |
Automatic Cycle Period | S | 60 | 60 |
Max.Aggregate Size ( Crushed Stone/Pebble ) | mm | 60/80 | 60/80 |
Aggregate Bin Capacity | m³ | 4*10 | 3*10 |
Type of Aggregate | / | 4 | 3 |
Weighing Range & Accuracy of Aggregate | kg | ( 833~2500）±2% | ( 833~2500）±2% |
Weighing Range & Accuracy of Cement | kg | ( 200~600）±1% | ( 200~600）±1% |
Weighing Range & Accuracy of Water | kg | ( 100~300）±1% | ( 100~300）±1% |
Weighing Range & Accuracy of Additive | kg | ( 7~20）±1% | ( 7~20）±1% |
Total Power ( Without Silo & Screw Conveyor ) | kw | 76 | 70 |
CBP60M/CBP60S small cement mixer automatic stationary mobile mini concrete batching plant prices for sale
Screw Conveyor ( Optional） | |||||
ITEMS | Length | ɸ219 | ɸ273 | ɸ323 | |
<5m | 5.5 | 7.5 | 11 | ||
<6m | 5.5 | 11 | 15 | ||
<7m | 7.5 | 11 | 15 | ||
<8.5m | 7.5 | 11 | 18.5 | ||
<9m | 11 | 15 | 18.5 | ||
<12m | 11 | 15 | 22 | ||
<13m | 11 | 18.5 | 22 | ||
<13.5m | 15 | 18.5 | 30 | ||
<15m | 15 | 22 | 30 | ||
Reduction Ratio | 1:07 | 1:07 | 1:10 | ||
Conveyor Capacity (t/h) | 40 | 80 | 110 | ||
Silo ( Optional ) | ||||
ITEMS | Thikness ( mm ) | Diameter ( mm ) | ||
50T | 4 | 3260 | ||
100T | 4 | 3260 | ||
150T | 4 | 3260/3600/4500 | ||
200T | 4 | 4100/4500 | ||
250T | 4.5 | 5050 | ||
