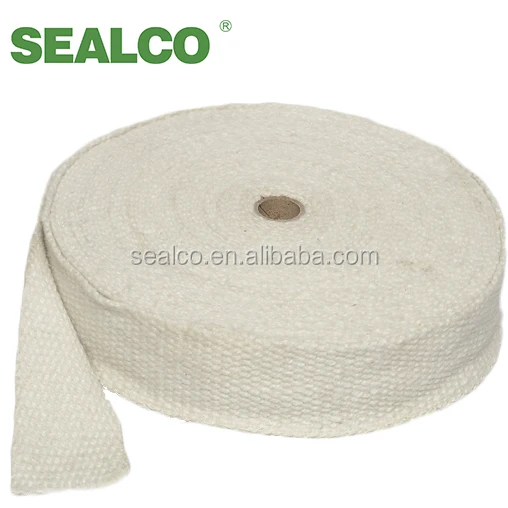

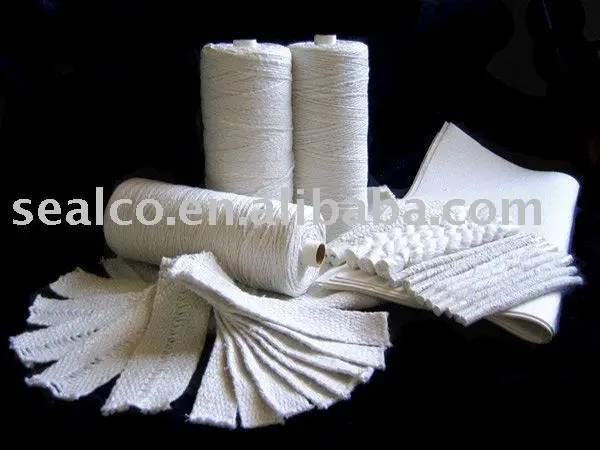

Ceramic Fiber Tape

Product Overview

Description

Description

Ceramic Fiber Tape a flat-woven gasket that guarantees excellent flexibility and mechanical resistance. It can be used for continuous temperatures of up to 650°C (glass-fibre reinforced) or up to 1050°C (Inconel reinforced). On request, it can be impregnated with graphite to increase lubricating power.

Applications

Insulation of tubes and exhaust pipes, electric insulation.



Characteristics
Colours	White
Melting point	1260°C
Long term operating temperature:                     - reinforced with steel wire - reinforced with glass threads	1050°C 650°C
Loss on ignition at high temperature	<18%
Chemical stability	excellent chemical stability resisting attack from most corrosive agents. Exceptions are fluorides, phosphoric acids and concentrated alkalis



Chemical analysis
Aluminium oxide	AL2O3	45-48%
Silicon oxide	SiO2	51-55%
Iron oxide	Fe203	0.7-1.2%



Standard sizes
thickness (mm)	width (mm)	rolls (m)
2	20	50
2	25	50
2	30	50
2	50	50
2	75	50
2	100	50
2	150	25
2	200	25
3	20	50
3	25	50
3	30	50
3	50	50
3	75	50
3	100	50
3	150	25
3	200	25
5	20	25
5	25	25
5	30	25
5	50	25
5	75	25
5	100	25
5	150	25
5	200	25
