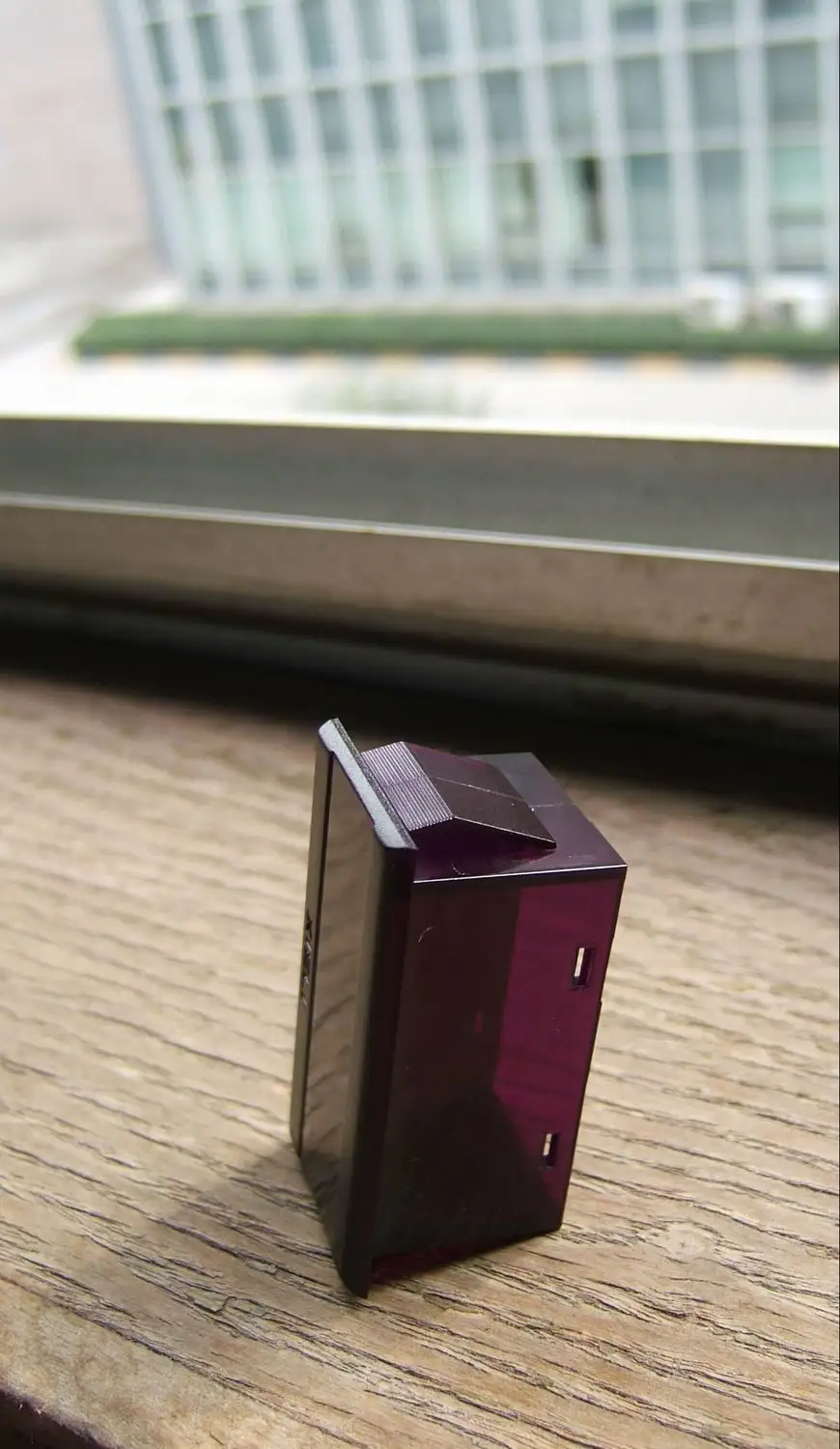

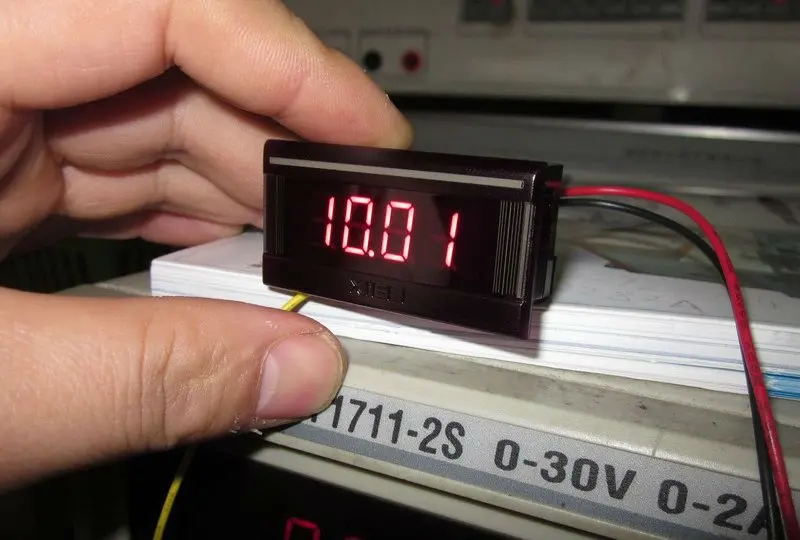

mini dc voltmeter 1999 3 1/2 digit LED display

Product Overview

Description

 XL3600V series-SUPER-MINI power supply DC measuring Voltage- Voltage monitor

Power supply:           5VDC, 12VDC,  8-24VDC

Full range:                +199.9V

Accuracy:                +/-0.3% +1 digit

Digital display:          LED red,blue display color available

                                 0.36" LED display

Decimal Point:          Settable by user

Calibration Potentimeter: Calibrated before out of factory, adjustable by the user

Operating temperaure: 0-60 degree

Relative Humidity:          20-80%

Installation method:    Snap-in

Tapping size:              48 x 23mm

Dimension:                 (W)50X (H)26 X (D)23.5mm



XL3600 series-SUPER-MINI power supply DC measuring Voltage- voltage meter

Model	Full measurement	Resolution	Accuracy	Input impedance	Max voltage input
XL3600V-1	±199.9mV	0.1mA	±0.3%+1 digit	100MΩ	±10V
XL3600V-2	±1.999V	1mA	±0.3%+1 digit	100MΩ	±35V
XL3600V-3	±19.99V	10mA	±0.3%+1 digit	1MΩ	±200V
XL3600V-4	±199.9V	100mA	±0.5%+1 digit	1MΩ	±300V



* Dark filter color piece
* Certification ISO9001 & CE
* Easy to read under the high light(sunshine)
* More than 70000 hours Longlife
* High quality components(LSI) and high stability
* 70-80% components from internaitonal well know manufacturers
* Easy to use high accuracy
* Many years of export experience and 20 years experience cooperation with Panasonic
