marine autopilot basic package SY 732 (with azimuth sensor) boat marine accessories

Product Overview

Description

 Autopilot for ships.

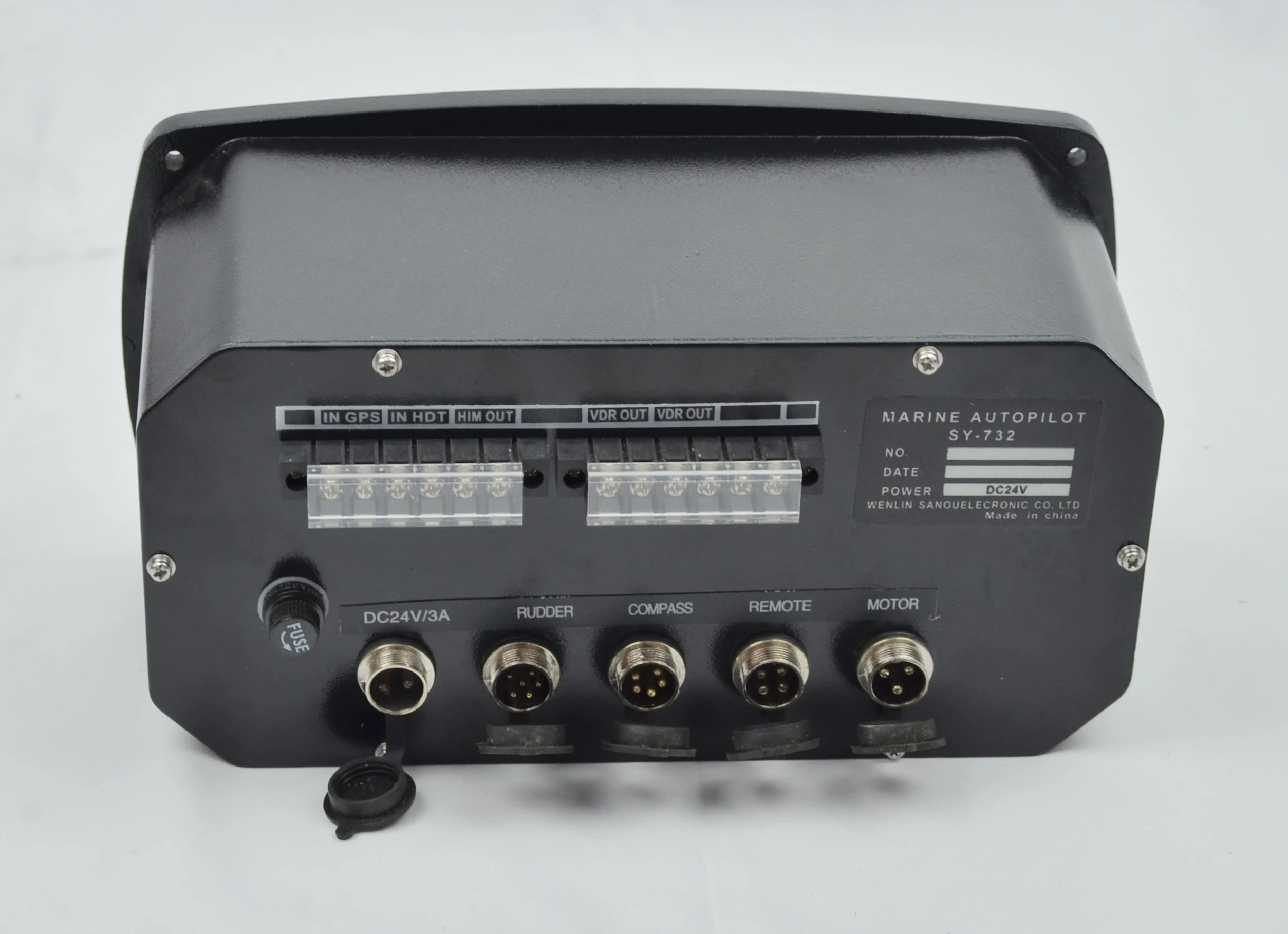

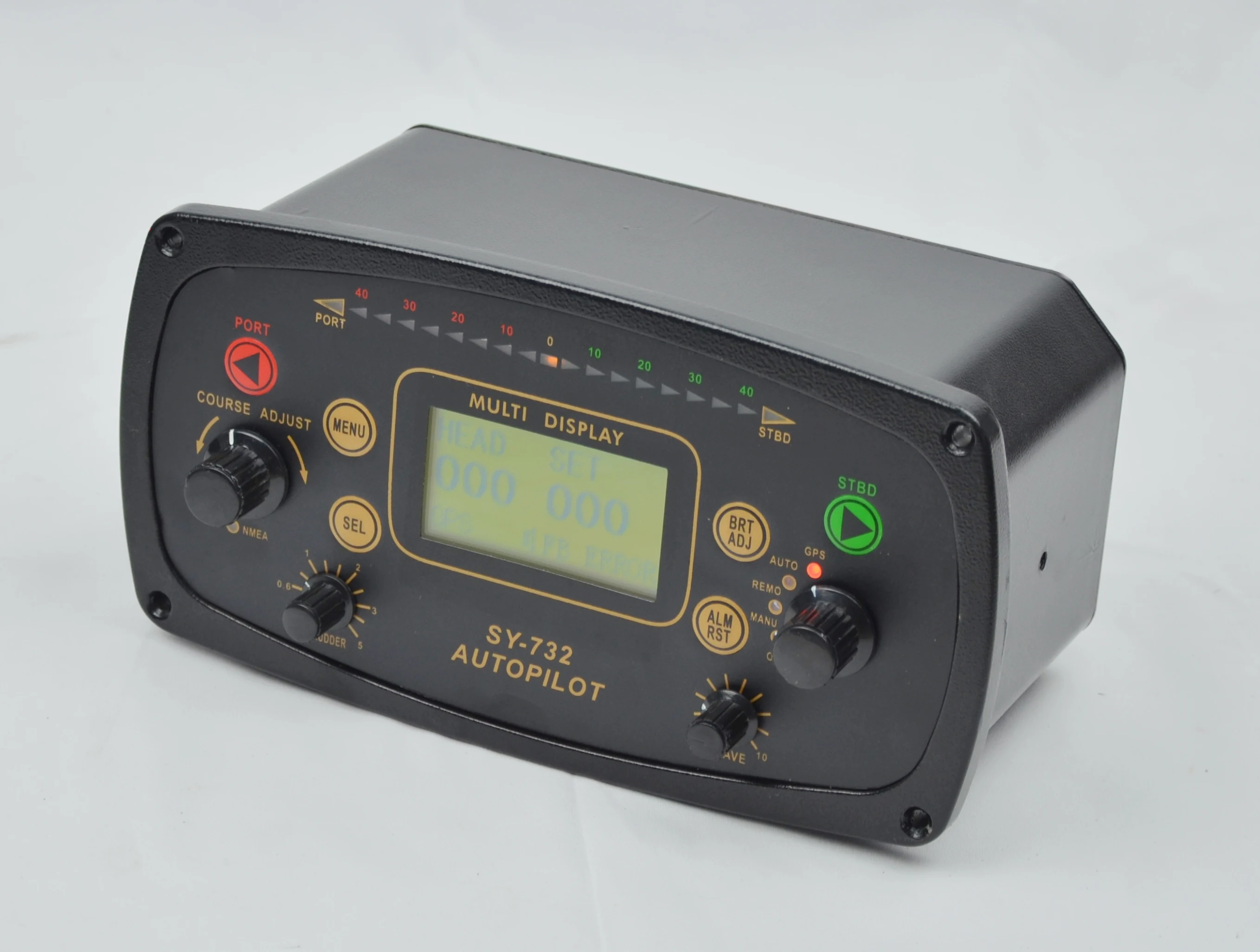

Autopilot display unit -control panel

LWH: 264*137*113mm

Model No.: SY-732



Display screen:LCD

Features:

(1)This product adopts precise military potentiometers as components for transmission and feedback,

(2)The output control is contactless SSR solid-state relay, and use precise integrated circuit control, have the advantage of high control accuracy, low noise, long service life, applicable to all kinds of ships for accurate control of hydraulic steering gear.

1.Power supply:DC24V,

2.Steering rate:2.5deg~5deg/second;

3.Rudder angle Sensitivity: <1.0deg, ,(adjustable)

4.Solenoid valve power: DC24V, 5A;

5.Operating mode: manual,remote,auto,GPS;

Application: 200 to 100,000 tons ships

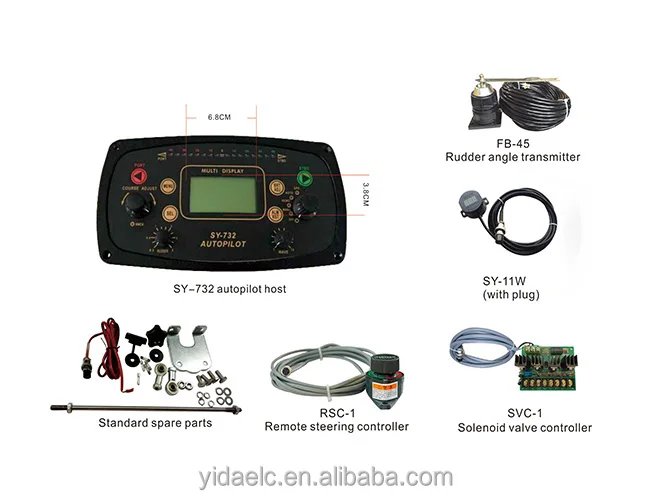

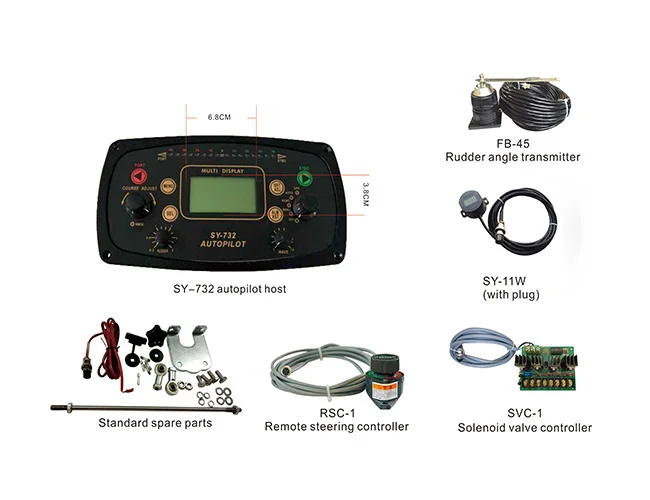

Rudder angle transmitter-high accurate

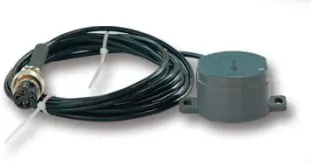

Magnetic Azimuth Sensor

Manual follow-up[remote steering control]





 Solenoid valve

Install panel, power wires, and transmitter’s connection rod, other accessories.







For more details.pls Email us!!
