Torque Multiplier 5 125 times multiply for torque wrench screw

Product Overview

Description



  1.NZ series of torque multiplier, which consists of the reduction gear, is the device that can multiply the moment of force. It can be imported 5 to 125 times of torque by the machinery wrench. It is used in the difficult situation and places. The advantages are easy to operate and save the manpower.



  2.The accuracy is superior to ±4%.



  3.Because of the high zoom ratio, the operation can use the small torque. It also applies to small size and Poor working environment.



 4.All kinds of reaction torque arm can be supplied to the changeable conditions. There are the Anti-rebound safety devices making it easy and safe to operate. (Except the 5:1 magnification ratio)

Matching with the torque transducer and monitor, it will display the torque value.





ITEM	MODEL	A (mm)	B (m.m)	C   (m.m)	INPUT SQUARE DRIVE(in)	OUTPUT SQUARE(in)	MAGNIFICATION MULTIPLE	MAX. OUTPUT TORQUE(N.m)/(Lbf.ft)	TOTAL WEIGHT(Kg)	Reverse Arms of Force (Kg)

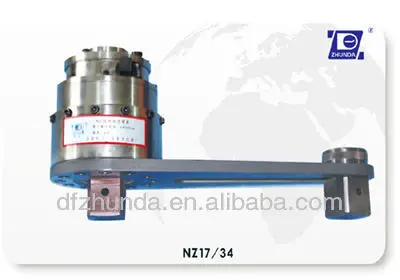

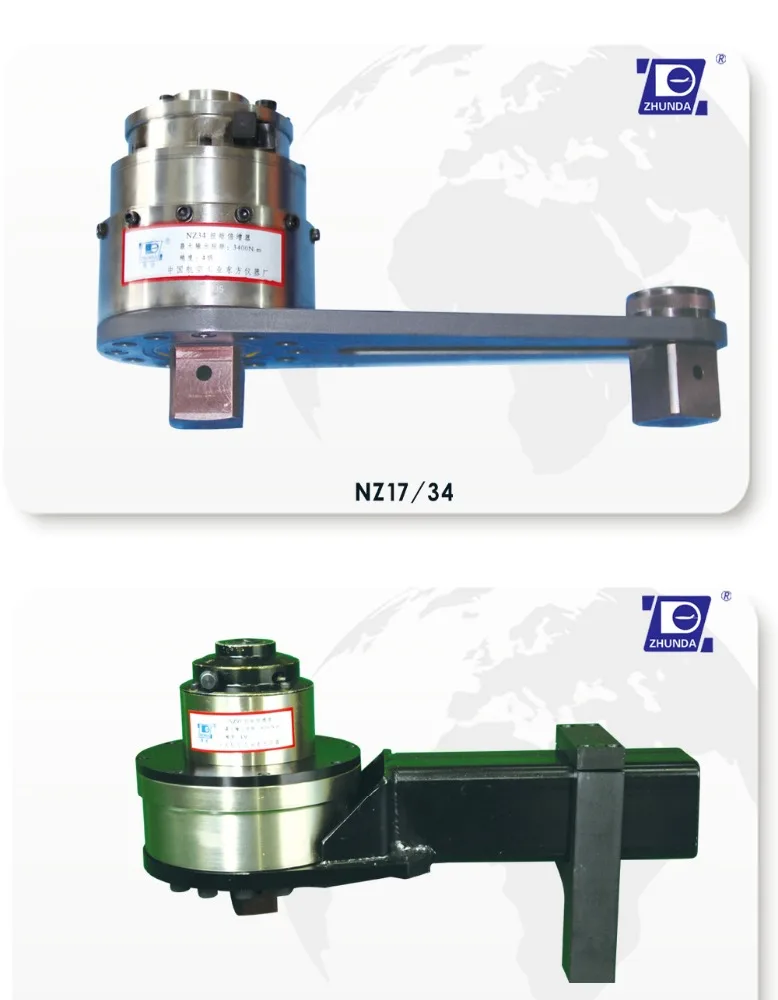

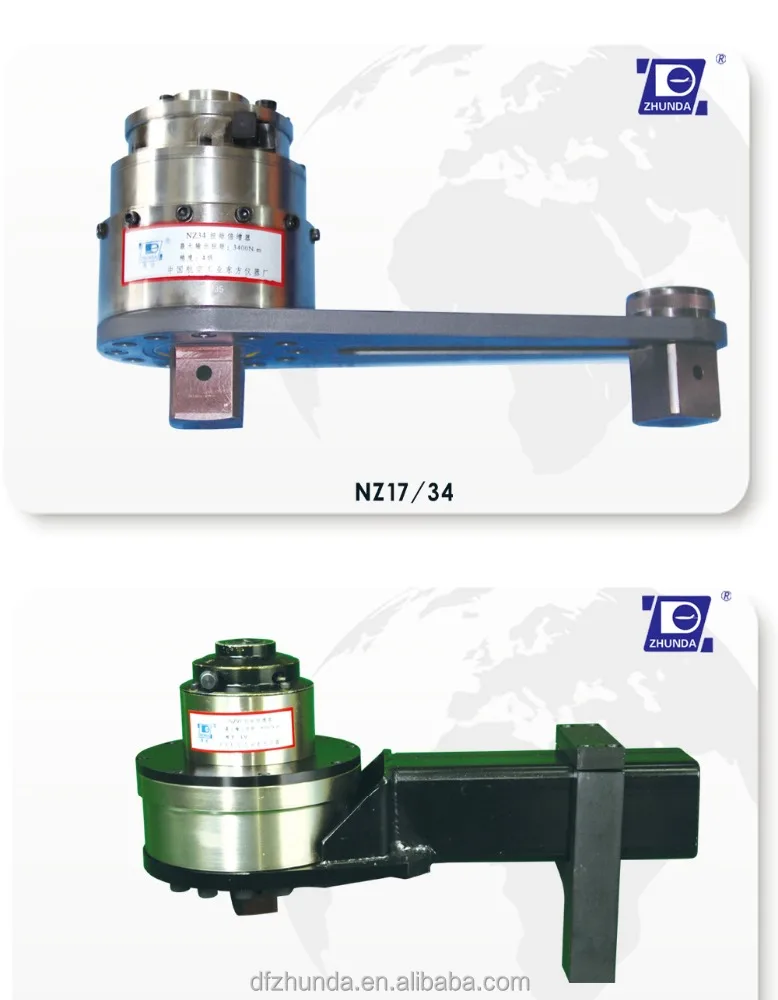

1	NZ17	108	156	83-217	1/2''	1''	25:1	1700/1250	7.8	2.2

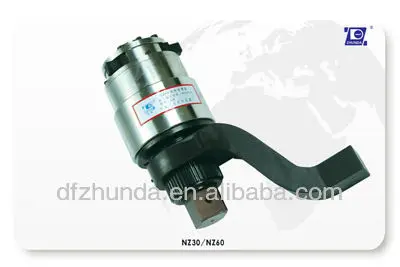

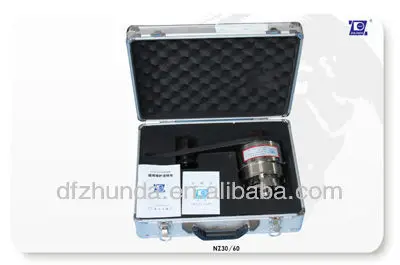

2	NZ30	108	224	141	1/2''	1''	15:1	3000/2200	9	2
3	NZ34	119	195	86-264	1/2''	3/2''	25:1	3400/2500	10	2.5

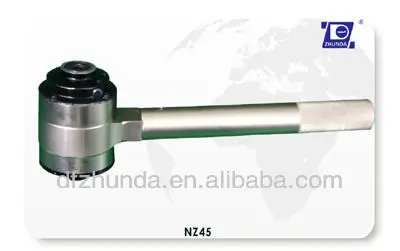

4	NZ45	108	173	395	1/2''	1''	26:1	4500/3300	8.9	4
5	NZ60	119	271	154	1/2''	3/2''	25:1	6000/4400	14.6	4

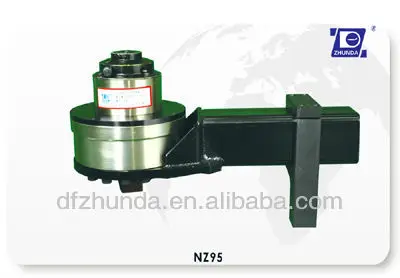

6	NZ95	184	234	171-351	1/2''	3/2''	125:1	9500/7000	27.2	8.3





NOTE: the types are the researching products.NZ27 series have 2 kinds of reactions torque arm, and there is no Anti-rebound safety devices.
