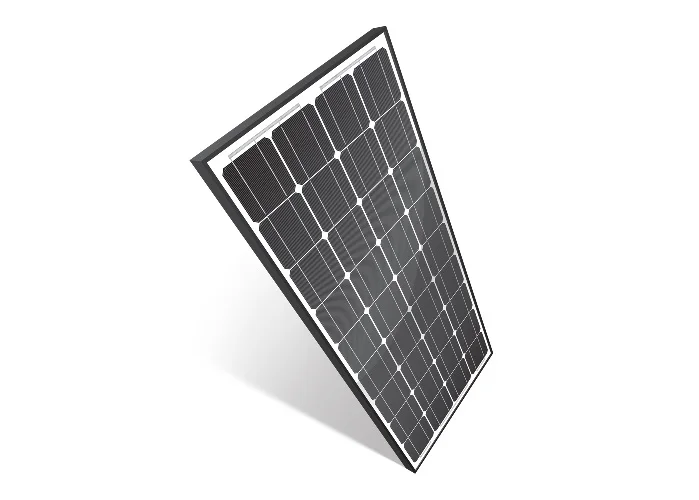

MONO or POLY | MONO |
Maximum power (Wp) | 80wp |
Maximum power voltage (V) | 18 |
Maximum power current (A) | 4.45 |
Open circuit voltage (V) | 21.67 |
Short circuit current (A) | 5.03 |
Number of cells (Pcs) | 36 |
Size of module (mm) | 1200*550*35 |
Brand Name of Solar Cells |
|
Maximum system voltage (V) | 1000 |
Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
Temperature coefficients of Im (% | +0.1/ °C |
Temperature coefficients of Vm (% | -0.38/ °C |
Temperature Range | -40°C~+85°C |
Tolerance Wattage (e.g. +/-5%) | +/-3% |
Surface Maximum Load Capacity( | 60m/s(200kg/sq.m) |
Allowable Hail Load | steel ball fall down from 1m height |
Weight per piece (kg) | 8.87 |
Length of Cables (mm) | 900 |
Cell Efficiency (%) | >15.4% |
Module Efficiency (%) | >12.12% |
Output tolerance (%) | +/-3% |
Frame (Material, Corners, etc.) | Aluminum |
Standard Test Conditions | AM1.5 1000w/m2 25°C |
Warranty | 5years product warranty and 25years 80% of power |
FF (%) | 73.39% |
Packing | 4PCS/ CTN |


Payment Term |
T/T | EXW |
30% T/T in advance, paid the balance before shipment |
| FOB | |||
| CFR(C&F) |
30% T/T in advance, paid the balance against copy of B/L | ||
| CIF | |||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||
| PayPal |
Amount lower than 3000usd | ||
| PayPal | |||
| Delivery Time | 17~20days after receiving payment for one container | ||
Our Service
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM&ODM, any your customized lightings we can help you to design and put into product.
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
New products from manufacturers at wholesale prices
