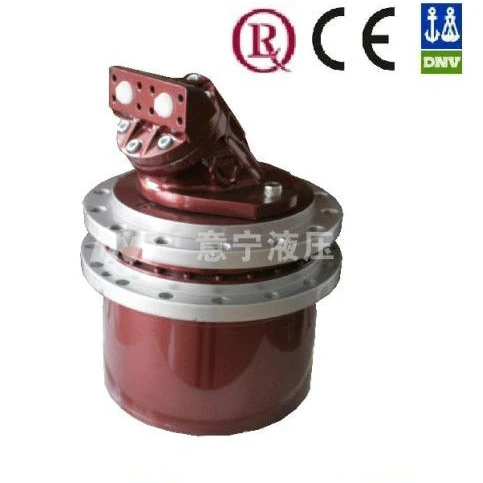

INI IGT 13 17 36 40 type track drive winch drive

Product Overview

Description





• Product Structure



The IGT series winch drive / track drive consist of planetary gearbox, axial piston hydraulic motor, wet type multi-disc brake and valve block. By adopting our patented technology and design experience, our product feature high total efficiency, compact design, and wide speed control range. The series can be directly installed on a wheel or track of a mobile vehicle, and also can be used for hydraulic winches and hydraulic capstans.



Their installation dimension and technical performance are similar to equivalent products of Rexroth, Brevini, Nebtesco, Nachi and Sauer Danfoss.



• Application



The drives have been widely use in main and auxiliary winches, crawler rotary drill rigs or wheel and crawler cranes, truck and cutter head drives of milling machine or road header, road roller, track vehicles, aerial platform, self-propelled drill rigs and marine cranes. The drives are not only widely used by domestic big customer such as SANY, XCMG, ZOOMLION, but also have been exported to Southeast Asia, Middle East, India, South Korea, Netherlands, Germany and Russia and so on.





• Main Features

1. We can supply different ratios except standard ratios

2. reduced cost

3. faster delivery time

4. high working efficiency & high working pressure

5. great reliability

6. can be directly installed in wheels or tracks



• Specification  (We can make special ratios for customers except standard ratios.)



Model no.	Output Torque Tmax Nm	Ratio	Max. Input Speed r/min	Braking Torque Tbr max. Nm	Brake Press. MPa	Catalogue download
IGT13	13000	21.57    25    30       38	4000	220-350	1.8-5	Dimension and date download
IGT17T2	13000	27.74     31.84 37.7     46.77 53.7	4000	220-350	1.8-5	Dimension and date download
IGT17T3	17000	63.4     69.84 78.2     89.51 105.68   130.66 143.5     169.31 209.2	4000	220-450	1.8-5	Dimension and date download
IGT36	36000	67.75     78 92.1     106 116.8     133.7 143.8     158.6 181.4	4000	400-750	1.8-5	Dimension and date download
IGT40	40000	31.41     38.97 45.97	4000	450-800	1.8-5	Dimension and date download
IGT60	60000	86       95 104.6     114.2 133.4     171.8	4000	450-800	1.8-5	Dimension and date download
IGT80	80000	76.6     85.4 98       115.6 142.7     170.1 187.2     211.5	4000	600-1100	1.8-5	Dimension and date download
IGT110	110000	78.1     87.5 97.4     103.4 115       122.8 134.3     146.6 156.9     173 184.6     190.4 202	4000	800-1200	1.8-5	Dimension and date download
IGT160	160000	98.3     161.8 185       210.8 251	4000	800-1200	1.8-5	Dimension and date download
IGT220	220000	188.9   245.9 293       313 695	4000	800-1200	1.8-5	Dimension and date download
IGT330A	330000	169.2   251.8 302.5   451.6 555.33	4000	800-1200	1.8-5	Dimension and date download
IGT330B	330000	88.3     105.1 114     169.2 251.8   302.5 451.6   555.33	4000	800-1200	1.8-5	Dimension and date download
IGT440	440000	275.34   308.2 352.68	2000	1200-2500	1.8-5	Dimension and date download
IGT550	550000	129.2   146.8 175.3	2000	1200-3600	1.8-5	Dimension and date download

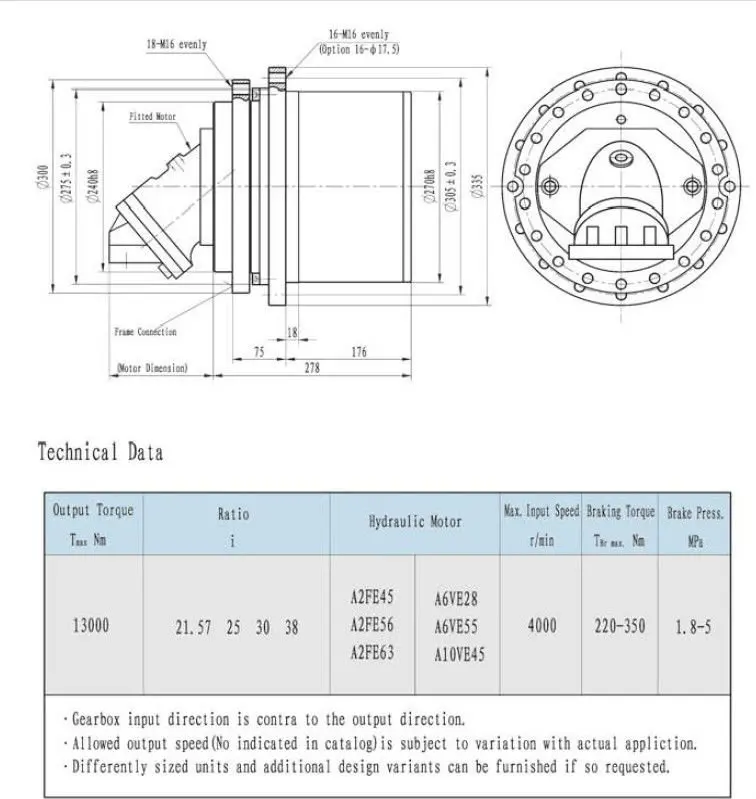

IGT 13 SERIES

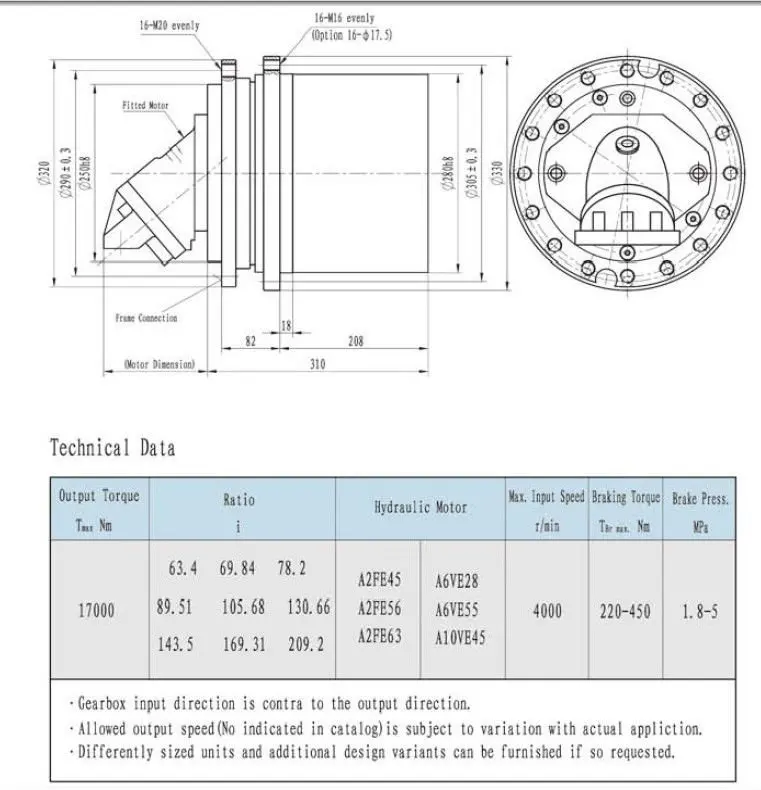

IGT 17 SERIES

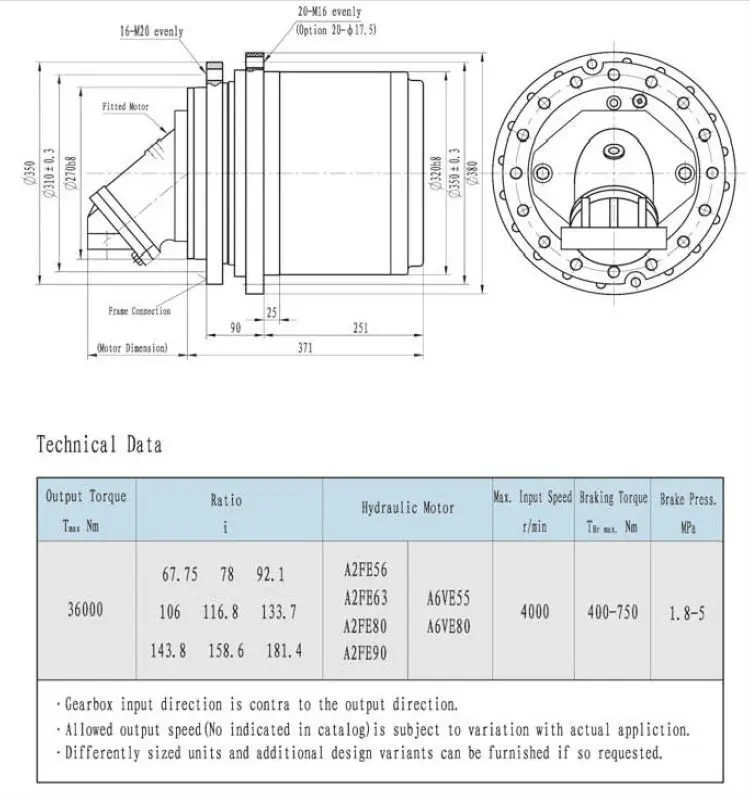

IGT 36 SERIES

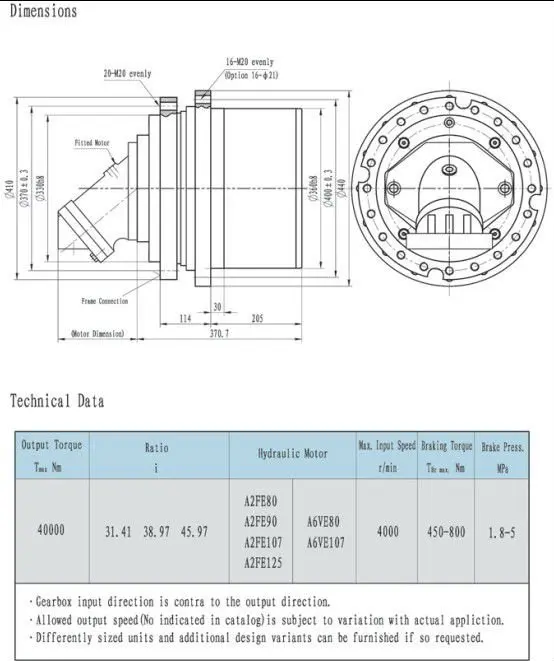

IGT 40 series















•  Company Introduction



240,000 m³, 700 employees, ISO9001:2008 & ISO14001:2004 certified.



Established in 1996, we're one of leading manufacturers in China who are specialized in designing and manufacturing  hydraulic winches, hydraulic motors, hydraulic slewing drives,  planetary gearboxes, travel motors and wheel motors, hydraulic capstans, hydraulic power units, and hydraulic pumps.

With strong research and development capability, we have achieved 14 invention patents and 30 practical innovation patents.
Meanwhile, we have more than 250 sets of advanced production and inspection equipment to ensure the quality of
our products.


Our products have been widely used in Offshore Application, Agriculture Industry, Fishing Equipment, Construction Machinery,
Petroleum Industry, Coal Mining, Geological Prospection, Marine Application, Metallurgical Engineering, Light Industry,
as well as Environmental Protection and other industries.

As a trustworthy manufacturer and supplier, we have a dominating market share in China, and we also enjoy an increasing
market share worldwide.  Our products have been exported to:



-Europe: UK, Austria, Netherlands, Germany, Sweden
-North America: USA, Canada
-South America: Brazil, Argentina
-Russia, Australia,Turkey, Southeast Asia, Middle East, India, Korea and other countries in the world.



•   Factory overview





• Manufacturing Machines



• Inspection Machines





• Certification
