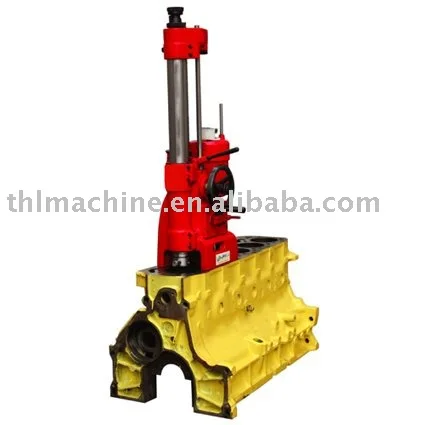

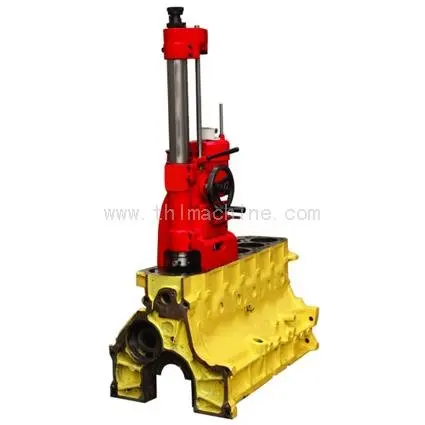

portable cylinder boring machine T8014A/T8016A

Product Overview

Description

This machine is small in size, light in weight, it is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.



Model		T8014A	T8016A
Boring diameter		Φ 65- Φ 140 mm	Φ 80- Φ 165 mm
Max. boring depth		300 mm	400 mm
Spindle speed		250;380 r/min	200;300 r/min
Spindle feed		0.11 mm / r	0.12 mm / r
Spindle rapid reset		636 mm / min	780 mm / min
Motor	Voltage	220/380 V	220/380 V
	Power	0.25/0.37 Kw	0.25/0.37 Kw
	Speed	1440 r/min	1440 r/min
Overall dimensions		320×330×850 mm	360×345×1100 mm
Packing dimensions		540×470×1030 mm	62 Kg
Weight		500×490×1270 mm	85 Kg
