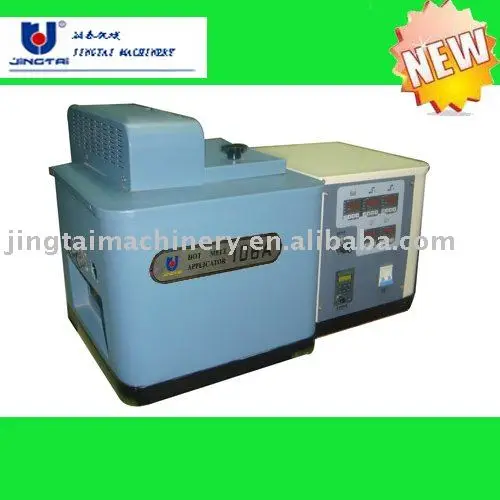

hot melt glue system applicator JT 106AM

Product Overview

Description

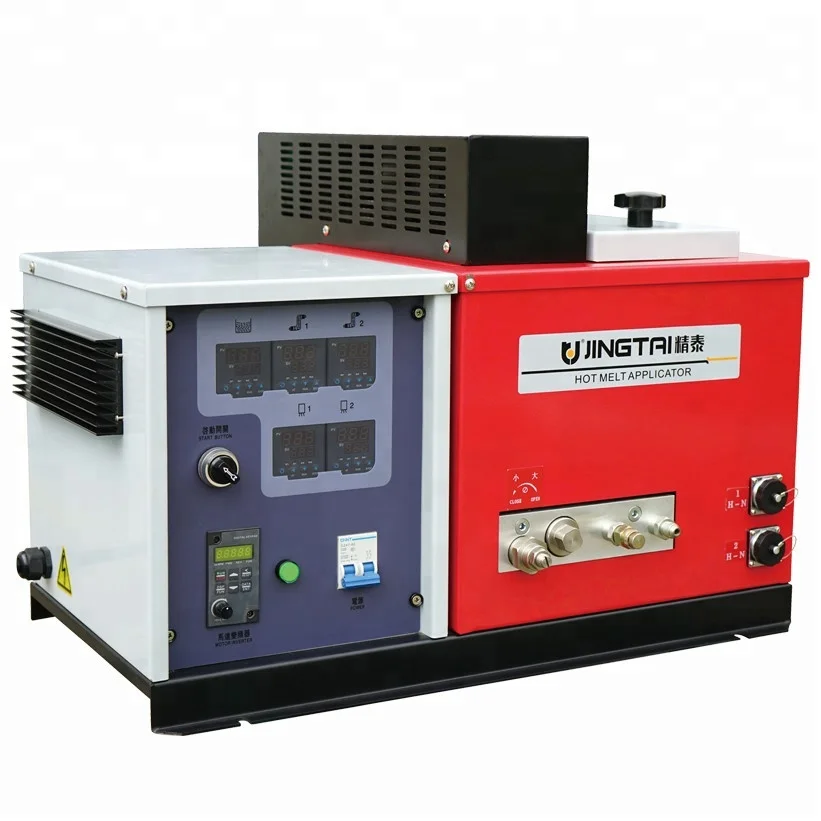

Hot Melt Glue Machine JT-N106AM



hot melt adhesive machine for express envelop sealing,hot melt gluing machine,coating machine,spraying machine

Gluing Method:

1) Mist spraying, strip spraying, spot spraying

2) Automatic spraying, semi-automatic spraying and handed gun spraying are available.



Application:

Health-care, electronics,  Packaging,  Furniture, cosmetic boxes, car lamps, and other industries.



Feature:

1)Soft hoses and additional automatic controller for easy adjustment of spraying height and angle

2) Large area operation can be achieved without moving machine

3) Inverter for accuracy in flow rate control

4) The control door can be easily opened, so equipment and fixing is very easy.

5) This machine equipped with wheels, so it can be moved easily and the wheels can be locked.

6) The face panel is friendly so the operation is easy.



SPECIFICATION

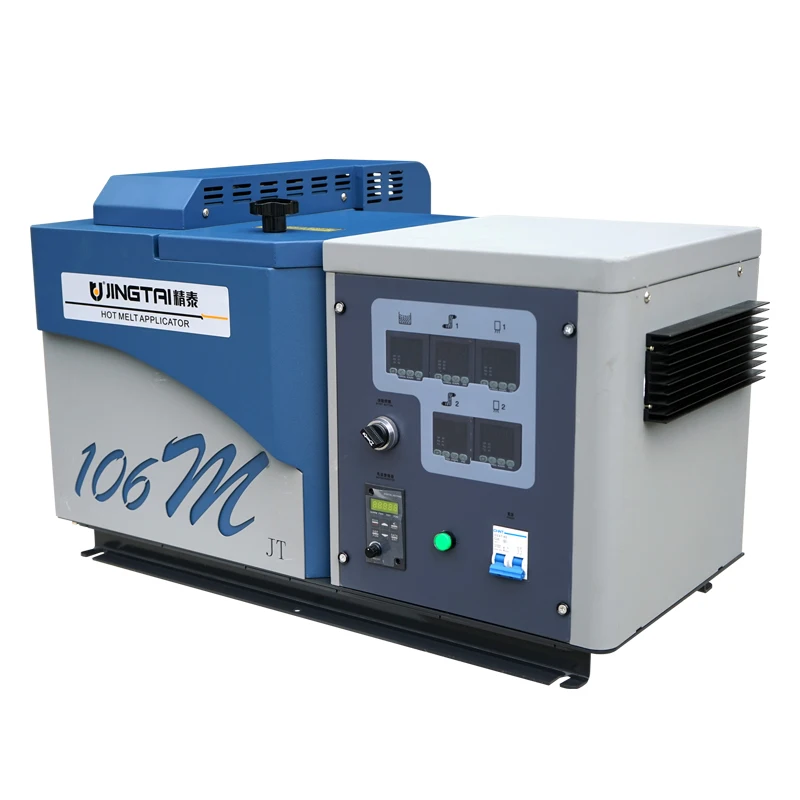

Model	JT106P-4	JT106M-4	JT106AM-2
Tank Capacity	10 L	10 L	10 L
Max. Melting Rate	15 L/Hour	15 L/Hour	15 L/Hour
Max. Operation Temp.	200℃	200℃	200℃
Max. Viscosity	12000 cps	50000 cps	50000 cps
Sets of Hose & Glue Gun	2-4 pcs	2-4 pcs	1-2 pcs
Air Pressure	4-6kg/cm2	4-6kg/cm2	4-6kg/cm2
Machine Power	3960W	4520W	4520W
Pump Type	Pneumatic Pump	Gear Pump	Gear Pump
Machine Weight	66kg	68kg	61kg
Machine Dimension	750*350*600 mm	750*500*450 mm	670*500*470 mm
10Liter HOT MELT GLUE MACHINE(PNEUMATIC/GERA PUMP) -- Jingtai Machinery





We supply the hose and glue guns to you, please contact us and get more information.
