Поднятый сетевой пол OA для офисного здания, конференц зала, гостиницы

Product Overview

Description

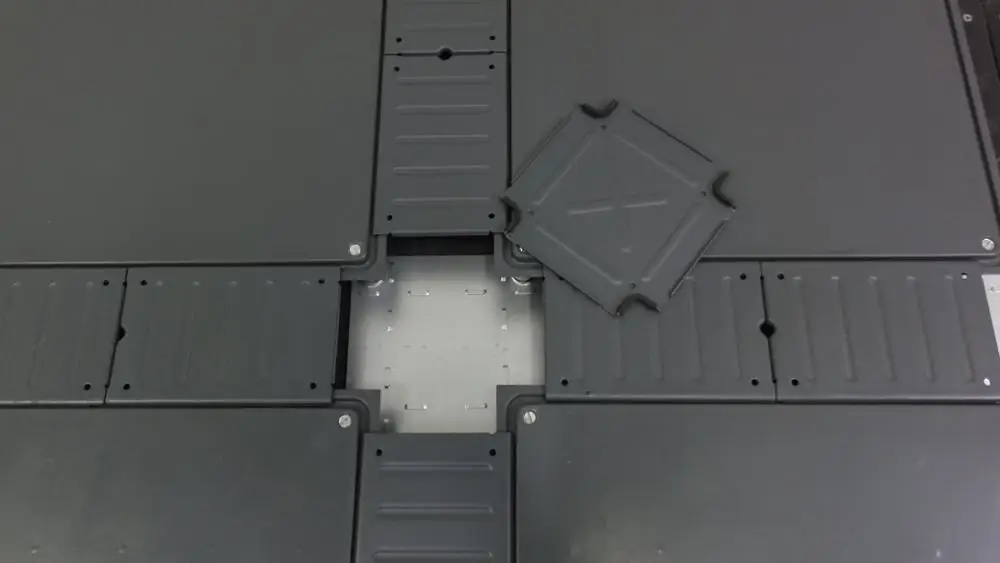

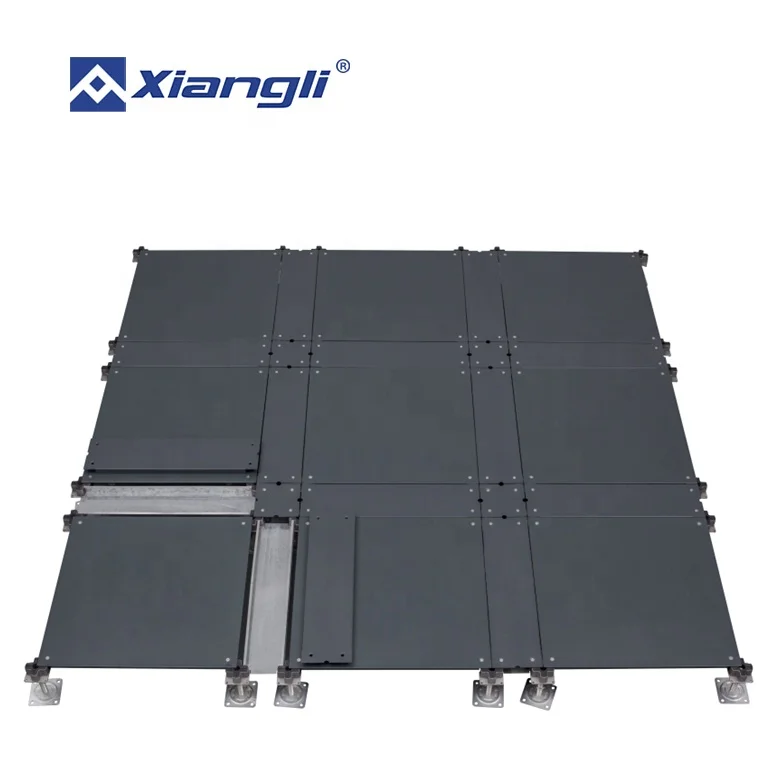

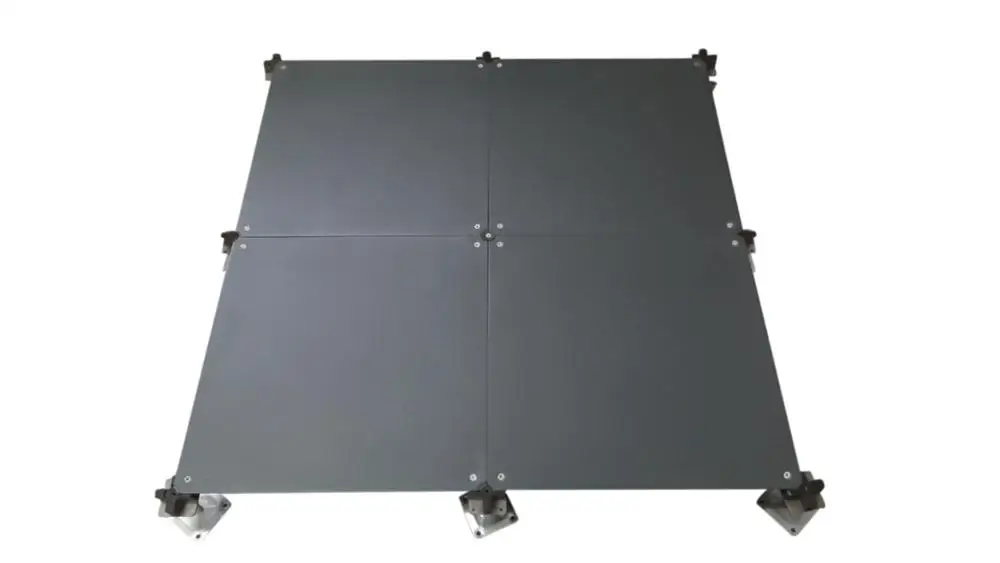

OA Network Access Floor(trunk) for office building,meeting room,hotel

OA Network Access Floor(trunk)

1.        size : 500*500*28mm  /  600*600*35mm

2.        high dimensional precision, newly patent " cross strengthening rib " structure, strong loadability ,more 20% loading than common panel.

3.        Four corner locked, foaming cement infilled .

4.        Lower plane is ST14 stretched plate,surface plane is SPCCID hard steelboth are Shanghai Bao steel

5.        Painted with conductive antistatic epoxy resin, antirust.

6.        adjustable height for pedestalapplied patent ,assembly agility,large wire, good exchangeability

7.        super-low mounting height35mm - 150mm

8.        Outlet mating trunking at will. elegant appearance for paving carpet,comforting.

9.        high recycled,convenient removing,saving cost,long performance life

Type& Technology parameter

Type	Size(mm)	Fireproof	Concentrated load			Impact load(N)	Ultimated load(N)	Uniform load(N/M2)	Rolling load(N)		Remark
			LB	N	KG				10	10000
FS440	500x500x28	A	≥440	≥1960	≥200	≥295	≥5880	≥9720	1958	1566	500
FS662	500x500x28	A	≥662	≥2950	≥301	≥445	≥8850	≥12500	2946	2356
FS800	500x500x28	A	≥800	≥3550	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	500x500x28	A	≥1000	≥4450	≥453	≥670	≥13350	≥23000	4450	2560
FS440	600x600x30	A	≥440	≥1960	≥200	≥295	≥5880	≥9720	1958	1566	600
FS662	600x600x35	A	≥662	≥2950	≥301	≥445	≥8850	≥12500	2946	2356
FS822	600x600x35	A	≥800	≥3550	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x35	A	≥1000	≥4450	≥453	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x35	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
