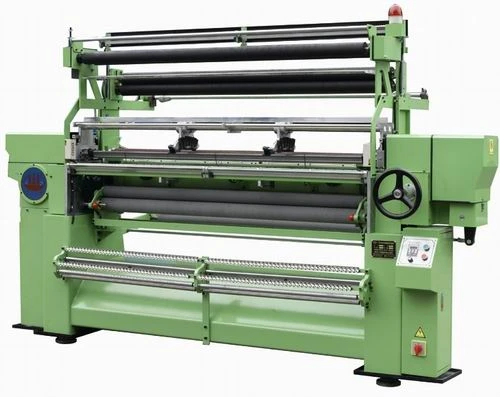

SGD 1700S (emberider the fancy design of fabric)Upholstery fabric crochet machine

Product Overview

Description

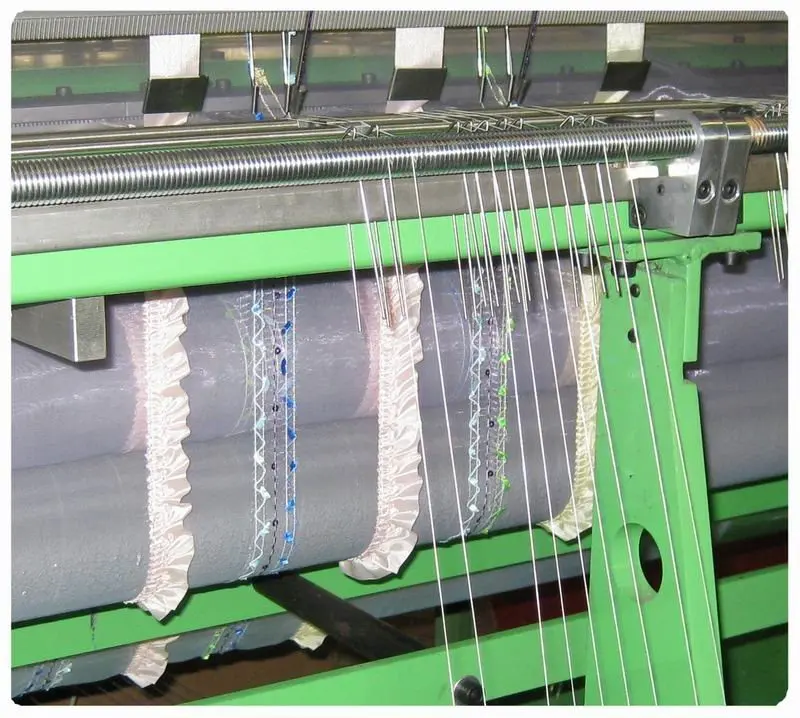

:: SGD-1700S Upholstery fabric crochet machine is used to embroider diverse laces for special Jacquard fabrics,such as window curtain fabric,table & towel fabrics,bedding articles,finished garments and different type laces and is a perfect supporting equipment for the knitting and garment-making industries.This machine boasts a simple operation and easy maintenance.All the different laces are obtained by controlling the weft yarns through diversified arrangements of the pattern chain plates.

Main technology parameters:



::Operational breadth: 762mm (30 inches)

::Gauge needles per inch: 10, 15G

::Weft Bars: 4--6 bars

::Control device: 1 set

::Motor power: 1.5KW

::Finished Product Collecting Roller: 1 set

::Fabric take up Controller: 1 set

::Fabric traversal Device: 1 set

::Bearded Needle(G2): 500 pcs

::Weft Needle Tubes: 500 pcs

::Warp Needle: 500 pcs

::Dropper: 600 pcs

::Link Chain: 1 set

::Tools: 1 set

::Creel For 260 Bobbins: 1 set

::Net Weight of Machine: 1250 kg

::Net Weight of Creel: 235 kg

::Weight of Machine and Crate: 1650 kg

::Weight of Creel and Crate: 320 kg

::Crate of Machine: 3330 x 1270 x 2170 mm
