Product Overview
Description

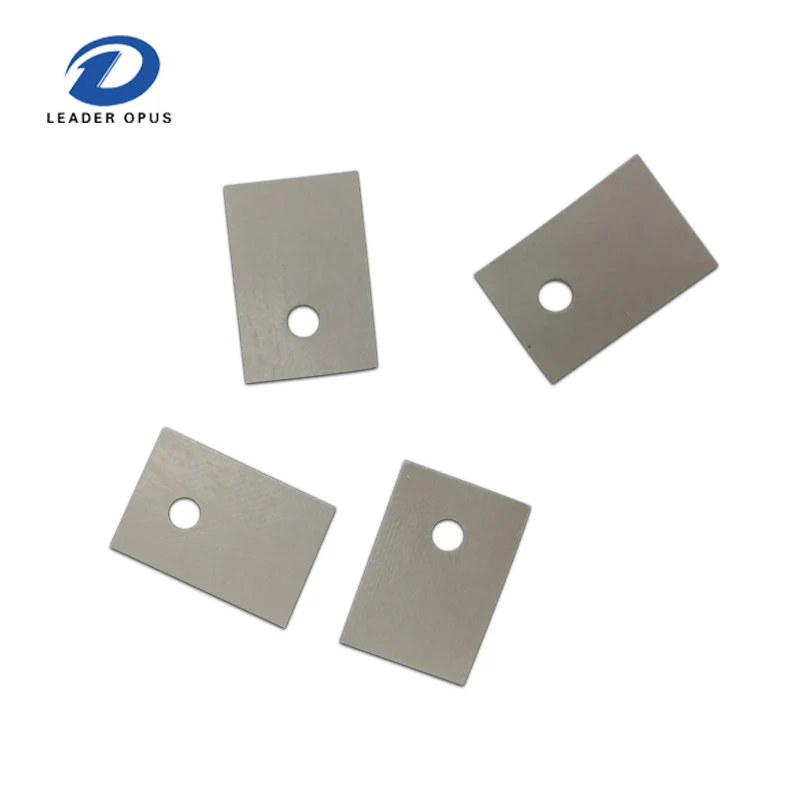

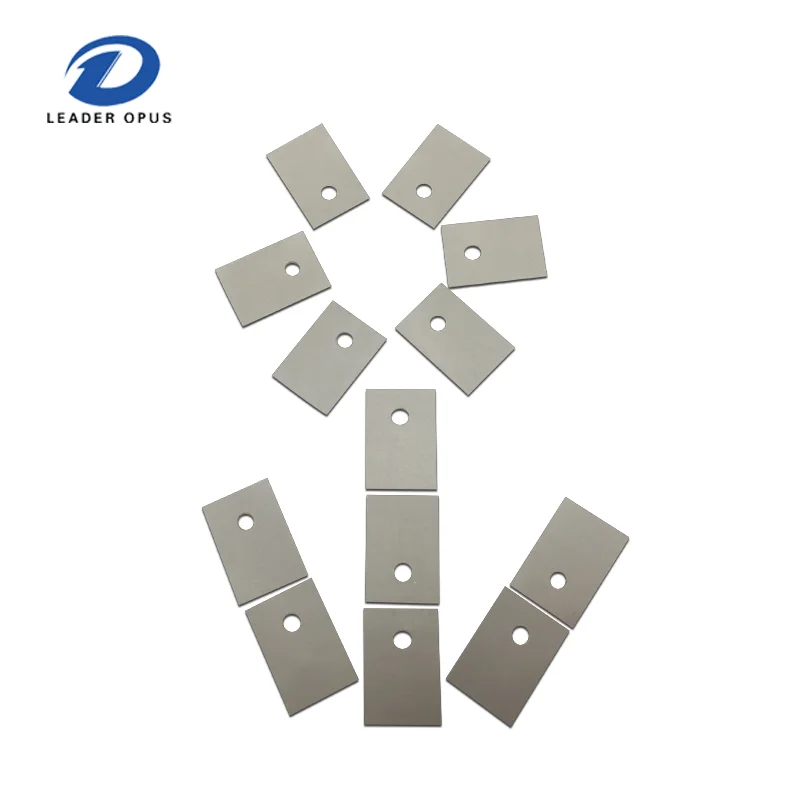

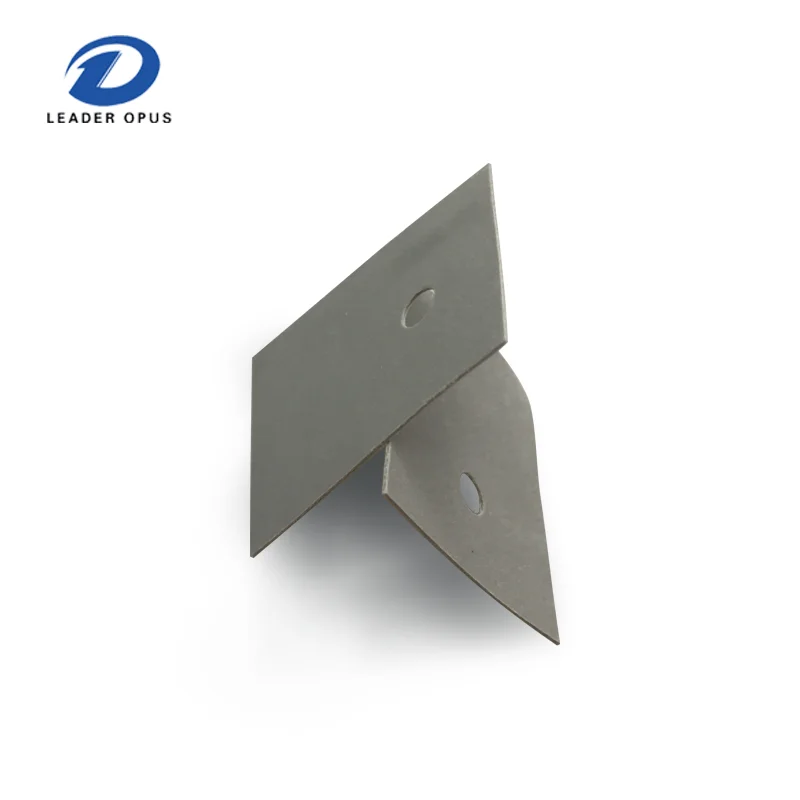

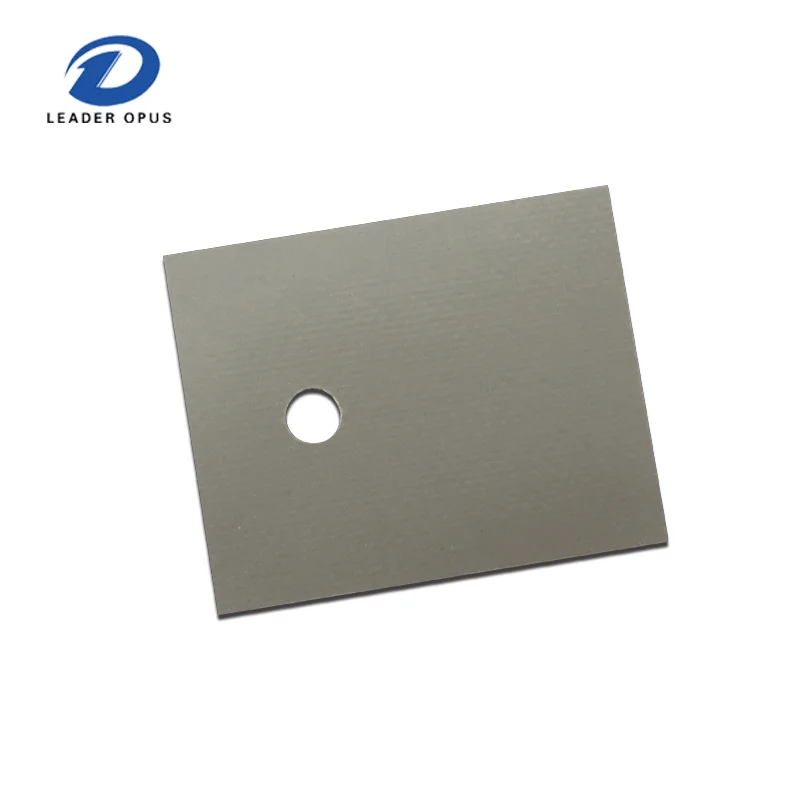

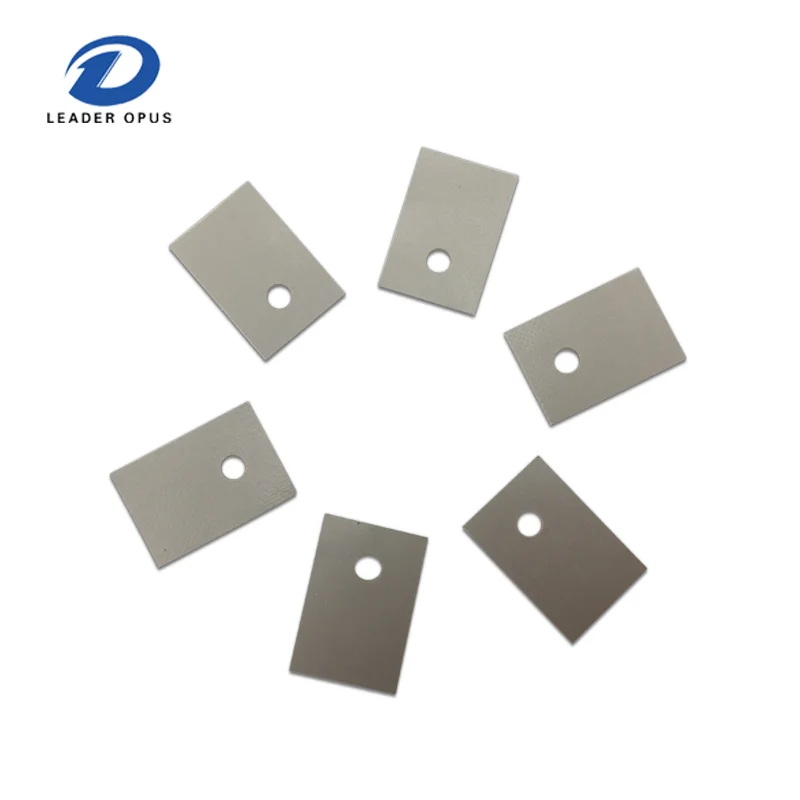

Thermal Conductive Insulator
Features & Benefits:
-Good cut-through property
-High performance insulator and thermal performance
Typical Application:
-Power supply, invertors, transistor, mosfet
-TO-220,TO-3P,TO-3
Configurations:

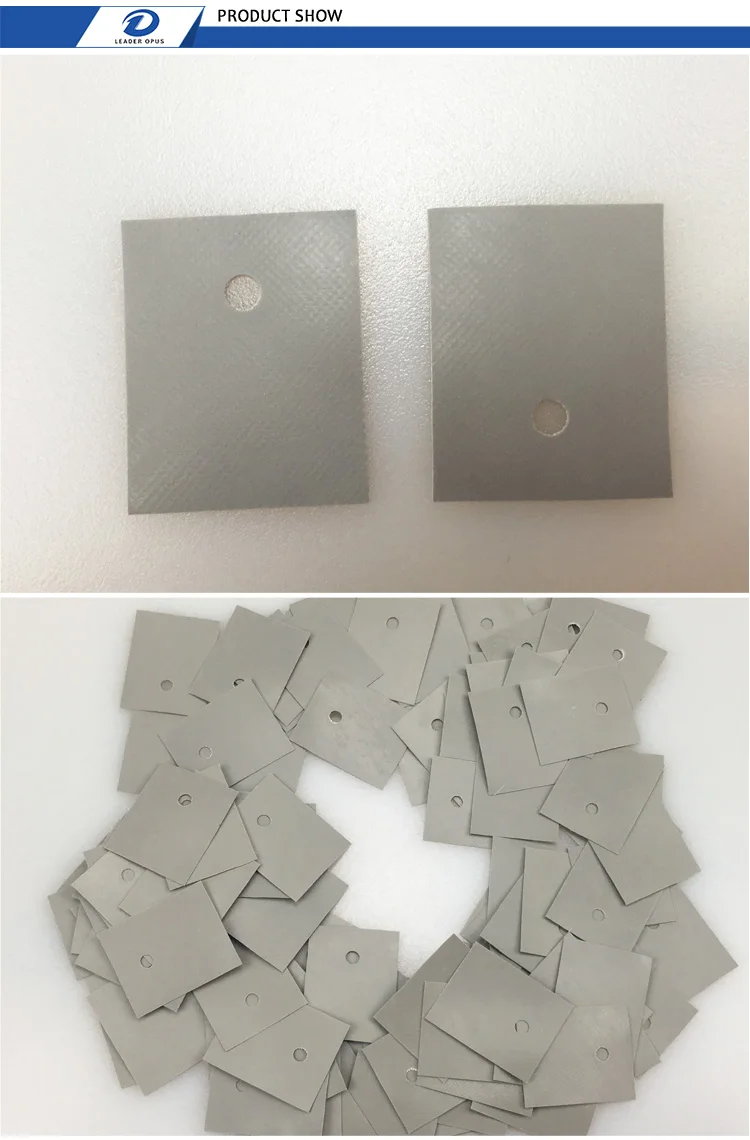

-Sheet form or Roll form and Die-cut parts
Available Thickness:
-0.23, 0.25, 0.3, 0.43, 0.45, 0.85mm
Typical Property of LD8K08 | |||
Property | Value | Test method | |
Material | Fiberglass reinforcement | — — — | |
Color | White Gray | — — — | |
Hardness ( Shore A ) | 75 ± 5° | ASTM D 2240 | |
Specific Gravity | 2.1 | ASTM D 729 | |
Tensile Strength ( Kg/cm2 ) | 230 | ASTM D 412 | |
Elongation ( % ) | 4.5 | ASTM D 412 | |
Continuous Use Temp ( °C ) | –40 °C ~ 200 °C | TGA+DMA | |
Electrical | |||
Volume Resistivity (Ω.cm ) | 1014 | ASTM D 257 | |
Breakdown Voltage ( KV ) | >4 | ASTM D 149 | |
Dielectric Constant (ε) | 60 Hz | 4.3 | ASTM D 150 |
| 1K Hz | 4.3 |
|
| 1M Hz | 4.1 |
|
Dielectric Dissipation | 60 Hz | 8×10-3 | ASTM D 150 |
| 1K Hz | 8×10-3 |
|
Factor (tanδ) | 1M Hz | 7×10-3 |
|
UL-94 | V– 0 | Table I | |
Thermal | |||
Thermal Conductivity | 0.8w/m.k | ASTM D5470 | |
