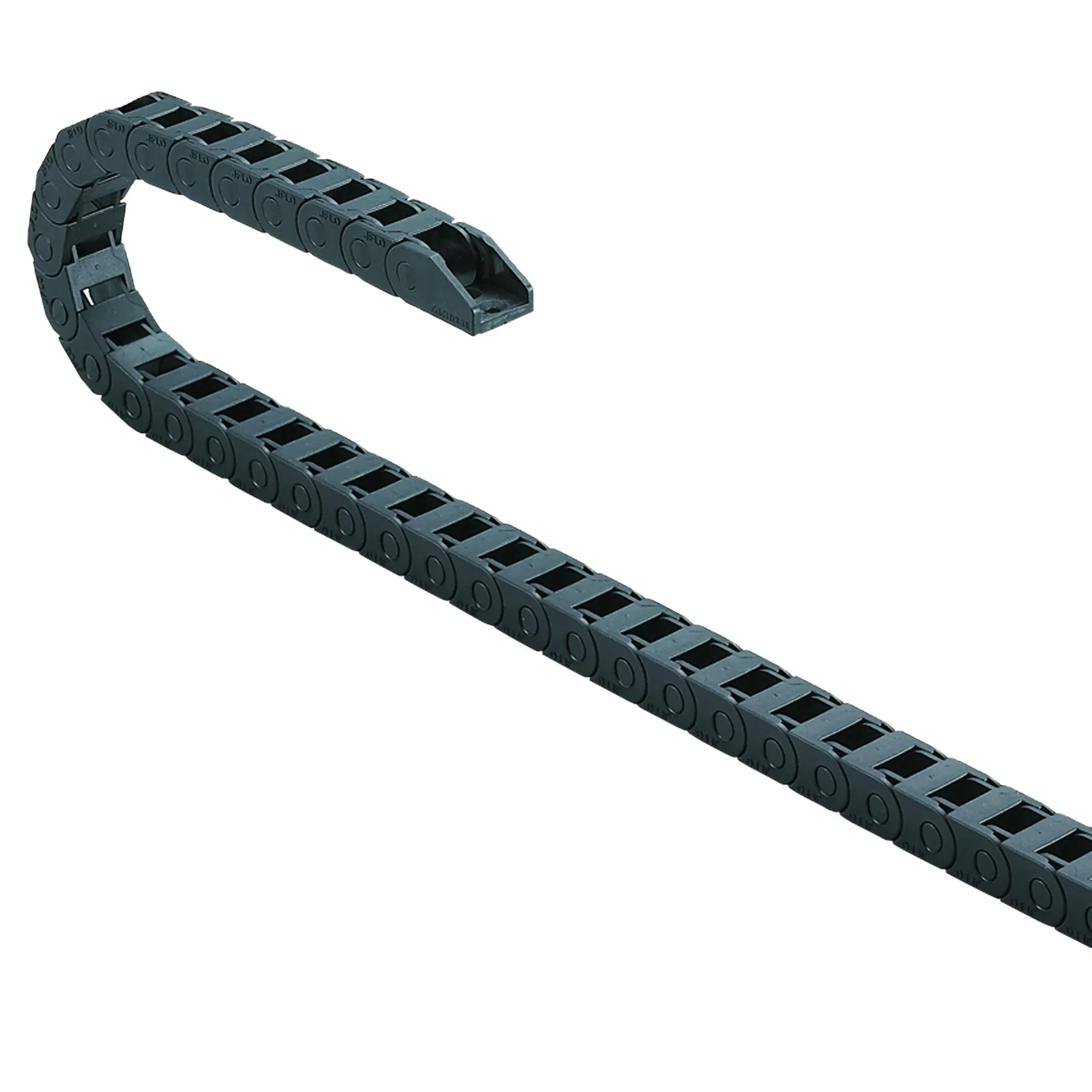

JFLO cable carrier for cnc machine,miniature series cable chain, 10X10 drag chain
JFLO cable carrier for cnc machine,miniature series cable chain, 10X10 drag chain
JFLO cable carrier for cnc machine,miniature series cable chain, 10X10 drag chain
JFLO cable carrier for cnc machine,miniature series cable chain, 10X10 drag chain
JFLO cable carrier for cnc machine,miniature series cable chain, 10X10 drag chain
JFLO cable carrier for cnc machine,miniature series cable chain, 10X10 drag chain

JFLO cable carrier for cnc machine,miniature series cable chain, 10X10 drag chain

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description









P/N#
Hi
Bi
Ha
Ba
Bending Radius
Bracket P/N #
J10Q.1.10B
10
10
14
18
R18 R28
J10Q.1.10B-XJT
J10Q.1.15B
10
15
15
21.5
R18 R28 R39
J10Q.1.15B-XJT
J10Q.1.20B
10
20
15
26.5
R18 R28
J10Q.1.20B-XJT
BASIC TECHNICAL DATA
J10Q.1.10B       PITCH=15MM, PER METER=66 LINKS, LENGTH OF CHAIN=S/2+K, S=Stroke
J10Q.1.15B / J10Q.1.20B    PITCH=20MM, PER METER=50 LINKS, LENGTH OF CHAIN=S/2+K, S=Stroke
Main Body details and Separate Shim( Vertical Shim) Pictures are as below.
The unit price shown are not including bracket or any shims.
If you need further more information about Horizon Shim or others, please feel free to contact with us by mail.








Company Profile












Packing & Warehouse




Recommend Products




FAQ




1. How to select the size of the products?
For the cable drag chain, please inform us the Hi(inner height)*Bi(inner width) and bending radius, and also length is required. Also if possible, please inform us the objects(machines) you are used for, so that we will suggest the most suitable for you.

2. What is the main material of the products?
Our cable drag chain is made by PA66,coolant hose is made by POM( Dupont), and for bellows cover can be made by many different material functionally.

3. How long is your delivery?
Our mainly products are on stock, we can provide 3-7days fast delivery.
