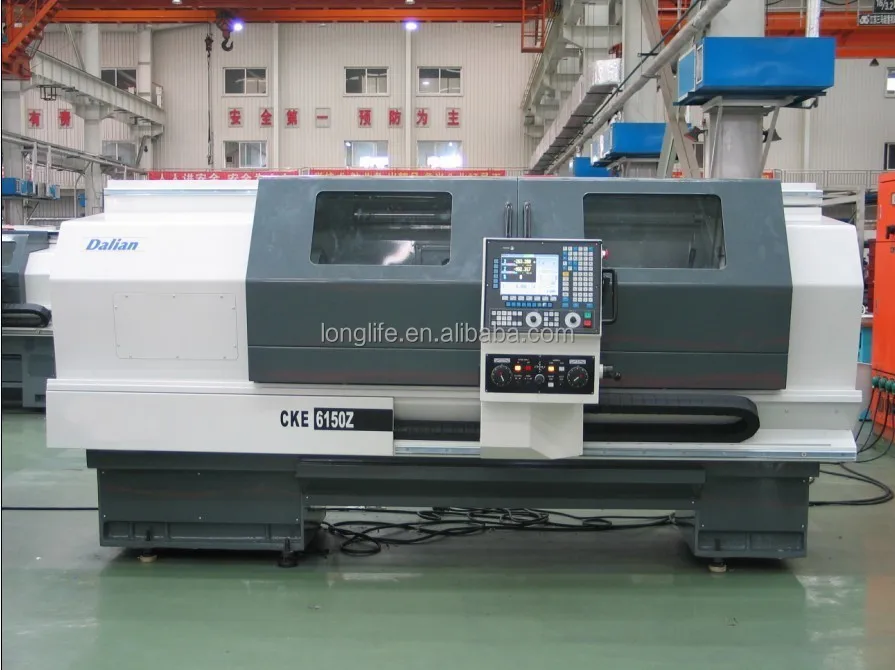

CKE61 Series flat bed cnc lathe machine for sale

 This series cnc lathe machine has following featurers:

• All main components, bed, headstock, saddle, plinth, etc., are high-quality solid castings.


• Low friction Turcite-B coating on mating surfaces between saddle and guideways.


• Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability.


• Centralized oil system provides forced automatic lubrication onto ballscrews and all mating surfaces.


• Choice of two model ranges. The CKE-Z series has automatic headstock gear changing, high spindle speed with wide range, and low noise levels of under 80db.


• The CKE-I series, with independent spindle structure, utilizes a frequency converted spindle motor or servomotor to offer stepless high spindle speeds.


• Operator adjustable control panel enables convenient tool setting.


• Fully enclosed guards with interlock offer a waterproof and chip-free environment.

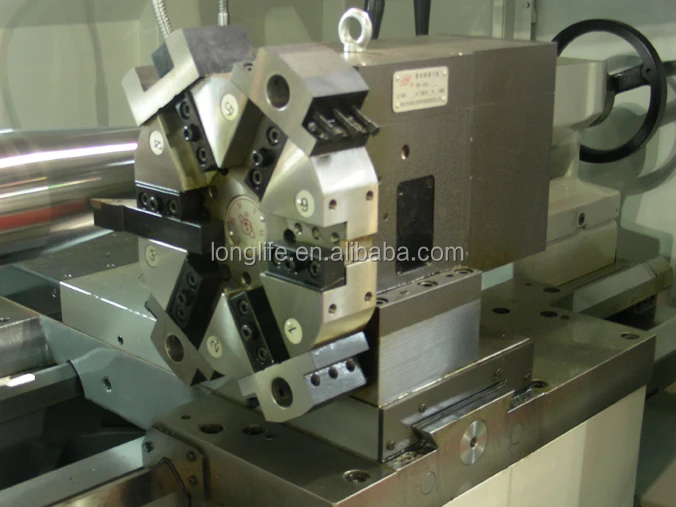

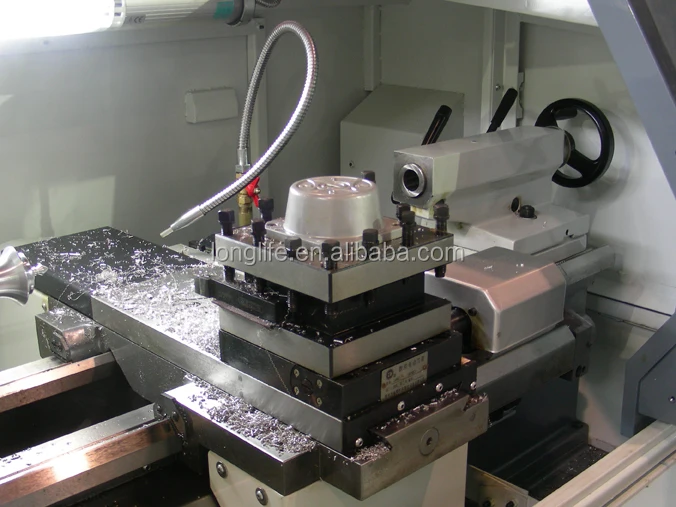

• Horizontal /vertical 4-P automatic tool post is provided as standard, while vertical 4-P indexing tool post, horizontal 6/8-P tool post, quick-change toolpost, etc can also be supplied to suit customers' specific requirements.


• Optional pneumatic or hydraulic chuck and tailstock are available.


• FANUC, SIEMENS, FAGOR, etc control systems can be supplied.


• E-hand wheel function is also available.


• 3 kinds of main motors for your choice:


• 2-speed main motor; varaible-frequency main motor and Servo main motor;
