GCL For waterproof and Impervious

Product Overview

Description

Geosynthetic clay liner(GCL) are an established sealing product in the geoenvironmental industry. They are used in landfill caps and base liner applications under roads, railways, secondary containment for above ground tank farms, as well as within various other containment structures such as dams, canals, ponds, rivers and lakes. They are also used for waterproofing of buildings and other similar structures.

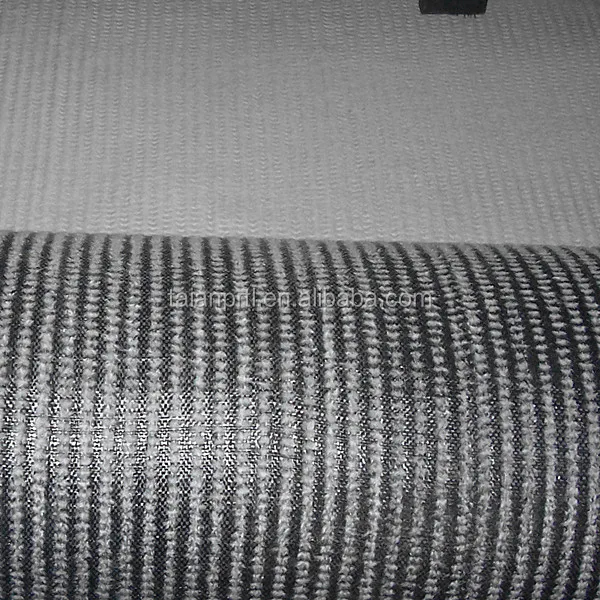

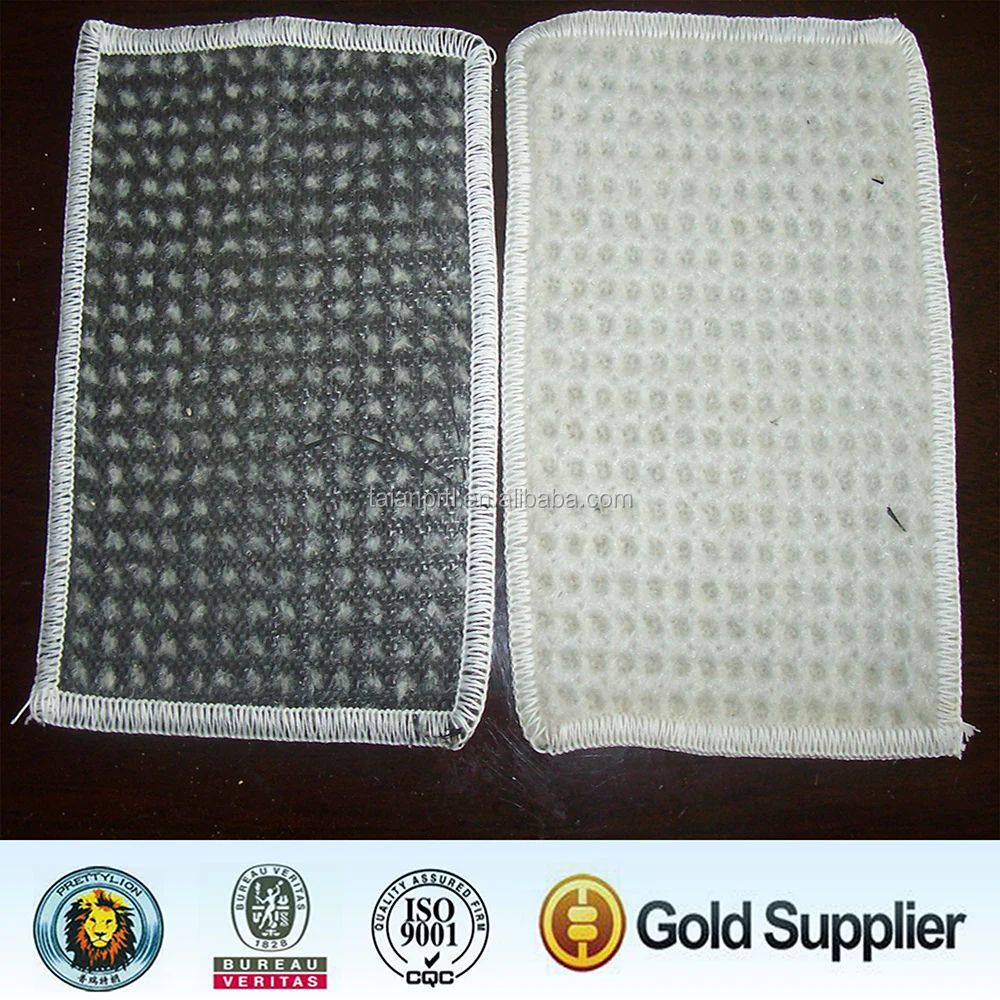

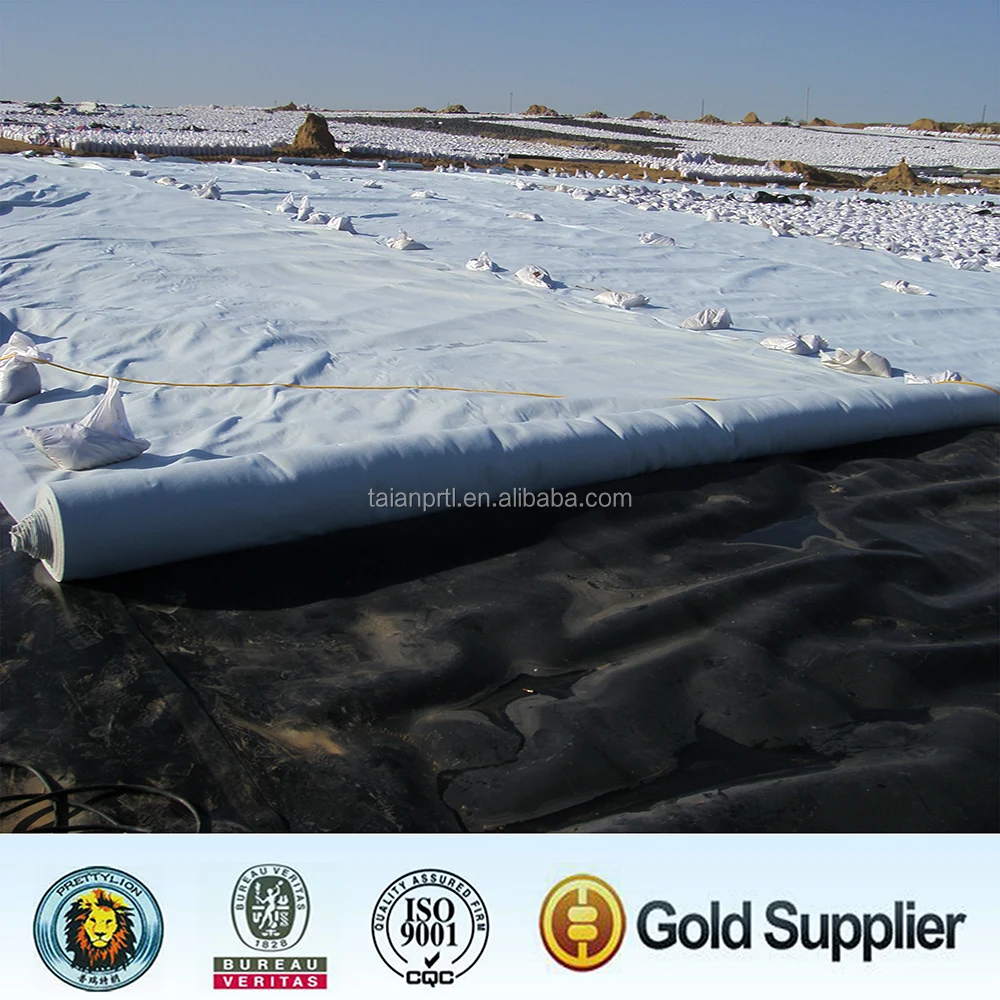

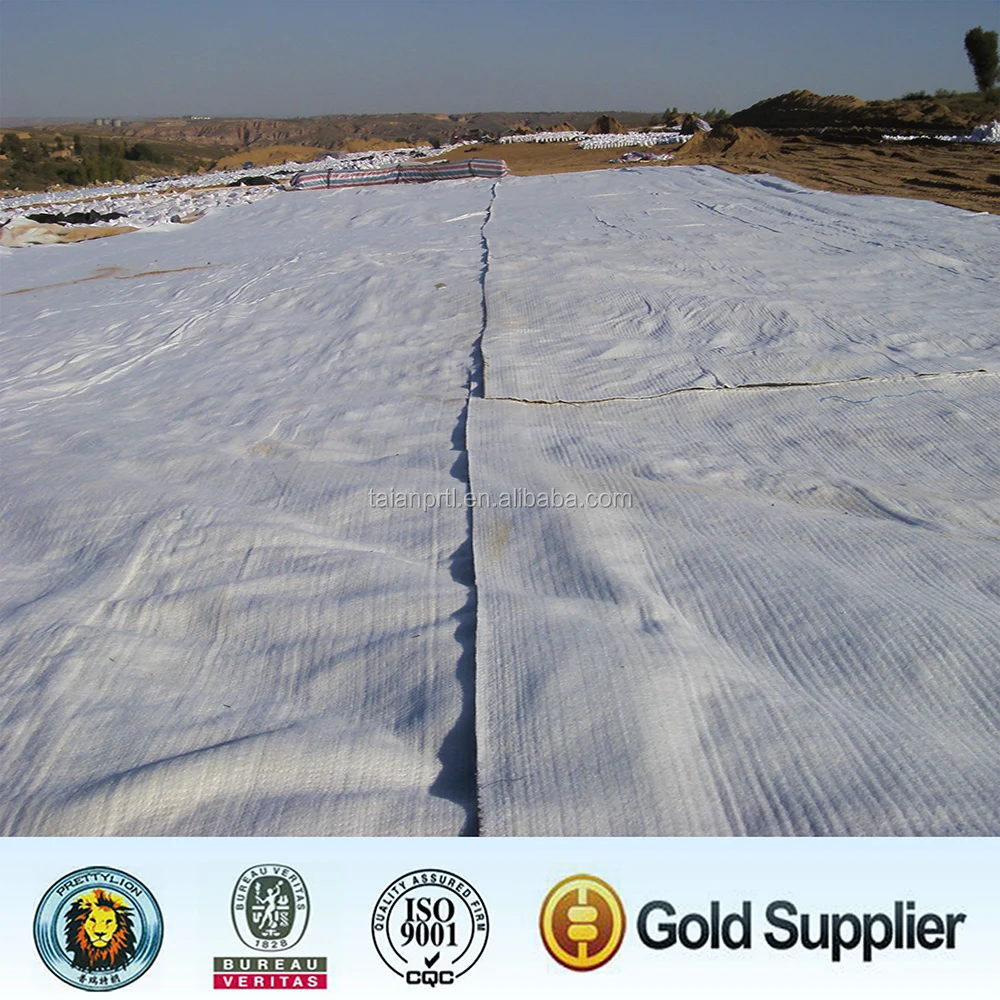

 Rolled out like a carpet to provide a durable impermeable liner, geosynthetic clay liners consist of a layer of high swelling sodium bentonite, sandwiched between two geotextiles. by different techniques, manufactured GCL, taishanshen, is mechanically bonded by needlepunching from one nonwoven geotextile through the bentonite to the other nonwoven or woven geotextile.
Sodium Bentonite is a naturally occurring clay with hundreds of uses. Comprising mainly montmorillonite, a layered clay mineral with broad flat platelets which are ideally shaped to provide a hydraulic barrier. Sodium ions located between these platelets allow water to hydrate the bentonite in an absorption reaction that results in the bentonites swelling characteristics. swells when contacted with water approximately 900% by volume or 700% by weight. When hydrated under confinement, the bentonite swells to form a low permeability clay layer with the equivalent hydraulic protection of several feet of compacted clay.

 This swelling allows the bentonite to seal around penetrations, giving the GCL self sealing characteristics. During hydration, a confined layer of dry bentonite changes into a dense monolithic mass with no observable individual particles. A fully hydrated sodium bentonite layer can have a hydraulic conductivity of approximately one hundred times lower than a typical compacted clay liner (CCL).

Because of their low hydraulic conductivity, GCLs are used mainly as a replacement for thick, difficult to build, compacted clay liners to provide a barrier to liquids and gases.

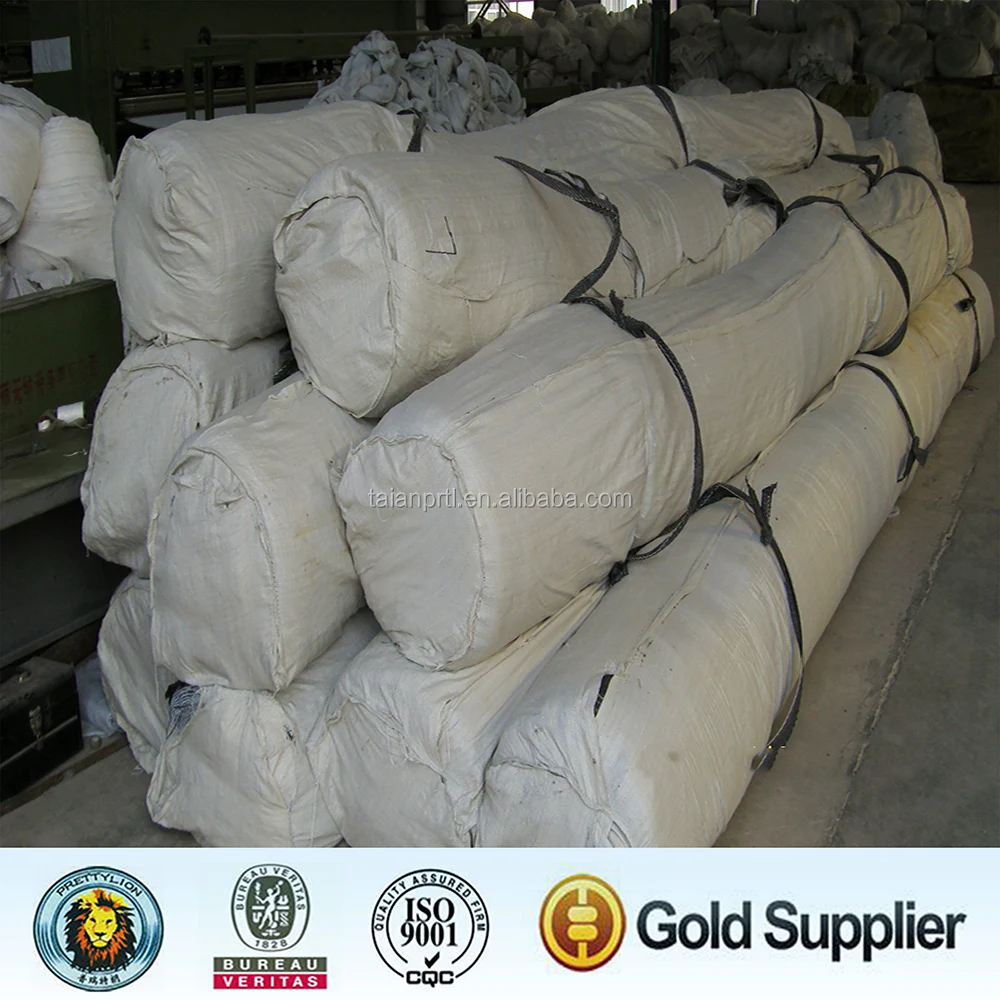

Permathene supply and install a range of GCL's from light to heavy grades. These are high performance environmental liner comprised of geosynthetic carrier components integrated with a layer of low permeability sodium bentonite. The rolls are supplied in wide widths, minimising seams. Installation is fast.



Technical Data

MATERIAL PROPERTY	TEST METHOD	REOUIRED VALUES
Bentonite Swell Index	ASTM D 5890	24mL/2g min
Bentonite Fiuid Loss	ASTM D 5891	18mL max
Bentonite Mass/Area2	ASTM D 5993	3.6kg/m2 min
GCL Grab Strength	ASTM D 4632	400N marv
GCL Peel Strength	ASTM D 4632	65N min
GCL Index Flux	ASTM D 5887	1×10-8m3/m2/sec max
GCL Permeability	ASTM D 5887	5×10-9cm/sec max
GCL Hydrated Internal Shear Strength	ASTM D 5321	24kPa typical typical
