Fully Automatic Electric Resistence Welder Machinery

Product Overview

Description

 fully automatic electric resistence welder machinery

detail

1.Screen-touch operation system, malfunction self-examine and display, completed automatic operation and runing status monitor

2.Assembled with new high frequency counter current power, welding current is easily adjustable, freqiency is continuous adjustable

3.All electrical unit is digital operated, tha main parts is purchased from "Mitsubishi" "Omron" "SMC" to ensure the high performance.

4.The device equiped with PLC high-speed operation system, siplily input the data for the can, the synchro speed function will start automatically. All can's data will be saved for next operation. Closed loop monitor wire speed

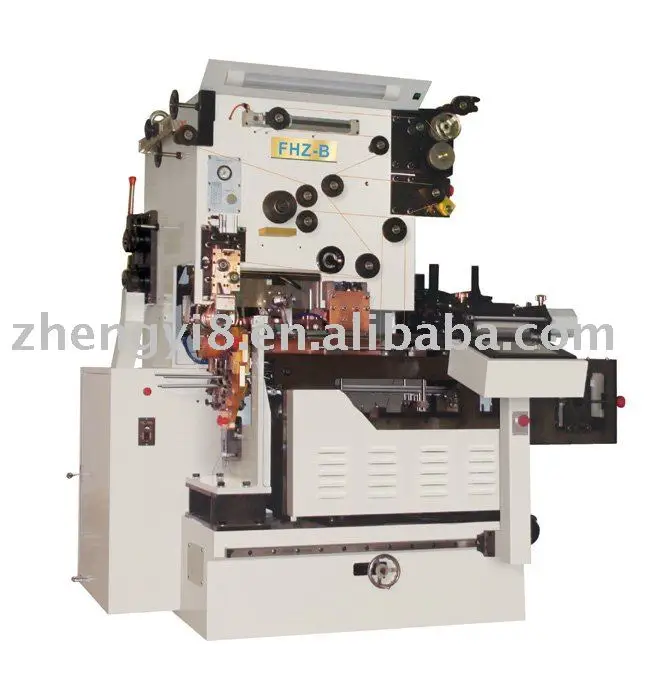

Model	FHZ-B
Applicable can diameter	Φ98-180mm
Applicable can height	H100-265mm
Production capability	60-100cans/min
Seam welding landing	0.4mm 0.6mm
Linear rate of welding	6-24m/min
Sealing point distance	0.5-0.9mm
Material	Tinplate Ni plate
Sheet thickness	0.16-0.3mm
Sheet hardness	T2-DR8
Copper diameter	Φ1.38mm, Φ 1.5mm
Cooling water	0.4 Mpa 12-18°C 20L/min
Compressed air	0.5 Mpa
Volume of compressed air	800L/min
Coating capacity	6-30m/min
Coating manner	by rotaing wheel (Automatic glue-feeding)
Coating width	10-14mm
Drying capability	6-30m/min
Drying manner	Drying by electric heating
Size of seam welder	1730×1695×1920mm
Sizoof intemal and extemal coating	2100×650×1300mm
Size of drier	9600×680×1460mm
Input power three-phase	AC380V 50Hz
Total power of the producing line	50KVA
Total weige of machine set	4600Kg

Our major component suppliers:

1. Pneumatic elements are purchased from Japanese “SMC”

2. Hydraulic elements are purchased from Taiwan precision brand

3. Electronic control devices are purchased from “Schneider”, “Omron” and some domestic suppliers

4. Worktable surface is produced by #304 stainless steel gold plated

5. Machine surface paint is purchased from “NAVECO” car paint
