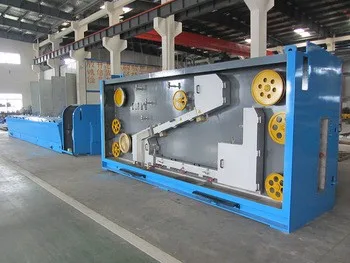

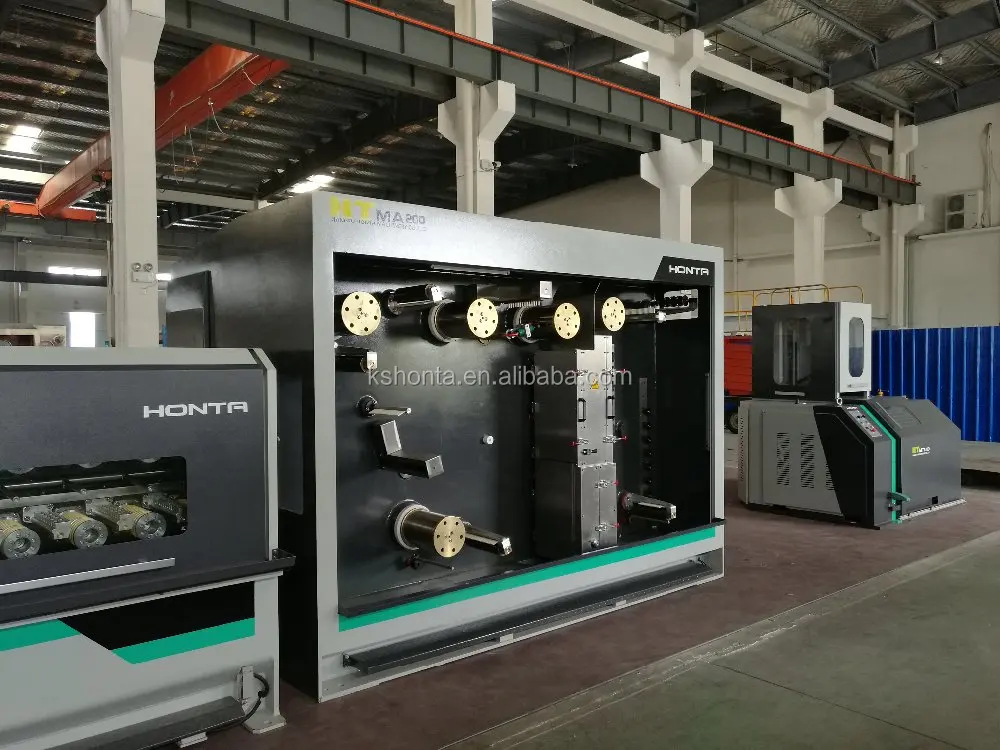

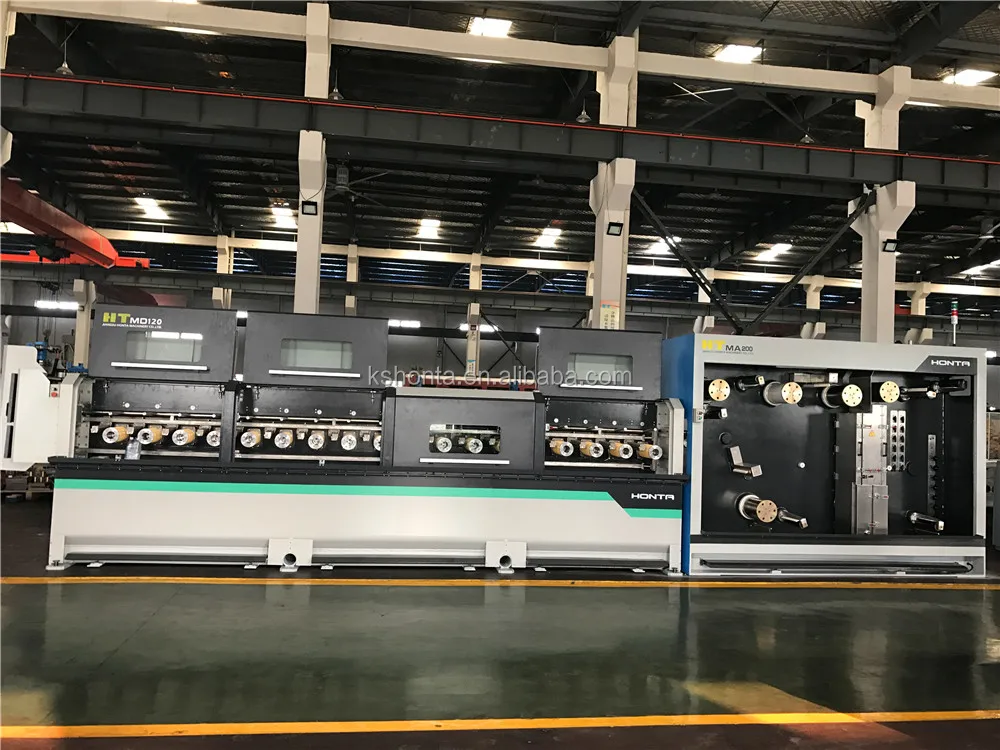

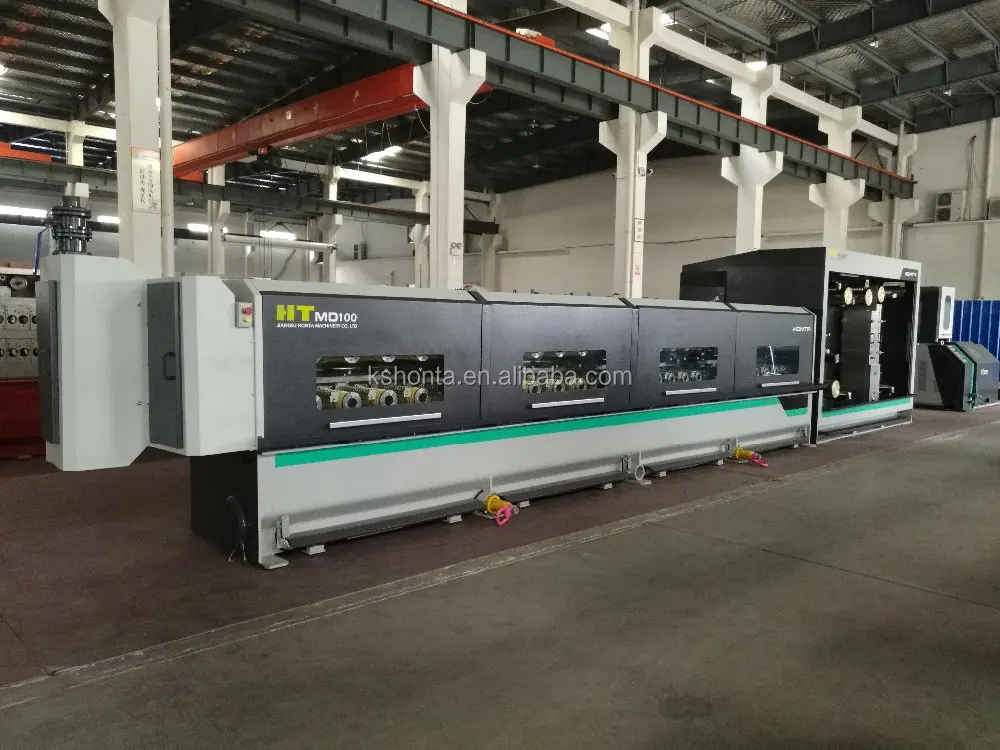

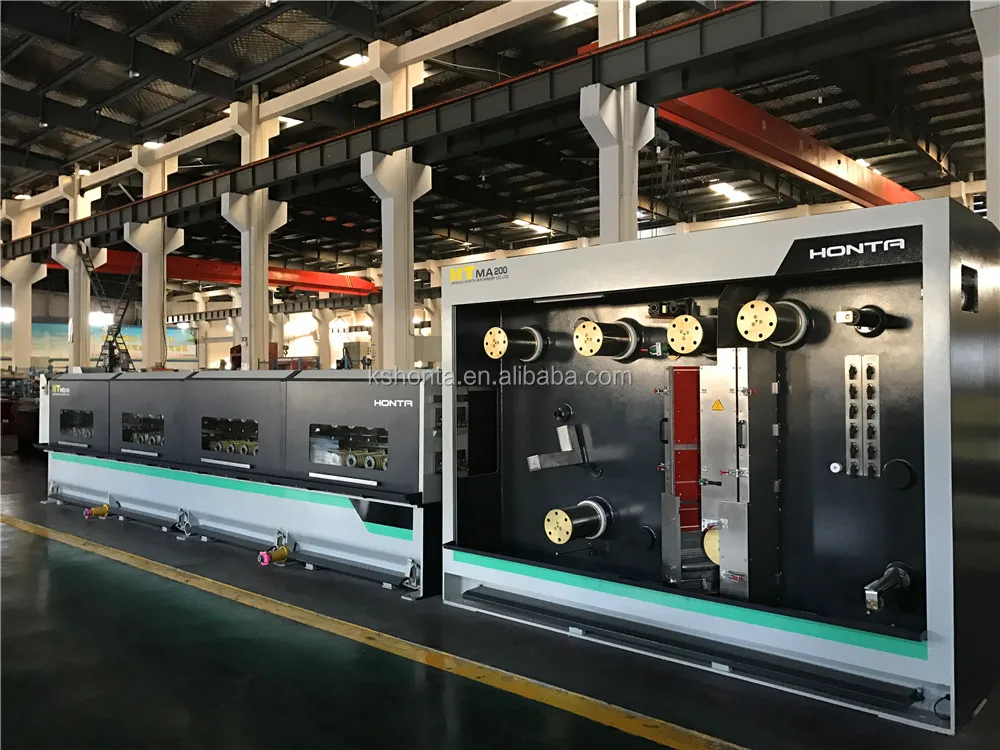

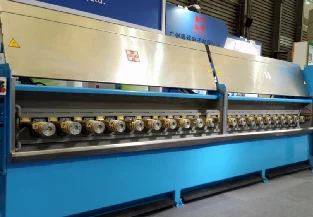

8 wire drawing machine / copper wire drawing machine
- Category: >>>
- Supplier: Kunshan City Hongtai Machinery & Electric Equipment Co. Ltd.
Share on (359680854):
Product Overview
Description
8-wire drawing machine / copper wire drawing machine, main technical specification:
Inlet diameter(tensile strength) | : Max. 1.80mm (250N/mm2) for finish 0.40mm |
Outlet diameter | : Φ 0.15 - Φ0.40mm |
Number of produced wires | : 8 X copper bare i.e. copper tinned (1 Levels, with 8 wires) |
Drawing speed | : Max. 28 m/s |
Drawing passes | : Max. 22 |
Drawing rings | : 100mm with 8 grooves, For separate and parallel wire guidance Material: tungsten carbide or zirconium oxide |
Wire elongation | :11 x 25% / 5 x 19.44 % /3 x 9.04% three quick die change adjustable |
Drawing dies | : φ max. 28mm alternatively φ = max. 25.4 mm max. 12 mm thickness |
Compressed air supply | : 6 bar overpressure (7 x 105 Pa), water- and oil free |
Bobbin | : DIN 630 ( Drawing will be provided by users) |
Operation direction | : from left to right |
Noise level | :< 85 dbA (Except for main motor ) |
Production efficiency | : 8 X φ 0.150mm at v = 28.0m/s 8 X φ 0.203 mm at v = 25.0m/s 8 X φ 0.250 mm at v = 23.0m/s 8 X φ 0.300 mm at v = 15.0m/s 8 X φ 0.400mm at v = 12.0m/s Production efficiency for tinned wires at production speeds reduced by about 20%. |
Product Description

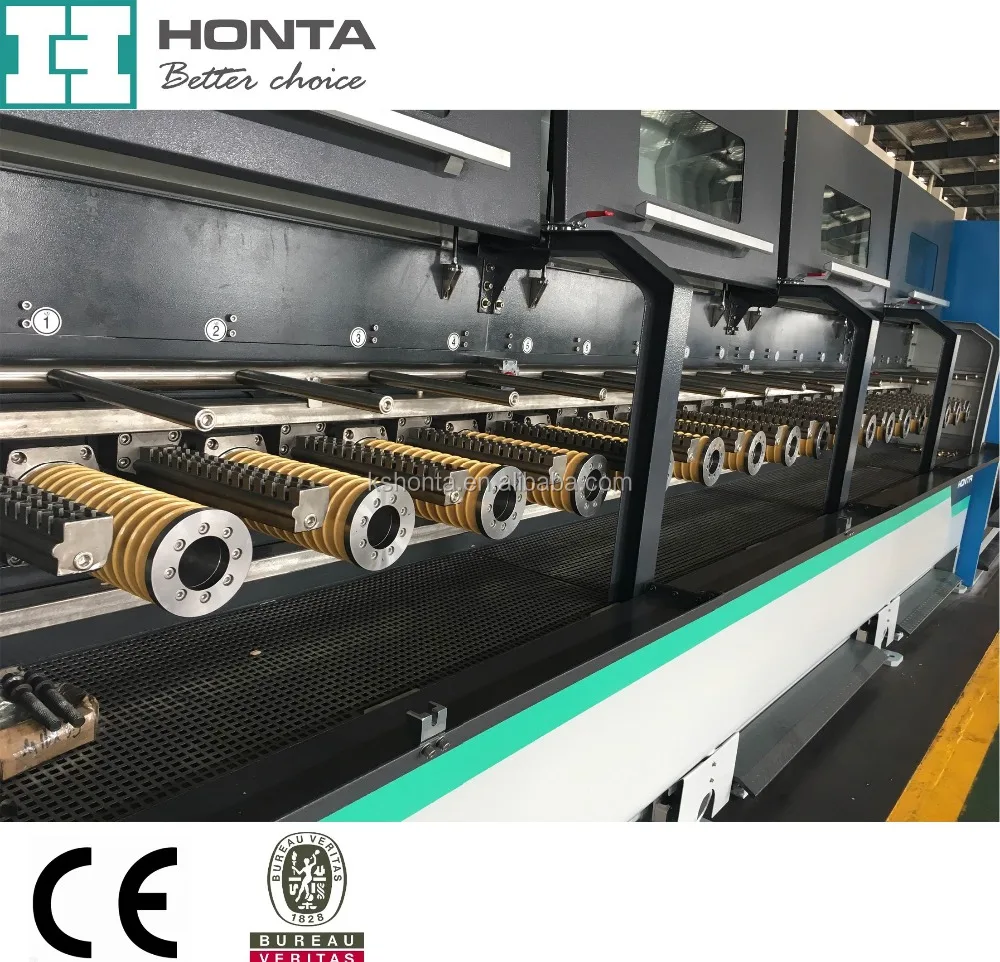

Features of multi wire drawing machines:
- Driven by high precise helical gears; particular oil lubrication mechanism; dual motors drive;
- The capstan and die lubrication system is in emulsion spraying with force from inside of die holders design; In this way, the lubrication is more sufficient and it save space, moreover, it makes operation more convenient;
- Annealing contact copper rings, nickel tubes are made from special alloy; it can ensure a longer service life;
- The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop;
- A special mechanism is designed to meet requirements of drawing bare copper wires, tinned copper wires and silver plated copper wires.
Products description

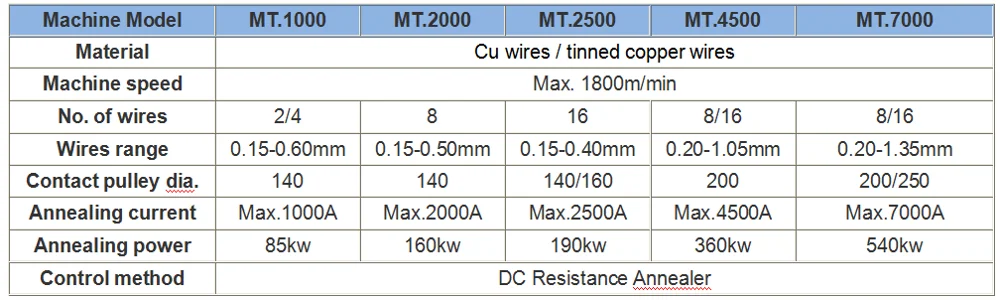

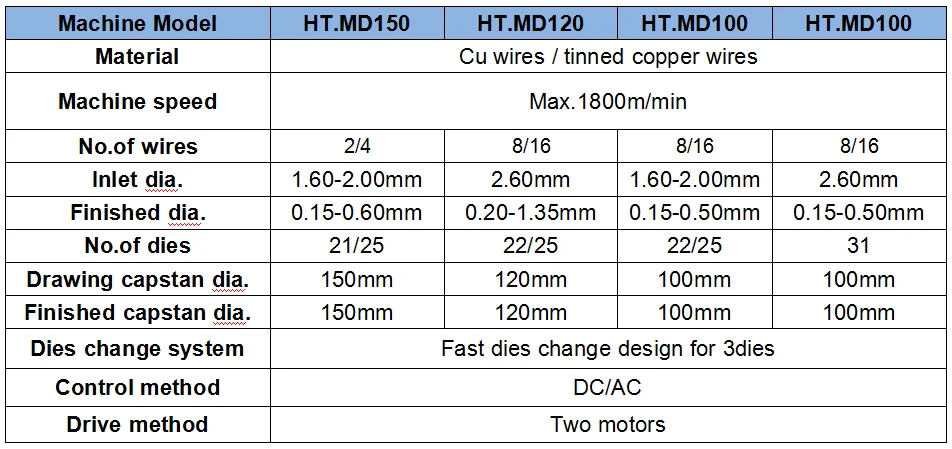

Technical specification of multiwire drawing machine:

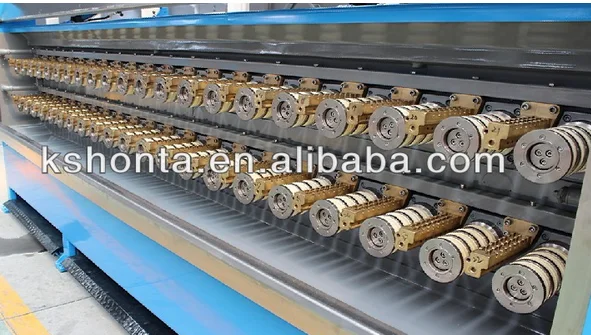

Continuous Annealer of multiwire drawing machine:
Packaging & Shipping
Well packed on steel pallets in containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Company Information

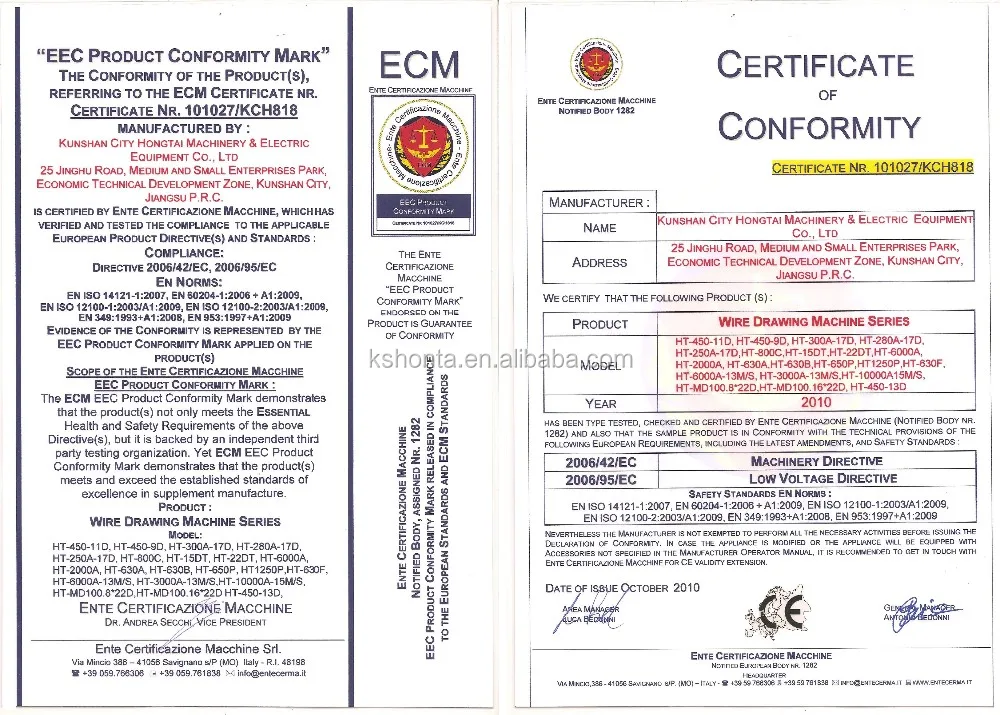

Certifications

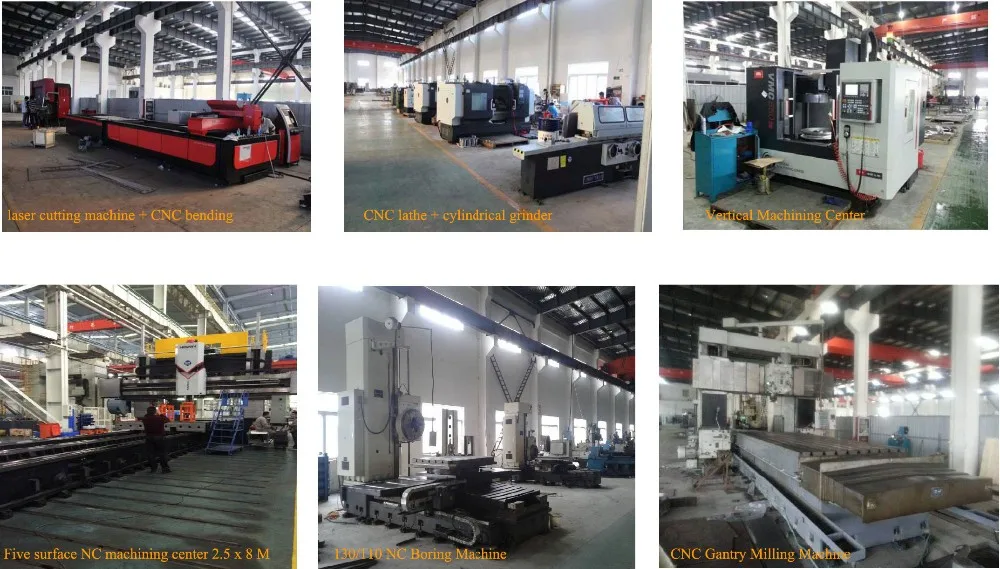

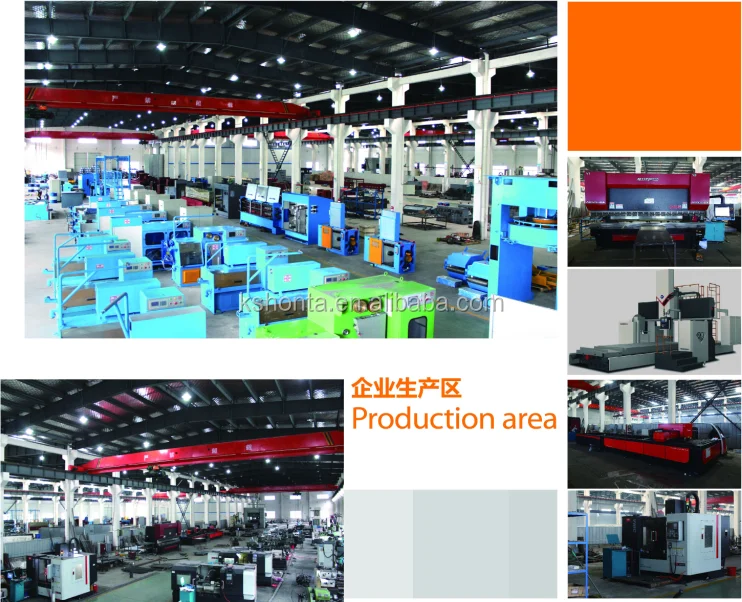

Machining Strength
