Electro Fusion Welding Machine

Product Overview

Description

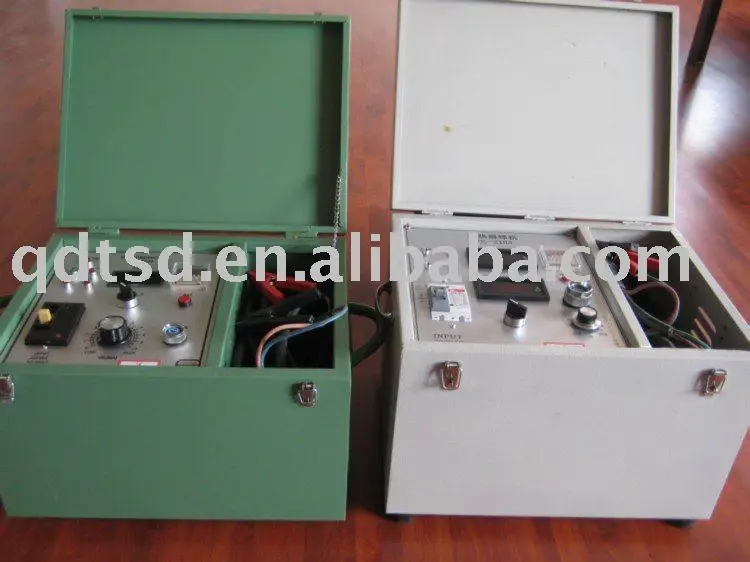

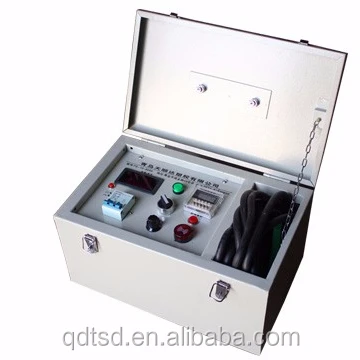

TSD-D Electro Fusion Welding Machine:



This welder is used to weld PE electric hot melt wrapper under the electricity which makes the embessed fusion net of wrapper heat until it melt. The wrapper and Pe jacket would weld together when temperature is low.



Features & Benefits:

• High effeciancy. Size is small; Weight is light(4kg/set), so easy to move.


• Long-life usage. Have Fixed the two fans to enfast the heat away quickly.


• High welding quality. Temperature and electric current is self-controlled, and intergreted circuit.


• Enjoy highly reliable safety. Double-circuit warning model between current and voltage.

Dia. (mm)	Current (A)	Welding Time (Minute)	Type
DN500	7-9	9-10	PE-10-6000
DN600	8-10	8~10
DN700	9-11	9-11
DN800	10-12	11~13
DN900	11-13	11~13
DN1000	12-14	12~14
DN1100	12-14	12~14
DN1200	13-15	13~15
DN1300	13-15	13~15
DN1400	14-16	14~16
DN1500	14-16	14~16
DN1600	15-17	15~17
DN1800	16-18	16~18
DN2000	17-20	17~19
DN2200	18-22	18~22
DN2400	24-27	24~27
