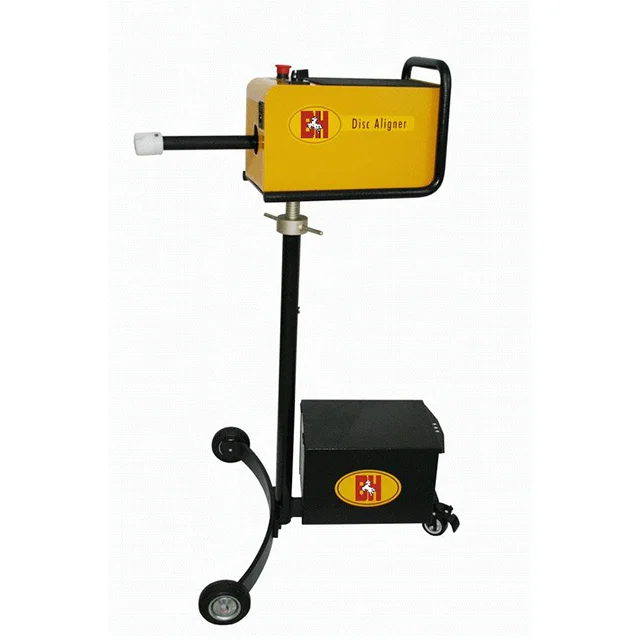

BH 202 Multi function disk brake lathe

Product Overview

Description

BL-202 is attached directly on vehicles for resurfacing.
The existing model is upgraded and remodeled from customer-oriented perspectives to enable easier and safer car brake disc resurfacing.
Resurfacing articularly improves the performance of brake disc and shortens the braking distance to guarantee safer operations.
Try operation it on various vehicle types.

Separated resurfacing that is easy and safe to use.You can resurface the disk using separated type brake-lathe. In case of the disk that is easy to detach, you may resurfacing after detaching it from vehicle. It can resurface more disks than when you do that with vehicle-mounted type during the same period



Separated - Type Operation State for On-car Brake Lathe.   Standard parts for On Car Brake Disc Lathe



TECHNICAL PARAMETER

Disc Lathe:
Maximum brake disc thickness	40mm
Adjustment knob accuracy	0.005mm
Feed rate	8.5mm/min
Electrical specifications	220V / 110V
Net weight	6.5kg



Drive Unit
Working height min / max	1 / 1.25m
Drive speed	98rpm
Electrical specifications	220V / 110V
Weight	45kg
Ambient temperature range	-5°C to 35°C
Year of construction: show on information plate
Turning accuracy	≤ 0.005mm
Brake disc run out	≤ 0.005mm
Brake disc thickness variation	0.005 – 0.01mm
Brake disc surface roughness	Ra 1.5 – 2.0um
