CE Building / Shower room glass flat bent tempering furnace machine

Product Overview

Description

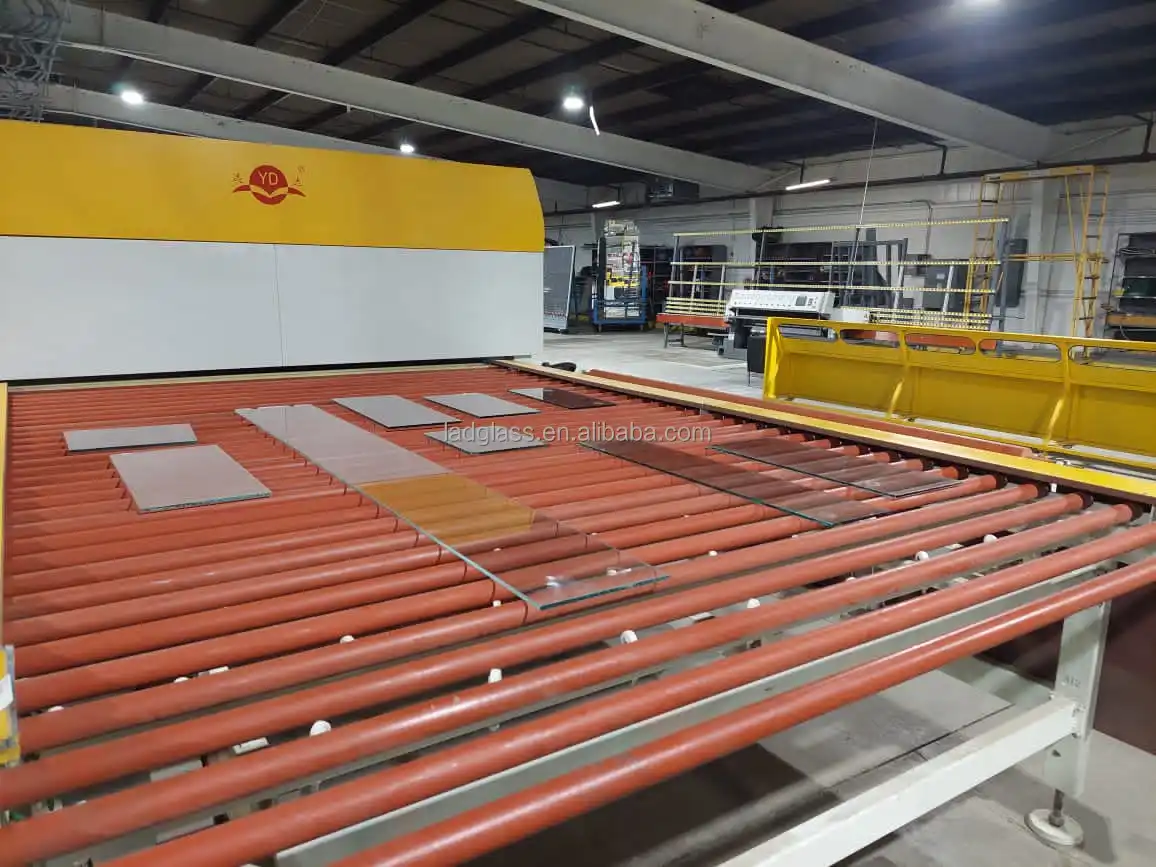

CE Building / Shower room glass flat bent tempering furnace machine



The furnace can be used for glass door, household applicants, furniture. It is small and has less power requirement.





Household applicance

Architechures & furnitures











Technical date YD-FBH-2010
Parameters (Flat glass)	Max.Glass size	2000x3600mm (4-19mm)
	Min.Glass size	100x280mm
	Glass thickness	5-19mm
	Output (5mm glass)	15 lots/hour

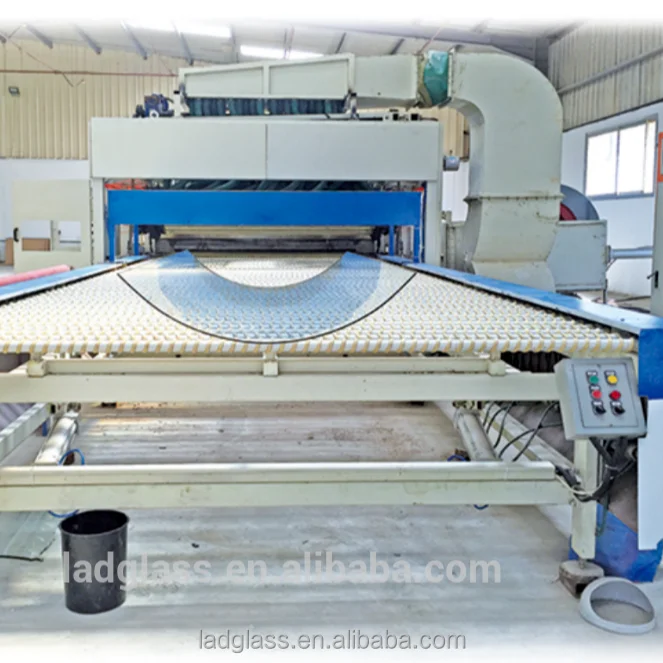

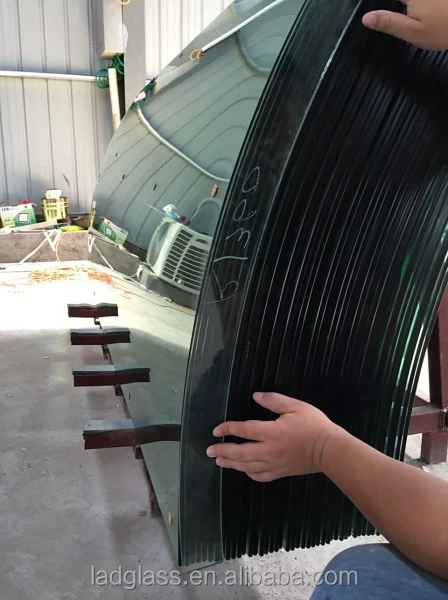

Parameters (Bent glass)	Max.Glass size	2000x1000mm
	Min.Glass size	550x450mm
	Glass thickness	5-19mm
	Min radius	500mm
	Output (5mm glass)	15-28 lots/hour
Power	Heating	446KW
	Fan	160KW
	Others	12KW
	Total	604KW



Glass type

Transparent float glass or flat glass

Mass color float glass or flat glass

Single side printed glass

On line low-e glass

Off line low-e glass (convection type furnace)





1. Easy and human friend control system.

The machine use Beckhoff control system with very intelligent and easy operation page. All parameter can be set on screen page;

For each type of glass, the operator can save the relating parameter as a formular, save it into the computer. Can select and use it for next production.

2. Energy saving.

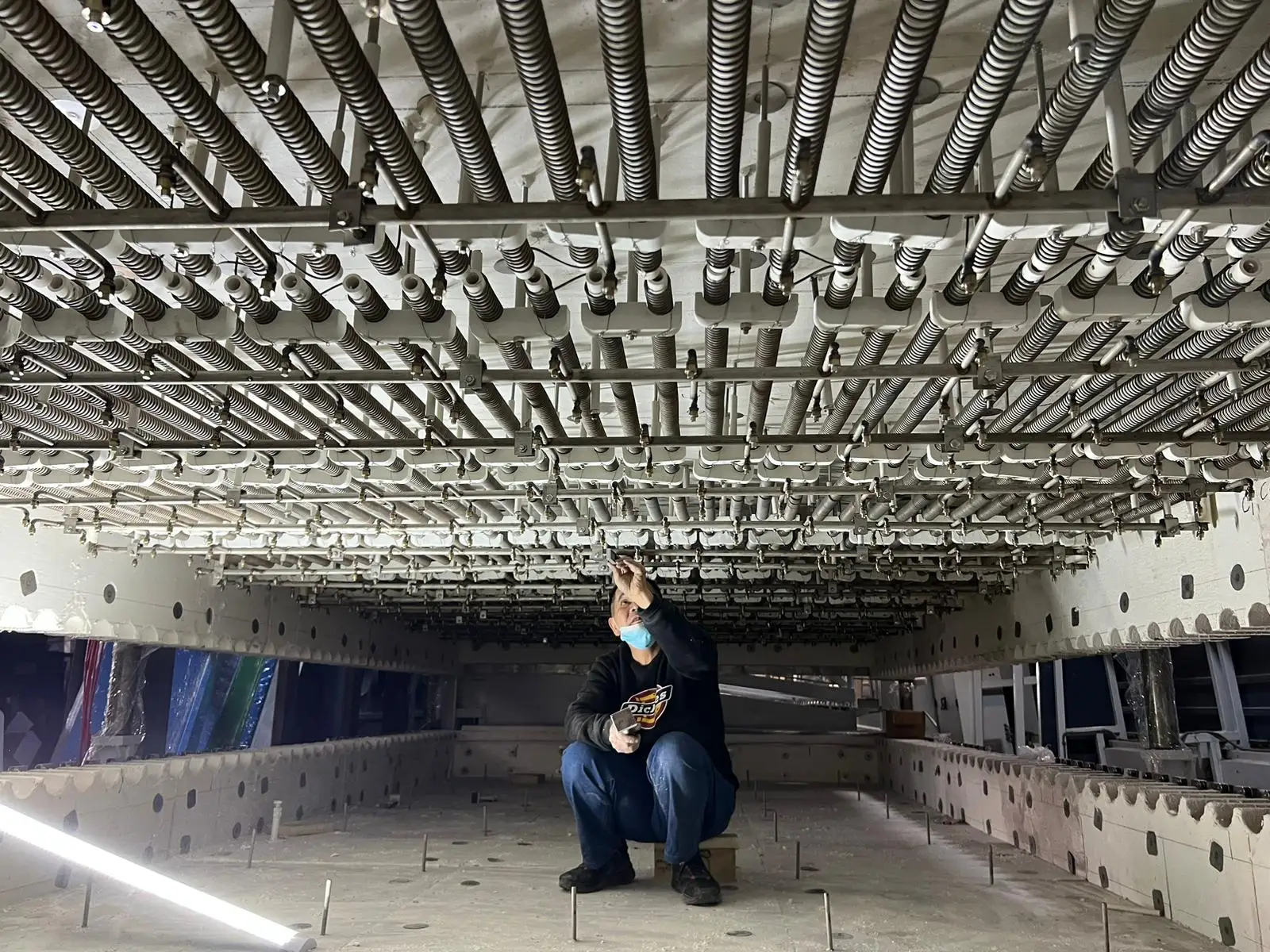

The machine use advance arrangement of heating wires, reasonable distance from heating wire to glass, DIN heating control system to enable energy saving. Less than 4kw/m2 for 5mm thickness glass.

It also can design passing section for 4mm or 5mm thickness glass to save energy when the machine process glass over 6mm.

With converter for blowers.

Use of high quality heating protect brakes to prevent heating escape.



Use 2-3 blowers for quenching and cooling of thin glass.

3. High quality glass

The tempered glass meet with Chinese high standard of tempered glass GB15763-2005 for tempering glass used for building.

Breaking particles: in a position of 50*50mm, the breaking pieces shoud over 50pcs for 4-12mm glass and over 40pcs for glass over 15mm. (The actual breaking rate may higher than this)

Surface stress of glass will not less than 90MPa.

Can understand 200 degree teperature difference







4.  High quality parts used on the whole machine

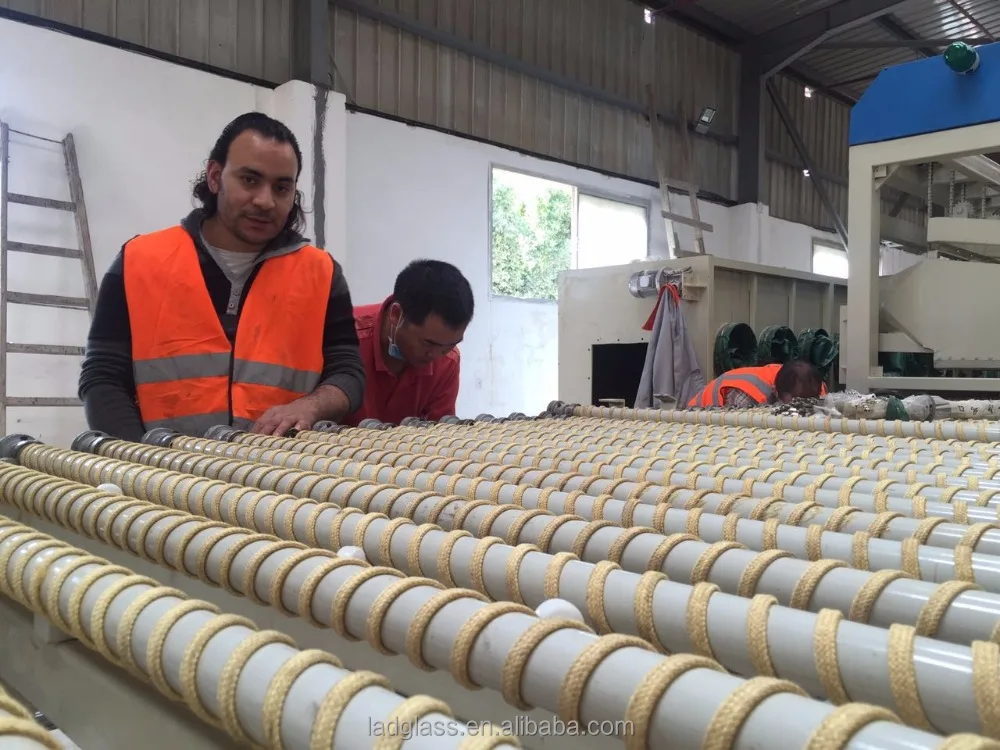

The whole machine ues high quality steel, heating wires, ceramic rollers, electric parts, heating provent parts.

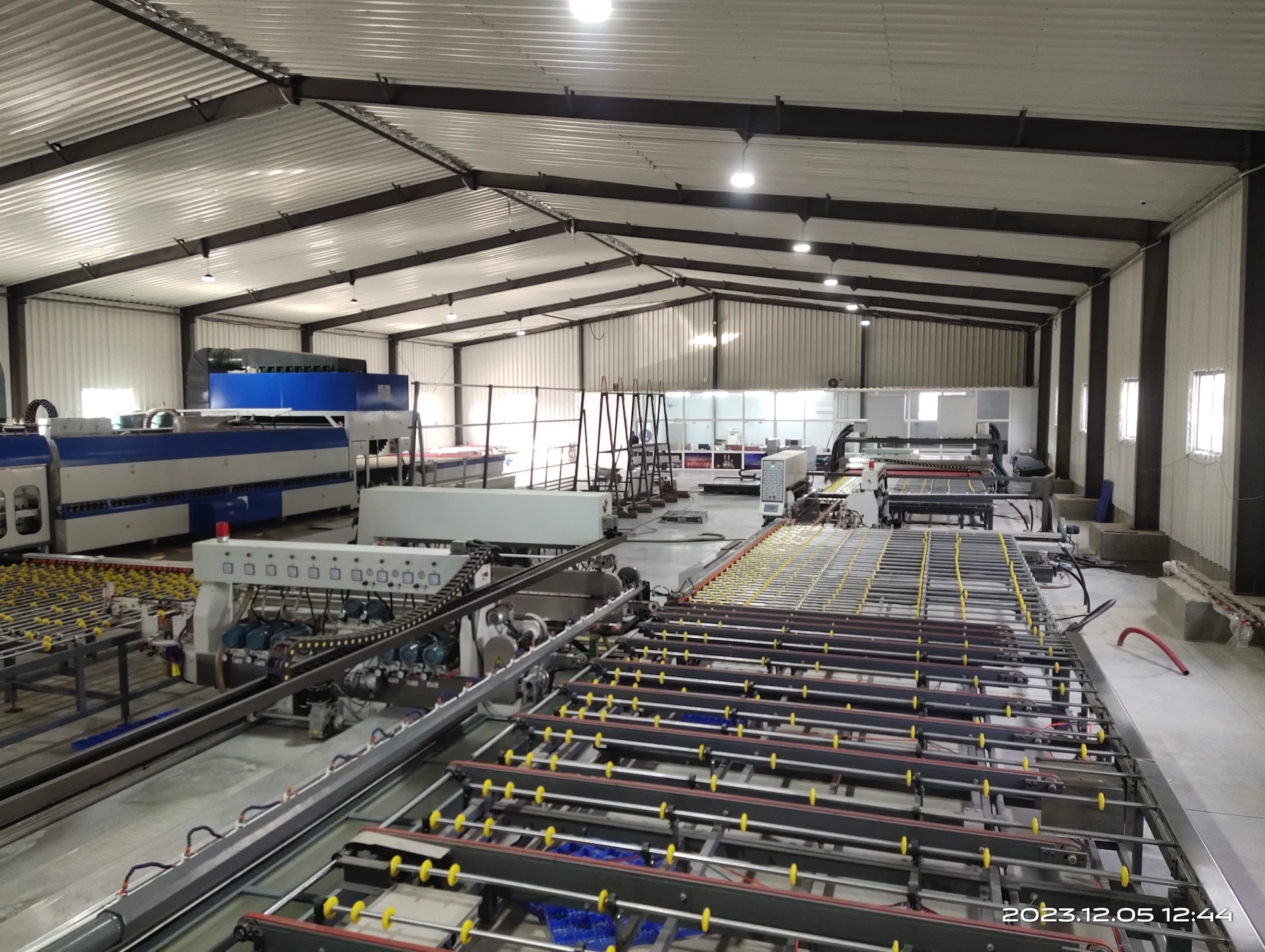

5. Full experience in new glass processing factory supply.

Assisted customer in Romania, Guetemala, Saudi Arabia, Egypt etc to build the new glass processing factory.

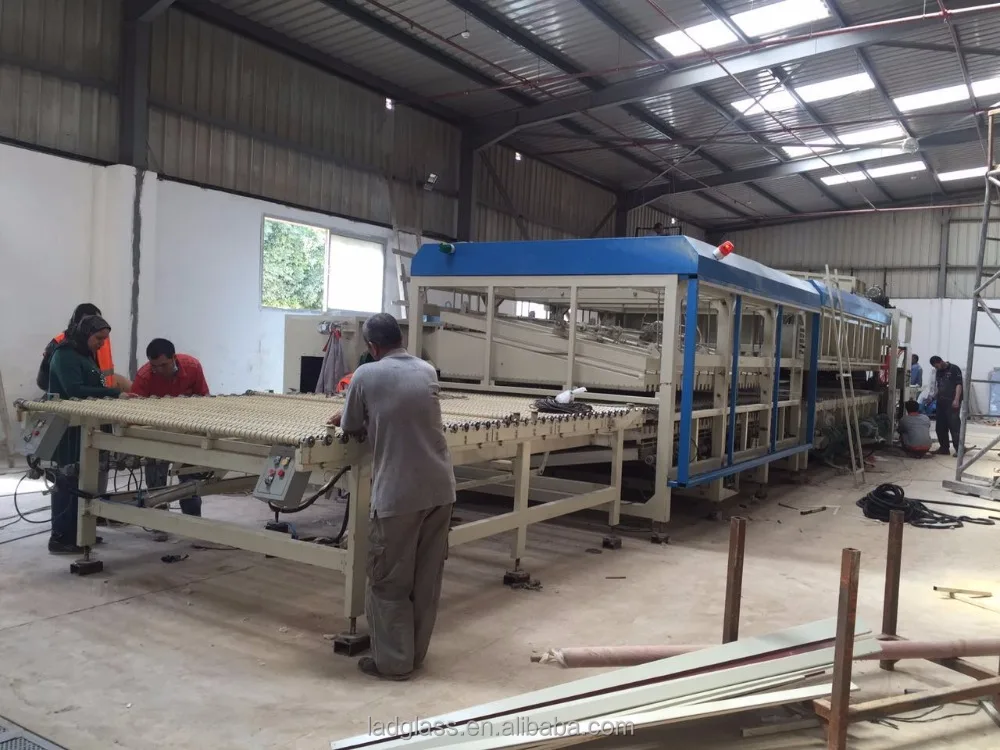

Enginers for machine set up

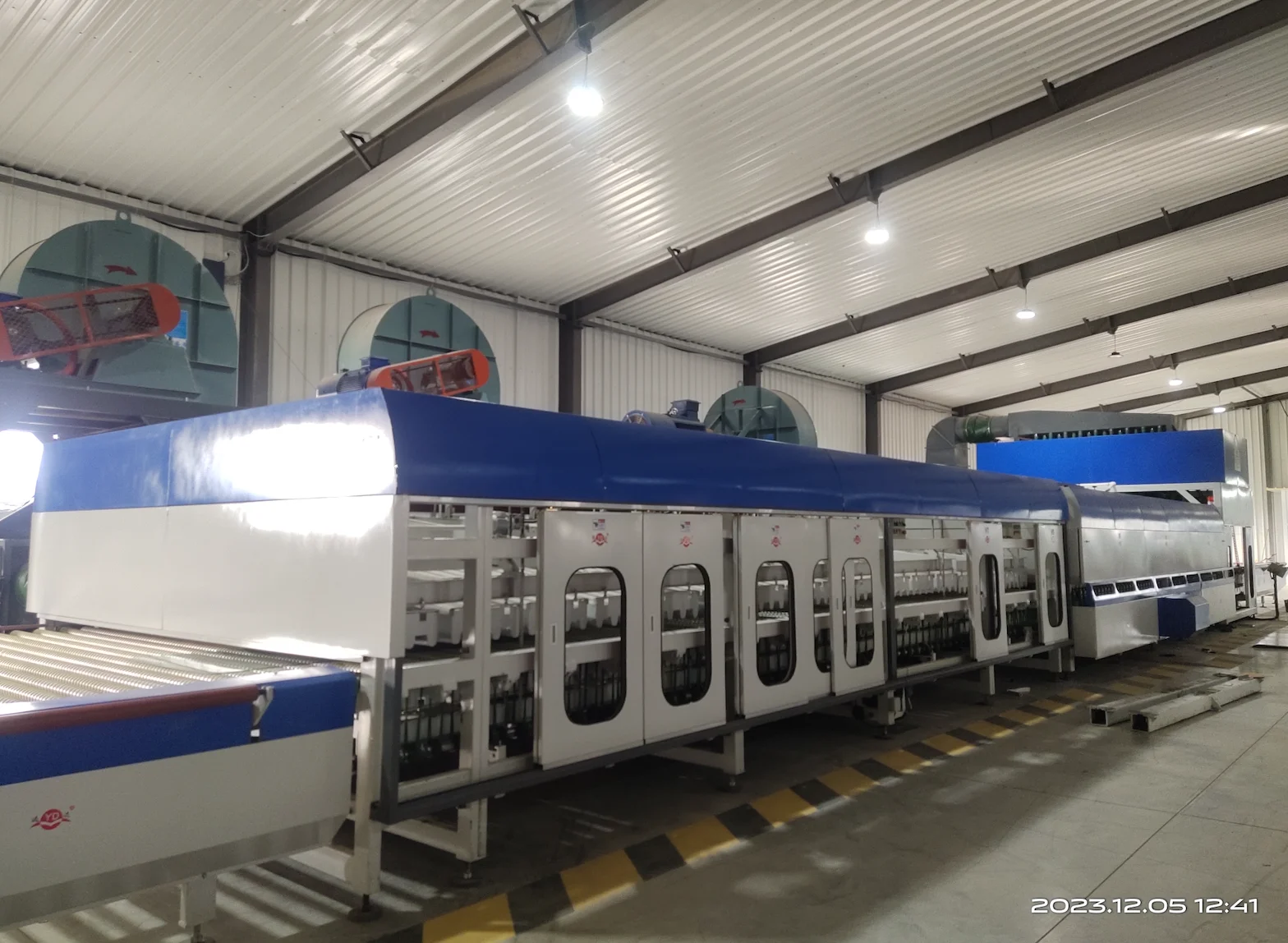

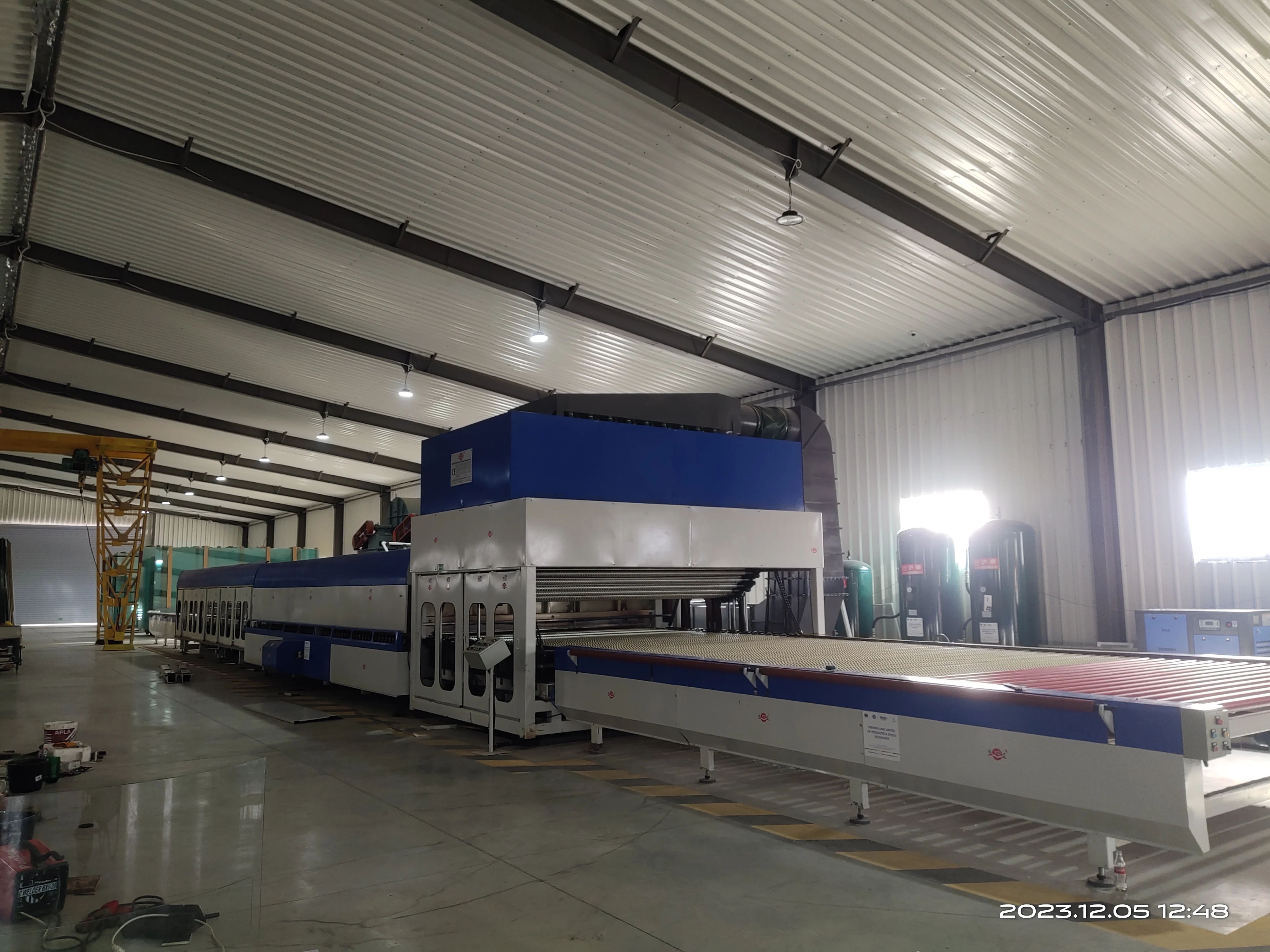

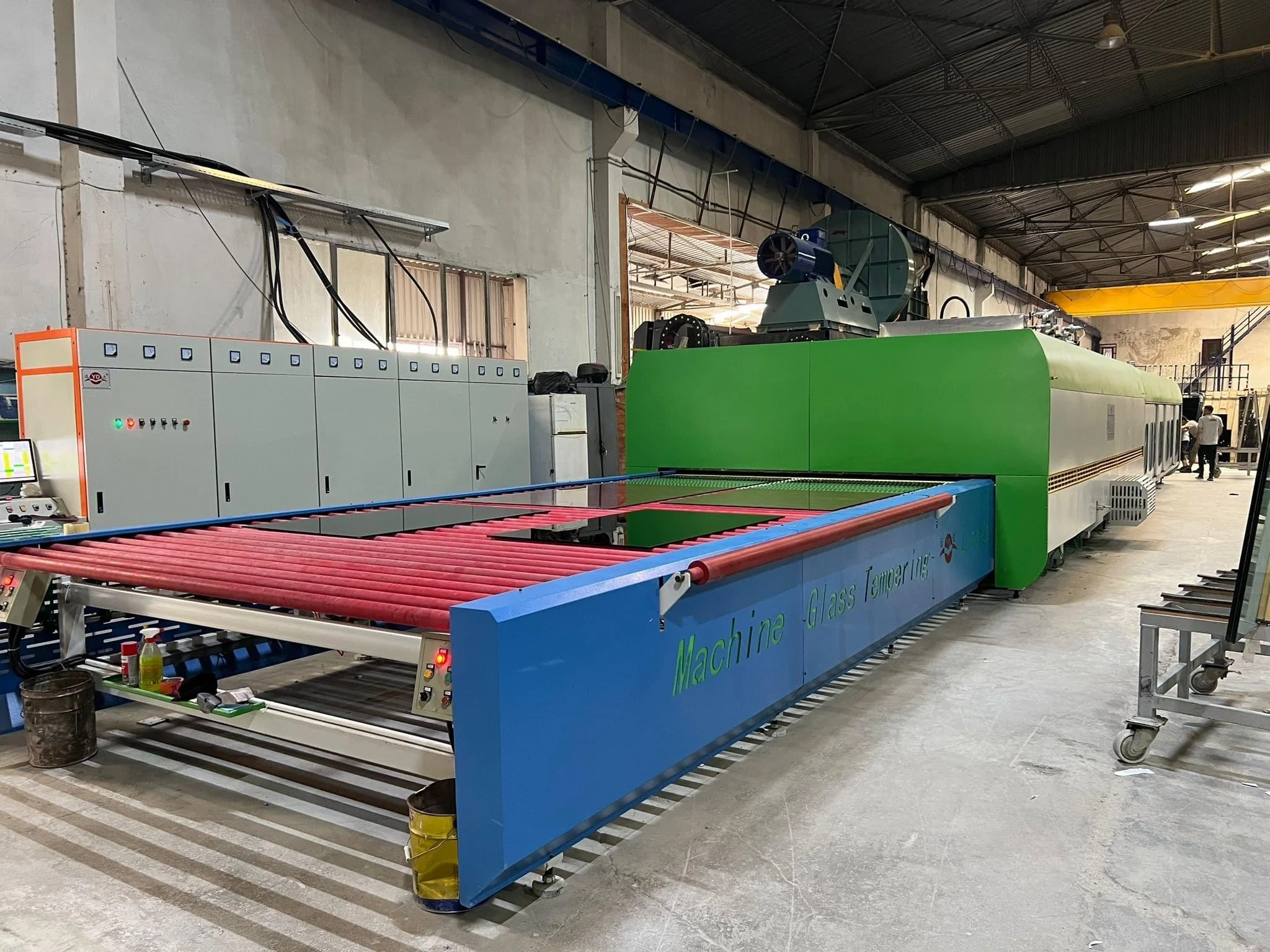

Succesful project recently:

Machine in Egypt 2021



Machine in USA



Machine in Guatamala

Machine in Uzbecstan

Machine in Turkey 2.8*6m

Machine in Romania





Warranty: Warranty period of the whole machine: one year



Machine commissioning and training: Send engineers to set up and commissioning at buyer’s factory.



Aftersales service:

Life time techical and parts support.

On port techcial training or problem solving when necessary
