MLC646B high precision alloy aluminum platform scale parallel beam load cell
- Category: Weighing Scales >>>
- Supplier: Manyyear,Technology,Company,Limited
Share on:
Product Overview
Description
Product Description

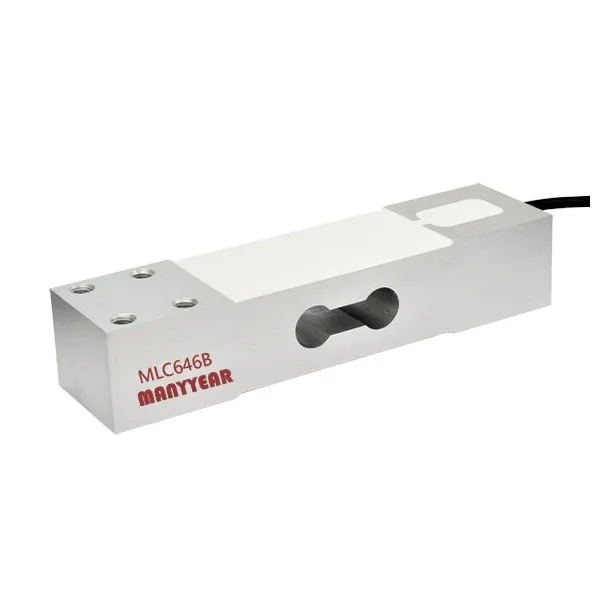

High-precision alloy aluminum platform scale parallel beam load cell
Model: MLC646B
Category: Single point load cell
Load range: 100kg, 150kg, 200kg, 300kg, 350kg, 500kg

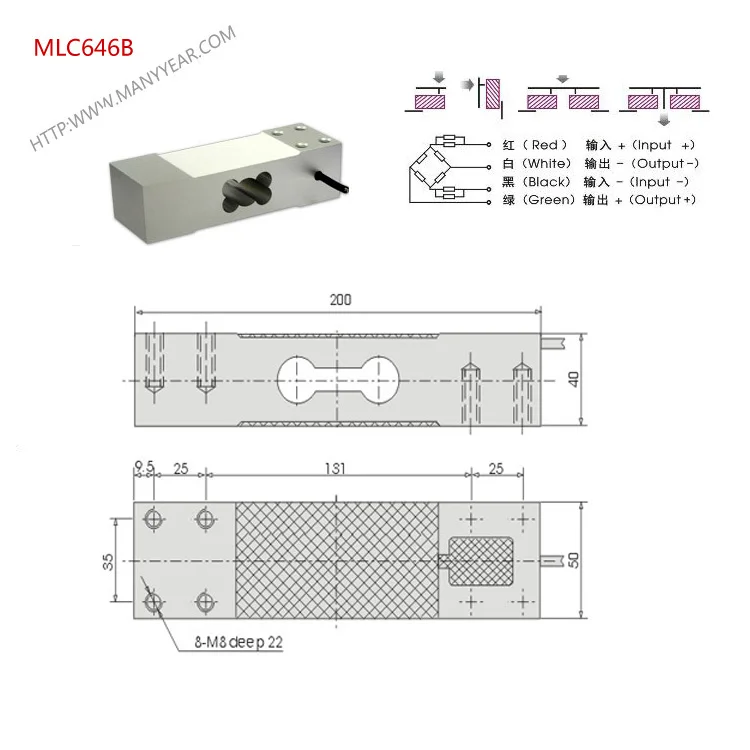

Dimension: 200*50*40mm
Material: alloy aluminum
Application: platform scale, pricing scale, electronic scale, kitchen scale,etc
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
Comprehensive error: | 0.02%FS | Output resistance: | 350±3Ω |
Rated output: | 2±0.01mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
Non-linearity: | 0.02%FS | Excitation voltage: | 9~12VDC |
Hysteresis: | 0.02%FS | Compensated temp: | -10~+40ºC |
Repeatability: | 0.02%FS | Use temperature: | -20~+60ºC |
Creep: | 0.027%FS/10min | Temp effect on zero: | 0.03%FS/10ºC |
Zero balance: | ±1%FS | Temp effect on span: | 0.02%FS/10ºC |
Input resistance: | 405±10Ω | Defend grade: | IP65 |

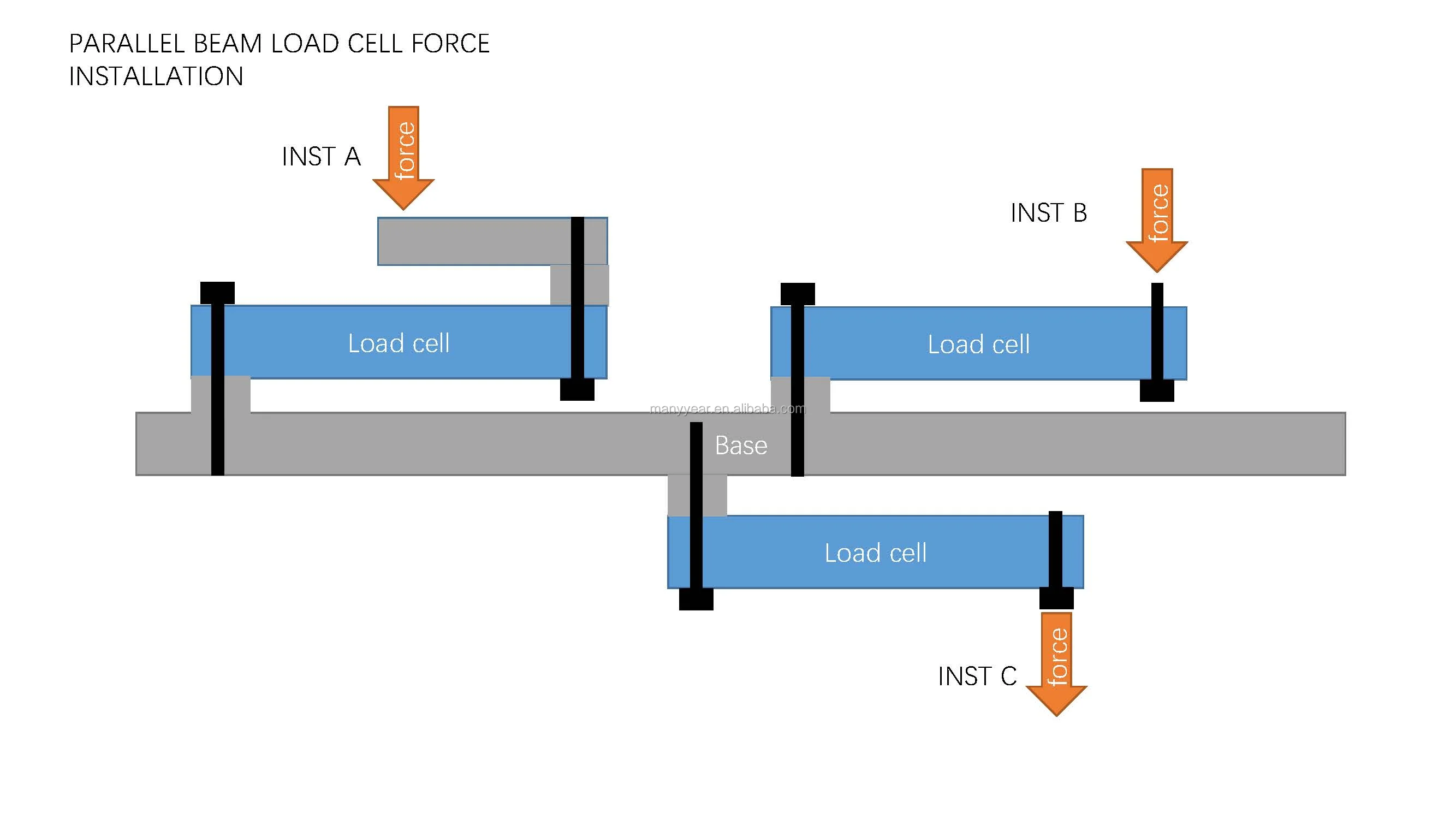

Product Assembly Structure
Blow force structure is for reference.
Product Process

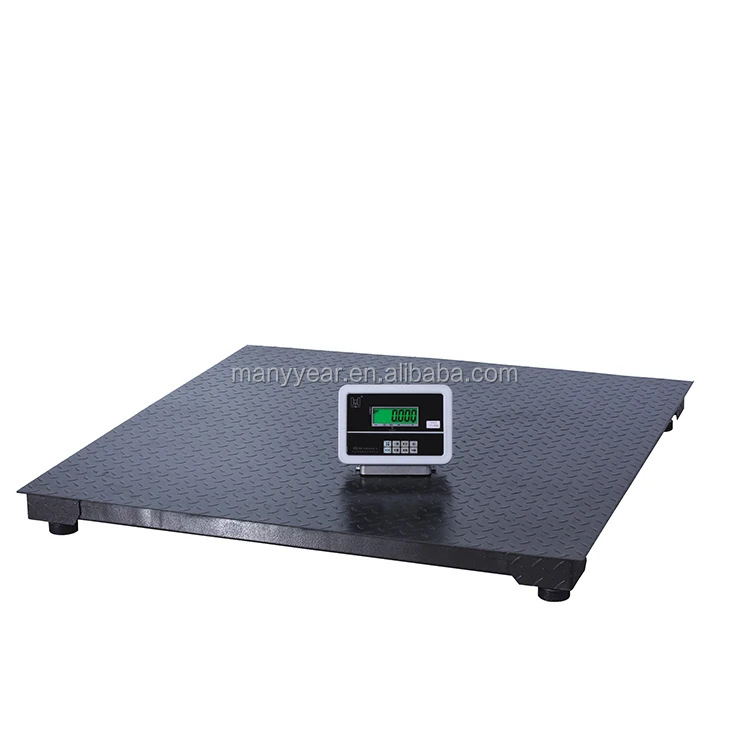

Product Application
Delivery and Shipment
Related Products
Company Introduction
MANYYEAR Technology was established in 2008.
We focus on mechanical measurement and design, and provide customers with precise mechanical sensor products.
We have our own production base, with complete sensor production processes from CNC processing, strain gauge production, metal surface treatment, sensor packaging, sensor testing, engineering testing, sensor calibration, etc. And can provide customers with 1000 KPCS per month of qualified product capacity.
Our factory has passed ISO9001 standard. Our products have CE, ROHS, invention patents and other qualifications.
We provide OEM and ODM services to our customers.
We provide free design assistance to our customers.
