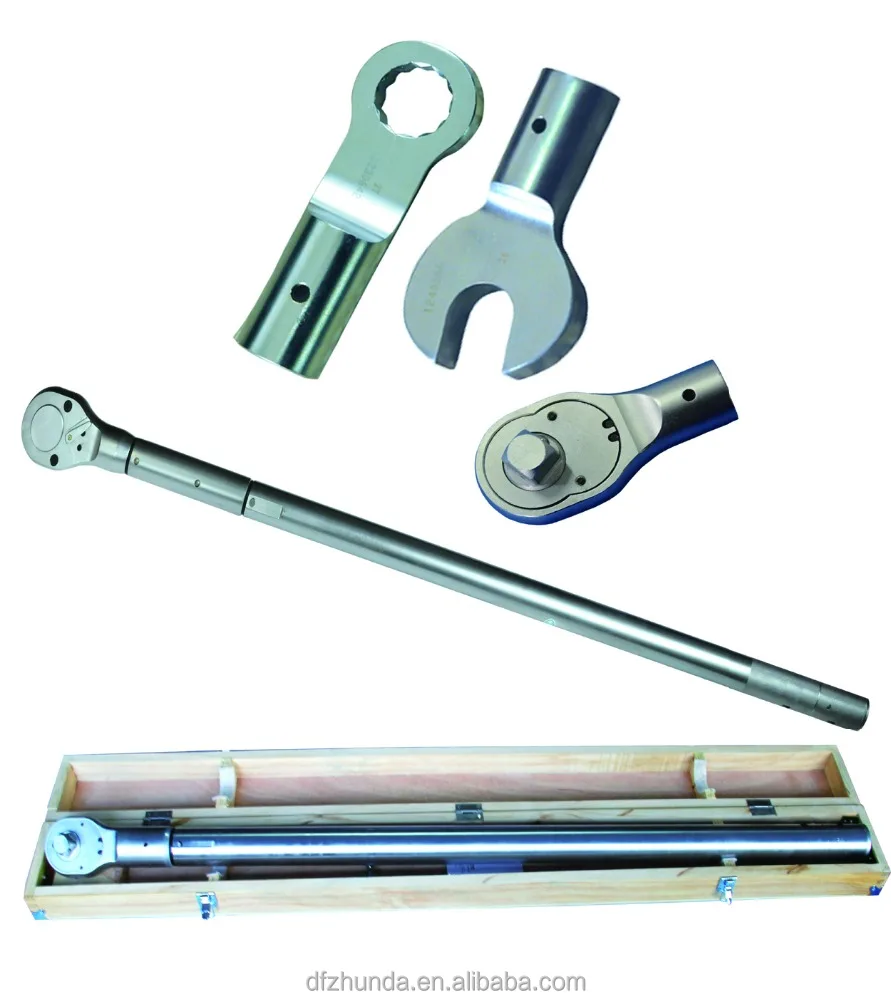

hand tools 1 inch S.Q. 450nm 1500nm preset torque wrench

Product Overview

Description

  ZhunDa NB-1500 series of mechanical torque wrench has the

following features:

  1. ranges from 450N.m to 1500N.m;

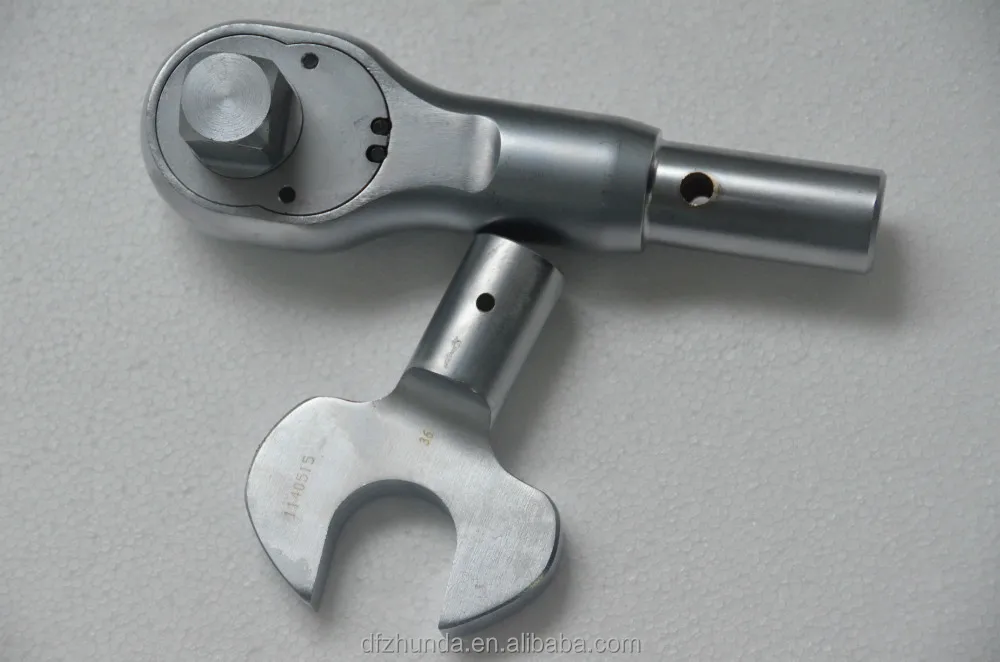

  2. the head of the NB-1500 Series of Torque Wrench can be changed into open-end type;

  3. the accuracy class is in ±4% levels;

  4. the design is fine and durable;

  5. Above 680N.m are using the dividing connection to satisfy the customer's need in packing, transportation and store;

  6. it is convenient for you to operate, transport or store.



MODEL	RANGE (N.m)	GRADATION (N.m)	TOTAL LENGTH (mm)	ARMS OF FORCE (mm)	WEIGHT (kg)	SQUARE JOINTSIZE (mm)	OPENING NOMINALSIZE (mm)
			L1	L2
NB-1500	450-1500	7.5	1300	1180	7.8	25	36,38,41,46,50,55, 60,65,70,75



  Note: NB,NBD series and NB series of inch torque wrench can meet the customer’s need to adjust to the ±3% accuracy class.
