Product Overview
Description

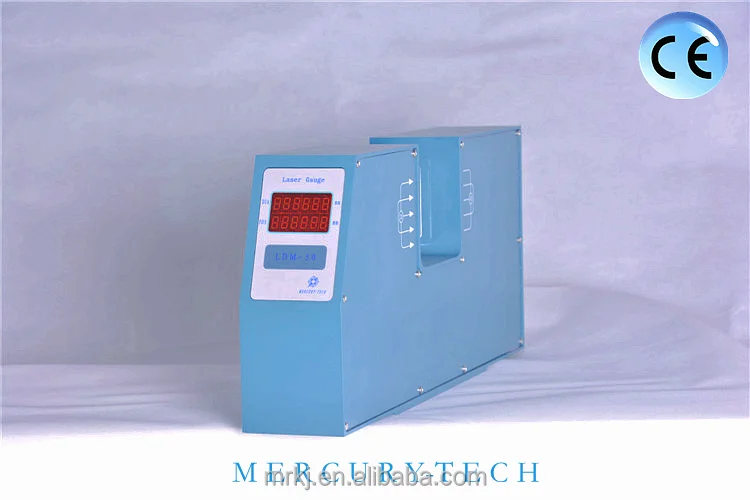

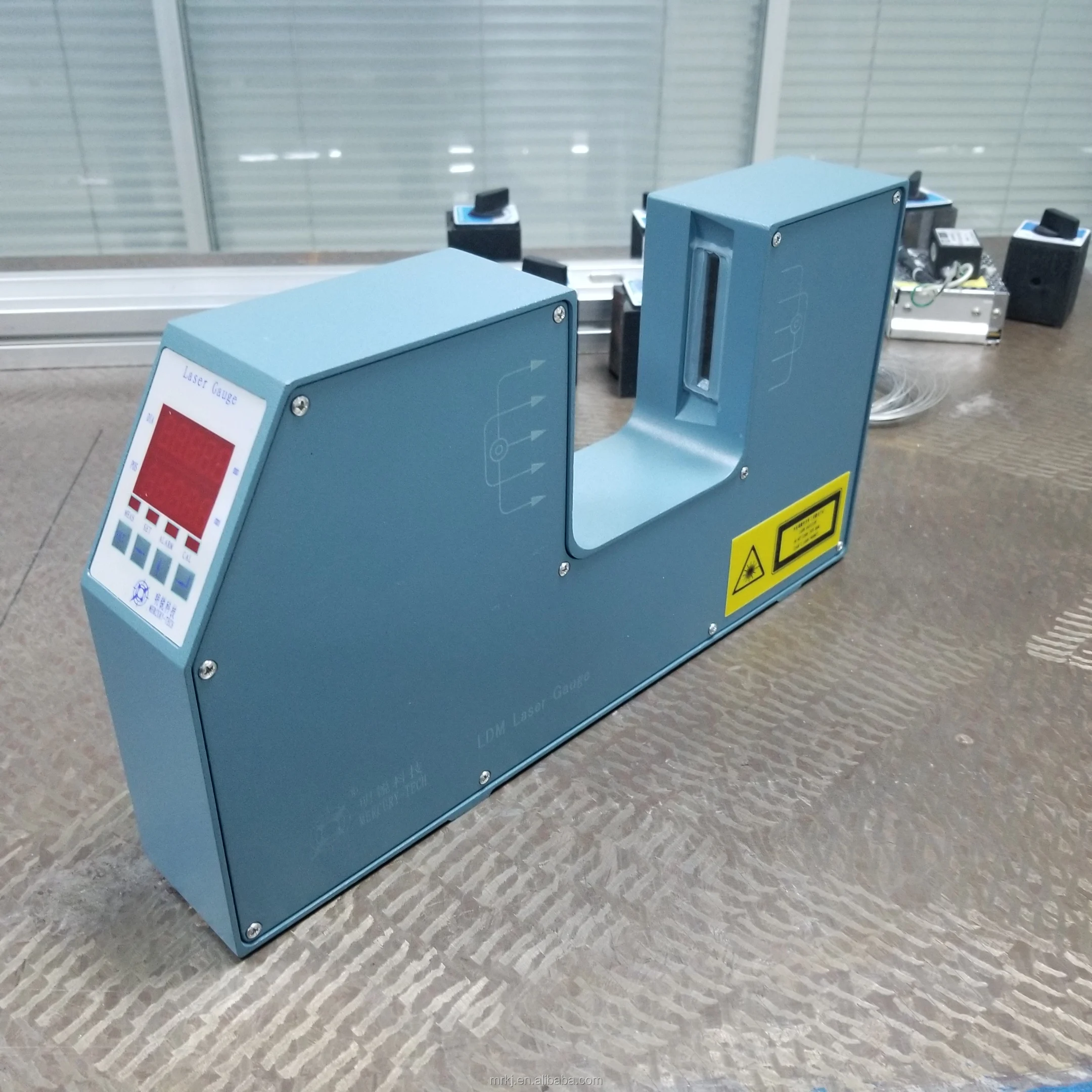

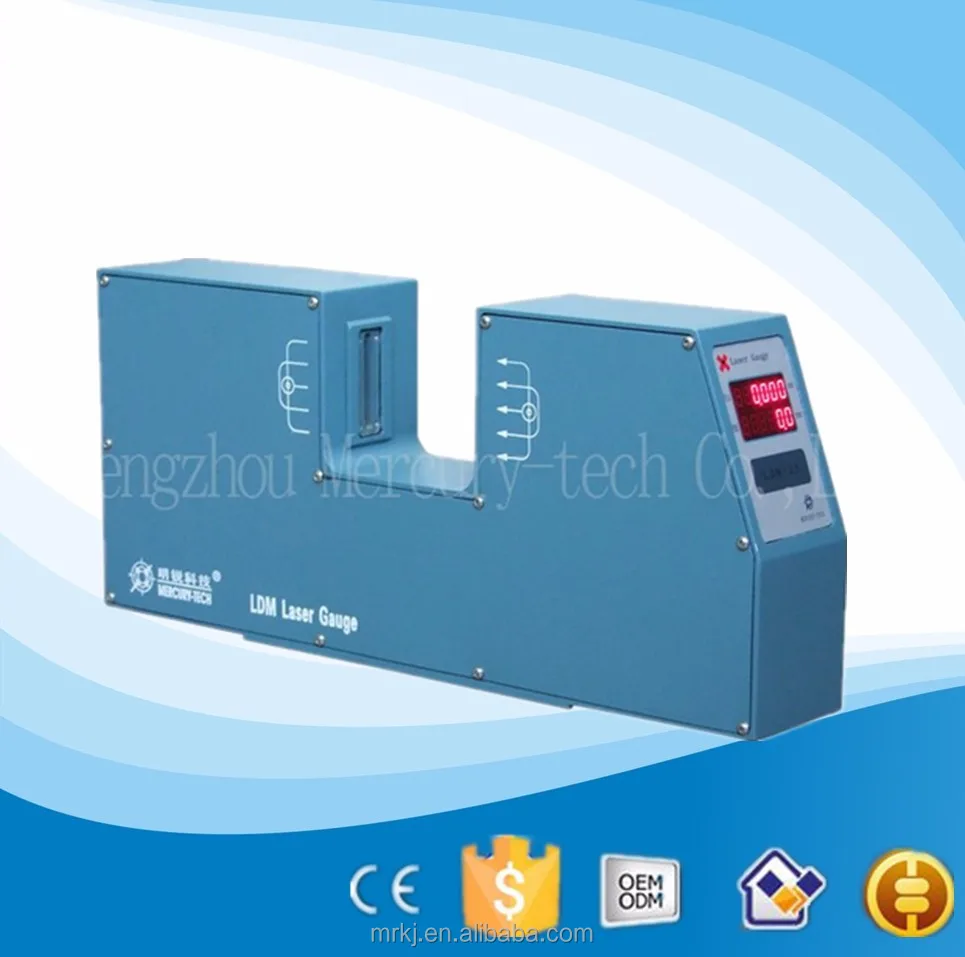

Optical micrometer is the high-accuracy survey installment that uses the laser scan to carry on Non-contact the on-line measure.
Mainly used in a variety of wires, cables, pipe production line, the measurement of outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can also be applied to the outer diameter of workpiece and size measurements.

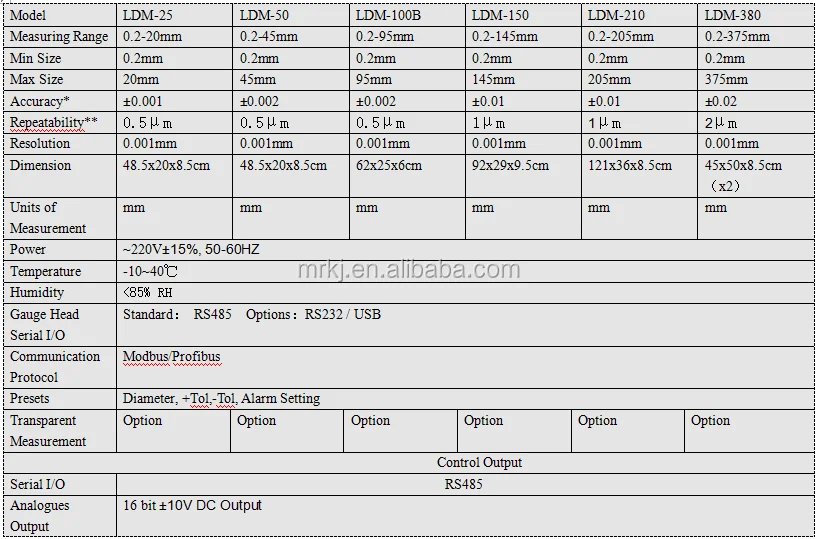

1. Technical parameters
2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30WExternal dimensions:
Dimensions: LDM-25/LDM-50 Measuring head: 461mm×80mm×200mm
3. The Device with the following Characteristics
i. Can be connected PLC, industrial computer.
ii. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
iii. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic
feedback control to control the tolerance, improve product quality, reducing
consumption.
4. Display Controller (Model:DDC-3, DDC-5)
i. It be used to remote display and control.
ii. Applicable to DC motors, VVVF motor.
iii.The controller can control the speed of extruder or the tractor according to the diameter tolerance.
Signal distance: More than 500m
Output voltage: ±10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions:164mm×85mm×280mm (Model:DDC-3)
100mm×100mm×120mm (Model:DDC-5)
Installation hole size: 152mm×76mm (Model:DDC-3)
90mm×90mm (Model:DDC-5)
Display Controller (Model: DDC-5)
Company Information
Zhengzhou Mercury-Tech Co., Ltd. was founded in 1987, formerly known as Sanli works, is China's first commercial laser gauge birthplace, has become China's largest professional manufacturer of laser diameter measurement, with dozens of models of laser products. Factories located in Zhengzhou City National High-tech Industrial Development Zone. Mercury-Tech as laser diameter measurement industry leading brands, committed to be "industry first" and "best-in" laser measuring instruments, with nearly 30 years of problem-solving experience, we understand our business needs better than others, providing customers with the best solutions.
In laser measurement industry, Mercury-Tech’s products have successfully been used by a number of global enterprises and Fortune 500 companies, such as the Teledyne Technology, TE, Goodyear, Faber Castell, LG, the Darka, Hitachi, Fujikara, Zhejiang University, Beijing University of Science and Technology, Baosheng cable, Shangshang cable. Customers are in 37 countries, such as US, Britain, Germany, France and Japan.
