custom design semi automatic preform pet plastic bottle blowing blow molding machine high speed
- Category: >>>
- Supplier: ZHEJIANG HANYU AUTOMATION TECHNOLOGY CO. LTD
Share on (364450273):
Product Overview
Description
Product Description

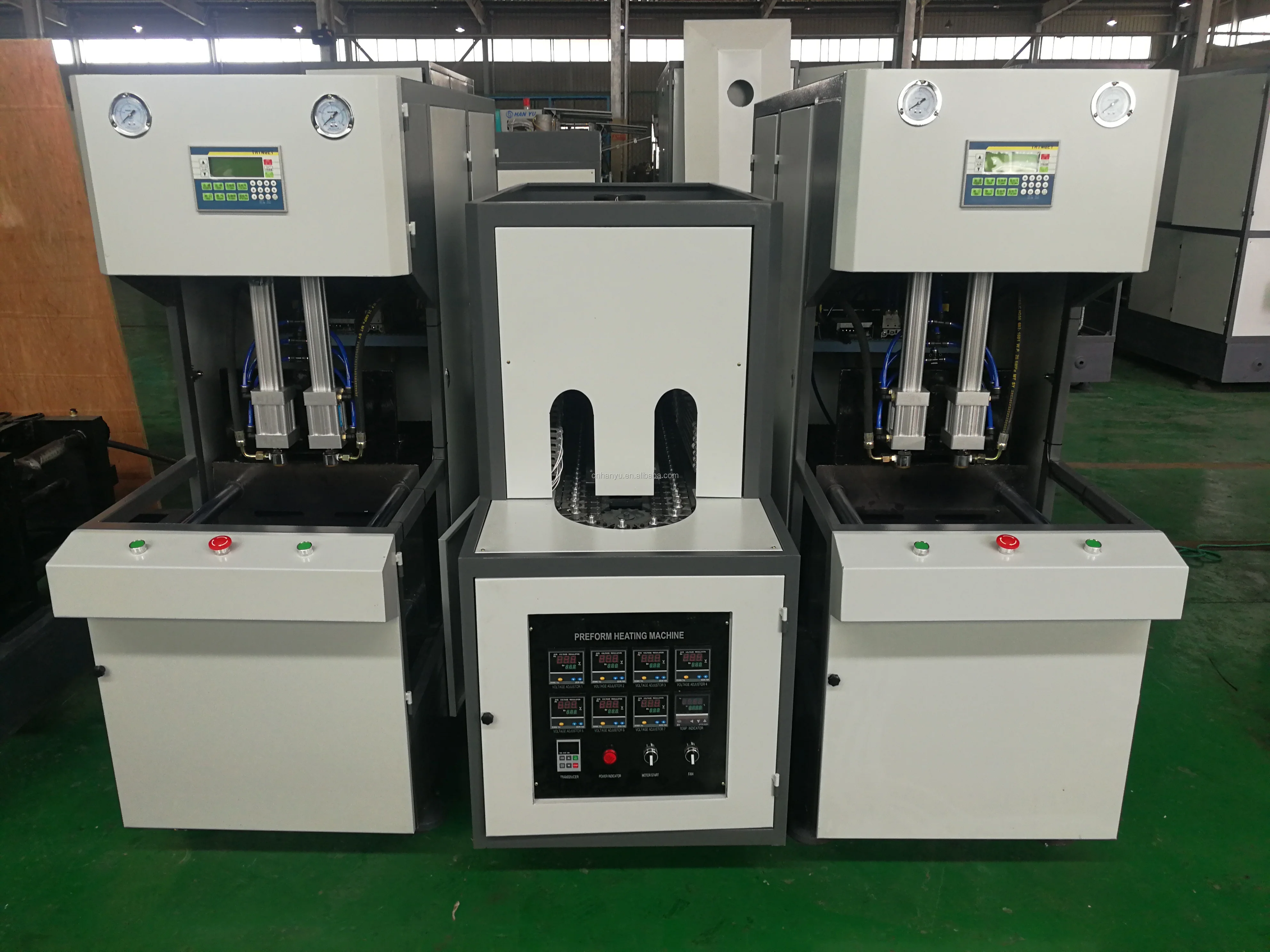

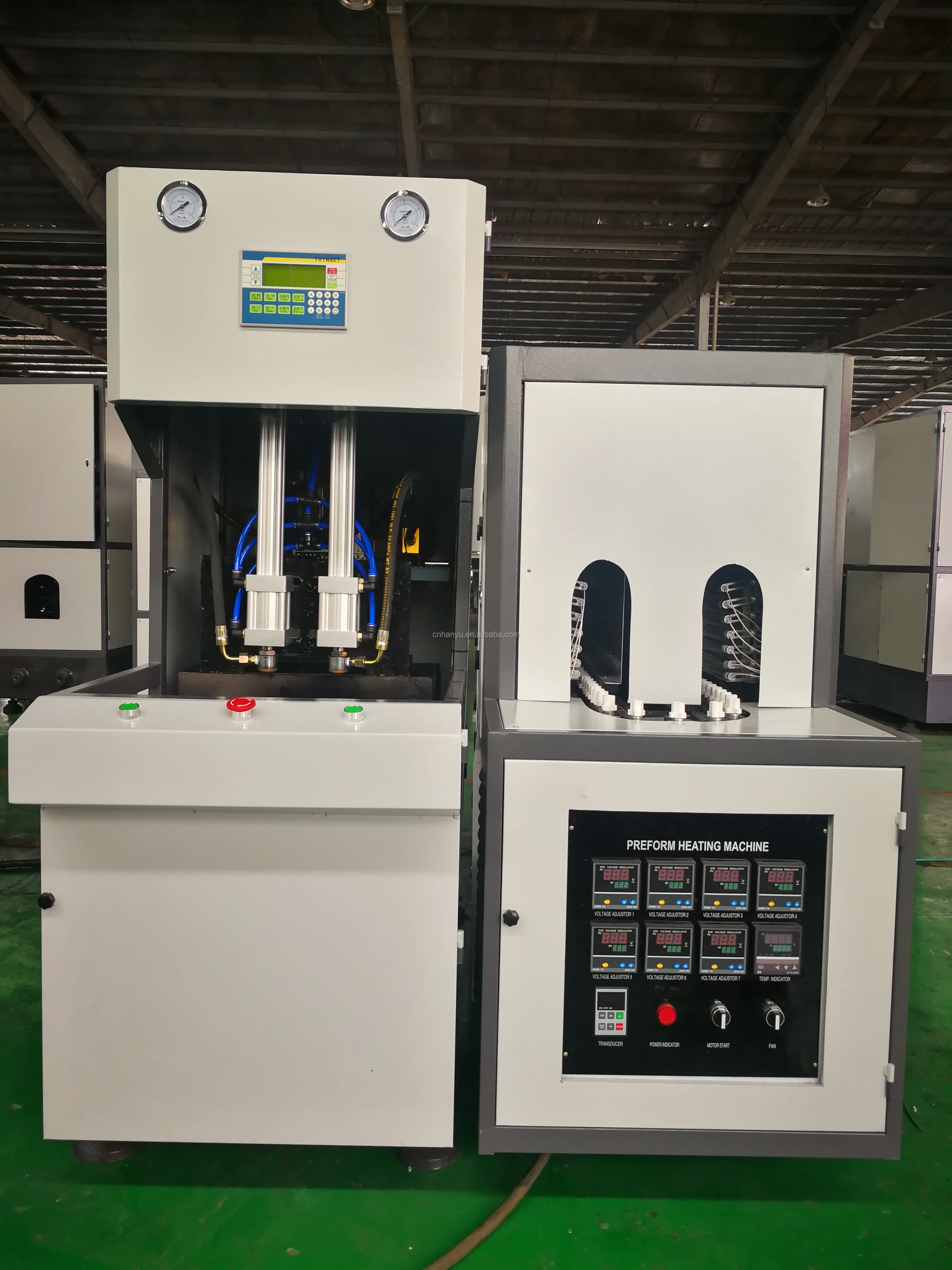

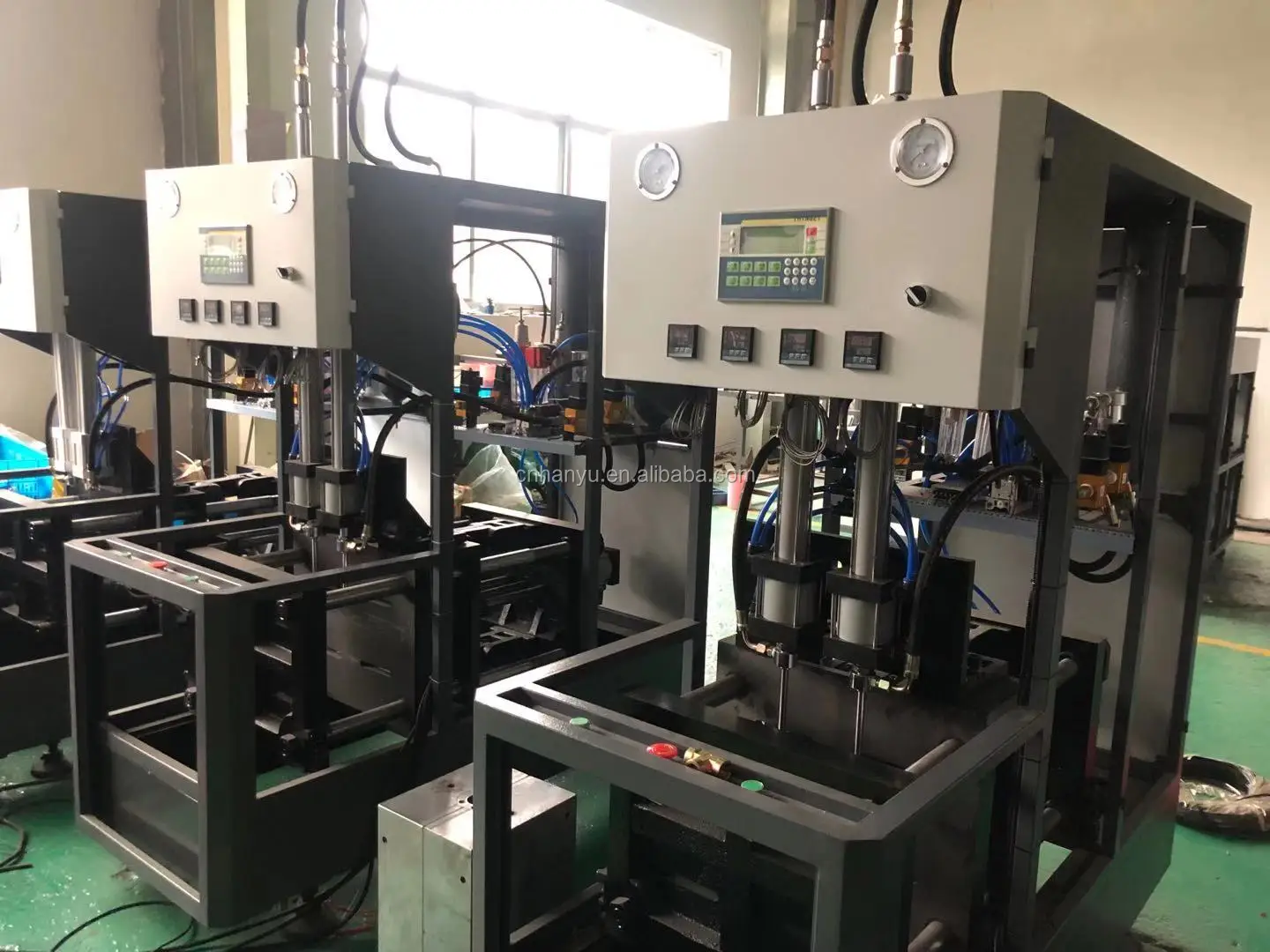

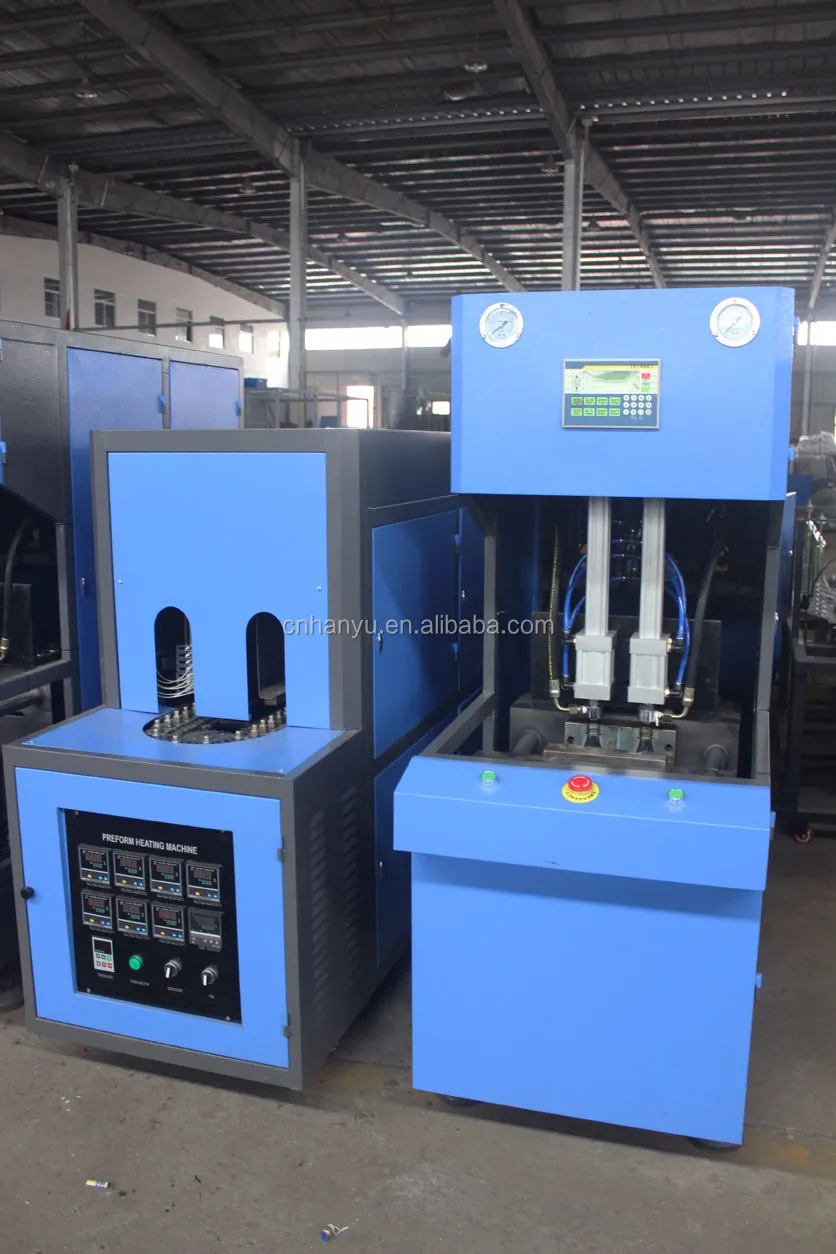

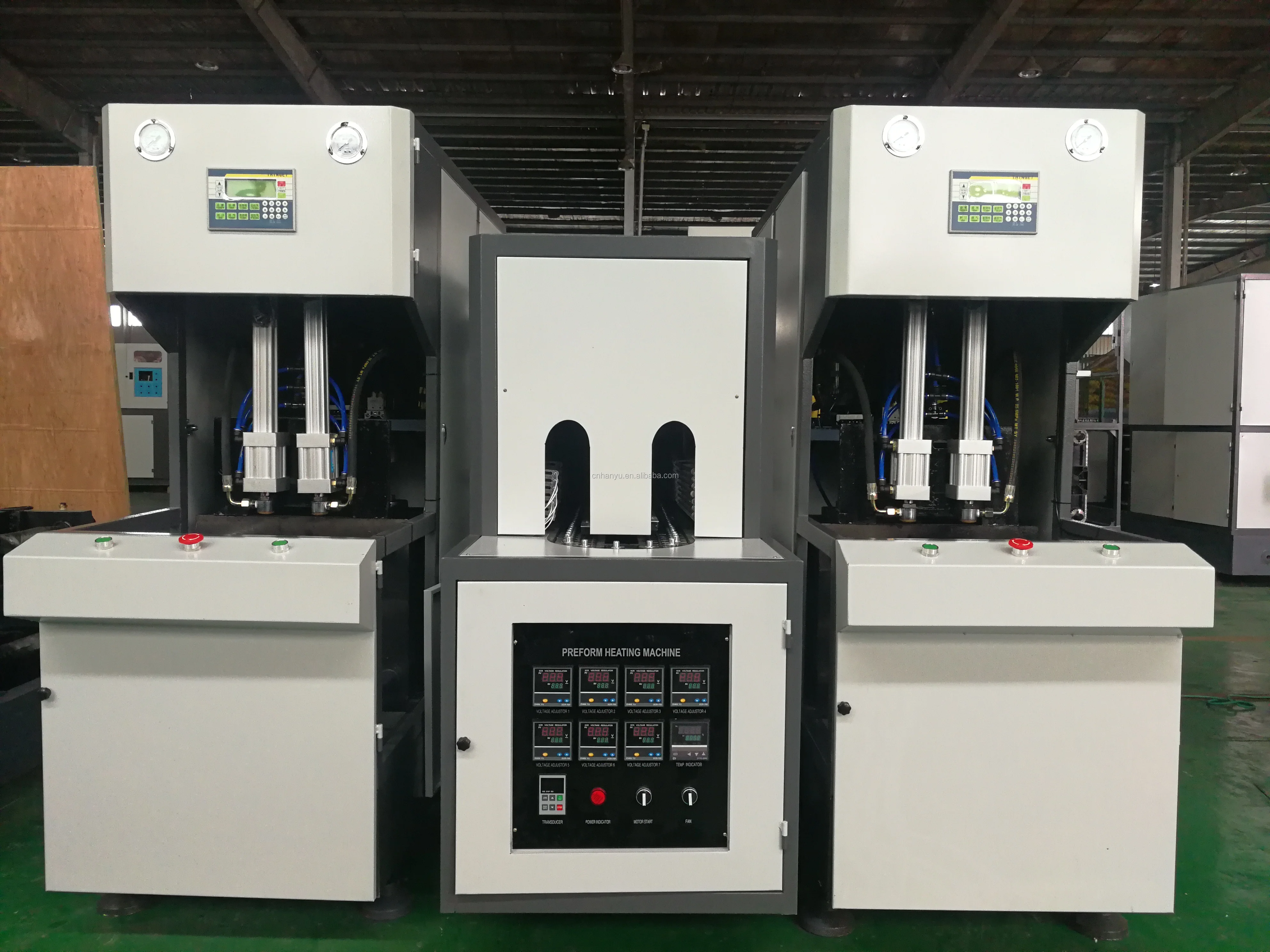

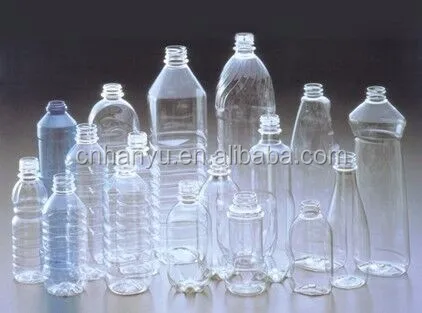

HY-B-I semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

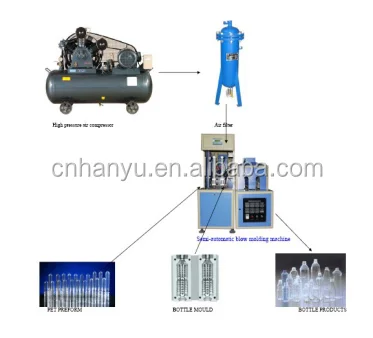

2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate.
Technical parameter
Name | Item | Unit | Details |
Blowing machine | Dimension | mm | 1600*600*1610mm |
Bottle volume (max) | ml | 2000 | |
Bottle volume (min) | ml | 50 | |
Bottle Neck Diameter (max) | mm | 90 | |
Bottle Neck Diameter (min) | mm | 15 | |
Body Diameter (max) | mm | 125 | |
Body Height( max) | mm | 340 | |
Number of Cavities | mold | 2 | |
Production output | pcs/h | 800-1000BPH | |
Clamping force | T | 5.7(56KN) | |
Mold thickness | mm | 200(max) | |
Mold width | mm | 360x390 | |
Space between Tie-bars | mm | 120-220 | |
Diameter of Tie-bars | mm | 63 | |
Scope of Tie-bars | mm | 405 | |
Mold stroke | mm | 170 | |
Stretching stroke (max) | mm | 420 | |
Working pressure | Mpa | 0.8-1.0Mpa | |
Blowing pressure | Mpa | 2.0-3.0Mpa | |
Voltage/Power | V/KW | 220V/1KW | |
Pre-heater | Dimension | mm | 1870*630*1450mm |
Weight | kg | 260 | |
Voltage/Power | V/KW | 380V/14KW | |
Lamp | PCS | 28 | |
Working power | Kw | 8kw |
Detailed Images
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
Q:Have the blow molding machine in stock
A:semi-automatic blow molding machine in stock ,and the fully automatic are newly,the mold according your sample to make .
Q:What is the delivery time?
A:15-30 days for this machine.
Q:What is the payment team?
A:T/T.L/C
Q:Can i trust you?
A:YES.We are "Alibaba" verified supplier
Q:May i visit your factory?
A:Of course,welcome any time,we can also pick you up at airport or station,
