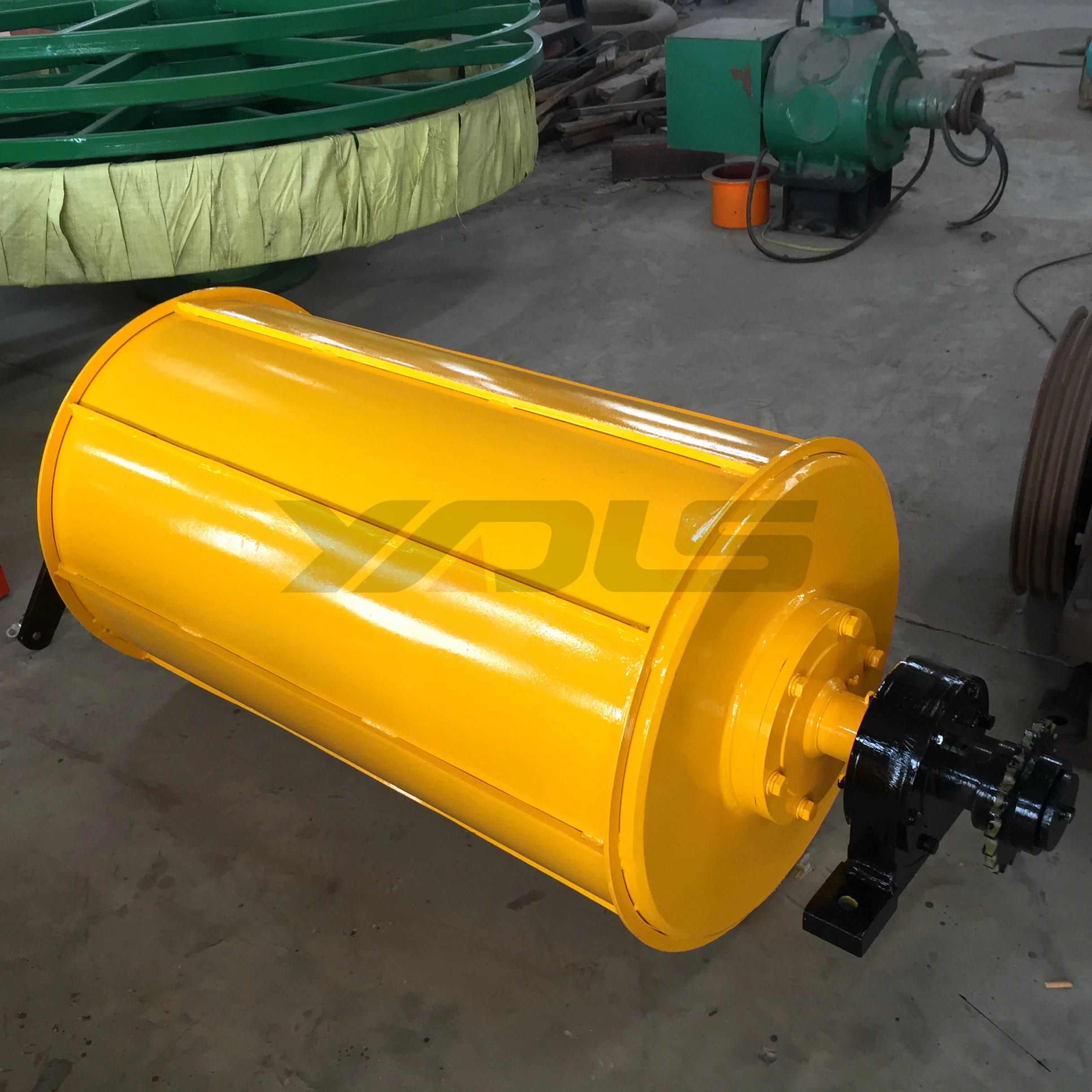

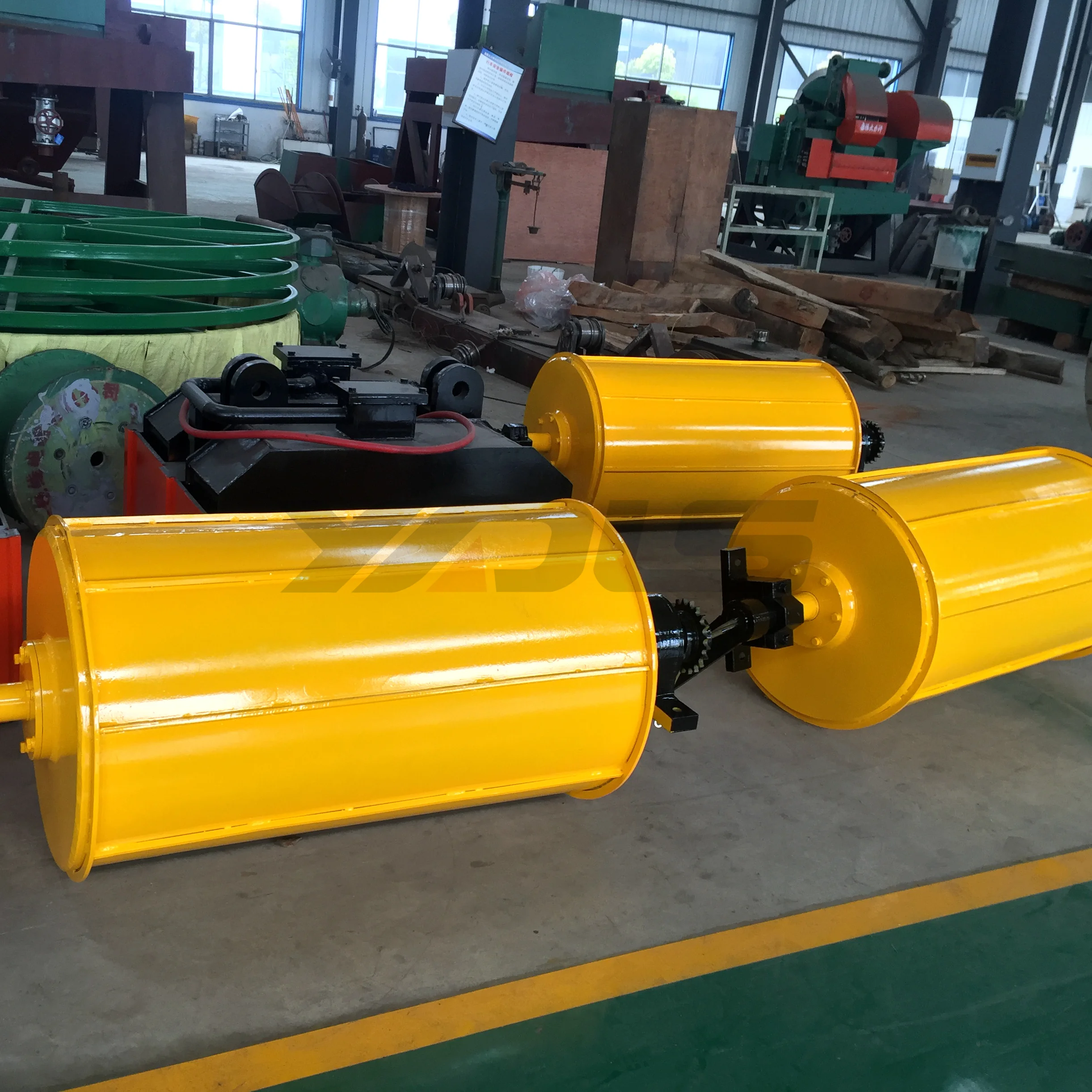

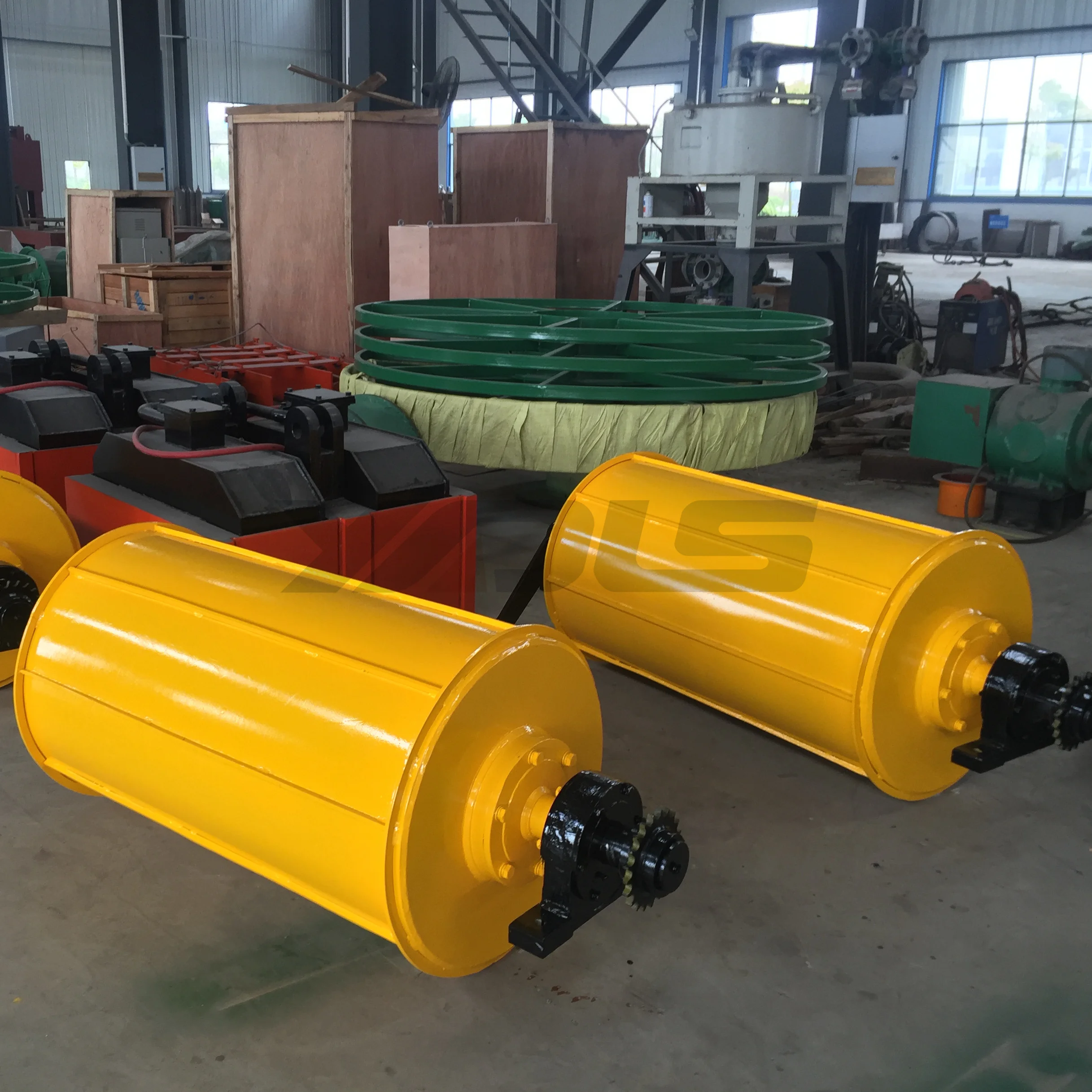

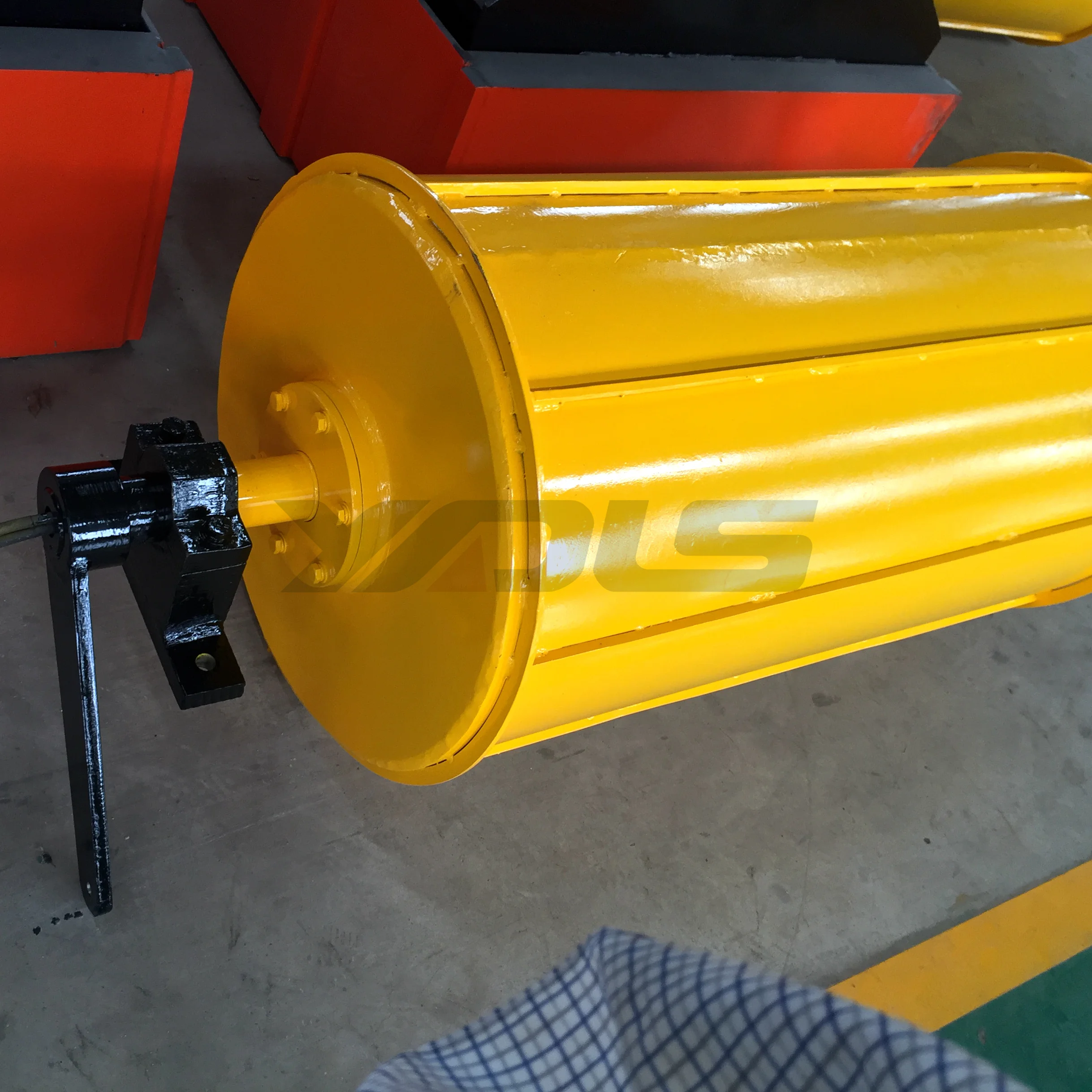

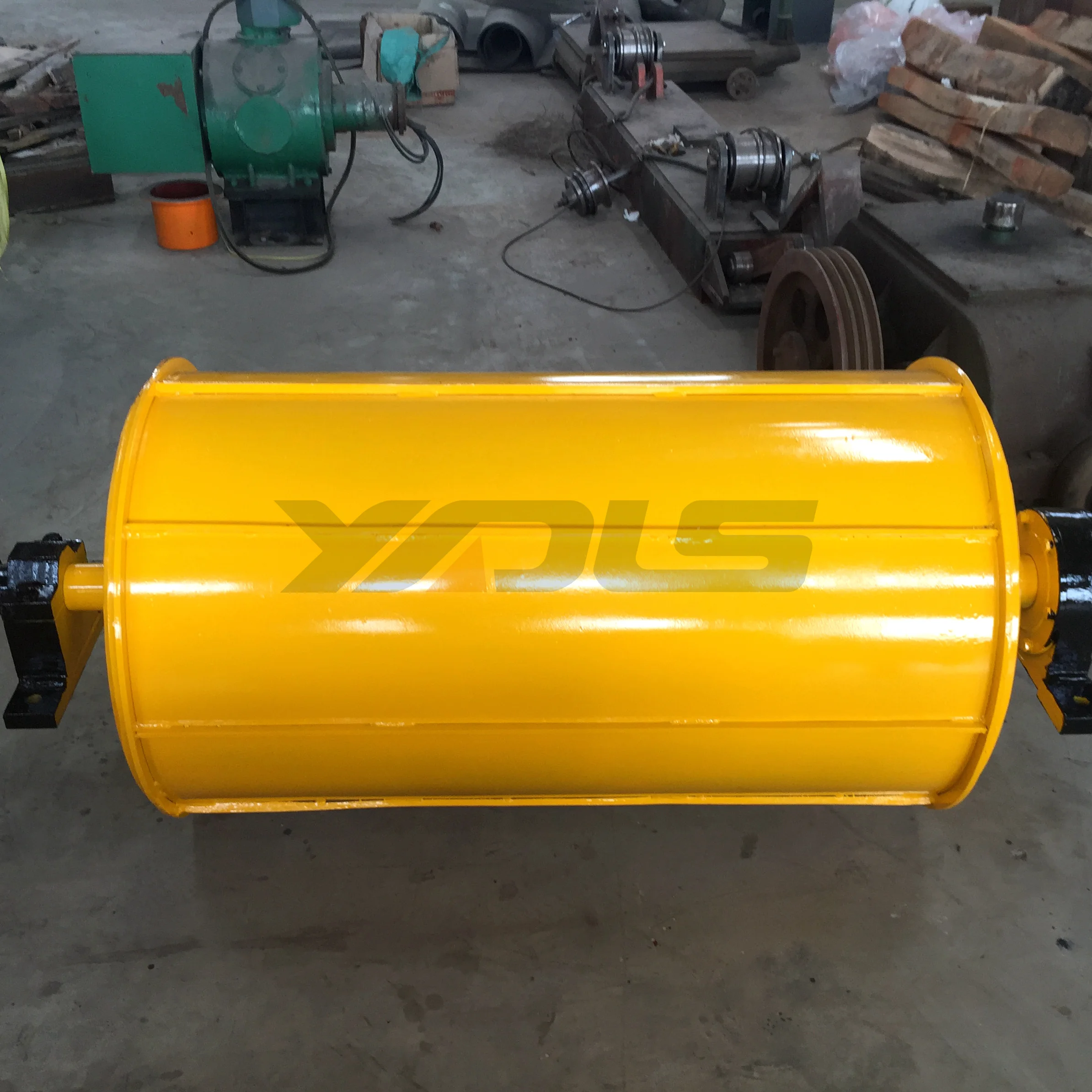

Electric Magnetic Drum ML1 Series

Product Overview

Description

Electric Magnetic Drum ML1 Series



Electric Magnetic Wheel ML1 Series is a king of rotary DC electromagnet which links up with the belt transferring equipment to be used as driving wheel on continuous operating shift featuring father permeability depth and strong magnetic field. It can automatically separate the iron magnetic materials blended among the non-magnetic materials on the conveyor belt, widely used in casting industry, building industry, metallurgical industry, mining industry, chemical industry, power supply, food industry and so on.


Main technical data:

Model	Handling capacity M3/H	Standard speed m/s	Power KW	Mass kg	Overall dimension (mm)						Commutation Controlling unit
					A	B	C	D	E	F
ML1-4550L	75	1.0	0.9	500	450	500	560	850	1350	55	SSTM-1.5D-D
ML1-5050L	75	1.0	0.88	506	500	500	560	850	1350	55
ML1-5065L	95	1.0	1.57	600	500	650	750	1000	1440	70	SSTM-3.1D-D
ML1-6365L	100	1.3	1.57	1000	630	650	750	1000	1440	70
ML1-5080L	120	1.0	1.8	790	500	800	950	1300	1800	70
ML1-6380L	215	1.3	2.4	1400	630	800	950	1300	1800	90
ML1-63100L	280	1.3	3.6	2000	630	1000	1150	1500	2000	90	SSTM-4.2D-D
ML1-80100L	450	1.6	3.6	2200	800	1000	1150	1500	2000	110
ML1-100100L	615	1.6	4.4	3250	1000	1000	1150	1500	2000	130	SSTM-6.2D-D
