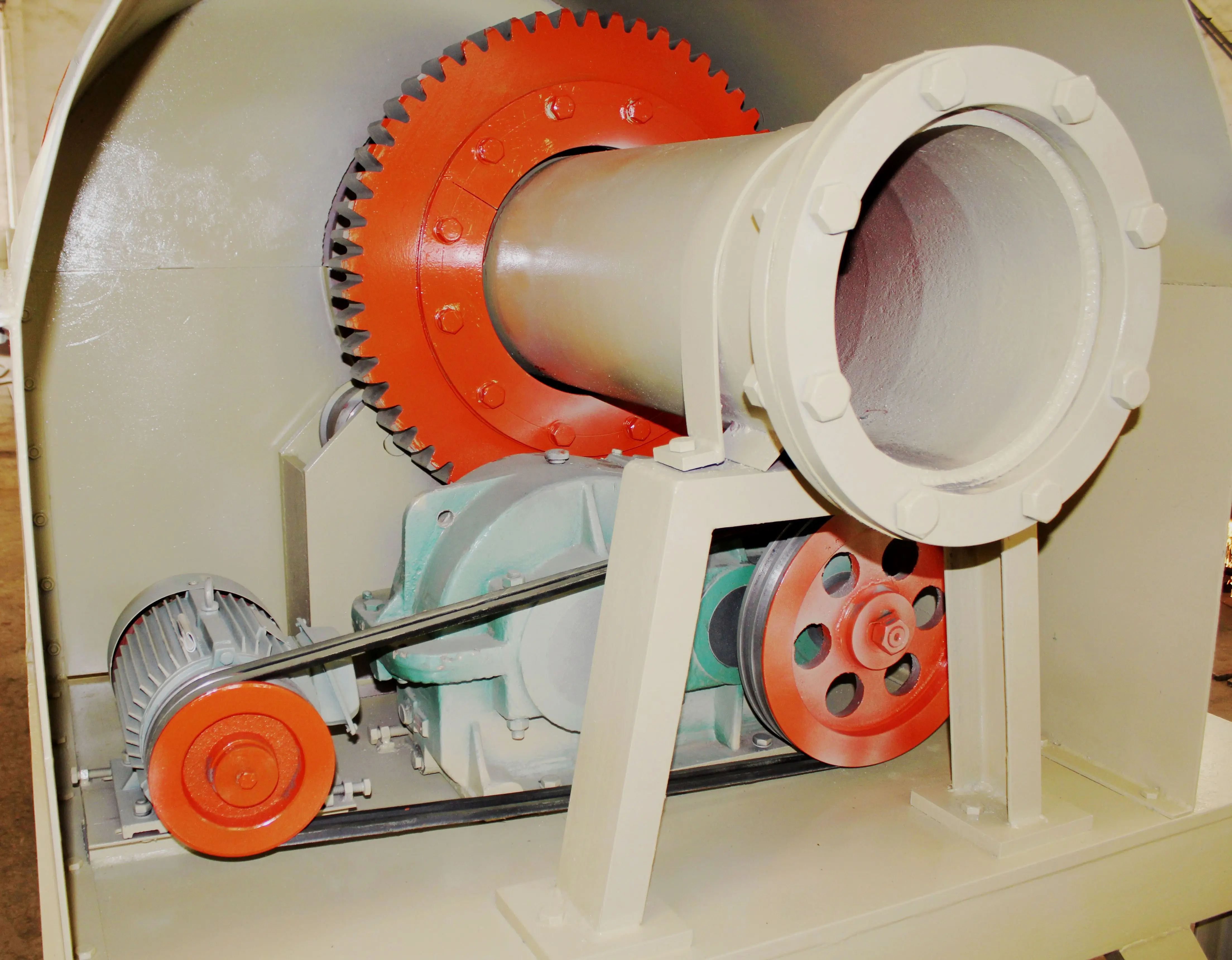

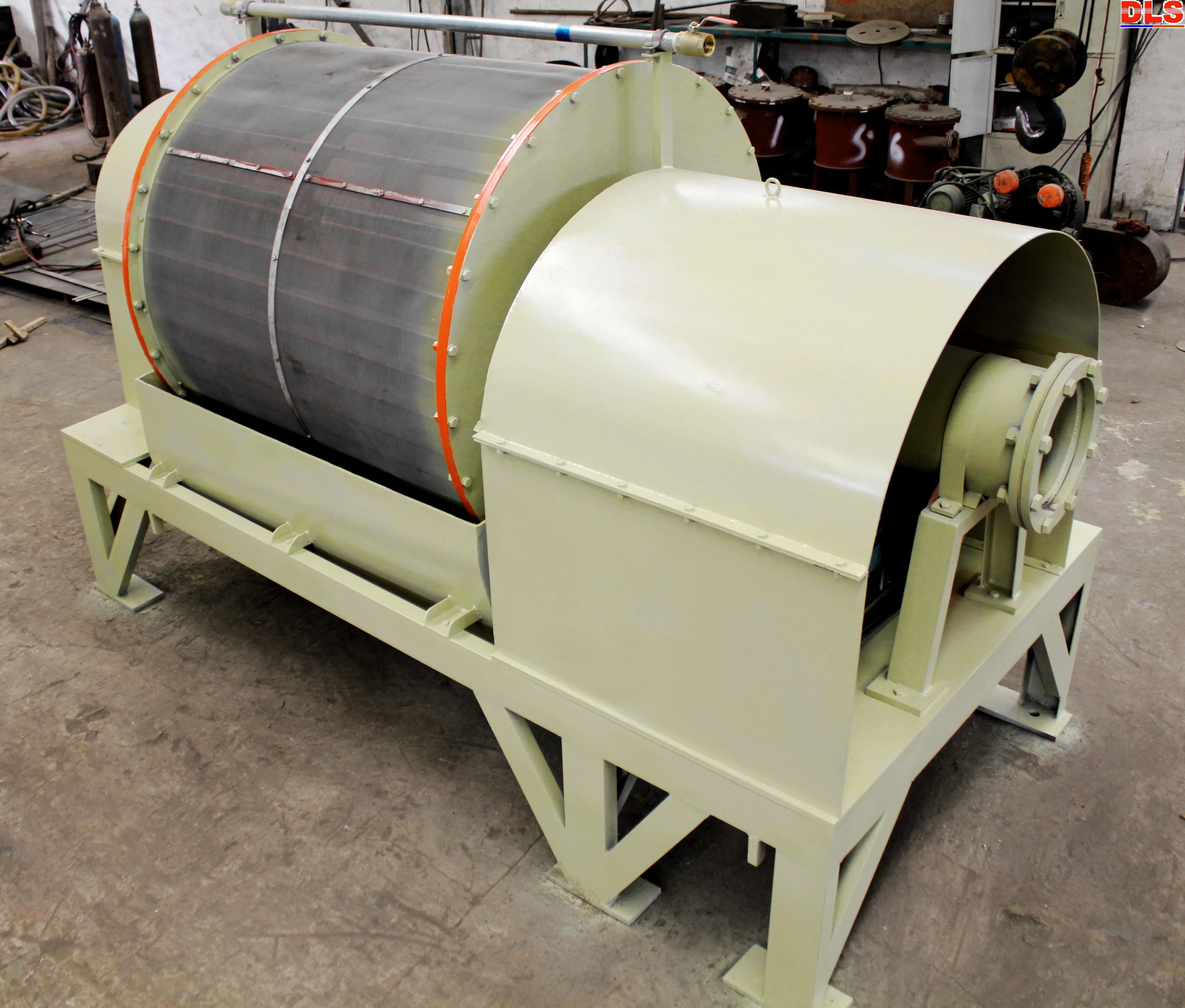

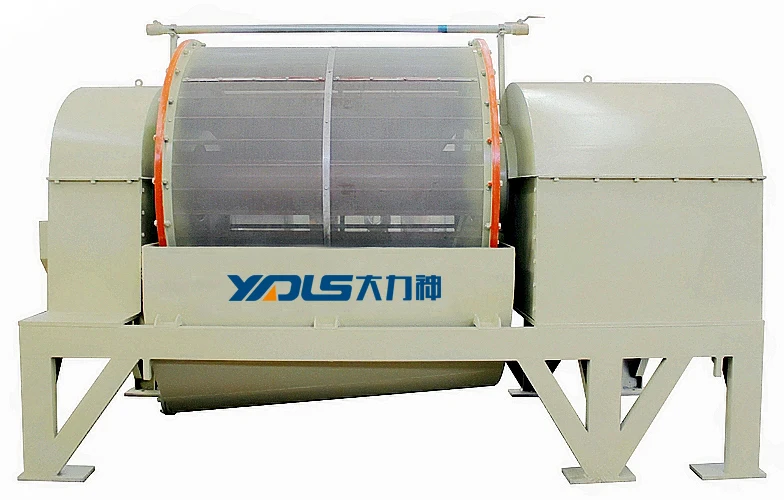

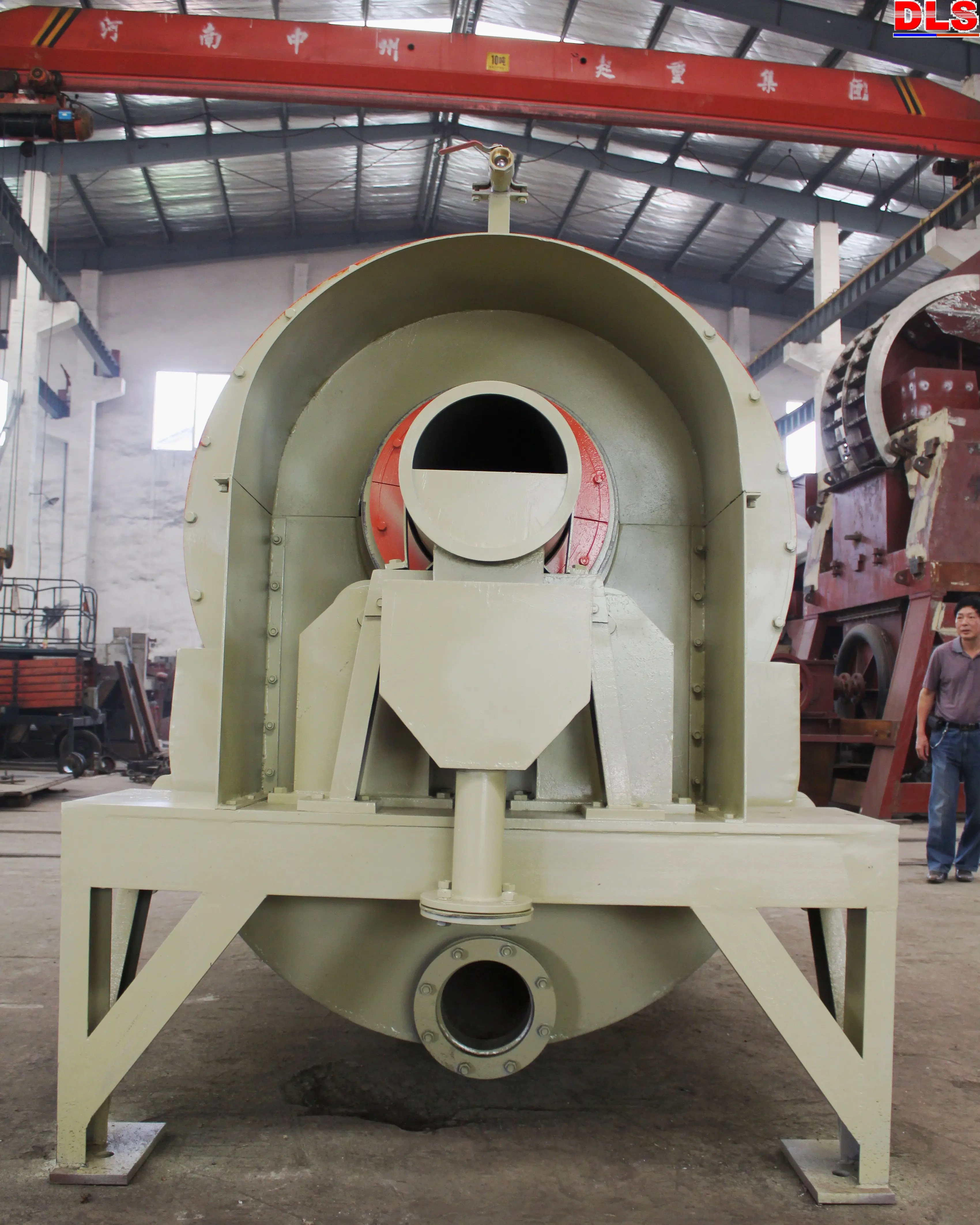

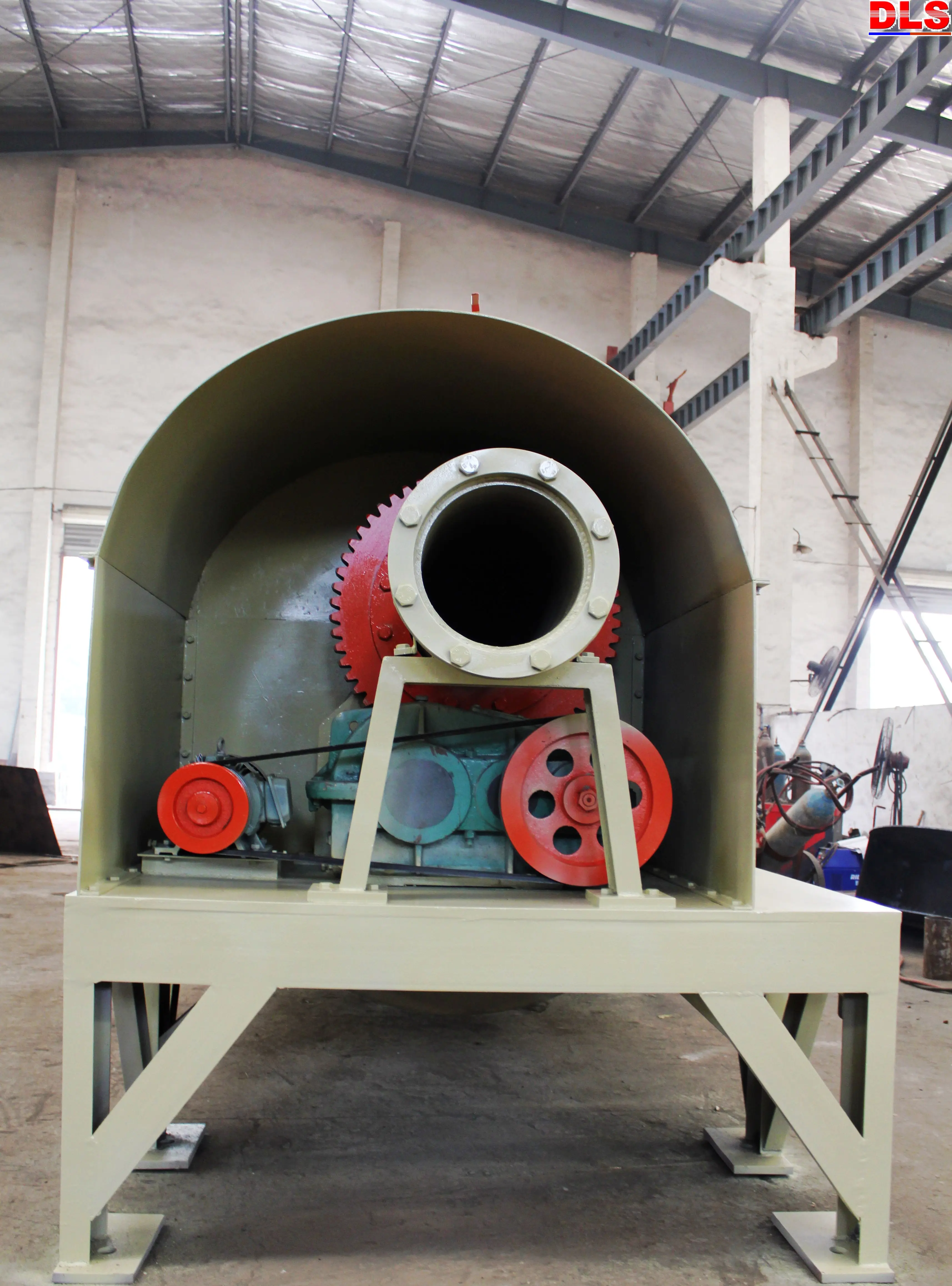

Cylindrical Trommel for Slag removal
- Category: >>>
- Supplier: Yueyang Dalishen Electromagnetic Machinery Co. Ltd.
Share on (364899552):
Product Overview
Description
Cylinder Dreg Sieve Isolation can be used in DLS separator for slag removal and also in other aspects which need slag removal.
The advantages of this products are: All moving components run slowly, low failure rate, easy to control and maintenance.

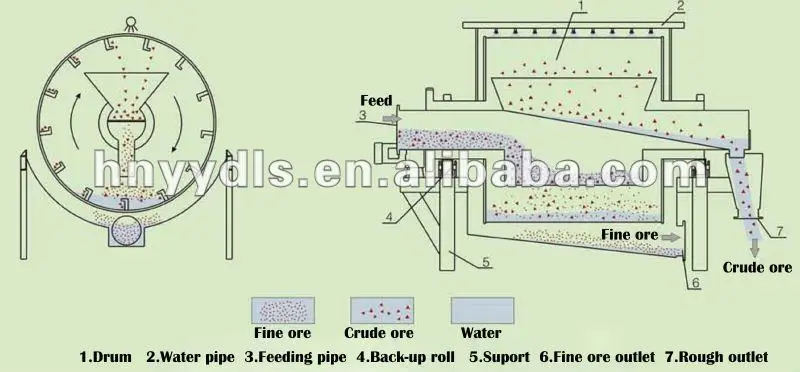

l Structure diagram
l Technical data
Model Specifications | DL-Φ800×1000 | DL-Φ1200×1000 | DL-Φ1420×1500 | DL-Φ2000×1950 | SL-Φ2500×2950 |
Cylinder diameter×length(mm) | Φ800×1000 | Φ1200×1000 | Φ1420×1500 | Φ2000×1950 | Φ2500×2950 |
Particles size(mm) | 0.8~2.0 | 0.8~2.0 | 0.8~2.0 | 0.8~2.0 | 0.8~2.0 |
Ore-feeding concentration(%) | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
Capacity(t/h) | 15 | 45 | 75 | 150 | 280 |
Driving power(KW) | 1.5 | 1.5 | 2.2 | 4 | 7.5 |
Water consumption(m3/h) | 1~2 | 3~5 | 5~10 | 10-20 | 18-35 |
Machine Weight(t) | 1.2 | 4 | 4 | 6.5 | 14.5 |
Dimension(L×W×H)(mm) | 2400×1300×1500 | 2980×1440×1730 | 4000×1600×2500 | 4750×2410×2780 | 6300×2900×3600 |
