Product introduction:
Ruisen optics can manufacture all kind of optical prism.
Application of optical element widely applies in many universities, research development, military, medical instrument and finance etc.
Equilateral dispersion prism a beam of light scattered into different colors, is used for spectral analysis of experiments and instruments. When a beam of light incident to the first inclined surface, due to glass refractive index and wavelength, the different colors of light refraction different point of view, this is a spectrum on the other side.
Angle is 60 °, can have both maximum dispersion and the minimum reflection loss. Dispersion ability is high or Abbe number smaller glass, produced bigger role powder .
The main application fields of prism:
1.Commonly used digital equipment: cameras, closed-circuit television, projector, digital camera, digital camera, CCD camera and various kinds of optical equipment.
2.Science and technology: telescope, microscope, leveling instrument, fingerprint, rifle scopes, solar energy converters and all kinds of measuring instruments.
3.Medical equipment: cystoscopy, endoscopy equipment and various types of laser treatment.
Material | Optical glass,Fused silica, etc | |
Dimension Tolerance | ±0.02mm | |
Angular Accuracy | ±5" | |
Surface Quality | 20/10 | |
Surface Accuracy | λ/10 | |
Clear aperture | >90 | |
Coating | Reflective Coating, Polarizing Coating, AR Coating,Dichroic Coating, Filtering Coating, Phase Coating. | |

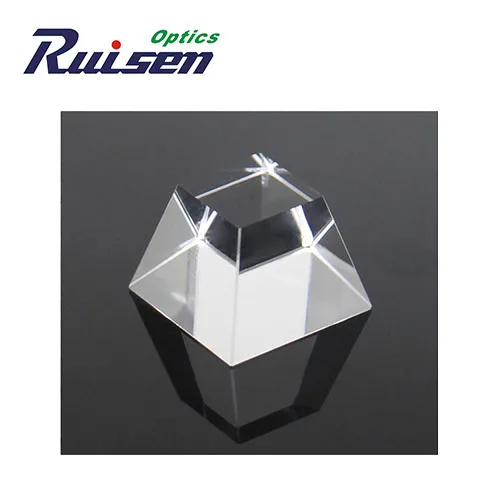

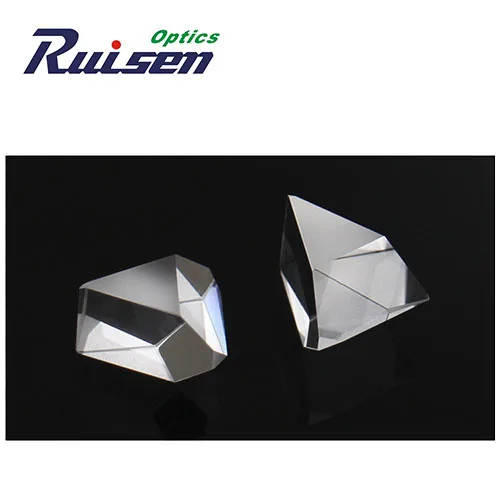

We can produce different kinds of Optical Prisms according to customer's specific requirements.Right angle prisms, Fingerprint prism,Dove prism, Roof prisms, Penta prism, Half-pentagonal prism, Wedge prisms, Corner cube prism, Cube prism, etc. | ||
About Ruisen
\t\t\t\t\t\t\t\t\tProduction line \t\t\t\t\t\t\t
Packaging
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q：What’s the way of shipping and cost?
1、We accept DHL, Fedex,TNT, UPS,EMS,SF and etc.
2、If you have your own express number, it’s great.
3、Freight=USD35(the first weight )+USD12/kg
Q:How to pay?
You can choose T/T,Paypal and Assurance payment on Alibaba and etc.
Q:What’s the deliver time?
1、For inventory: the delivery time is 3 days.
2、For customized products: the delivery time is 5-25 workdays.According to the quantity.
