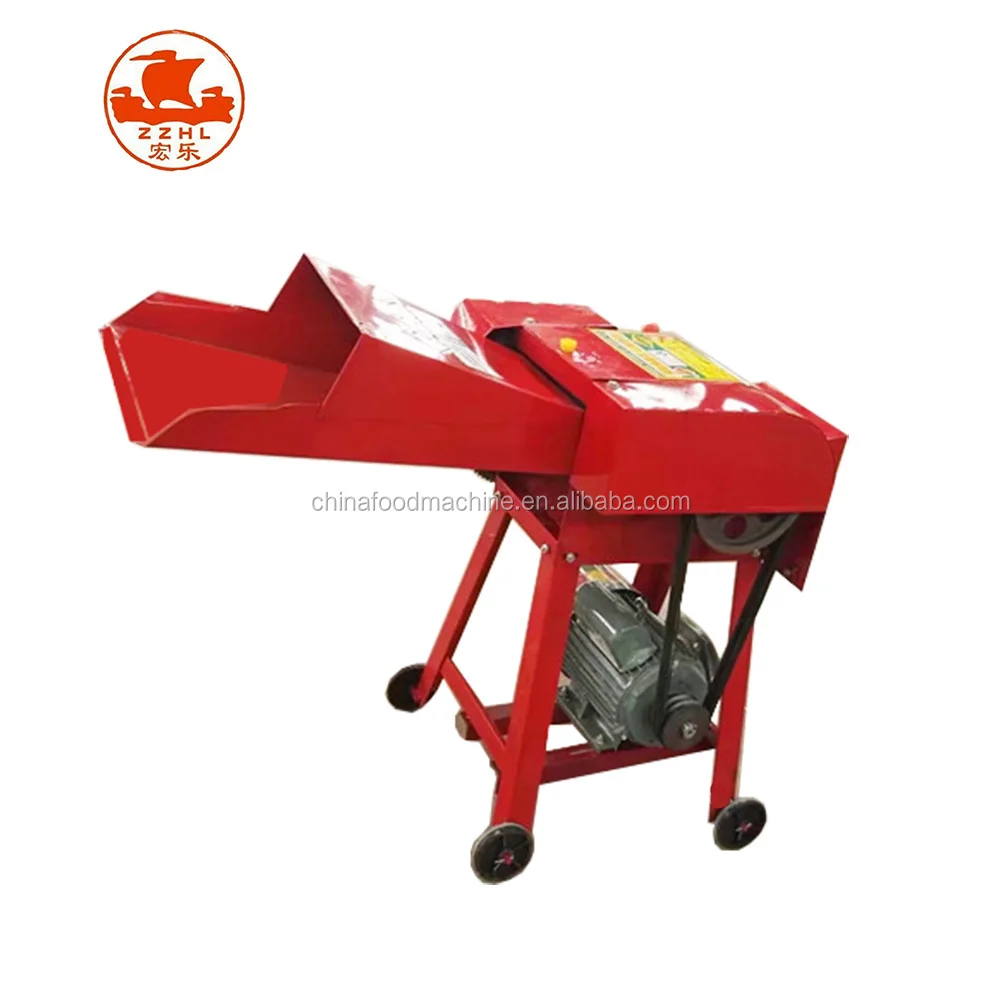

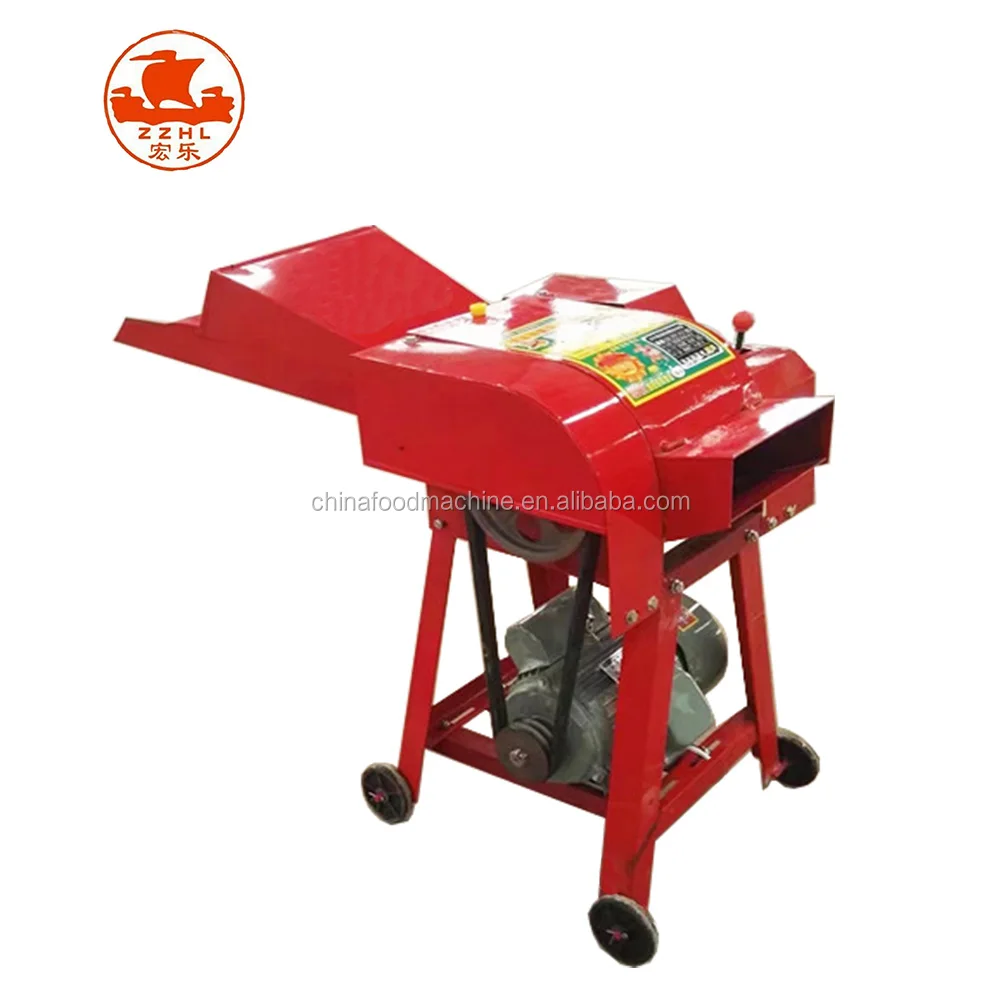

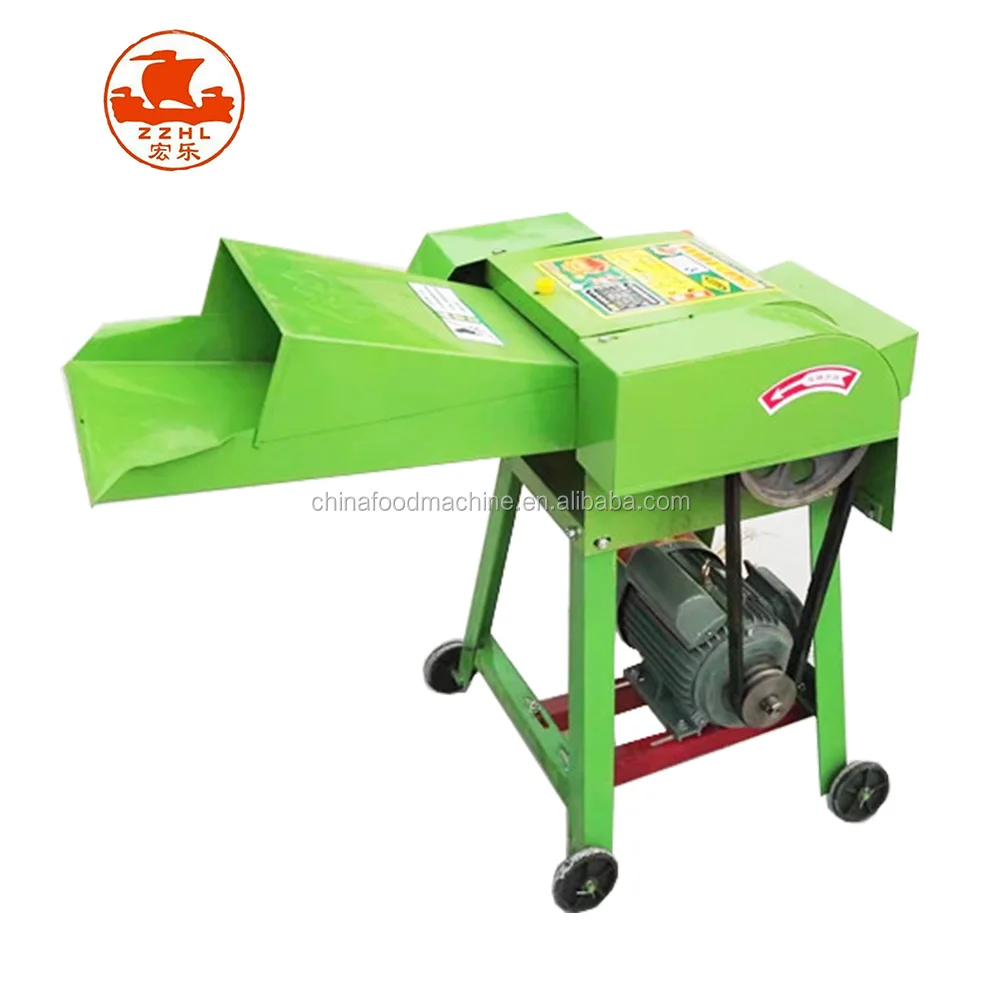

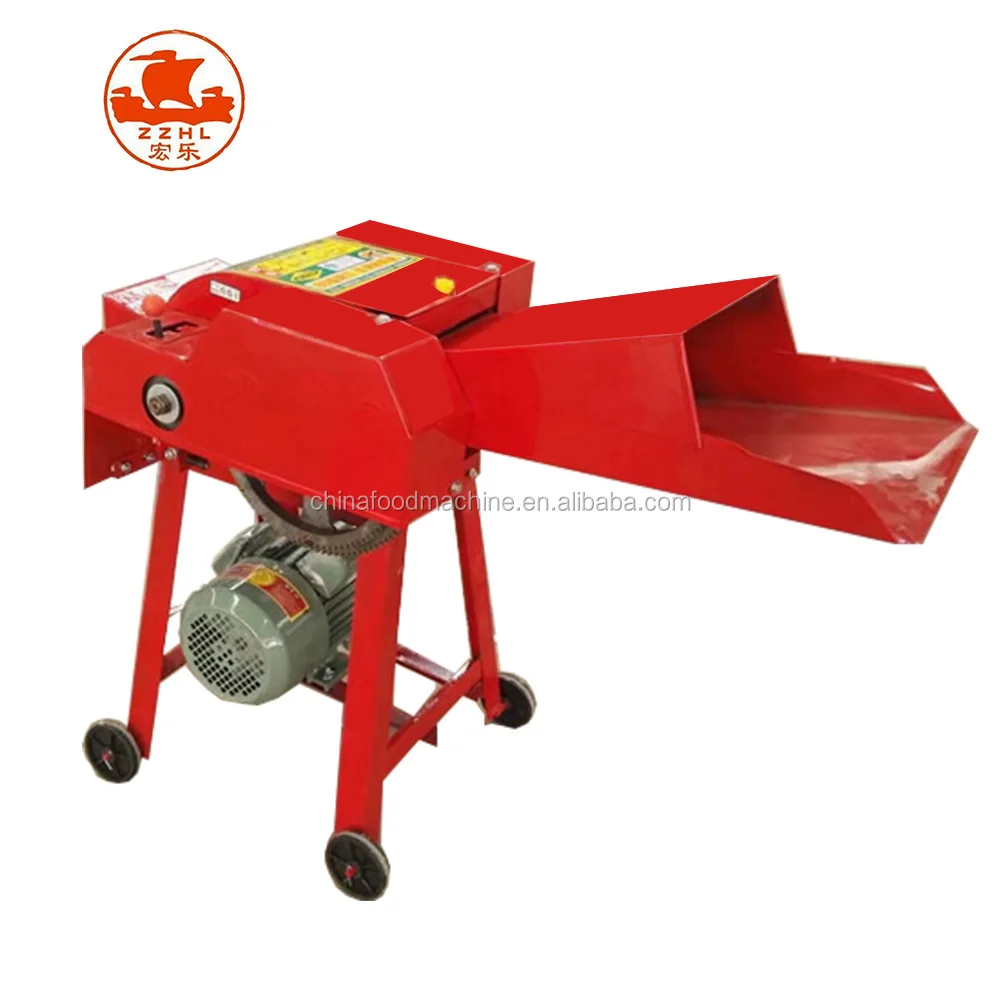

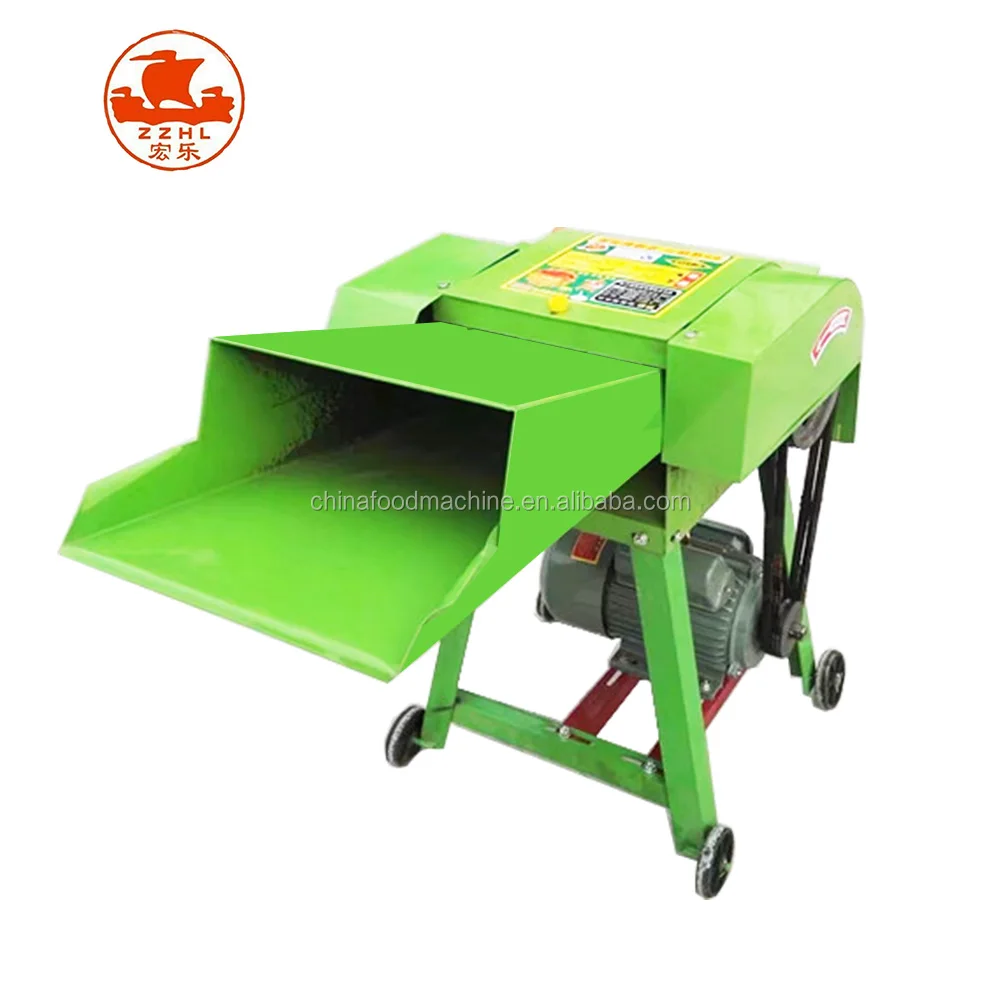

Grass Chaff Cutter Machine Animal Price
Product Description
Introduction:
The guillotine machine is mainly used for chopping various dry and wet crop straws and pastures, such as corn straw and rice straw. Used for raising cattle, sheep, horses, deer and other animals, suitable for pastures and farmers.
The products all adopt automatic feeding device. The main frame, bracket and motor frame are made of a combination of cast iron and steel plate, which not only enhances the stability during work, but also reduces noise.
The grass cutting part adopts two groups, three groups, four groups, and six groups of plane oblique knives. The gear transmission improves flexibility and service life, reduces the resistance to grass entry, and increases the amount of grass feed, which reduces the noise and increases Productivity.
The products all adopt automatic feeding device. The main frame, bracket and motor frame are made of a combination of cast iron and steel plate, which not only enhances the stability during work, but also reduces noise.
The grass cutting part adopts two groups, three groups, four groups, and six groups of plane oblique knives. The gear transmission improves flexibility and service life, reduces the resistance to grass entry, and increases the amount of grass feed, which reduces the noise and increases Productivity.
working principle :
This machine is used to cut green (dry) corn stalks, straw and other crop stalks and pastures. The working principle of the lawn
mower: the motor is used as the supporting power. The power is transmitted to the main shaft, and the gear at the other end of the
main shaft transmits the speed-adjusted power to the grass press through the gear box, universal joint, etc. Hold and feed it into
the guillotine cutting mechanism at a certain speed. After being cut by a high-speed rotating cutter, it is thrown out of the
machine through the grass outlet. This crusher is beautiful in appearance, adopts all-steel body, thickened steel, and the coating
adopts baking paint process, which has bright colors, good durability, corrosion resistance and durability.
mower: the motor is used as the supporting power. The power is transmitted to the main shaft, and the gear at the other end of the
main shaft transmits the speed-adjusted power to the grass press through the gear box, universal joint, etc. Hold and feed it into
the guillotine cutting mechanism at a certain speed. After being cut by a high-speed rotating cutter, it is thrown out of the
machine through the grass outlet. This crusher is beautiful in appearance, adopts all-steel body, thickened steel, and the coating
adopts baking paint process, which has bright colors, good durability, corrosion resistance and durability.
Main technical parameters:
Model | HLZP-0.4 | HLZP-0.4A | HLZP-0.4B | HLZP-0.4V |
Power (kw) | 2.2-3 | 2.2-3 | 2.2-3 | 2.2-3 |
Motor speed(r/min) | 2800 | 2800 | 2800 | 2800 |
Spindle speed(r/min) | 950 | 950 | 950 | 950 |
Weight (kg) | 50 | 52 | 58 | 54 |
Capacity (kg/h) | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
With belt | A1200-1219 | A1200-1219 | A1200-1219 | A1200-1219 |
Machine size(mm) | 1085*470*850 | 1085*470*850 | 1055*550*875 | 1085*470*895 |

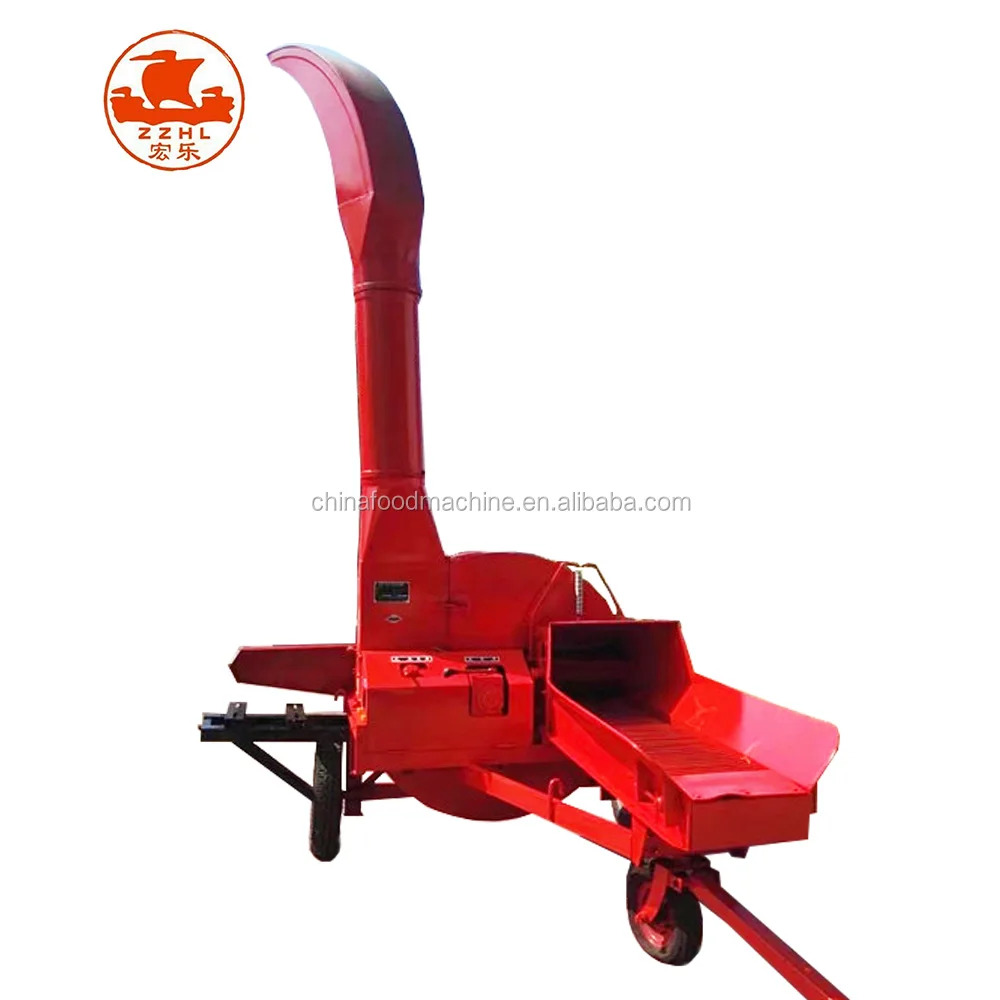

Large capacity chaff cutter
Please tell me your raw material and final product ,capacity .then i can recommend suitable machine to you.
Model | HLZP-2 | HLZP-3 | HLZP-4.5 | HLZP-6.5 | HLZP-10 |
Capacity (t/h) | 1-2.5 | 1-3 | 1.5-4.5 | 2.5-6.5 | 3-10 |
Power (kw) | 4 | 4 | 5.5 | 7.5 | 15 |
Motor speed(r/min) | 2800 | 1440 | 1440 | 1440 | 1440 |
Weight (kg) | 115 | 150 | 300 or 360 | 420 or 460 | 800 or 880 |
Cutter speed(r/min) | 1100 | 800 | 800 | 650 | 500 |
Number of moving knives(pcs) | 6 | 3 or 4 | 4 | 3 or 4 | 3 or 4 |
Detailed Images
Related Products

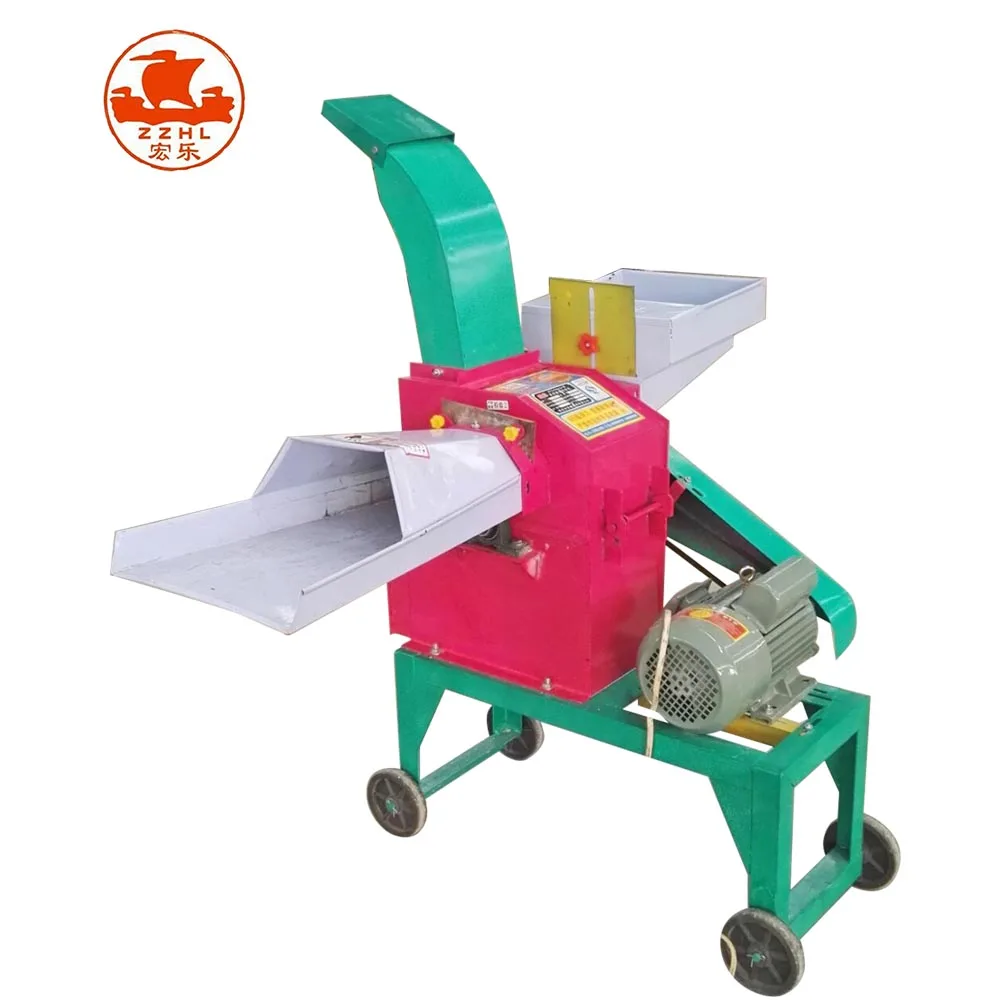

Multifunction chaff cutter crushing machine
working principle:
When working, the processed material enters the crushing chamber from the hopper, is crushed by the working parts rotating at high speed, and changes the direction of movement of the material.Since the working parts rotating at high speed destroy the sedimentation of the material layer, the material With the movement of the rotor, during this process, the forage or particles are repeatedly collided by the working parts and the body, as well as the collision and friction between the particles, so that they are gradually crushed until their geometric diameter is smaller than the diameter of the sieve hole. The crushed material leaks into the powder chamber through the sieve hole and is discharged from the discharge port, and the grass broken by the guillotine can also be ejected from the high nozzle.
This crusher is beautiful in appearance, adopts all-steel body, thickened steel, and the coating adopts baking paint process, which has bright colors, corrosion resistance and durability.
The guillotine design is novel, with high safety and stability during operation, low noise, and long service life
This pulverizer machine consists of upper body, lower body, rotor assembly, screen, feeding device, discharge device, frame, etc. The body and rotor assembly are important parts of the crushing chamber, rotor assembly It is the main working part.
When working, the processed material enters the crushing chamber from the hopper, is crushed by the working parts rotating at high speed, and changes the direction of movement of the material.Since the working parts rotating at high speed destroy the sedimentation of the material layer, the material With the movement of the rotor, during this process, the forage or particles are repeatedly collided by the working parts and the body, as well as the collision and friction between the particles, so that they are gradually crushed until their geometric diameter is smaller than the diameter of the sieve hole. The crushed material leaks into the powder chamber through the sieve hole and is discharged from the discharge port, and the grass broken by the guillotine can also be ejected from the high nozzle.
This crusher is beautiful in appearance, adopts all-steel body, thickened steel, and the coating adopts baking paint process, which has bright colors, corrosion resistance and durability.
The guillotine design is novel, with high safety and stability during operation, low noise, and long service life
This pulverizer machine consists of upper body, lower body, rotor assembly, screen, feeding device, discharge device, frame, etc. The body and rotor assembly are important parts of the crushing chamber, rotor assembly It is the main working part.
Model | 400-20C | 400-24B | 400-24C | 400-30 |
Machine size(mm) | 850*1310*1440 | 1180*1090*1040 | 850*1350*1440 | 1220*1150*1040 |
Weight (kg) | 55 | 70 | 70 | 80 |
Spindle speed(r/min) | 3100 | 3100 | 3100 | 3100 |
Powder (kw) | 2.2-3 | 2.2-3 | 2.2-3 | 2.2-3 |
Rotor diameter(mm) | 360 | 360 | 360 | 360 |
Number of hammers(pcs) | 16 | 24 | 24 | 24 or 32 |
Screen hole diameter(mm) | 3 | 3 | 3 | 3 |
Capacity (kg/h) | 200-400 | 400-600 | 400-600 | 600-800 |
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
