Product Overview

Description

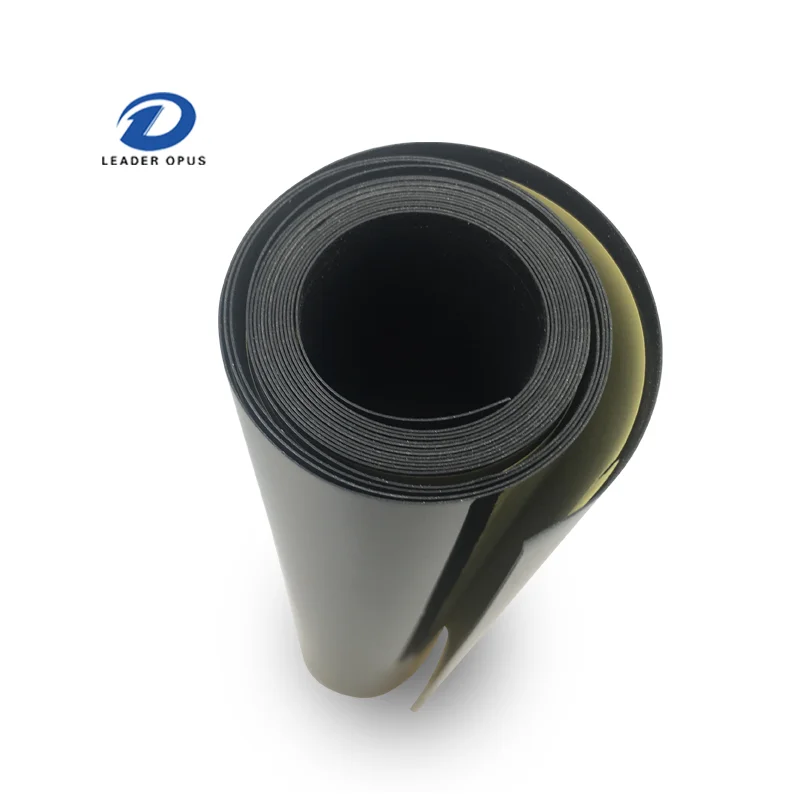

Silicone rubber sheets,silicone rubber pads,silicone sheets,rubber sheets

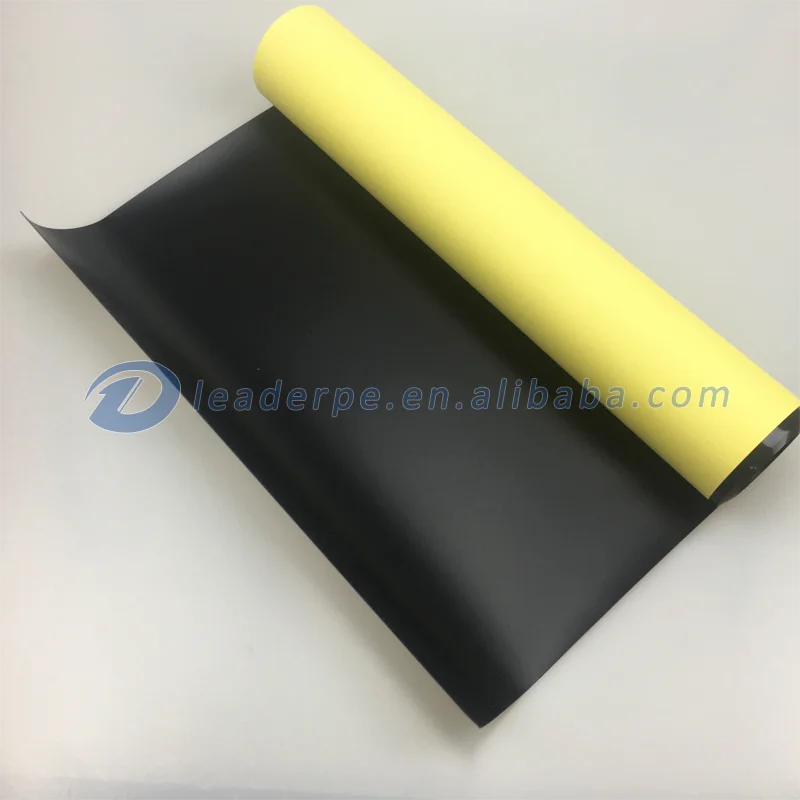

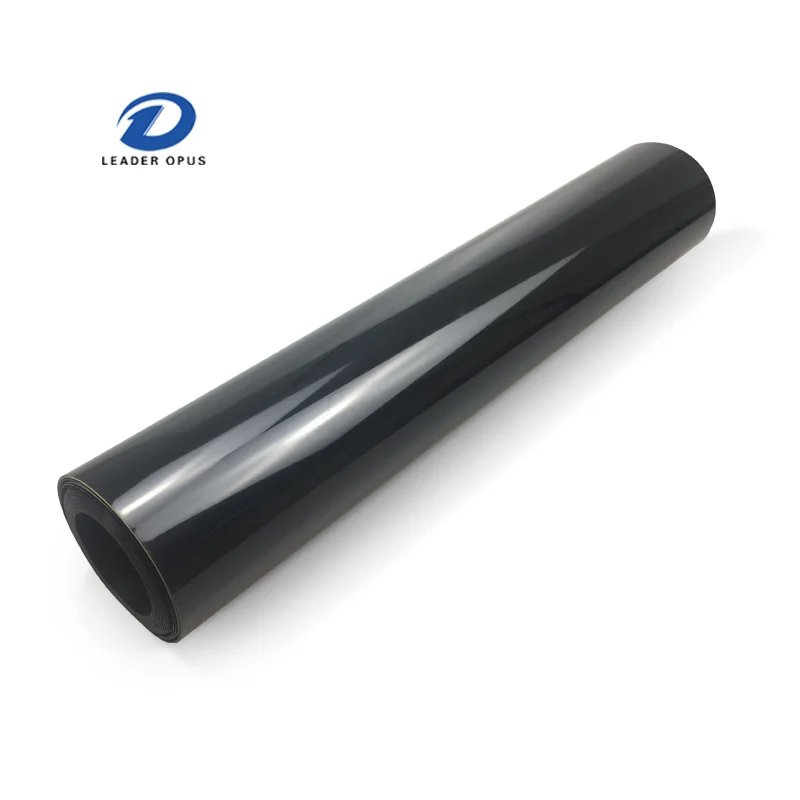

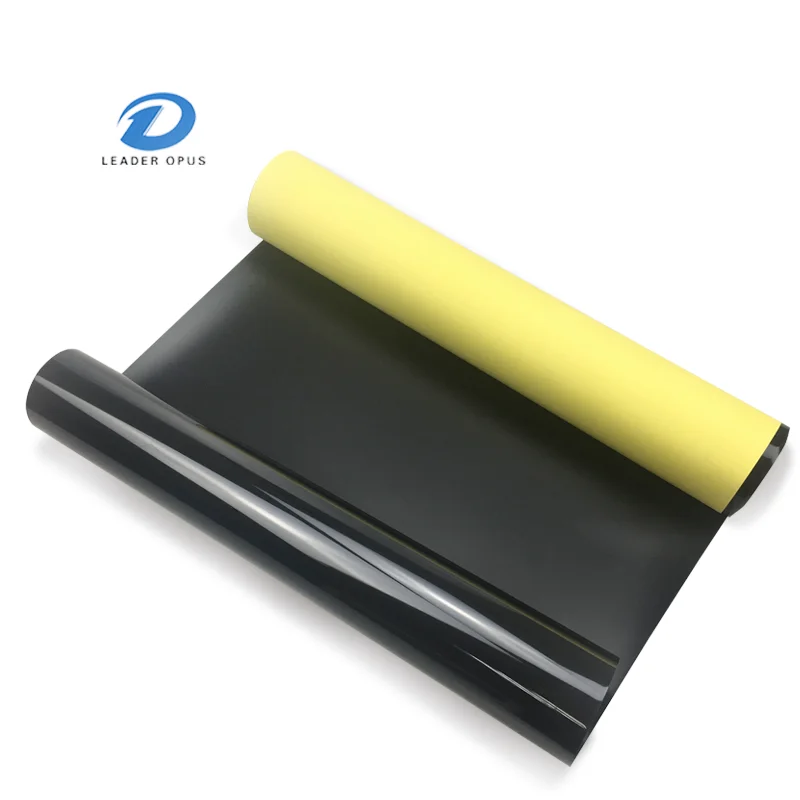

High quality silicone rubber sheets for sales

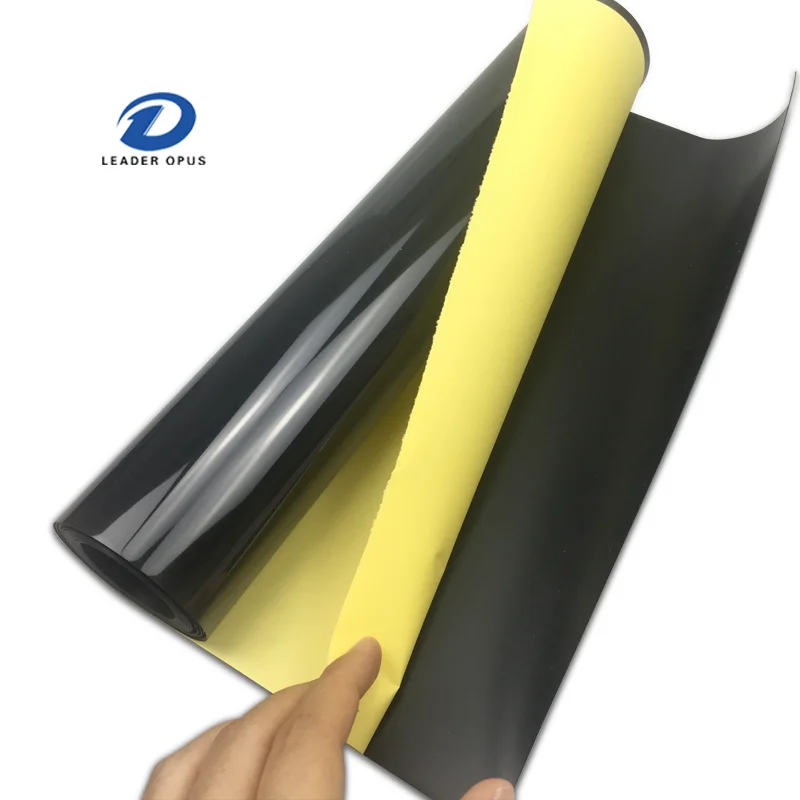

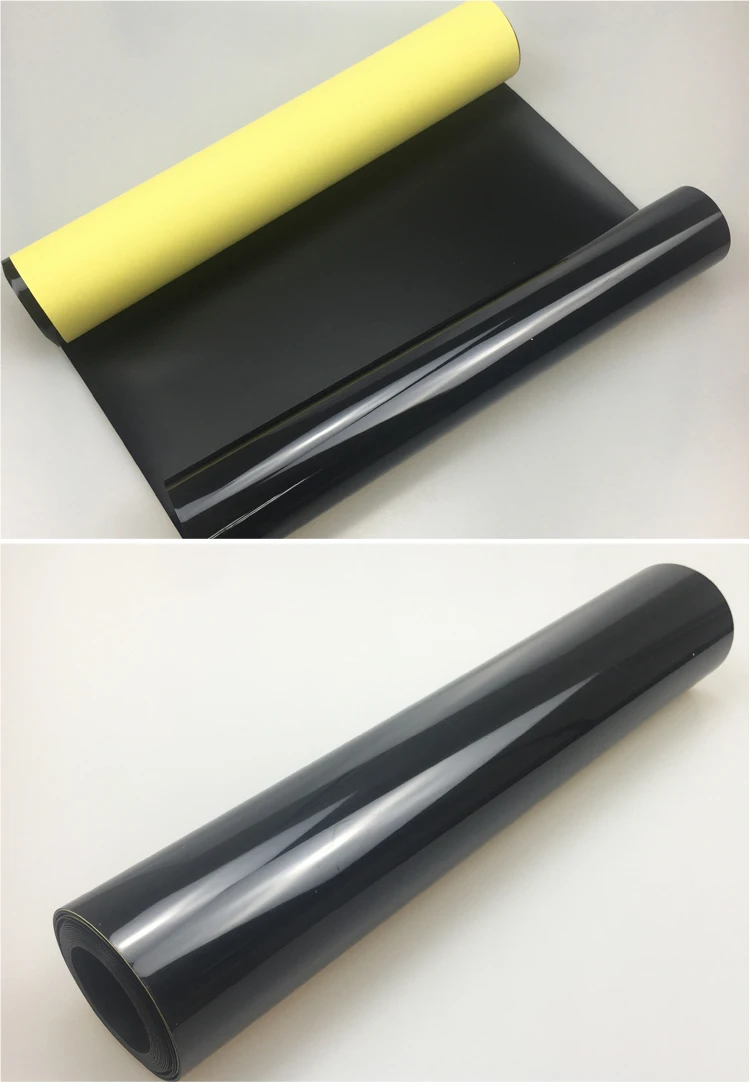

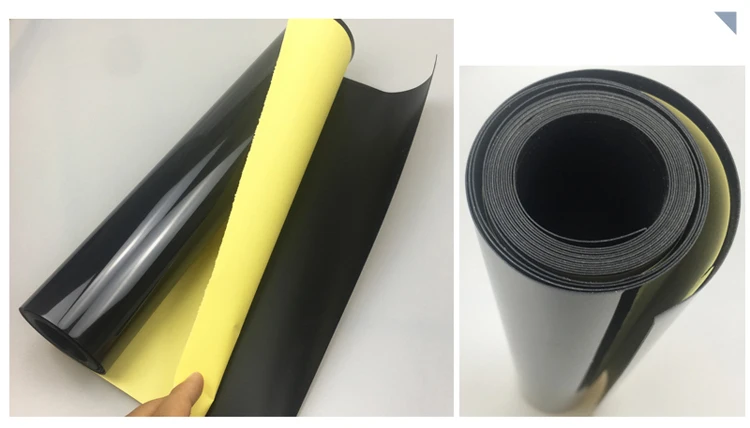

Configuration of silicone rubber sheets



General physical properties of silicone subber sheets

Item	Testing value	Unit	Test standard
Materials	SILICON+PET	-	-
Color	all colours	-	Visual
Thickness	0.1T-2.0T	mm	ASTM D374
Specific Gravity(23±2℃)	1.14	g/cm3	ASTM D792
Hardness(Shore A)	50±5	degree	ASTM D2240
Elongation Rate	>300	%	ASTM D412
Tensile Strength	10.1	Mpa	ASTM D412
Elongation	>80	%	ASTM D412
The Most Strongly	252.4	N	ASTM D412
Continuous Use Temp	-20℃~160℃	℃	-
Use Relative Humidity Range	15~98	%	-
Friction Coefficient	0.70~1.0	μk	ASTM D1894
Breakdown Voltage	>20	Kv	ASTM D149
Surface Resistivity	4.1×1013	Ω/sq	ASTM D257

Remarks: 1. The above data are only the test data of our company (based on 0.5t products), and different test results may occur due to different test conditions;
2. Users are advised to use the test results under their own conditions as a reference for performance;



Features of silicone rubber sheets

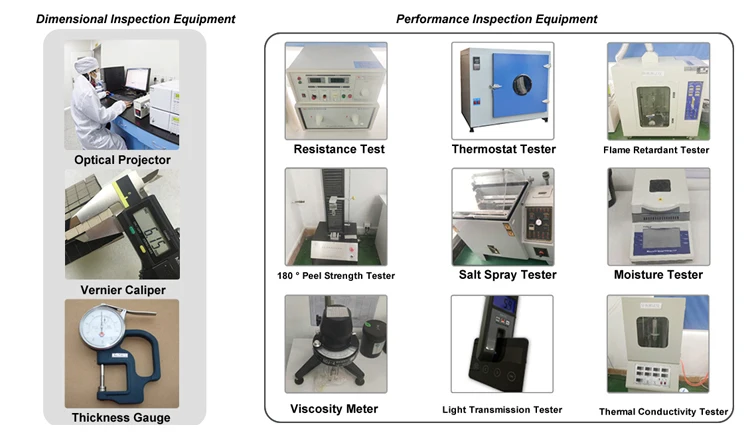

Test equipment of silicone rubber sheets

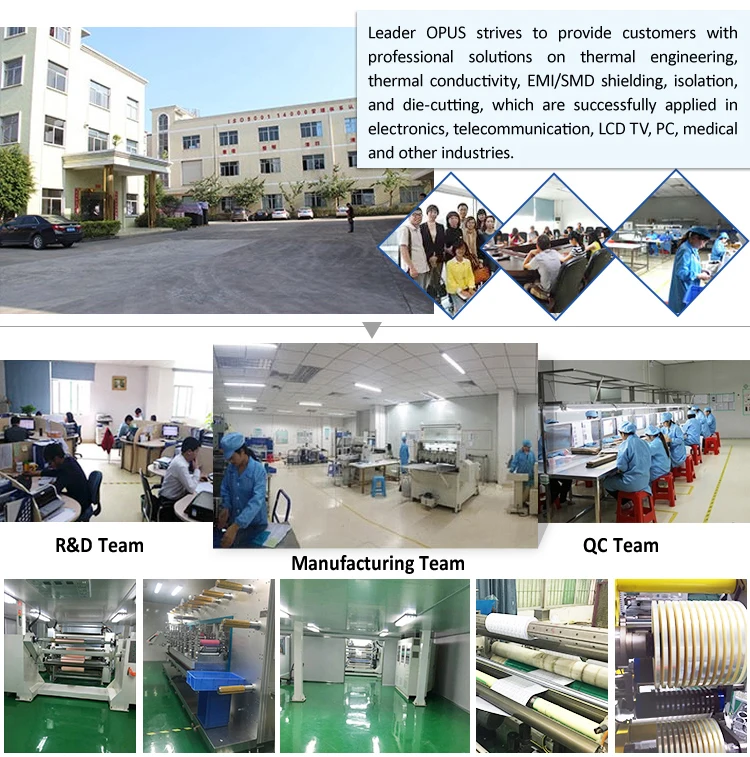

China silicone rubber sheets manufacturer

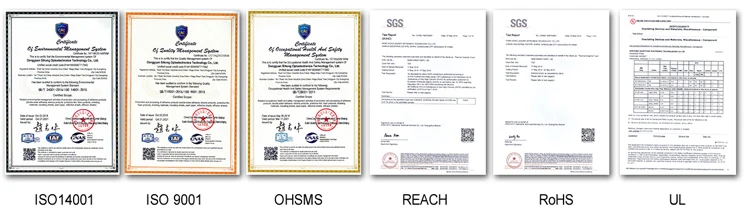

Certifications of silcone rubber sheets



Customer visits for silicone rubber sheets

Global Partners of Leader OPUS
