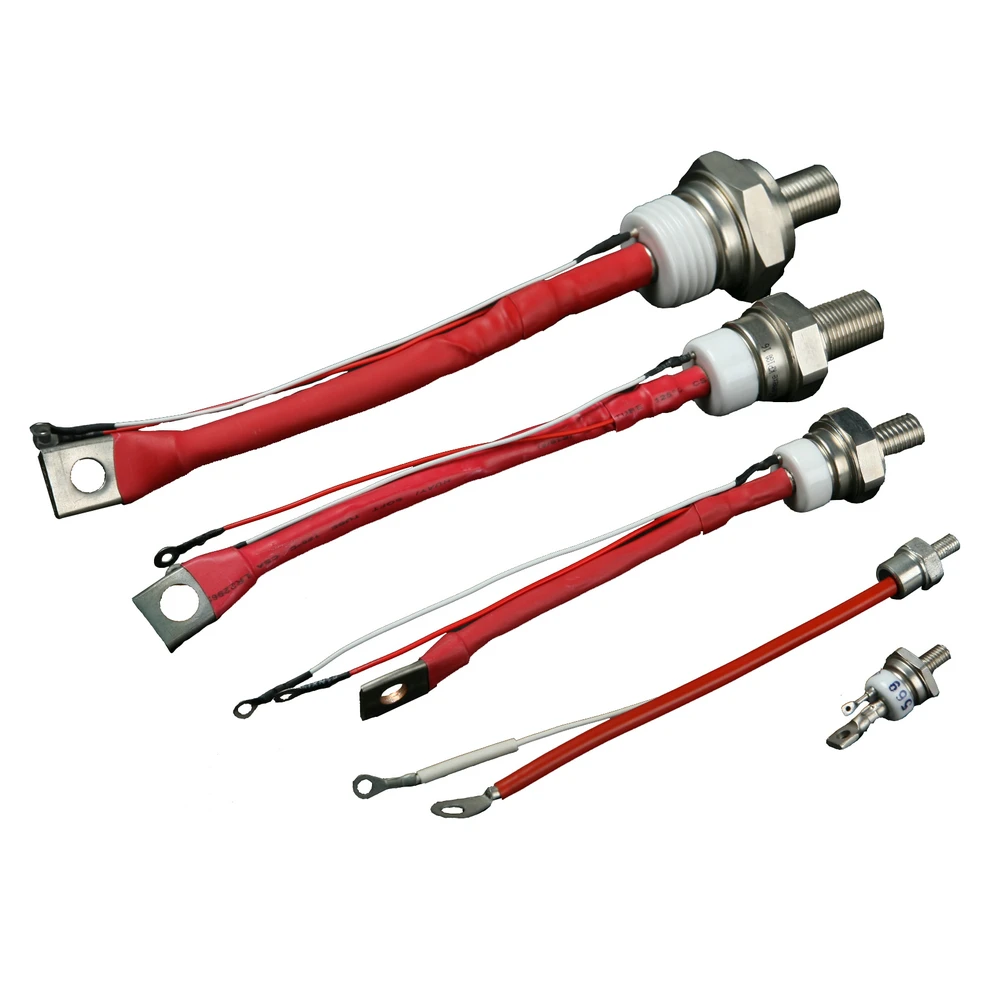

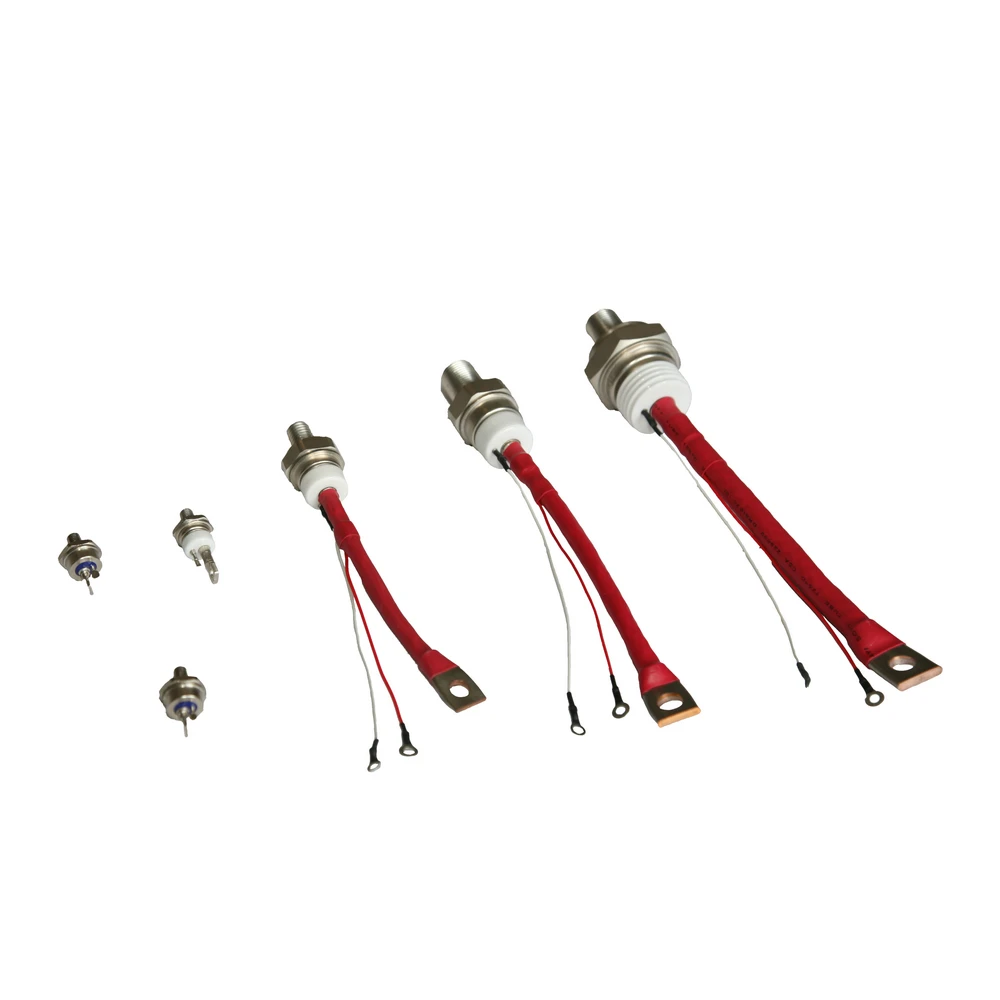

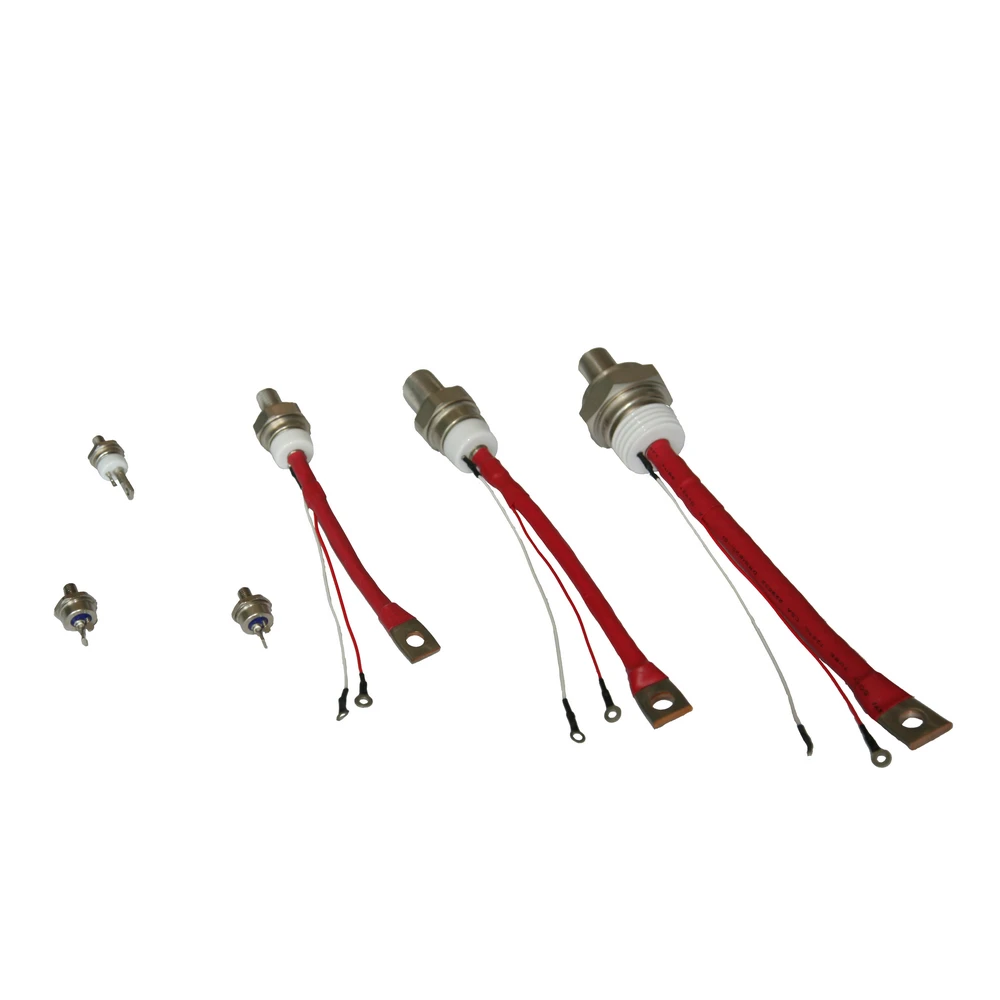

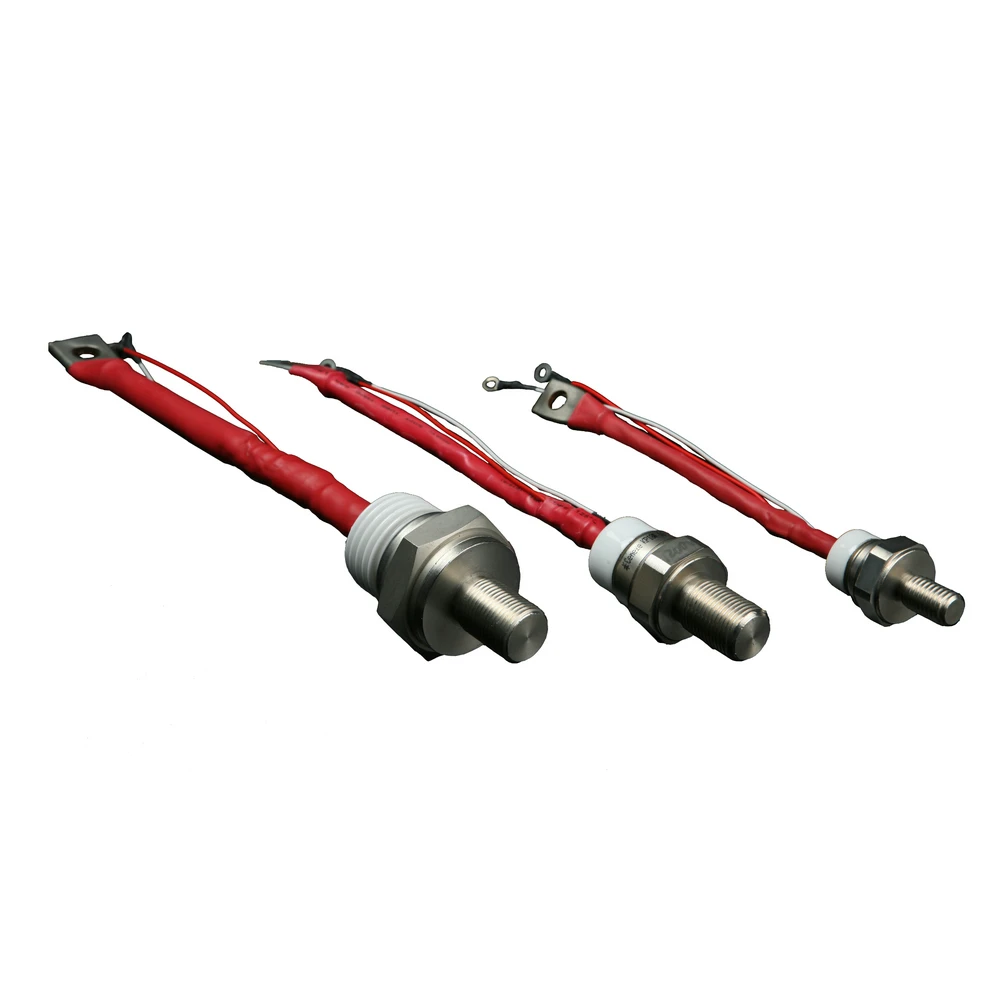

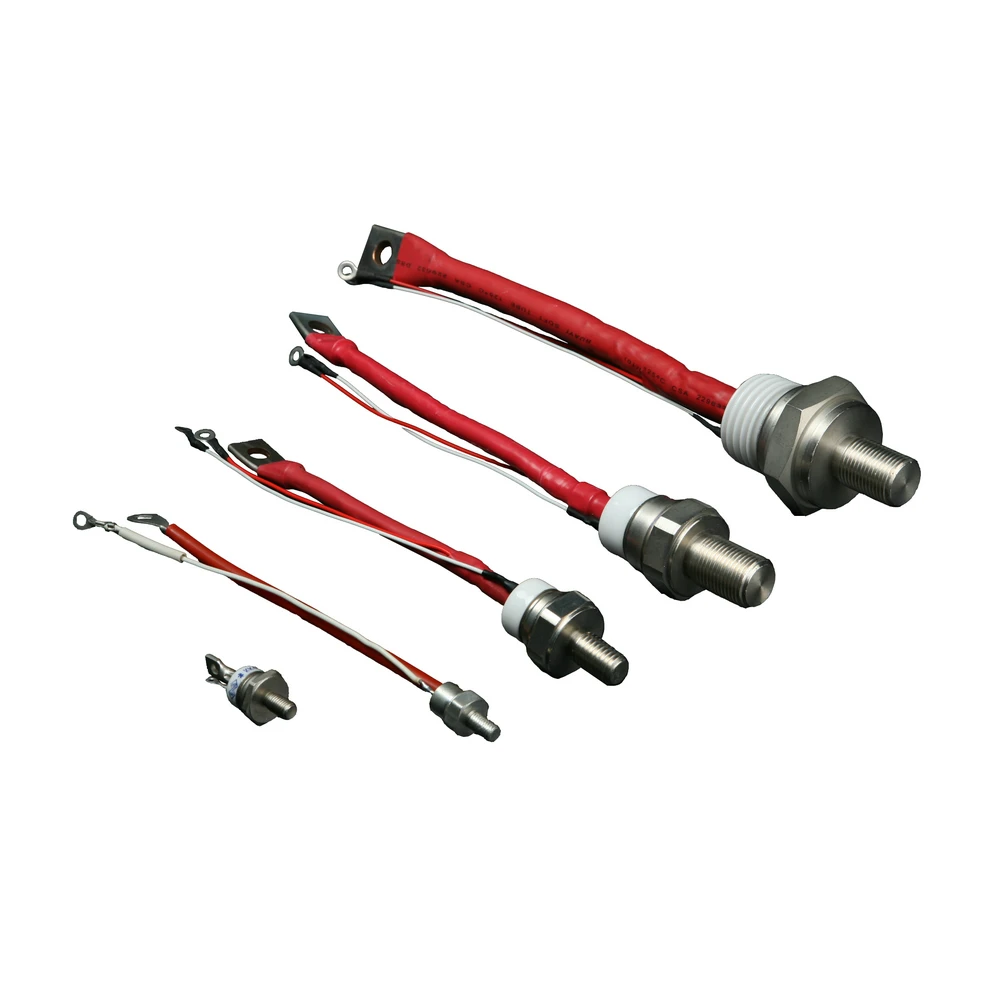

Fast switching stud type thyristor

Model

I_T(AV)

@T_C=75

A

V_DRM

V_RRM

V

I_TSM

@50H_Z

kA

V_TM

V

V_GT

V

I_GT

mA

tq

@200V/μs

μs

R_thjc

/W

T_jm

Outline

@I_TM

A

KK200/16

200

1600

3.8

2.0

600

3.0

200

25

0.080

125

T6

KK300/16

300

1600

5.7

2.0

900

3.0

200

25

0.040

125

T7

KK400/16

400

7.6

1200

KK500/18

500

1800

9.0

2.0

1500

3.0

200

30

0.031

125

T9

KK600/18

600

12.0

2.2

2000

KK800/18

800

1800

15.0

2.4

2000

3.0

250

40

0.026

125

T10

KK1000/13

1000

1300

19.0

2.0

3000

3.5

300

30

0.021

125

T11

KK1000/18

1800

2.4

40

KK1200/20

1200

2000

22.0

2.4

3000

3.5

300

40

0.018

125

T12

KK1500/22

1500

2200

28.0

4500

KK1800/25

1800

2500

34.0

2.4

6000

3.5

300

40

0.015

125

T13
