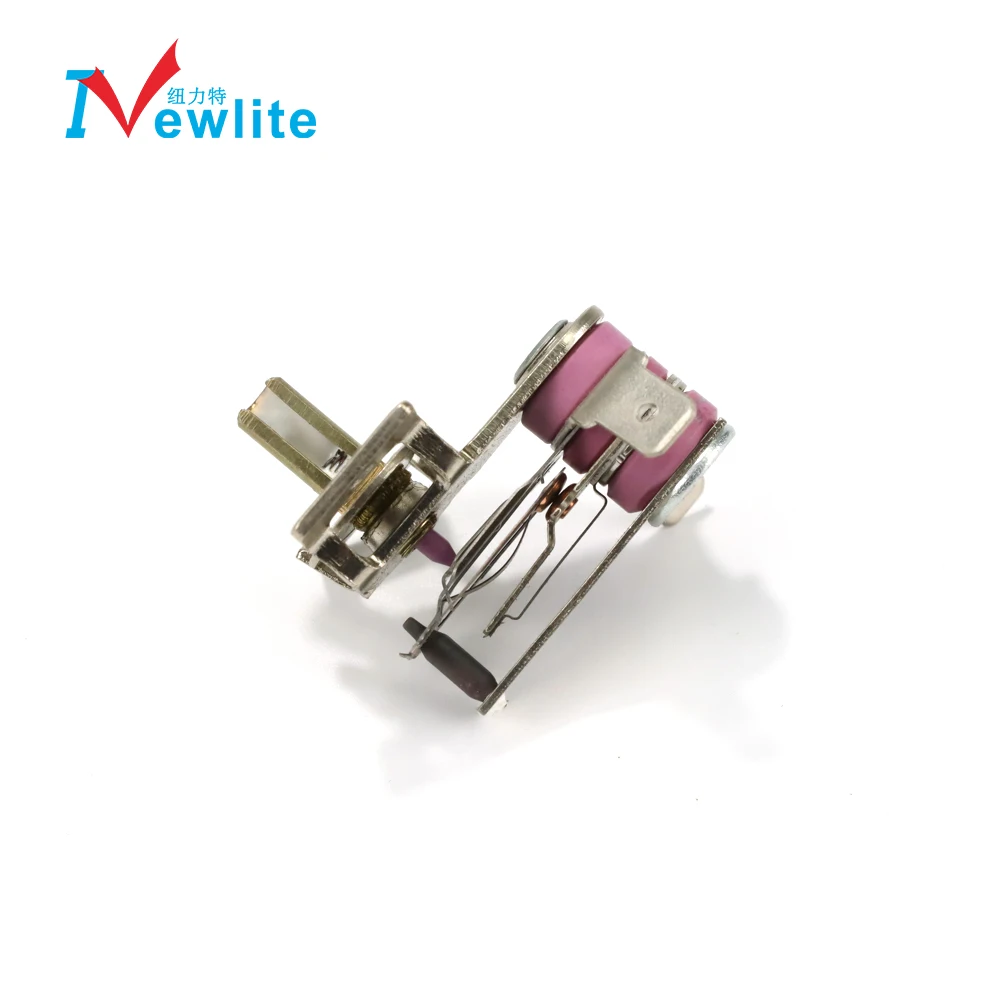

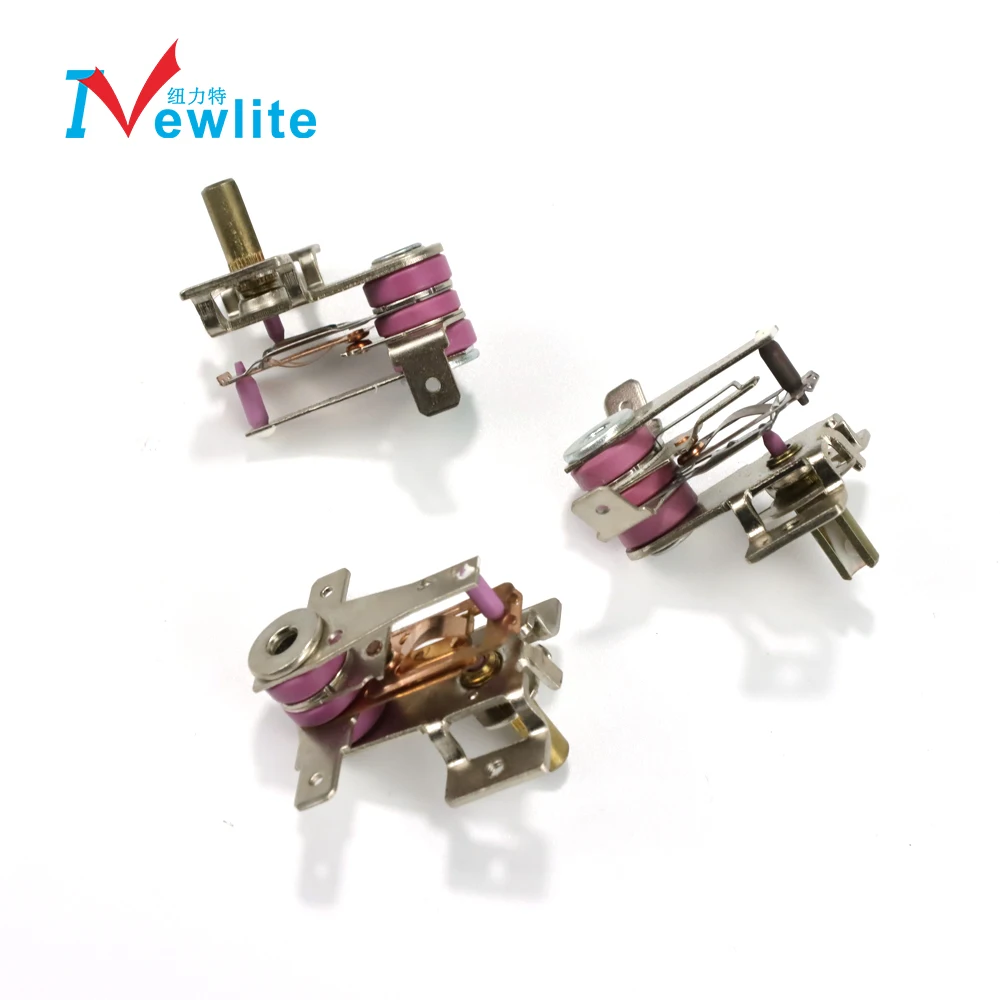

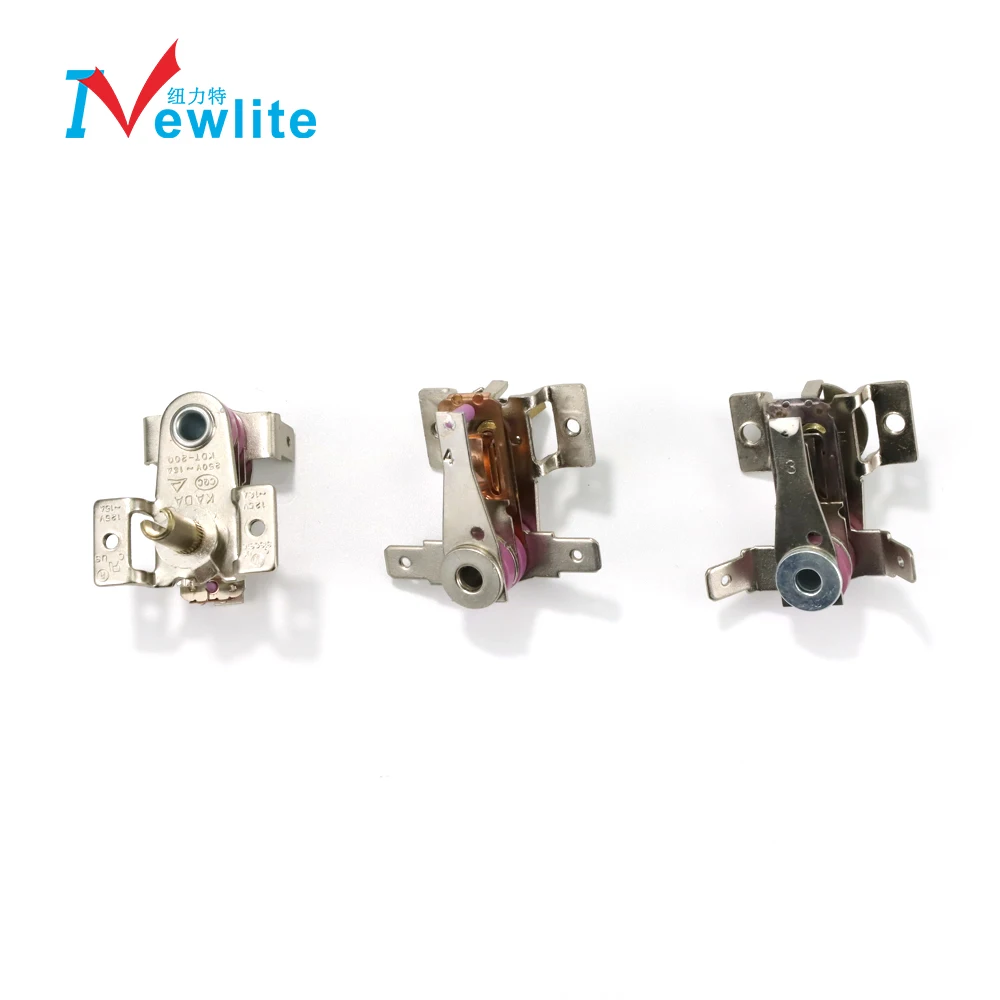

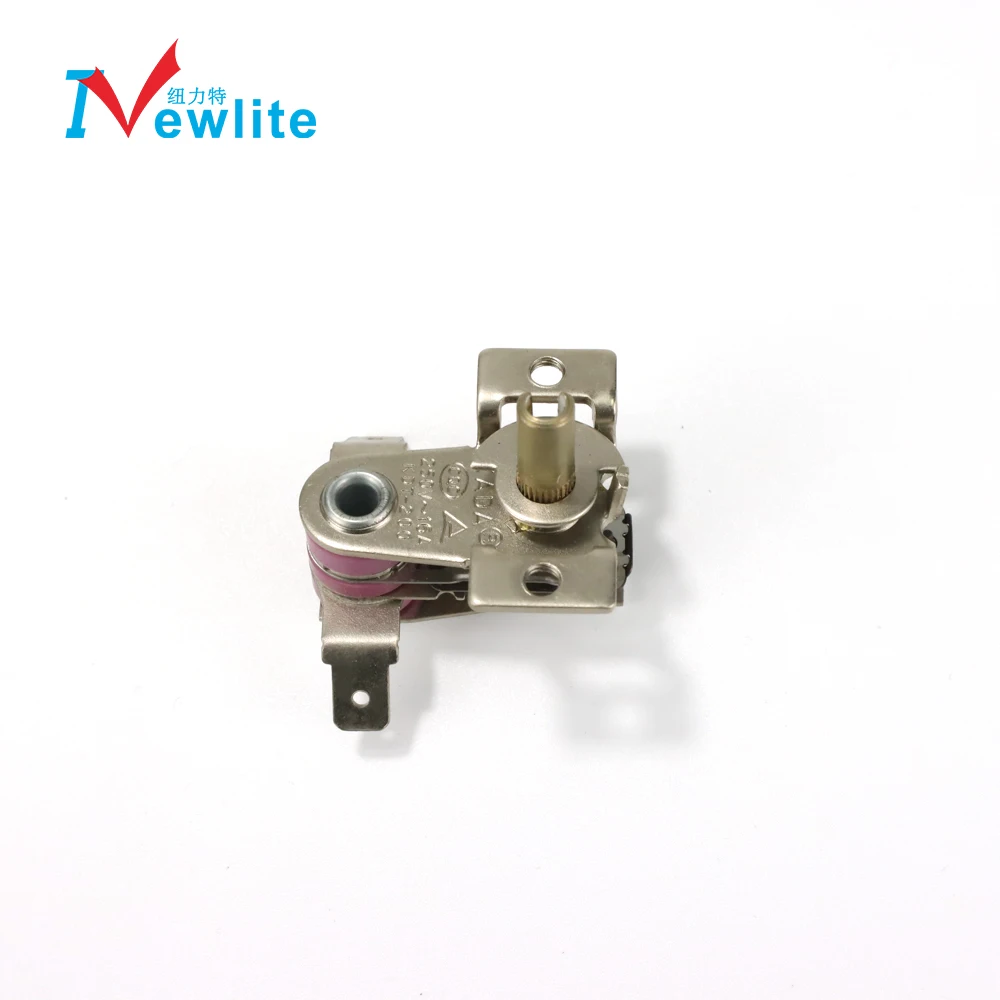

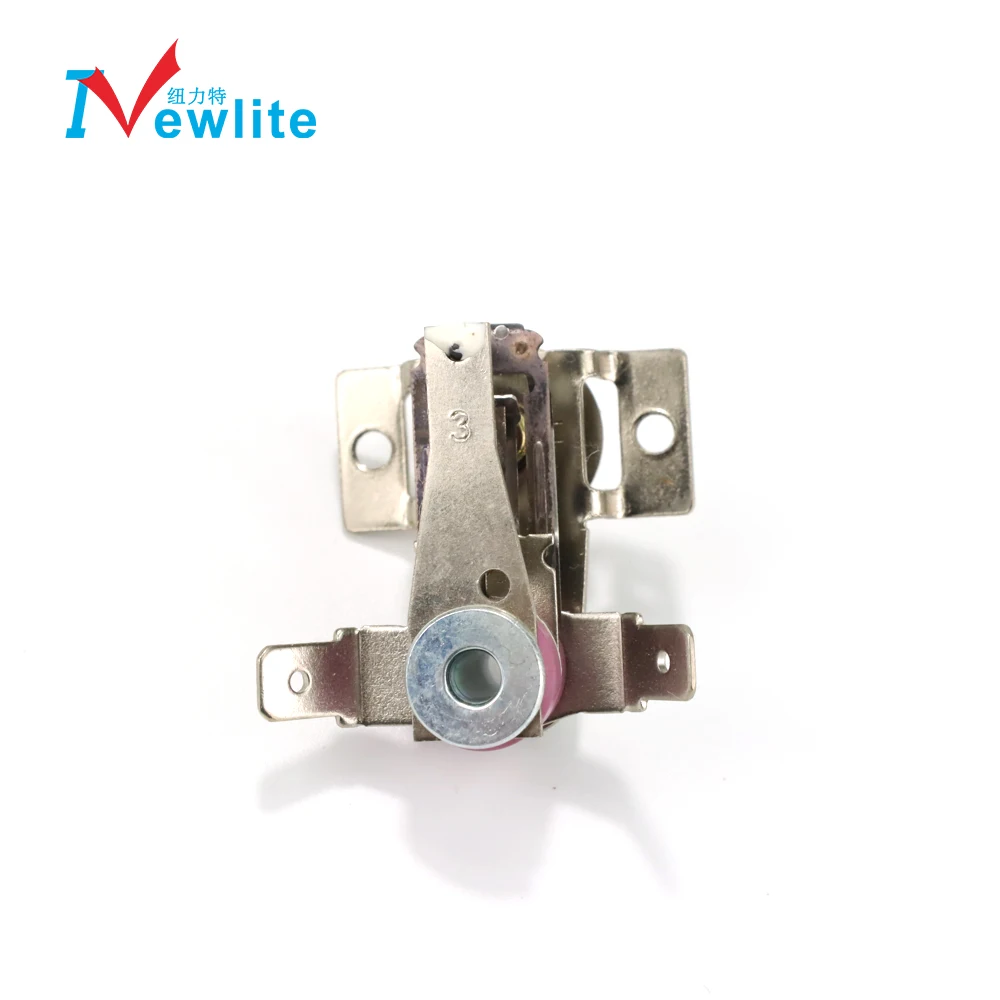

Adjustable Bimetallic Thermostat

Share on (368364595):


Price:$0.30 - $0.40

Quantity:


Product Overview

Description


Adjustable bimetallic thermostat















































































Standard Rating:



UL&CUL



125V AC 15A



TUV



250V AC 10A/125V AC 12A



CQC



250V AC 10A



Operating Life:



UL&CUL



30000cycle



TUV



100000cycle



CQC



30000cycle



Max.Ambient Temperature



T250 oC



Temperature Control Range



60~250 oC



Temperature Control Precision



+- 10 oC



ON~OFF Difference



10~30 oC, depending on mounting and design



Terminal Type and Connection Range



C1~C8 optional



Type of tune up shaft



D1~D9Optional,candesign depending on demand



Center Distance C



15/18/20mm



length of tune up shaft



can design depending on demand



Hi-pot



2000V AC 1 minute



Approval



UL&CUL /TUV/CQC/ RoHS



Applicaton


1)Widely applied for temperature control of dry and steam electric iron etc .


2)Bimetal cling to the heat parts ,sensitive feel ,steady control and low differential


3)Firm configuration ,abundant types and flexible fixing position


4)Contacts act quickly and little electromagnetism infection

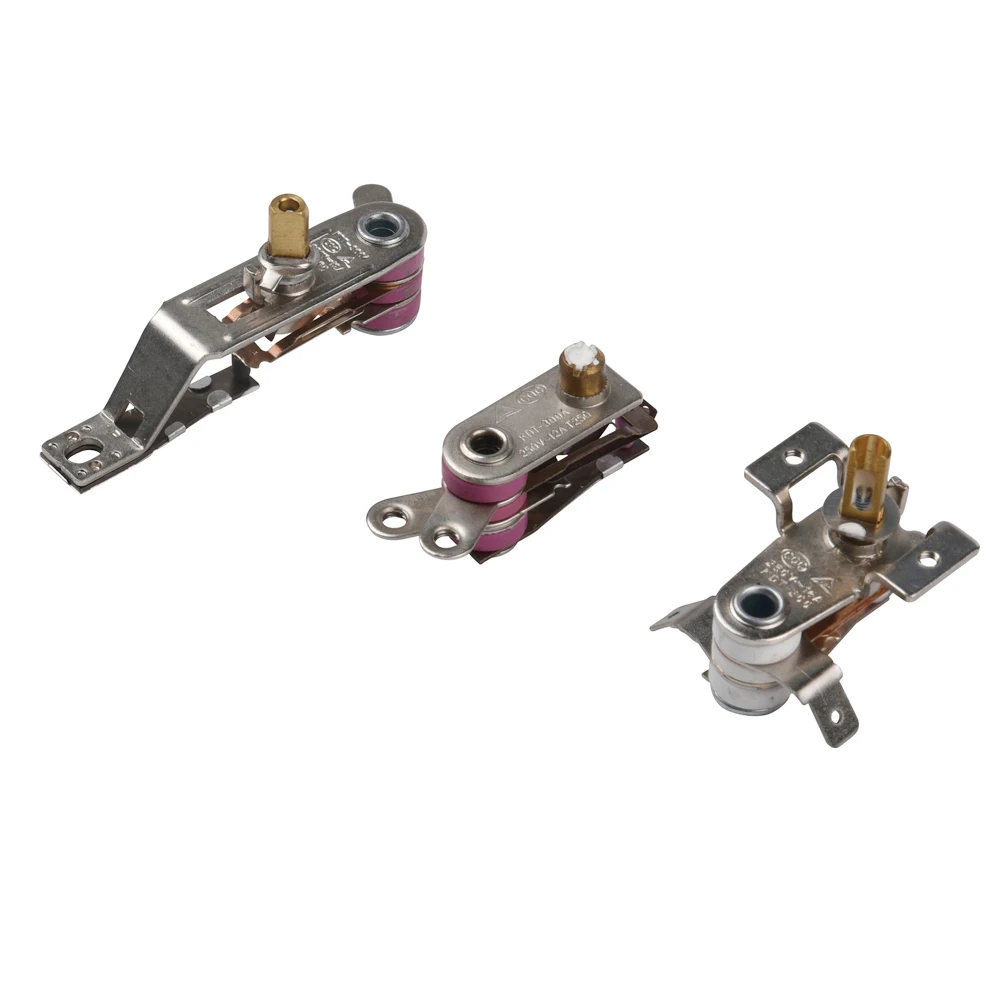

KST200 KST278 KST250.jpg
