NDS3526SA 16 CVBS MPEG4 encoder modulator DVB-C DVB-T mpeg4 dvb-t modulator
Product Description
Product Overview
NDS3526SA is a high performance and cost-effective encoder modulator designed by Dexin. It supports 16 CVBS input with MPEG4 AVC/H.264 Video encoding and 4ch DVB-C/T non-adjacent carrier outputs with multiplexing (and scrambling in DVB-C out version) included. It also supports up to 128 IP input for re-mux and IP (4MPTS) output through Data port as mirror of carriers. NDS3526SA is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Key Features
· 16 CVBS input with MPEG4 AVC/H.264 Video encoding
· 128 IP input for re-mux over UDP and RTP (1DVB-C tuner input for re-mux optional)
· Support MPEG1 Layer II Audio encoding and support audio gain adjustment
· Support PID remapping/ PSI/SI editing and inserting
· Support 4*Mux-SCR-DVB-C output, or 4*Mux-DVB-T output
· Support 4*MPTS IP over UDP and RTP output, 1*ASI output (optional)
· Support Logo, Caption and QR Code insertion
· Support IP Null PKT filter
· Real-time effective encoding output bit-rate monitoring
· Control via web management, and easy updates via web

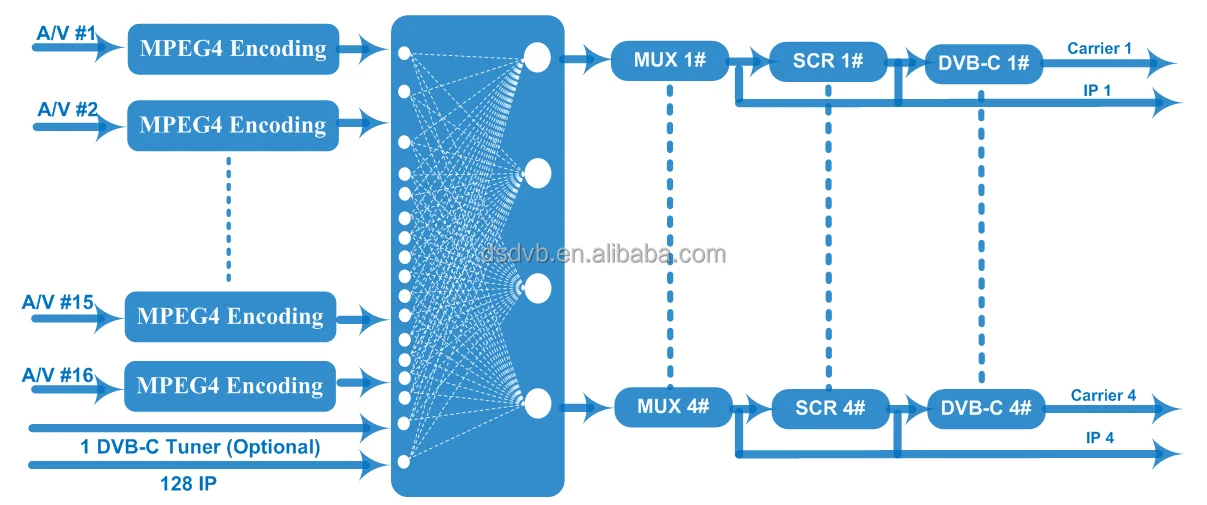

Principle Chart

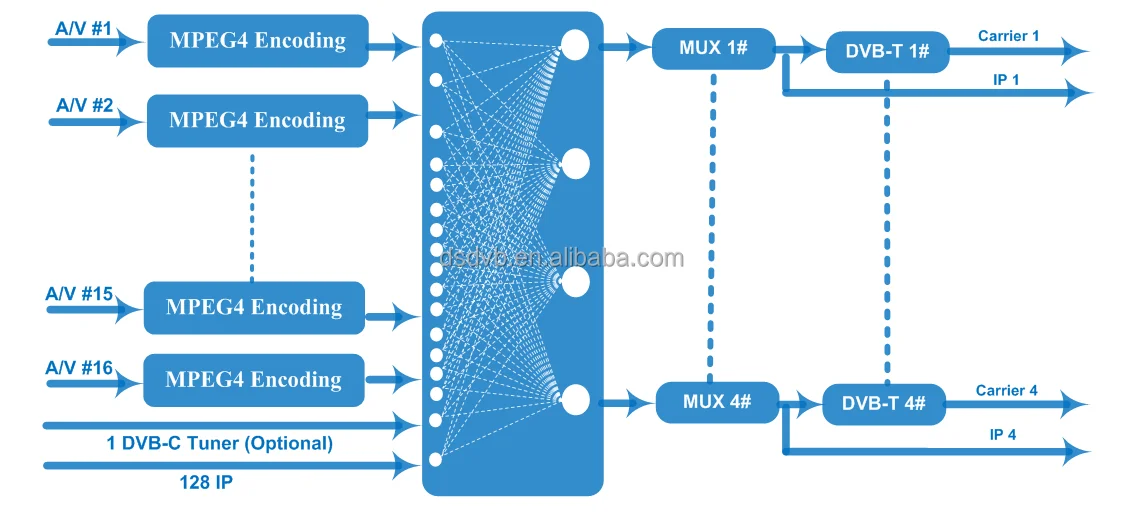

DVB-C RF output
DVB-T RF output
Technical Specification

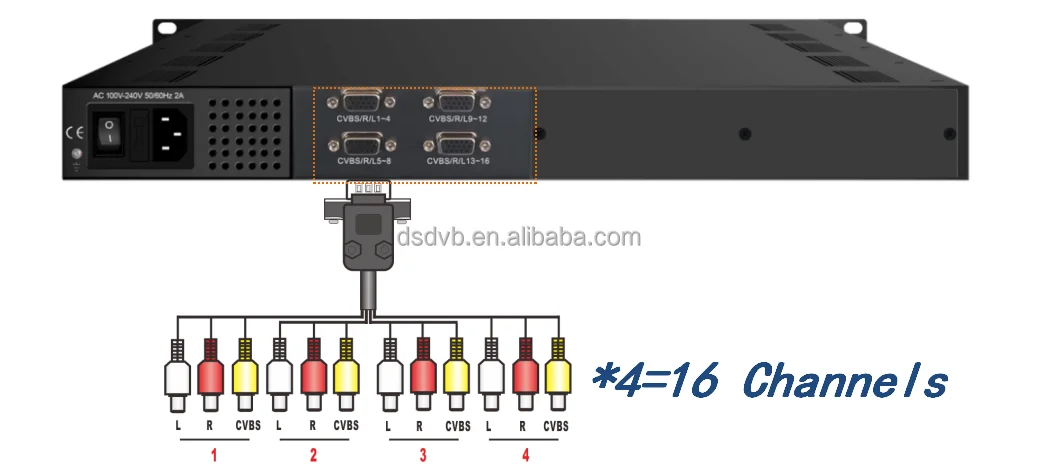

Input | 16 CVBS inputs , DB15-To-RCA interface 128 IP (100/1000M)input over UDP and RTP protocol 1DVB-C tuner input for re-mux (optional) | ||||
Video | Resolution | 720×576i (PAL-B, D, G, H, I), 720×480i (NTSC-M, J) | |||
Encoding | MPEG4 AVC/H.264(HP/MP/BP) | ||||
Bit-rate | 1Mbps~5Mbps each channel | ||||
Rate Control | CBR/VBR | ||||
GOP Structure | IPP (P frame is adjustable) | ||||
Audio | Encoding | MPEG-1 Layer 2 | |||
Sampling rate | 48KHz | ||||
Resolution | 24-bit | ||||
Audio Gain | 0-255 adjustable | ||||
Bit-rate | 64/128/192/224/256/320/384Kbps each channel | ||||
Modulation | DVB-C | 4* DVB-C non-adjacent carriers Standard: EN300 429/ITU-T J.83A/B MER: ≥40dB RF frequency: 50~960MHz, 1KHz step RF out level: -20~+3dBm (87~110 dBµV), 0.1dB step Symbol Rate: 5.0Msps~7.0Msps, 1ksps step | |||
| J.83A | J.83B | |||
Constellation | 16/32/64/128/256QAM | 64/256 QAM | |||
Bandwidth | 8M | 6M | |||
DVB-T | Standard | EN300744 | |||
FFT mode | 2K, 4K, 8K | ||||
Bandwidth | 6M, 7M, 8M | ||||
Constellation | QPSK, 16QAM, 64QAM | ||||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
MER | ≥40dB | ||||
RF frequency | 50~960MHz, 1KHz step | ||||
RF out | 4*COFDM DVB-T non-adjacent carriers | ||||
RF out level | -20~+3 dBm (87~110 dBµV), 0.1dB step | ||||
Scrambling (for DVB-C out version) | Max simulscrypt CA | 4 | |||
Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | ||||
Connection | Local/remote connection | ||||
Stream output | IP (4*MPTS) output as mirror of 4 carriers over UDP and RTP, 100/1000 Base-T Ethernet interface (Multicast/unicast) 1*ASI output (optional) | ||||
System function | Network management (WEB) | ||||
Ethernet software upgrade | |||||
Miscellaneous | Dimension(W×L×H) | 482mm×328mm×44mm | |||
Environment | 0~45℃ (work);-20~80℃(Storage) | ||||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||
