Shengong double roller hydraulic high pressure compacting metal aluminum powder granulating machine
- Category: >>>
- Supplier: Changzhou Shengong Granulation Equipment Co. Ltd.
Share on (372398448):
Product Overview
Description
We are a small factory but dedicated in roller compactor for granulating & briquetting powders
Powder granulating machine
1. Granulating theory
The dry granulator adopts two rollers compaction. Between 2 rollers, there is a gap. One roller is fixed and the other is floating. With the support of hydraulic pistons, the floating roller is pushed close to the other and the hydraulic system can has the action of compensation and protection. In the surface of the roller, it is profiled with plenty of grooves. Feedstock (powders) is fed into the gap between two rollers by screw. With rotating in reverse of two rollers, powder are compacted into "Pencils". After compacting, "Pencils" are twice crushed into granules and screen finally.
2. Price
The price is between US$30,000 and US$140,000 in terms of different powerful machine. The price is for carbon steel.
3. Components and dimension
Its main components are bucket conveyor, feedstock silo, ration charging machine, screwed feeder, flaking machine, grinding machine, granulating machine, vibration screen, electrical control cabinet.
4. Design Our machine is non-standard design. We can redesign according to your materials and your requirement.
Powder granulating machine applications:
1.fertilizer:
2.powder material
zinc oxide, lead oxide, calcium chloride, calcium phosphate, High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.
3.chemical raw material, fine chemical material

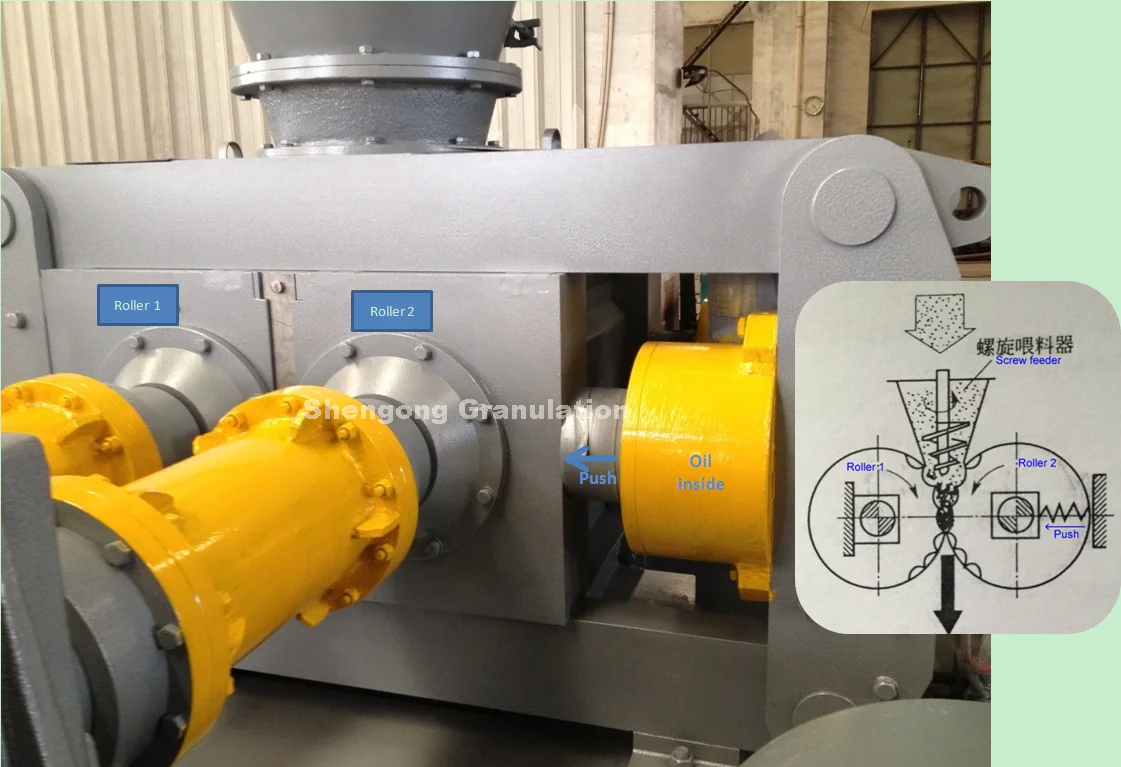

Powder granulating machine operating principle:
Difference of powder granulating machine type A and type B
Powder granulating machine technical parameter: type A takes SOP for instance,final granules are irregular/angular
| Type Item | SG-240A | SG-360A | SG-500A | SG-600A | SG-650A |
| Roller dia. | Φ240 mm | Φ360 mm | Φ504 mm | Φ600 mm | Φ650 mm |
| Roller width | 80/120/160 mm | 180 mm | 300 mm | 310 mm | 330 mm |
| Roller speed | 5 to 35 rpm | 3 to 26 rpm | 14 to 20 rpm | 12 to 18 | 10 to 16 |
| Power of screw feeder | 4 kw | 7.5 kw | 11 kw | 11 kw | 15 kw |
| Pre-pressure of accumulator | 5 Mpa | 6 Mpa | 8-10 Mpa | 8-10 Mpa | 10-14 Mpa |
| Max. linear pressure | 65 kN/cm | 65kN/cm | 70(75) kN/cm | 70(75) kN/cm | 70(75) kN/cm |
| Thickness of compacted material | 2 to 6 mm | 6 to 8 mm | 10 to12 mm | 12 to 14 mm | 14 to 16 mm |
| Compacting productivity | 800 to 2,000 kg/h | 2,500 to 3,000 kg/h | 6,000 to 8,000 kg/h | 8,000 to 10, 000 kg/h | 10,000 to 12,000 kg/h |
| Power of compacting machine | 11 kw | 30 kw | 75 kw | 90 kw | 110 kw |
| granules output | 200 to 600 kg/h | 1,000 to 1,200 kg/h | 2,500 to 3,000 kg/h | 3,000 to 3,600 kg/h | 3,500 to 4,500 kg/h |
| Final granules size | 1 to 5 mm | 1 to 5 mm | 1 to 5 mm | 1 to 5 mm | 1 to 5 mm |
| Total power of whole line | 35 kw | 50 kw | 110 kw | 125 kw | 165 kw |
| Size of feeder and compactor (l*w*h) | 1850*1500*1650 mm | 2350*2000*2400 mm | 3650*2250*2500 mm | 3660*2450*2700 mm | 4000*2600*3300 mm |
| Weight of feeder and compactor | 2,500-3000 kg | 6,000 kg | 15,000 kg | 20,000 kg | 25,000 kg |
| Delivery time | 25 day | 30 day | 45 day | 60 day | 60 day |

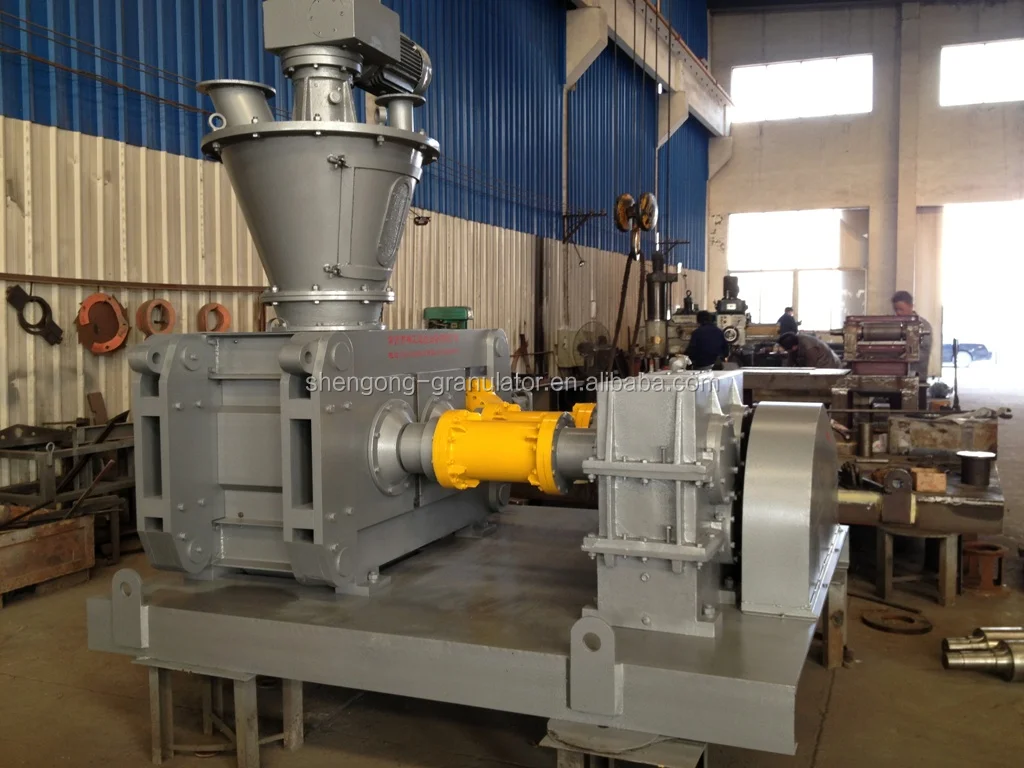

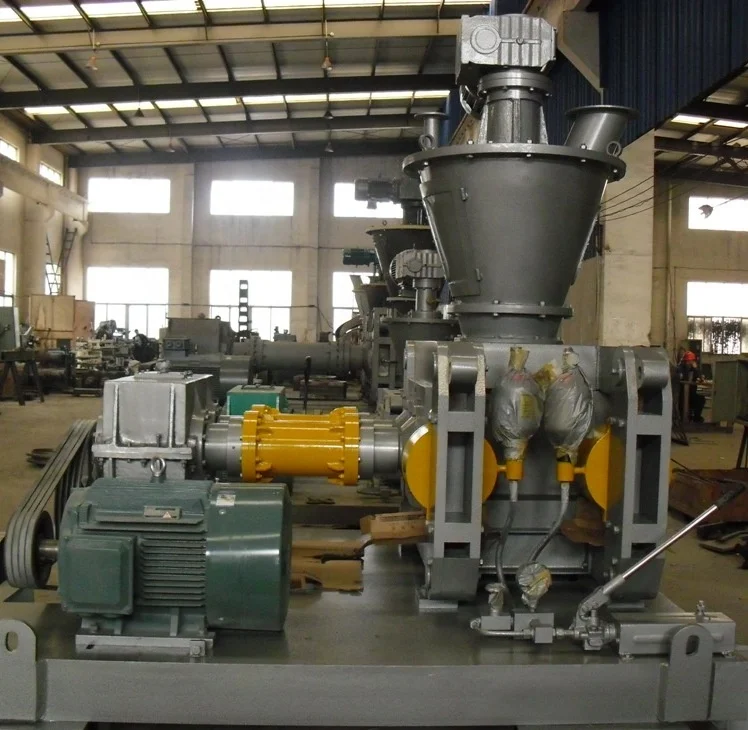

Powder granulating machine consists of screw feeder (upper taper) and double roller compactor
Powder granulating machine's peripheral equipments
Powder granulating machine final granules variable shapes

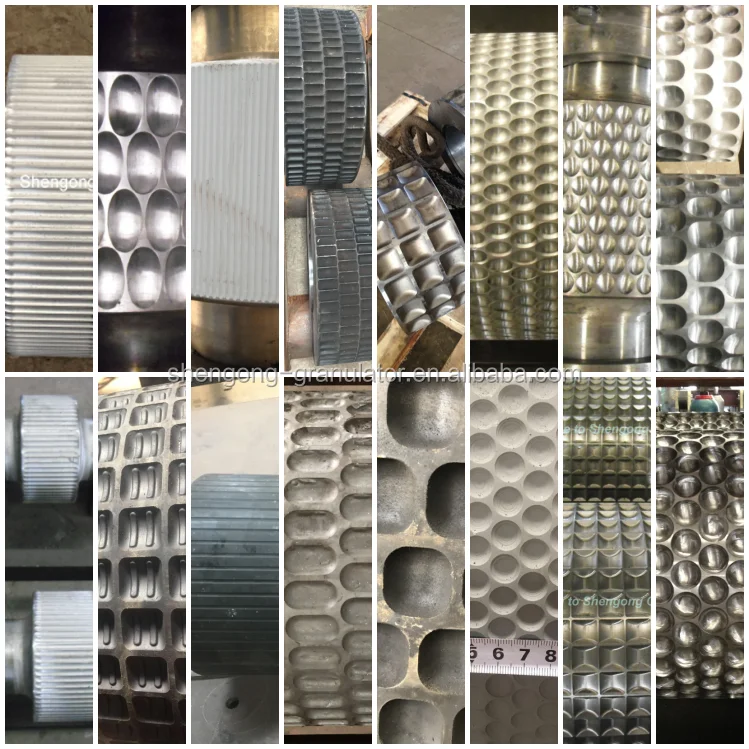

Granules and rollers
Granulating line is being loaded into one 40ft. container.
