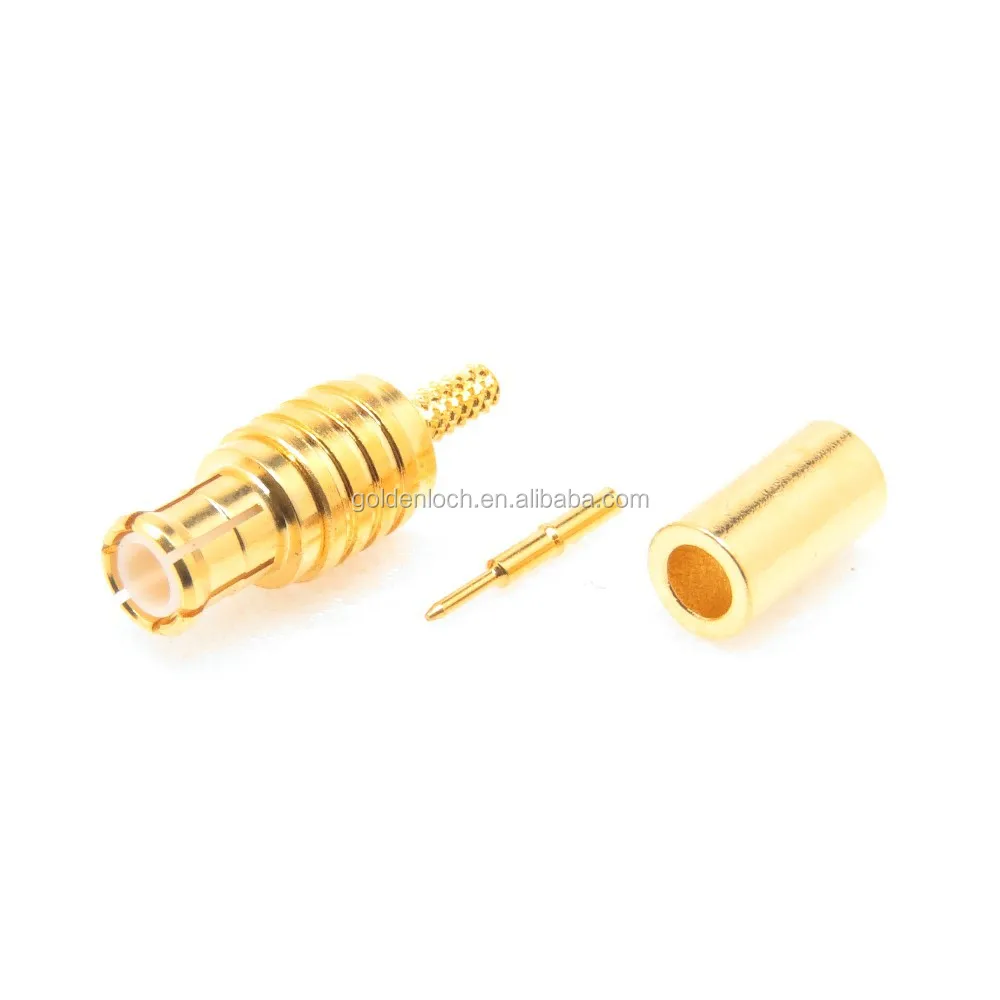

MCX Connector Crimp Plug for RG174 RG316



1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant


3. Made in Taiwan








Features:



  1. Push-on/pull-off mating

  2. Weight and space saving

  3. Available for both 50Ω and 75Ω


Applications:



  1. Base Stations

  2. GPS

  3. Instrumentation

  4. Radios

  5. Wireless Network Antennas


Electronical Specifications




































Impedance50Ω and 75Ω
Frequency Range0-6 GHz
Working Voltage335 VRMS max. at sea level
Dielectric Withstanding Voltage1000 VRMS min. at sea level
VSWRStraight: 1.3 max. 6 GHz, R/A: 1.5 max. 6 GHz
Contact ResistanceCenter Contact: 5 milliohm Max.
Outer Contact: 2.5 milliohm Max.
Insulator Resistance1000 megaohms min.







Material Specifications









































Parts NameMaterialFinish
Center ContactMaleBrass3u" Gold
FemaleBeCu3u" Gold
Outer Contact of MaleBeCu3u" Gold
Body, Metal PartsBrassNickel or Gold per requirement
InsulatorsPTFENone
Crimp FerruleAnnealed CopperNickel or Gold per requirement




Note: Other Material/Finish is available on request
