UV Dryer PTFE Coated Fiberglass Open Mesh Conveyor Belt

Product Overview

Description

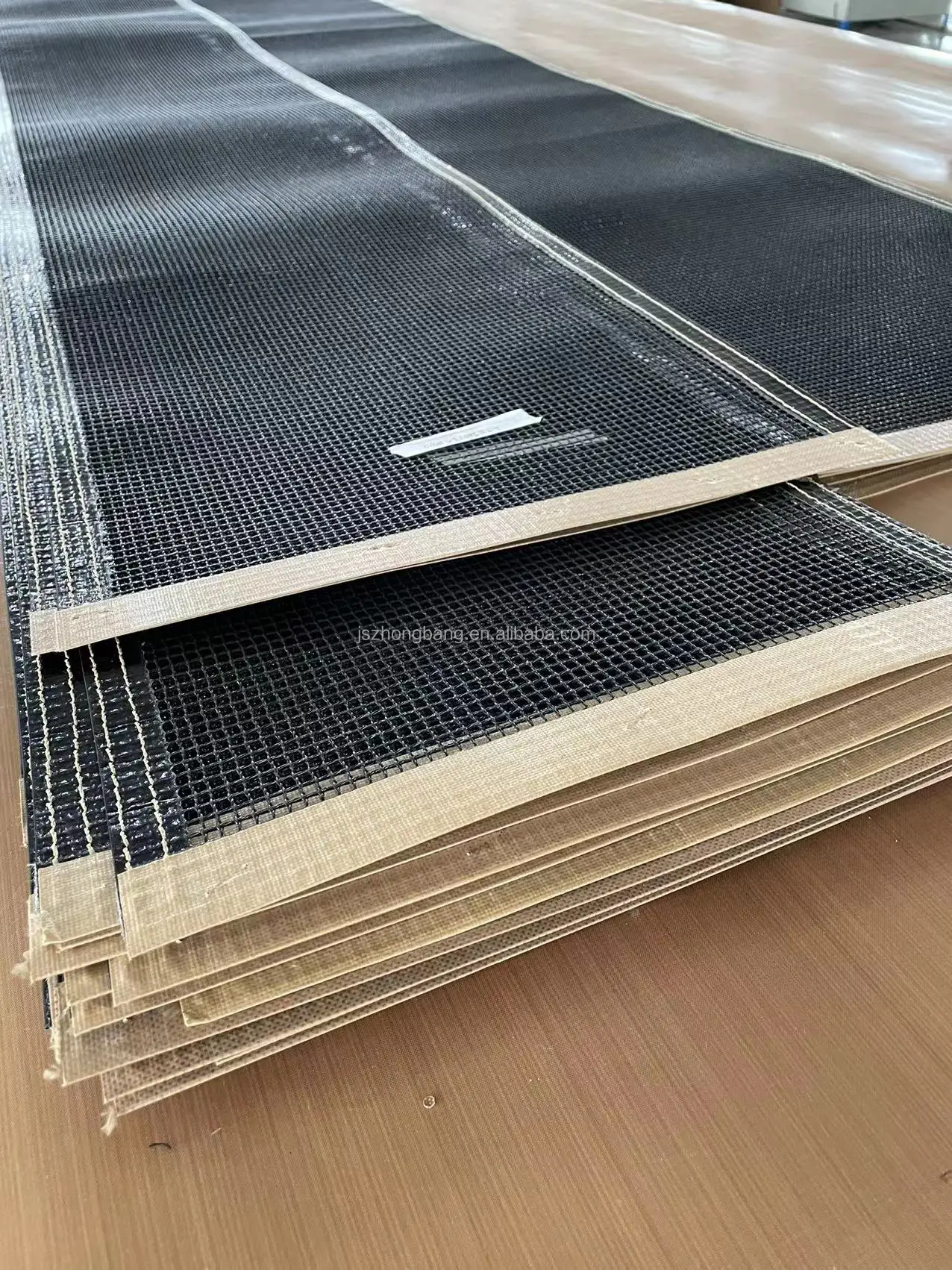

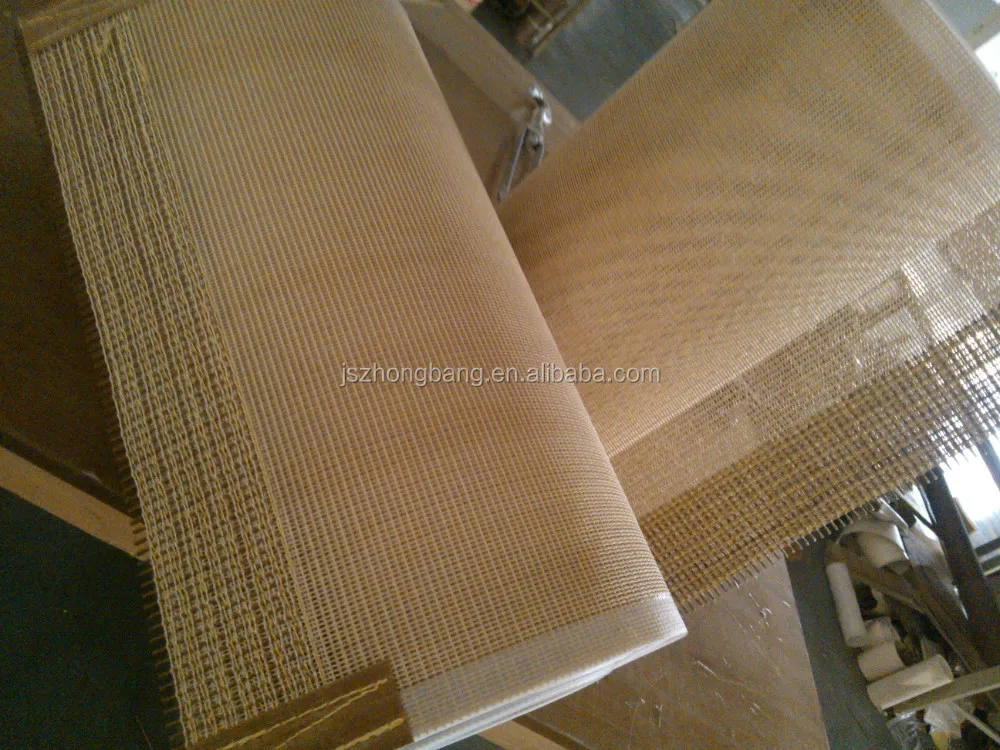

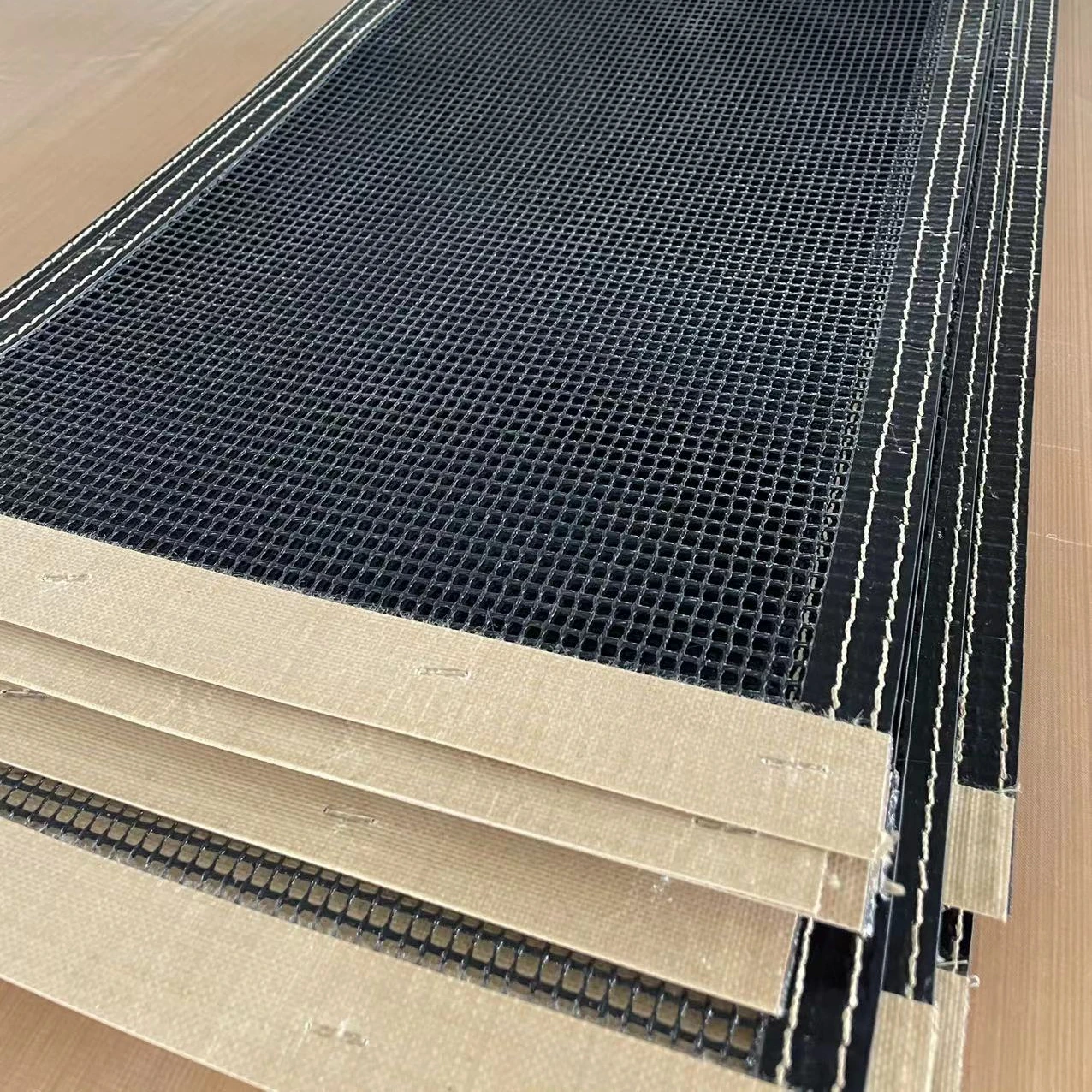

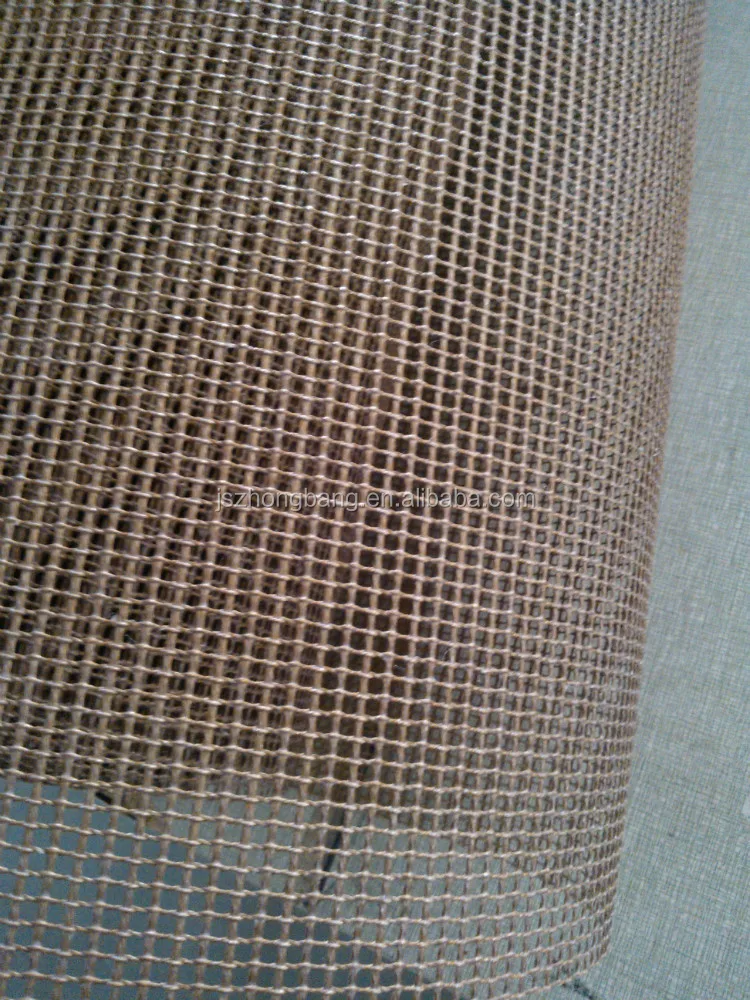

UV Dryer PTFE Coated Fiberglass Open Mesh Conveyor Belt



Jiangsu Zhongbang selects best imported fiberglass as the weaving material to plain knit or specially knit into high-grade fiberglass basic cloth, coating PTFE resin then make it into various PTFE high temperature resistance clothes in different thickness and width.

   Properties:

1.Stable dimension, high intensity, elongation coefficient less 5%.

2.Good temperature resistance, 24 hours working temperature -60°C~300°C.

3.Low coefficient of friction and dielectric constant, good insulating ability.

4.Non stick, easy to clear stains and adhesives on the surface.

5.Good chemical resistance, it can resist most of chemical medicines, acids, alkalis, and salt, it is fireproofm, anti aging.

   Applications:

1.Used as various of liners to resist high temperature, such as microwave liner, and other liners.

2.Used as non stick liners, intermediate.

3.Used as various conveyor belts, fusing belts, sealing belts and those needs performances of high temperature resistance, non stick, chemical resistance etc.

4.Used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant etc.



Item No	Mesh Size	Material	Thickness	Weight	Resistance	Max Width	Tensile Strength
6001	1x1mm	fiberglass	0.5mm	390g/m²	-70-260° C	4000mm	1600/1500N/5cm
6002	2x2mm	fiberglass	0.7mm	450g/m²	-70-260° C	4000mm	2200/1500N/5cm
6003	4x4mm	fiberglass	1.0mm	500g/m²	-70-260° C	4000mm	2100/1500N/5cm
6004	4x4mm	fiberglass	1.0mm	480g/m²	-70-260° C	4000mm	2100/1500N/5cm
6007	4x4mm	fiberglass+kevlar	1.2mm	560g/m²	-70-260° C	4000mm	3300/2800N/5cm
6008	4x4mm	fiberglass	1.0mm	570g/m²	-70-260° C	4000mm	2800/1580N/5cm
6010	4x4mm	kevlar	1.0mm	460g/m²	-70-260° C	4000mm	3500/3300N/5cm
6012	4x4mm	fiberglass	1.0mm	580g/m²	-70-260° C	4000mm	2800/1500N/5cm
6013	10x10mm	fiberglass	1.0mm	450g/m²	-70-260° C	4000mm	1100/1000N/5cm
6014	0.5x1mm	fiberglass	0.5mm	420g/m²	-70-260° C	4000mm	2200/1500N/5cm
6015	2x2.5mm	fiberglass	0.9mm	470g/m²	-70-260° C	3000mm	2200/1500N/5cm
