PTFE Fiberglass Conveyor Belt

Product Overview

Description

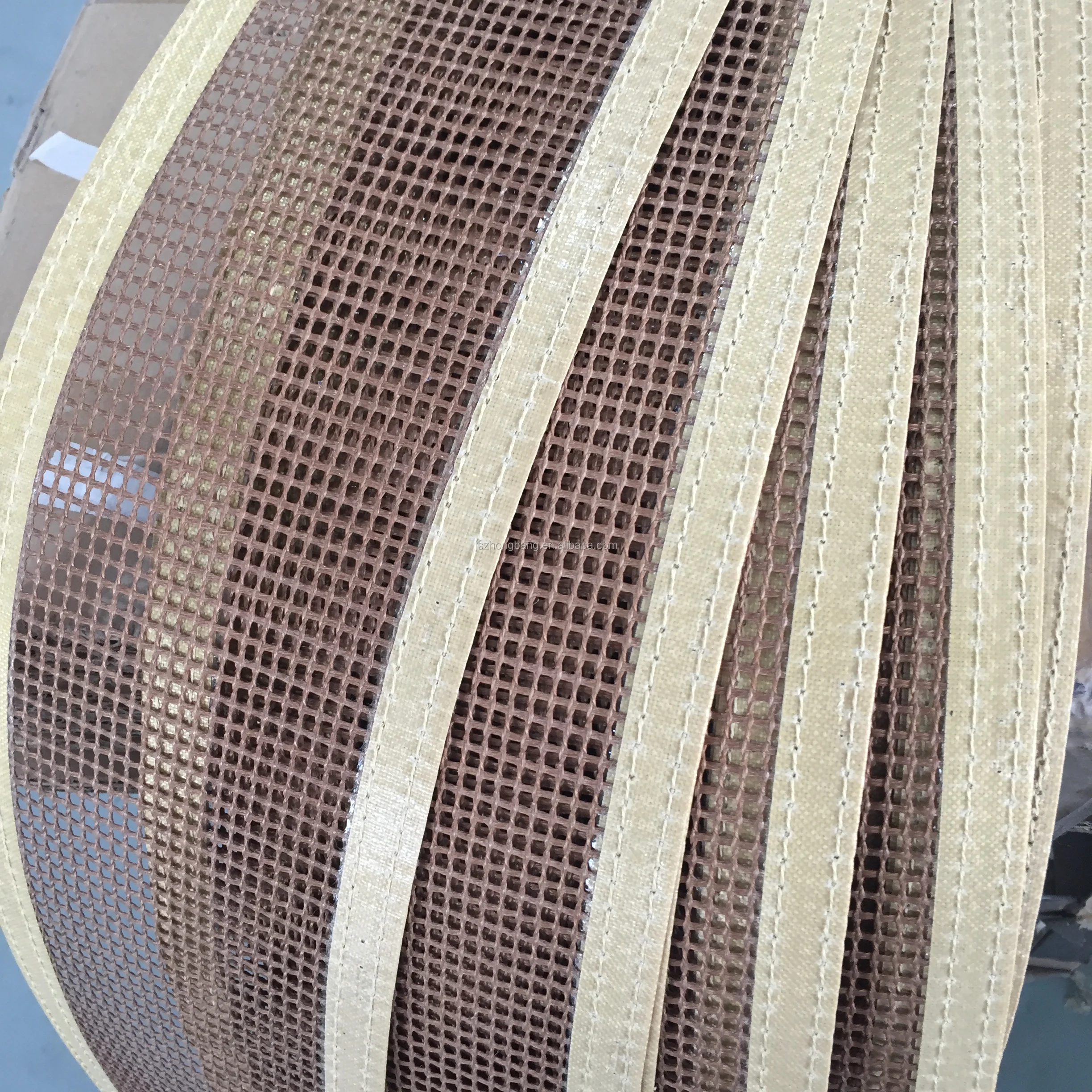

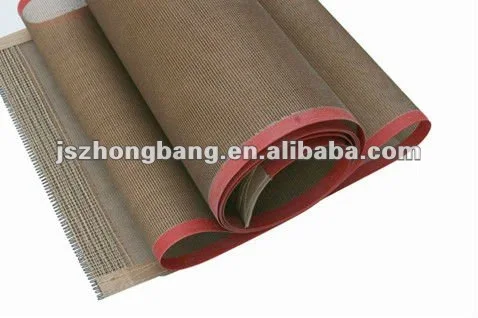

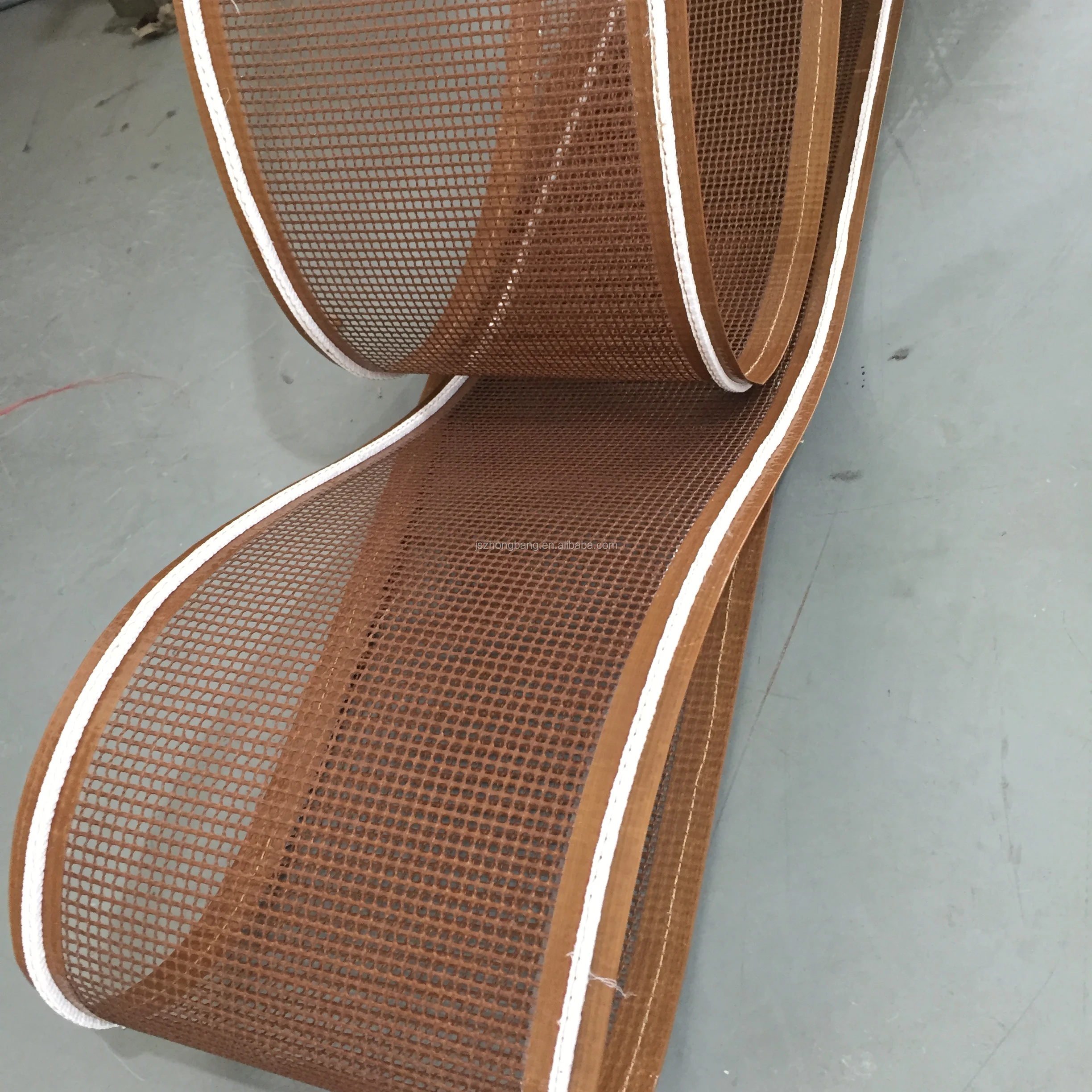

PTFE fiberglass conveyor belt





Jiangsu Zhongbang selected fine glass fiber as basic weaving material, processed  with imported advanced weaving machine, and coated with excellent PTFE  resin to make it into all various of  PTFE mesh cloth as materials of conveyer belt.

Features:
1) High temperature resistance - it can continuously work under -70 to 260C
2) Permeability - it can avoid wasting heat and improve drying efficiency for it's permeability
3) Chemical resistance - it can resist all most of chemical medicines
4) Adherence resistance - it can easily remove all kinds of adhesives such as resin, paint and chemical medicine
5) Good flex fatigue resistance - it has high tensile strength and excellent  flex fatigue resistance, It's better for small wheels

Applications:
1) Drying machine for non-woven textile, textile printing, silk- printing and dyeing machine
2) Shrinking machine for garment fabric, high-frequency and UV dryer
3) Conveyer belt for hot-air dryer, various of food baking, quick-frozen machinery
4) Oiling machine for paper glazing and waxing, plant engineering
5) Separating sheet for hardboard production



Item No	Mesh Size	Material	Thickness	Weight	Resistance	Max Width	Tensile Strength
6001	1x1mm	fiberglass	0.5mm	390g/m²	-70-260° C	4000mm	1600/1500N/5cm
6002	2x2mm	fiberglass	0.7mm	450g/m²	-70-260° C	4000mm	2200/1500N/5cm
6003	4x4mm	fiberglass	1.0mm	500g/m²	-70-260° C	4000mm	2100/1500N/5cm
6004	4x4mm	fiberglass	1.0mm	480g/m²	-70-260° C	4000mm	2100/1500N/5cm
6007	4x4mm	fiberglass+kevlar	1.2mm	560g/m²	-70-260° C	4000mm	3300/2800N/5cm
6008	4x4mm	fiberglass	1.0mm	570g/m²	-70-260° C	4000mm	2800/1580N/5cm
6010	4x4mm	kevlar	1.0mm	460g/m²	-70-260° C	4000mm	3500/3300N/5cm
6012	4x4mm	fiberglass	1.0mm	580g/m²	-70-260° C	4000mm	2800/1500N/5cm
6013	10x10mm	fiberglass	1.0mm	450g/m²	-70-260° C	4000mm	1100/1000N/5cm
6014	0.5x1mm	fiberglass	0.5mm	420g/m²	-70-260° C	4000mm	2200/1500N/5cm
6015	2x2.5mm	fiberglass	0.9mm	470g/m²	-70-260° C	3000mm	2200/1500N/5cm
