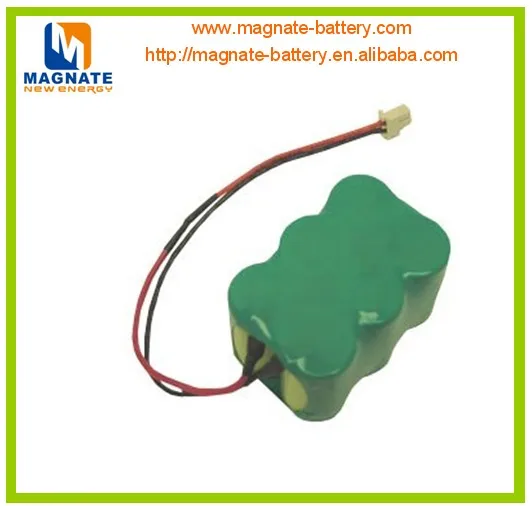

Battery pack 14.4V Ni Mh Battery Pack For Vacuum Cleaner

Product Overview

Description

High Performance Prices14.4V Ni-Mh Battery Pack For Vacuum Cleaner





Model: 1300AA14

Description:  Ni-mh rechargeable battery pack

Voltage: 14.4V

Capacity: 1300mAh

Certification: ROHS



Description:

2.4V Nickel metal hydride battery pack and 3.6V Nickel Cadmium battery packs,

2.4V Ni-MH and Ni-CD battery pack

3.6V Ni-MH and Ni-CD battery pack

4.8V Ni-MH and Ni-CD battery pack

6.0V Ni-MH and Ni-CD battery pack

7.2V Ni-MH and Ni-CD battery pack

8.4V Ni-MH and Ni-CD battery pack

9.6V Ni-MH and Ni-CD battery pack

10.8V Ni-MH and Ni-CD battery pack

12V Ni-MH and Ni-CD battery pack

14.4V Ni-MH and Ni-CD battery pack

24V Ni-MH and Ni-CD battery pack

Battery cell, battery packs, rechargeable battery packs with Molex or JST connectors, replacement batteries, battery packs can be make in accordance with customers’ requirements.

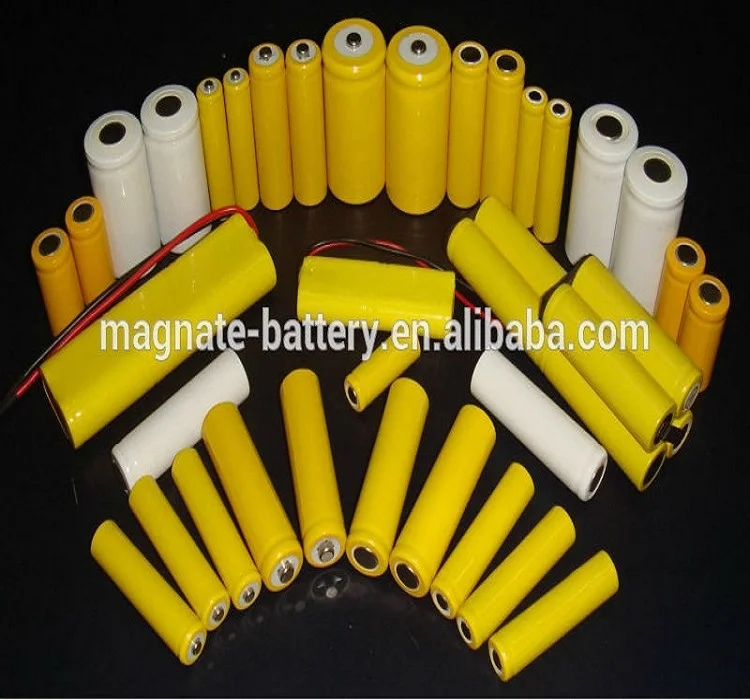

IEC type, sizes, capacity

Voltage: 1.2V / single

AAAA size battery

2/3AAA, 10*28.4mm, 280~300mah,

AAA, 10*44mm, 240~650mah,

2/3AA, 13.9*28.5mm, 550~650mah

4/5AA, 13.9*42.5mm, 1100~1400mah

AA, 13.9*50.5mm, 600~2000mah

5/4AA, 13.9*65mm, 1600~1800mah

4/5A, 16.5*42.2MM, 1400~2000mah

A , 16.5*49.2mm, 2000mah~2200

4/3A, 16.5*66.2mm, 3800~4000mah

SC , 21.9*42.5mm, 2500~2800mah

C, 25.2* 50.5mm, 1500~4200mah

D,  32.2* 61.3mm, 1500~7000mah

F, 33x89mm, 12000~15000mah

18670, 18*67.5mm, 4000mah

9V, 17.5*26.5*48.5mm, 8.4V, 180~200mah



Major features:

(1)Environmentally friendly

(2)Long service life, no memory effect

(3)High energy density, wide operating temperature -20~50

(4)Flat discharge performance, quick charging capability.

(5)No memory effect, High drain performance , High reliability ,Safety

Major Application / Best for:

(1)Telecommunication equipments, such as cordless phones, cellular phones, transceivers.Emergency lights and security systems.

(2)Radio control toys. Power tools. Electric bicycles.Audio and video device, such as camcorders, walkmans, MDs, portable DVDs, VCDs, TVs

(3)Information devices, such as notebook computer, PDAs, portable fax machines.

Other applications, such as electric shavers, electric toothbrushes, massagers, portable vacuum cleaners.

(4)Digital cameras, personal digital assistants (PDA), Portable CD/MD/MP3 players, shavers/ electric toothbrushes, flashlight / Romote control, toys and games.



















What is a short circuit? Can I short circuit a lithium cell or battery?
If the positive and negative terminals of a battery come into contact with each other or with a conductive metallic object, this can cause a short circuit, which generates heat. If cells or batteries are stacked on top of each other or mixed, the resulting short circuit can lead to heat generation, leakage, rupture, and possibly fire.

Do NOT short circuit lithium batteries.

2. Can I apply heat to lithium batteries or dispose of them in fire?
If heated to 100°C or more, plastic materials inside the battery such as the gasket and separator may be damaged, causing leakage. The heat generated by a short circuit inside the battery may lead to rupture or fire. If disposed of in fire, batteries may burn violently.

Do NOT dispose of lithium batteries in fire.

3. Can I solder directly to lithium batteries?
If solder is applied directly to the battery, materials inside the battery may be damaged due to overheating. This can cause leakage or an internal short circuit. Heat generated by a short circuit inside the battery may lead to rupture or fire. Even if no abnormality takes place immediately after soldering, the resulting leakage or other damage may harm the components in the battery resulting in safety or performance problems.

Do NOT solder directly to lithium batteries.

4. Can I charge non-rechargeable lithium batteries?
When a non-rechargeable lithium battery is charged, gas is generated inside the battery and can result in swelling, heat generation, leakage, rupture or fire.

Do NOT charge non-rechargeable lithium batteries.

5. Can I force-discharge lithium batteries?
When batteries are force-discharged with an external power source, the voltage drops to under 0 volts (which is called voltage reversal) and internal gas is generated. This can lead to swelling, heat generation, leakage, rupture or fire.
