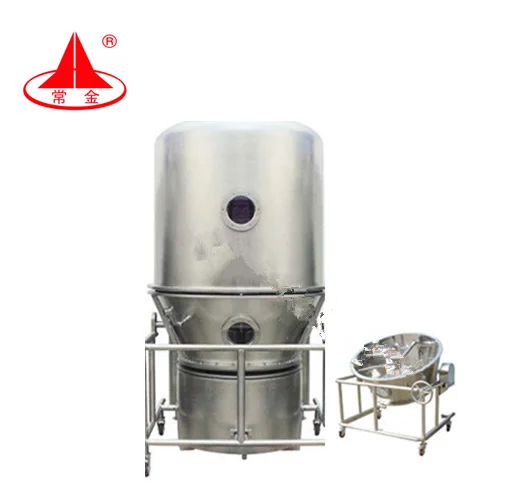

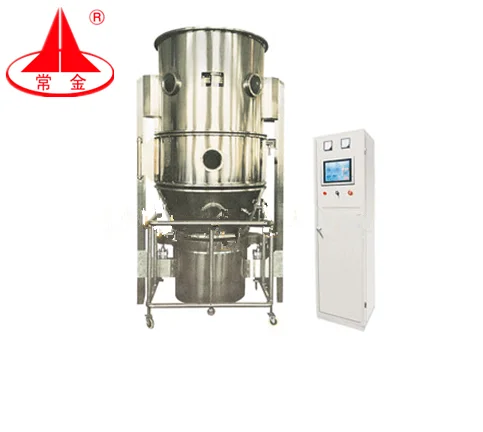

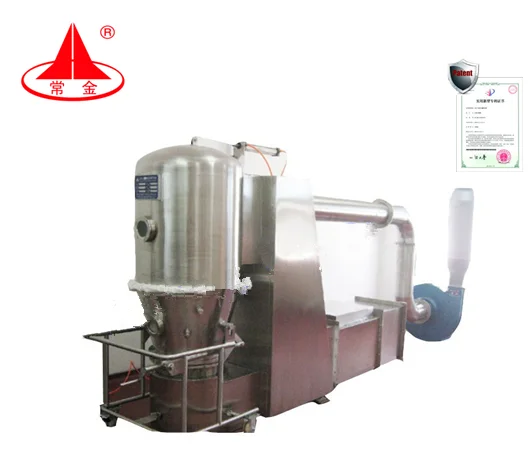

shrimp shell dryer /shrimp shell fluid bed dryer

Product Overview

Description

Applications

This batch type fluid bed dryer is specially designed for drying powder and granule products with good flowability in food and pharmaceutical industry.



Principle

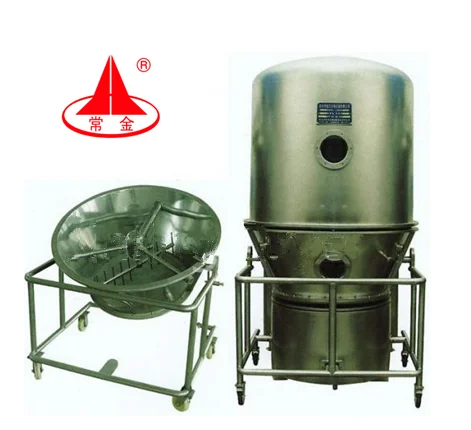

Operation principle: after being heated and filtered, the fresh hot air will be blew into the air distributor at the bottom of the machine and penetrate through the meshed trolley which loaded with wet materials. Under the effect of air-flow and agitator, the wet material will be fluidized. During the fluidization, the moisture will be rapidly evaporated. At the top of dryer, filter bags are fixed to separate dusts from the exhausted gas. And the filter bags will be regularly cleaned by compressed air blows. At the exhaust vent, a silencer is combined to lower the noise.



Features

1. Easy and convenient temperature control: The drying temperature is controlled by temperature sensor which makes it very easy to control and display the drying temperature through the control panel.

2. Perfect fluidization: With the special designed agitator, the fluidization is perfect and without dead corner.

3. Wide application scope: The application scope is extensive and its drying efficiency is relatively high.

4. Good compatibility: It can be use to dry sticky granules with wide granule size distribution.

5. Sanitary working condition: The whole machine body is compact and easy to clean, operate and install. Its working condition can meet the GMP standard.

6. Enhanced drying capacity: Because of perfect fluidization, the drying time is considerably reduced.



Technical parameters:

technical items			Model
Load capacity (kg/ batch)			60	100	120	150	200	300	500
fan	air volume(m3/h)		2361	3488	4000	4900	6000	7800	10800
	air pressure(mmH2O)		594	533	533	679	787	950	950
	power(kw)		7.5	11	15	18.5	22	30	45
stirring power(kw)			0.55	0.55	0.55	0.55	0.55	0.75	0.75
stirring speed(r/min)			11
consume of steam(kg/h)			140	170	170	240	280	360	450
time of operation(min)			15-30by mains of different raw material
height of main machine		round(mm)	2700	2900	2900	2900	3100	3600	3850
