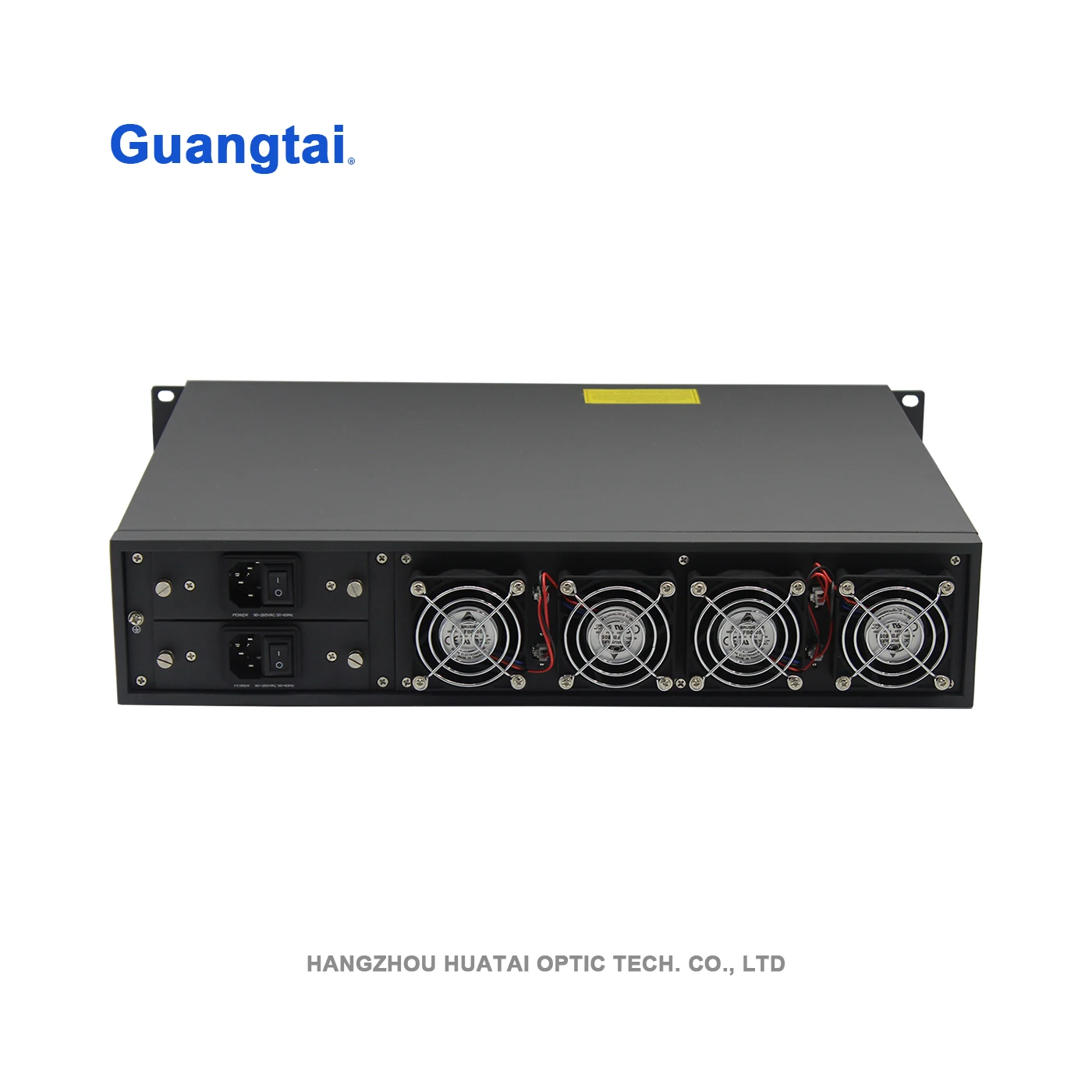

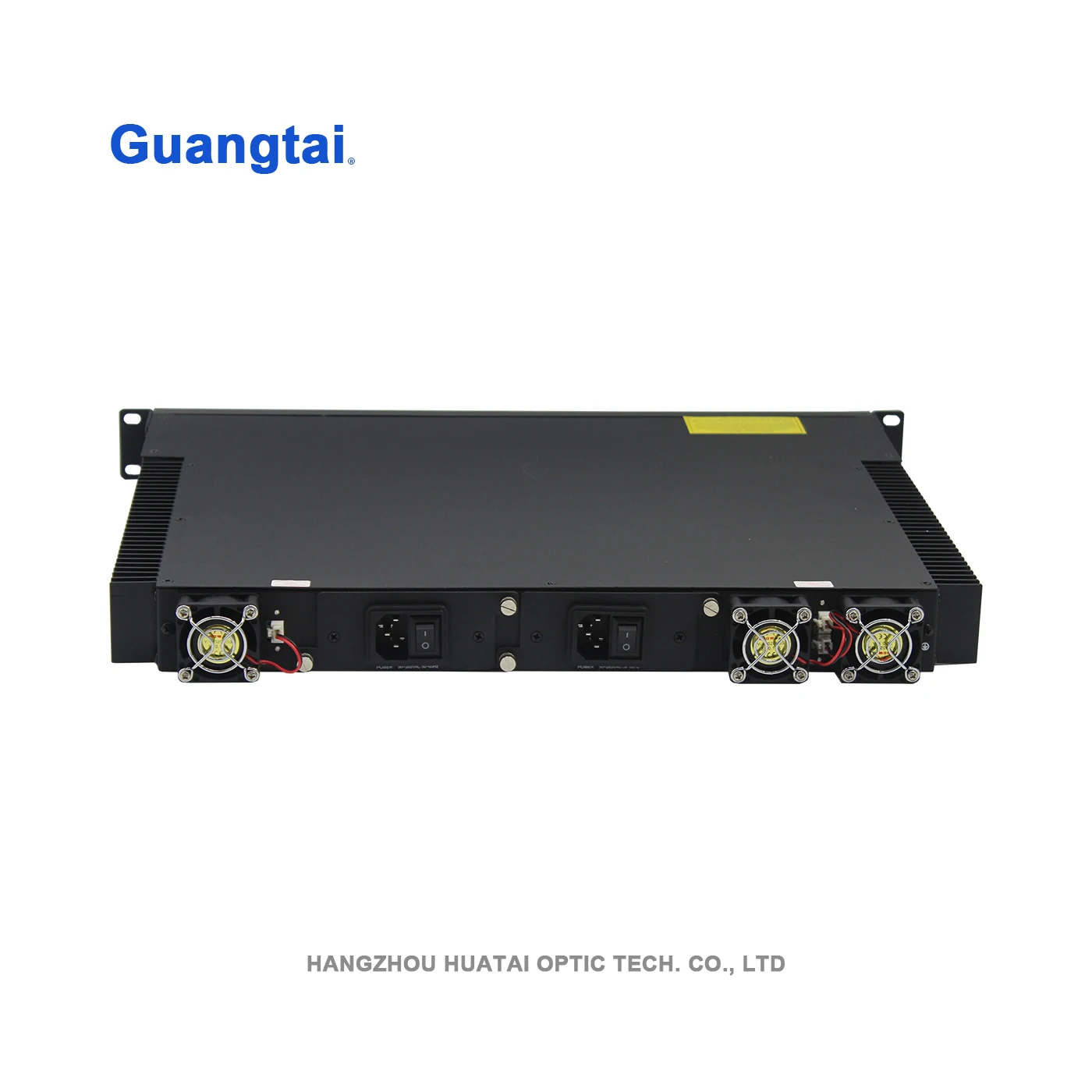

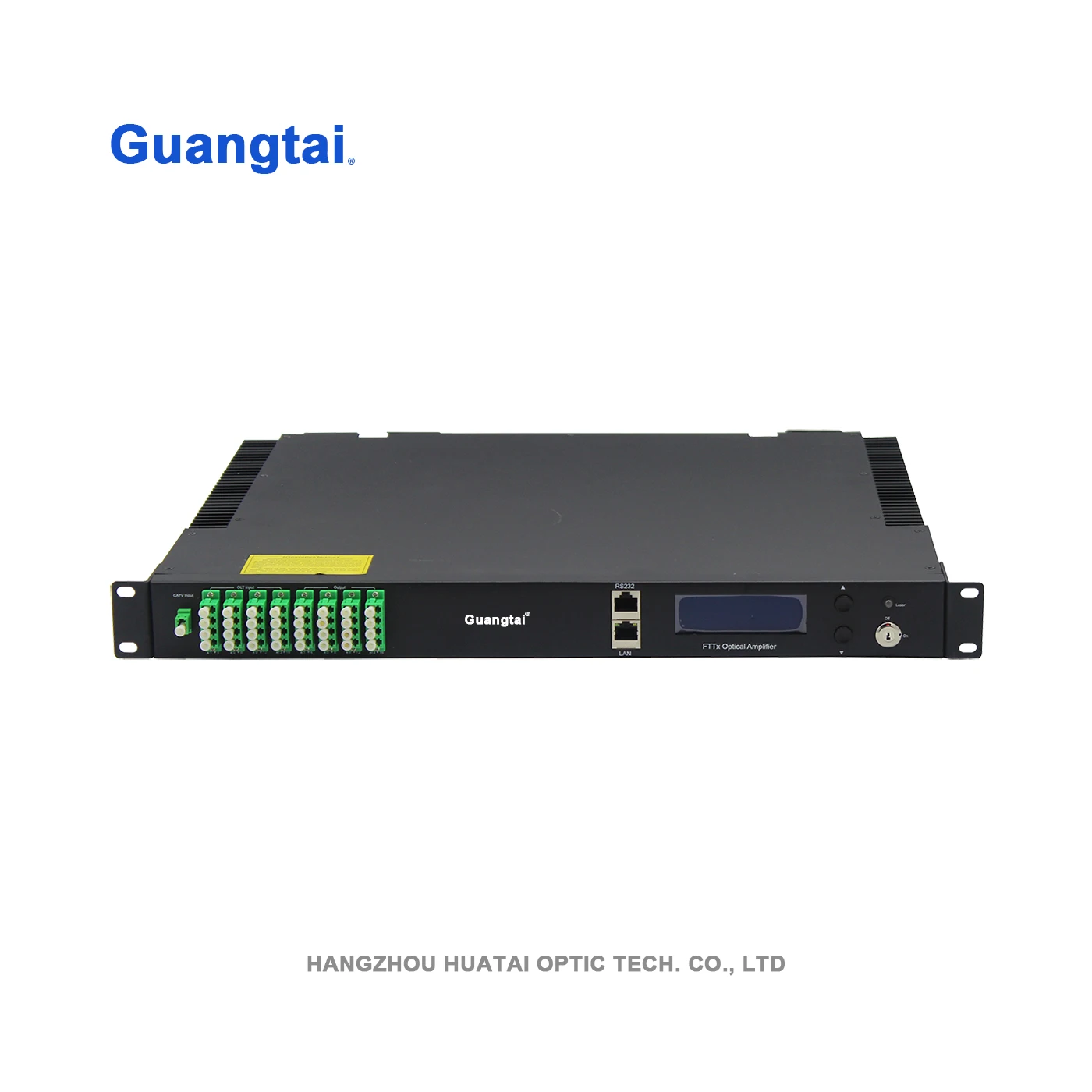

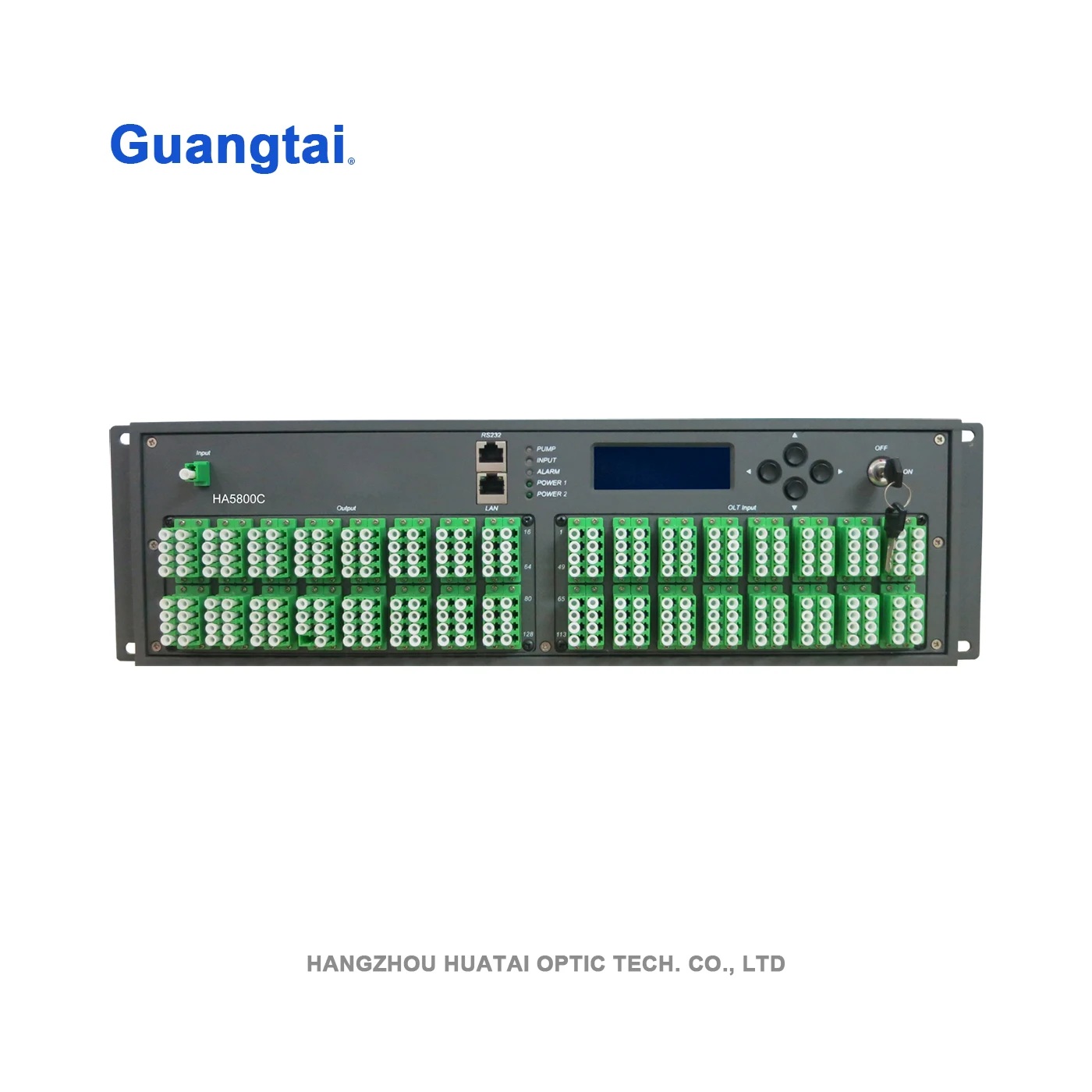

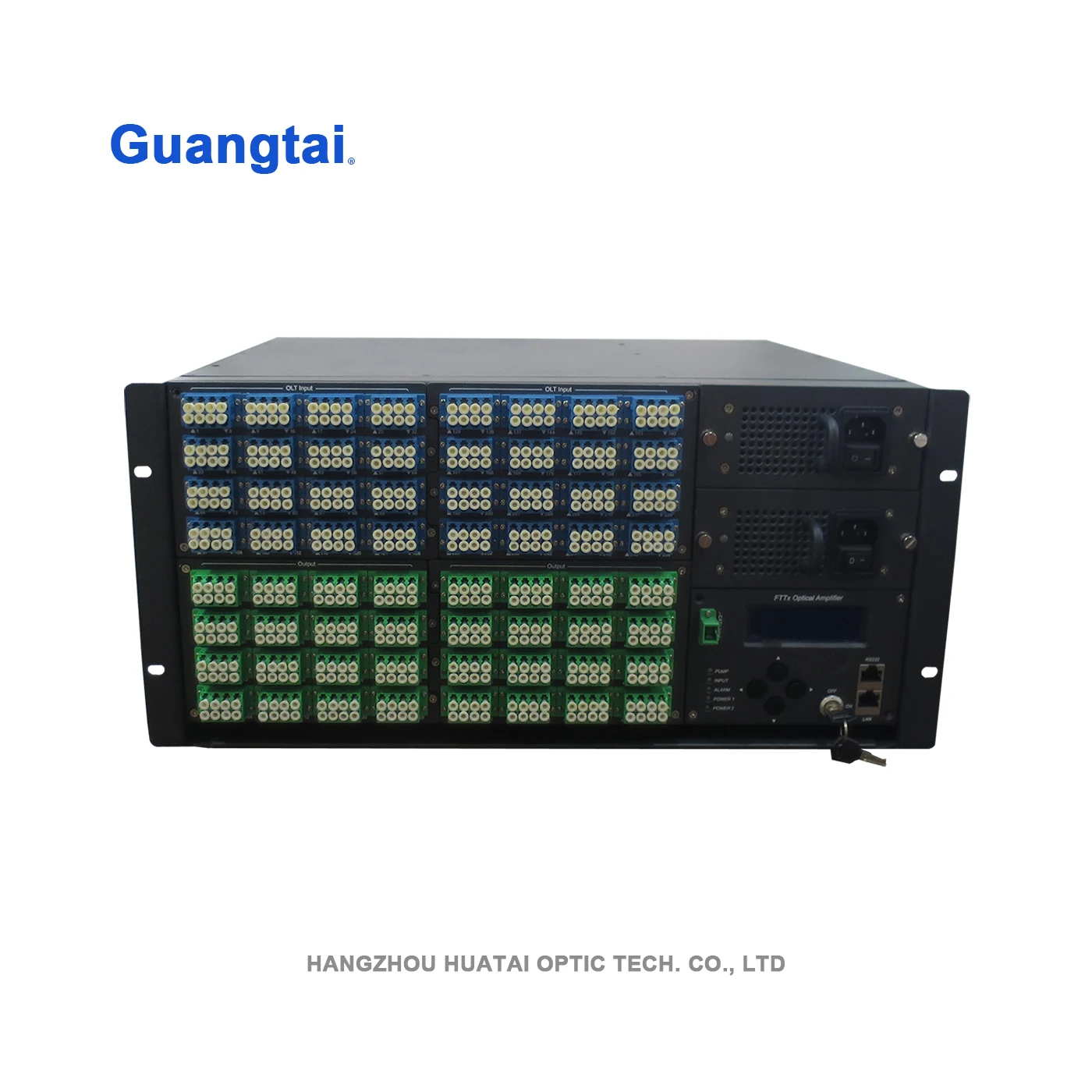

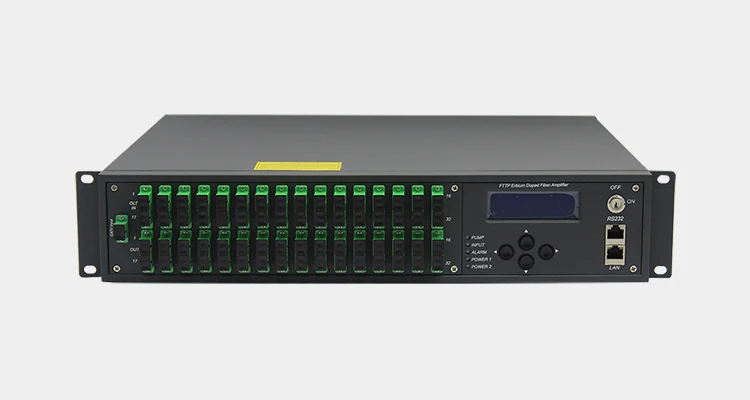

1550 Built in CWDM CATV EDFA Optical Amplifier HA5800
- Category: >>>
- Supplier: Hangzhou Huatai Optic Tech. Co. Ltd.
Share on (375390864):
Product Overview
Description
HA5800
1550 Built in CWDM CATV EDFA Optical Amplifier
(1540~1563nm)
1550 Built in CWDM CATV EDFA Optical Amplifier
(1540~1563nm)
Products Description
HA5800 series is a low noise, high performance, FTTP high power multi-ports FTTx PON CWDM 1550 CATV EDFA Optical Amplifier with gain spectrum band within 1540~1563nm. Each output port for PON CWDM optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT very conveniently. Each 1550nm (CATV)’s out-put optical port multiplex 1310/1490n’s data stream, in order to reduce the quantity of the component and improve the datasheet and reliability of the system. HA5800 fttx PON CWDM optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.
Product Features
1. 1540~1563nm operating bandwidth for FTTx PON CWDM EDFA optical amplifier
2. 500mW~80000mW (27~49dBm) high output power
3. Low noise subnumber ( Typ ≤4.5dB, Max ≤5.0dB, Output ≥37dBm )
4. 8~256 uplink optical port, used in OLT
5. 8~2561550nm output optical port, multiplex 1310/1490nm data stream
6. Can be compatible with any FTTx PON Technology:EPON/GEPON, GPON
7. Perfect RS232, SNMP
8. Efficient space, flexible installation and easy operation
9. Excellent P/P ratio
2. 500mW~80000mW (27~49dBm) high output power
3. Low noise subnumber ( Typ ≤4.5dB, Max ≤5.0dB, Output ≥37dBm )
4. 8~256 uplink optical port, used in OLT
5. 8~2561550nm output optical port, multiplex 1310/1490nm data stream
6. Can be compatible with any FTTx PON Technology:EPON/GEPON, GPON
7. Perfect RS232, SNMP
8. Efficient space, flexible installation and easy operation
9. Excellent P/P ratio
Main Application
1. FTTx PON
2. RFoG
2. RFoG
Technical Index
Performance | Min. | Typ. | Max. | Suplement | ||||
Optical feature | CATV Operation wavelength | (nm) | 1540 | 1563 | CATV | |||
OLT pass wavelength | (nm) | 1310/1490 | ||||||
CATV pass wavelength loss | (dB) | 0.8 | 1550nm | |||||
OLT pass wavelength loss | (dB) | 0.8 | 1310/1490nm | |||||
CATV & OLT isolation | (dB) | 40 | ||||||
Number of uplink optical ports ( for olt) | (pcs) | 16 | 1U | |||||
64 | 2U | |||||||
128 | 3U | |||||||
256 | 5U | |||||||
CATV input power( Pi ) | (dBm) | -10 | +10 | |||||
Noise figure | (dB) | 4.5 | 5.0 | Pin=0dBm | ||||
(dBm) | 37 | 1U | ||||||
38 | 2U | |||||||
45 | 3U | |||||||
49 | 5U | |||||||
(pcs) | 16 | 1U | ||||||
64 | 2U | |||||||
128 | 3U | |||||||
256 | 5U | |||||||
Each port output power | (dBm) | 10 | 22 | |||||
Difference of each output power | (dB) | -0.5 | +0.5 | |||||
Output power dajustable range | (dBm) | -6 | 0 | |||||
Polarization dependance loss | (dB) | 0.3 | ||||||
Polarization dependance gain | (dB) | 0.4 | ||||||
Polarization mode dispersion | (ps/nm) | 0.3 | ||||||
Input/output isolation | (dB) | 30 | ||||||
Pump power leakage | (dBm) | -30 | ||||||
Echo loss | (dB) | 55 | APC | |||||
General feature | Serial interface | RJ45 | ||||||
Network management interface | RS232 | |||||||
(V) | 90 | 265 | 220VAC | |||||
30 | 72 | -48VDC | ||||||
(W) | 50 | HA5800A | ||||||
84 | HA5800B | |||||||
189 | HA5800C | |||||||
289 | HA5800E | |||||||
Operation temp. | ( °C ) | -5 | 65 | |||||
Storage temp. | ( °C ) | -40 | 80 | |||||
Operation relative humidity | ( % ) | 5 | 95 | |||||
( " ) | 19 × 14.5 × 1.75 | HA5800A ( 1RU ) | ||||||
19 × 14.5 × 3.5 | HA5800B ( 2RU ) | |||||||
19 × 14.5 × 5.25 | HA5800C ( 3RU ) | |||||||
19 × 14.5 × 8.75 | HA5800A ( 1RU ) | |||||||
