C0 DIY Mini lathe Machine

Product Overview

Description

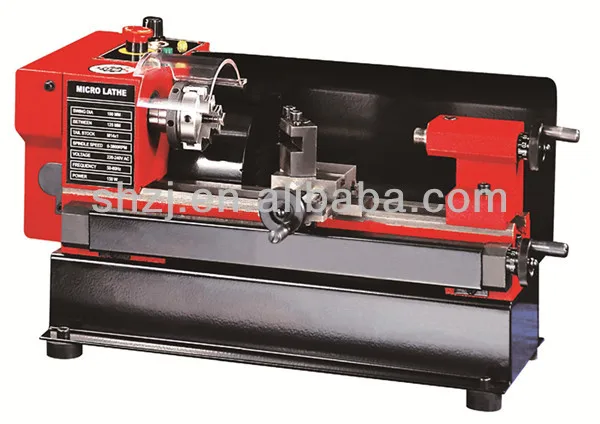

Mini lathe Machine

Feature:

1.Cast iron with ground, hardened slideways

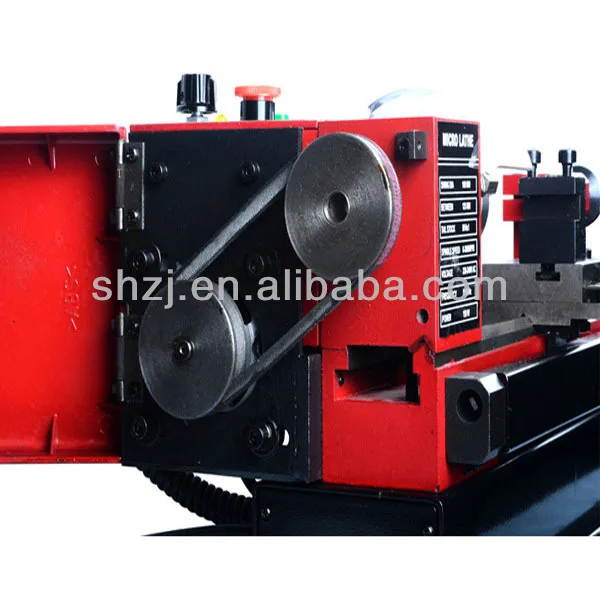

2. Belt driven, with variable speed

3. 50mm self-centring 3 jaw scroll chuck

4. Chuck guard with a safety interlock

5. Supplied with 50mm 3 jaw chuck, wrench set and oil can



Specification:

Swing over bed	110 mm
Distance between centers	125 mm
Hole through spindle	10 mm
Hole through tailstock	10mm
Tailstock screw	M14*1 mm
Cross slide travel	50 mm
Motor output power	150 W
Spindle speed	100-3800 rpm+10%
Overall dimension	440x270x210 mm
Packing size (LxWxH)	510x380x310 mm
Weight(Net&Gross)	14/16 kg



Standard accessory:

-50mm 3-jaw Chuck

-Wrench set

-Oil can

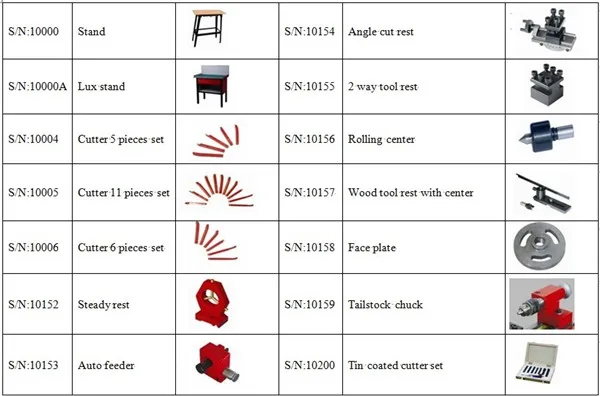

Optional accessory:
