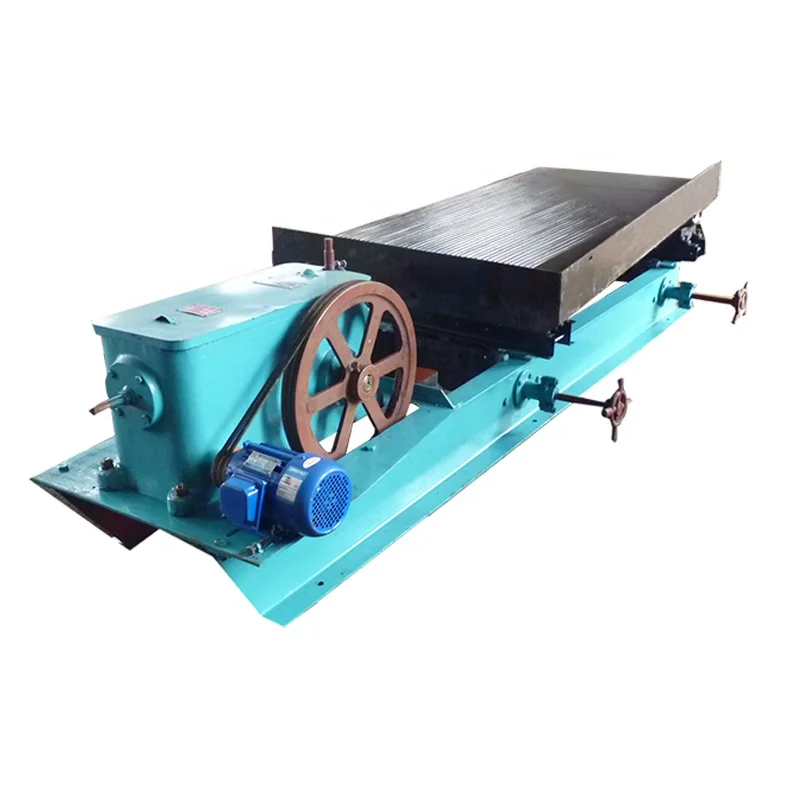

Stable Performance Small Scale Gold Vibration Shaker Table
Product Description
JinshibaoVibration Shaker Tableis one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.
TheVibration Shaker Tableis also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.
Features of Vibration Shaker Table Vibration Shaker Table
TheVibration Shaker Tablehas following advantages:
High recovery ratio
High concentration ratio
Easy installation
Simple operation
Deck constructed of fiber glass
Three different decks to choose
Long working life
Adjustable stroke length and speed
Structure of Vibration Shaker Table Vibration Shaker Table
The following drawing shows the structure of the Vibration Shaker Table:
Head Motion Vibration Shaker Table
6-S Vibration Shaker Table are furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.

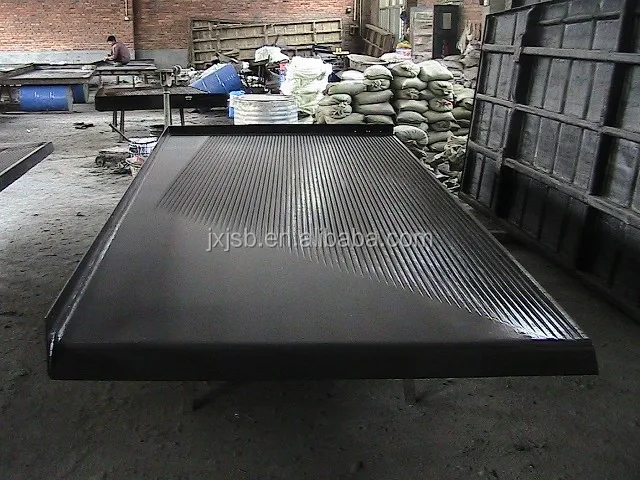

Deck & RifflesVibration Shaker Table
a) Coarse ore deck: 0.5-2mm b) Fine sand deck: 0.074-0.5mm c) Slime ore deck: 0.05-0.074mm
Particle size
2mm
1-2mm
0.5-1mm
0.1-0.5mm
0.074-0.5mm
-0.074mm
Deck
46 riffles
60 riffles
60riffles
(single/double wave)
80 riffles
88 riffles,
100 riffles,
120 riffles
110 riffles,
120 riffles
136 riffles
Feed and Water Box Vibration Shaker Table
For the jinshibao Vibration Shaker Table, A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Support device Vibration Shaker Table
We mainly have three supporting device types for the Vibration Shaker Table:
#28 channel steel type support
#10 channel steel type support
#8 channel steel type support
You could also build the cement support foundation if you do not need to move the Vibration Shaker Table.

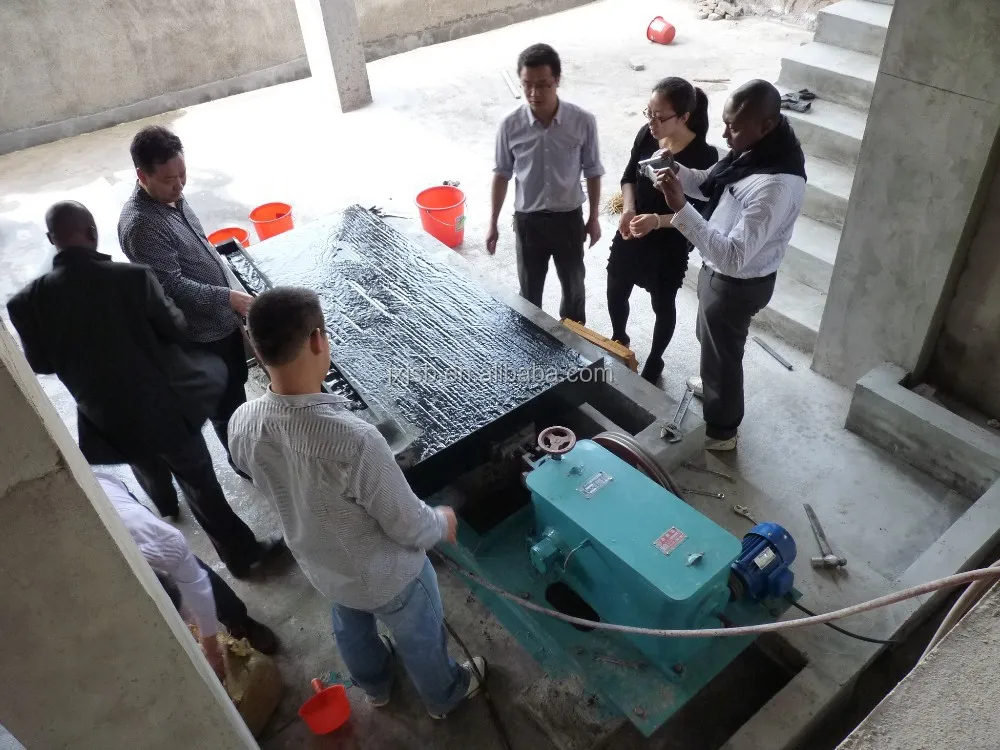

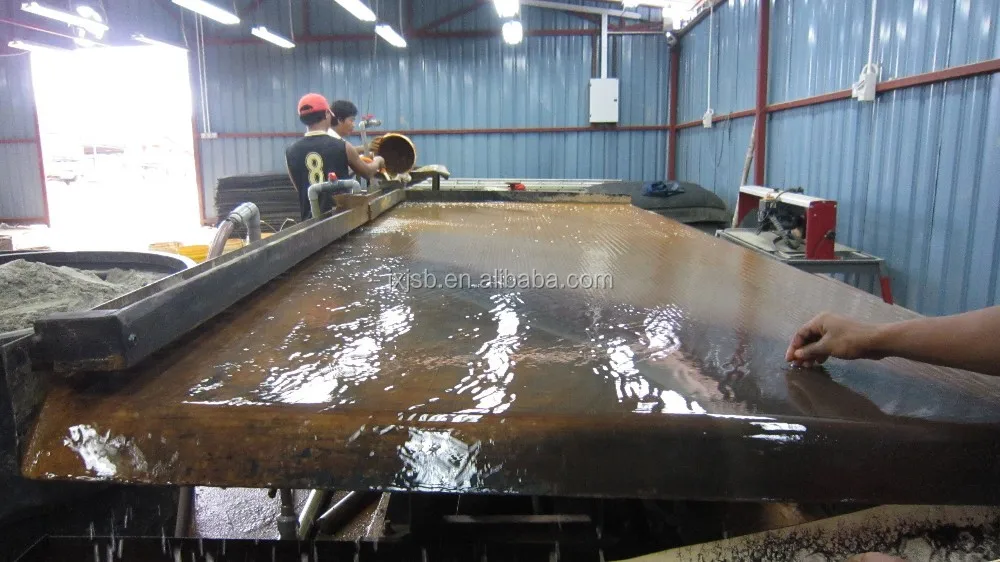

Our Vibration Shaker Tables are widely applied on different mining sites home and abroard.
Packaging & Shipping
•LCL: If the Vibration Shaker Table is shipped by bulk, it is always packed in steel frame.
When the quantity is one set, the Vibration Shaker Table is installed up and packed in steel frame inside and plywood outside.
When the quantity is more than 1 set, the Vibration Shaker Tables are not installed up and packed in steel frames separately.
•FCL: If the Vibration Shaker Table is shipped in container, it will be loaded in the container as belows without installation.
The purpose why do not install up them is to save the volume. The volume of one set of installed up LS4500 Vibration Shaker Table is about 10 cubic meters.
You may like
Our Services
We could service you the complete line from the raw ore to get the final concentrates as below:
Transaction terms of Vibration Shaker Table Vibration Shaker Table
Payment details
Usually paid by T/T or L/C
By T/T 30% deposit and balance before shipment
We will send the goods picture to you once commodity ready.
Packing details
By LCL or FCL(20'/40'GP) container.
LCL with steel support seaworthy packing
Export software scientifical loading work
Shipment details
Sea and air shipment available
MSK / MSC/ APL/ EMC/ WANHAI /KLINE
We will send the shipping notice to you once goods loading.
