180 ~ 650 мм T8465 барабан и дисковый тормоз токарный режущий станок

Product Overview

Description

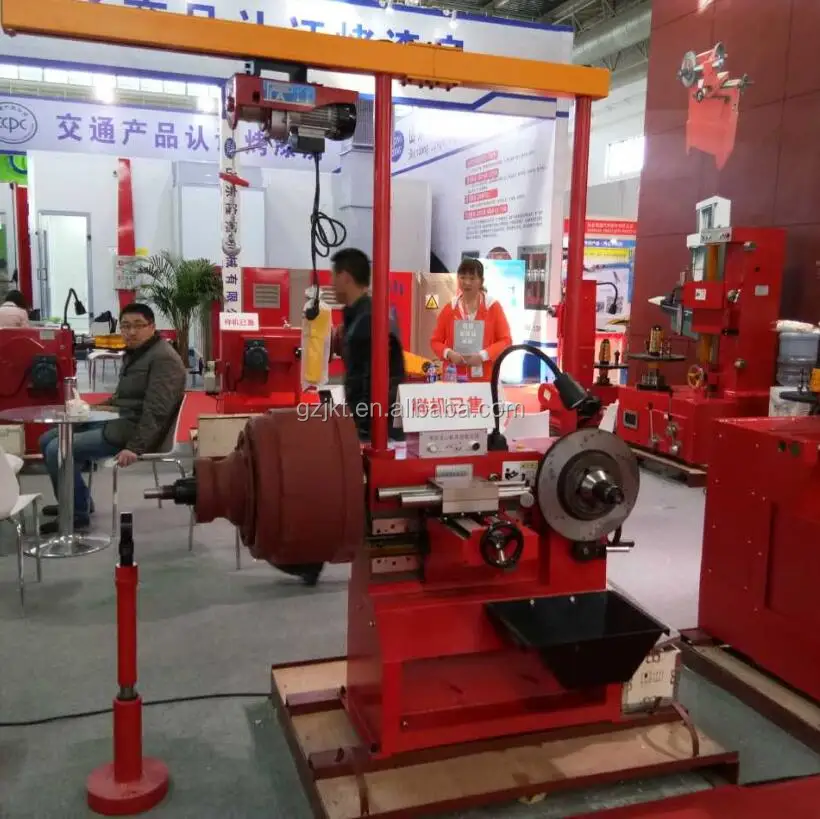

180~650mm T8465 drum and disc brake lathe cutting machine



Introduce:

This equipment is a kind of lathe.It can fulfill the reparation fo the brake drum,disc and shoe of auto-mobiles from mini-car to heavy truck.



Features:

1.The unusual feature of this equipment is its Twin-spindle each other perpendicular structure.

2.The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle.

3.This equipment has higher rigidity,accurate workpiece positioning and is easy to operate.

4.This equipment is fit up with out-board supporter to advance loading.Capability of first spindle.

5.This equipment is fit up with set of crane wich trun loading and unloading a heavy break drum into easier.

6.It meets the requirement of the State Standard (GB1206).Btslr Dti,Cutting Machine.

7.If you adopt this equipment,it can help your enterprise set up higher reputation due to better.Process quality and lower your process cost.



Specifications:



Drum dia capacity	180~650mm
Disc dia capacity	<500
Spindle speed(three grades)	25 40 70
Toolpost travel	250mm
Feed Rate	0.16mm/r
Motor	1.1kw/1400rpm
Power requirement	380V 50hz 3Phases 3A
dimension not include crane and outboard supporter	800*875*940mm
Net weitht	580
