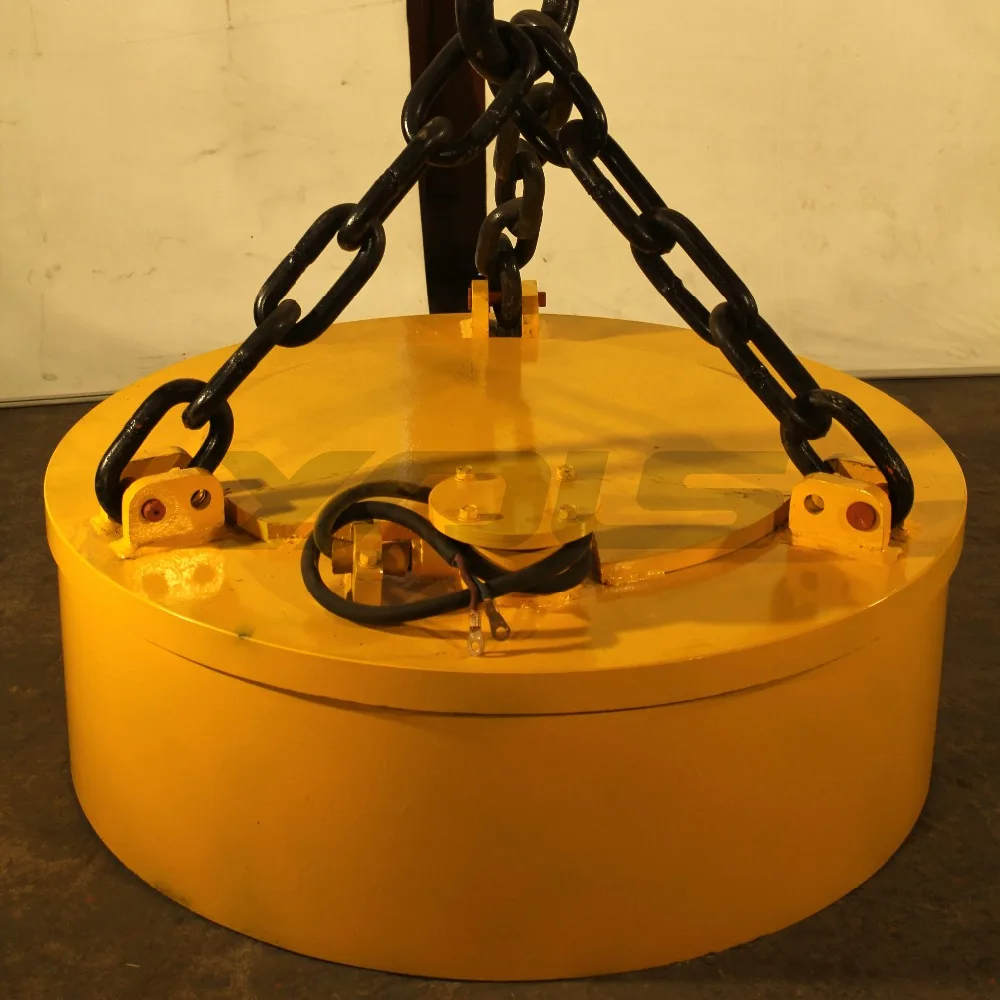

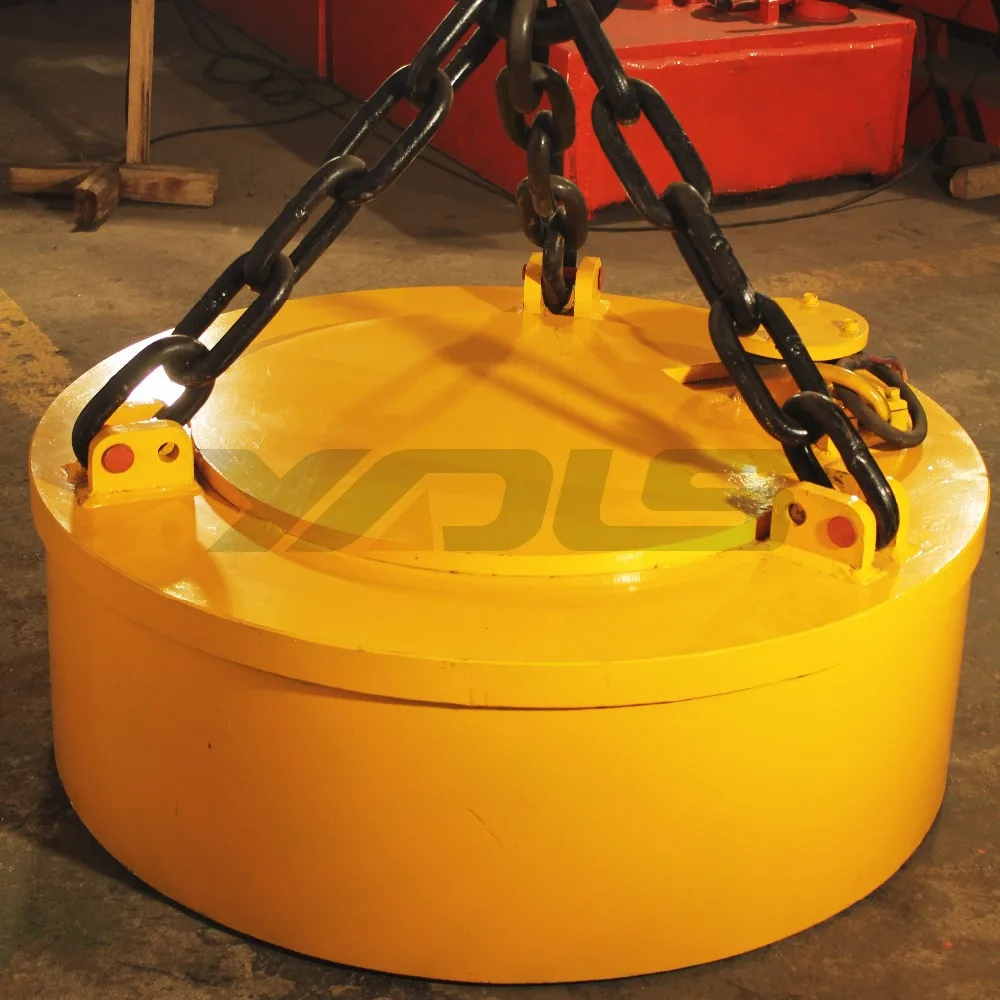

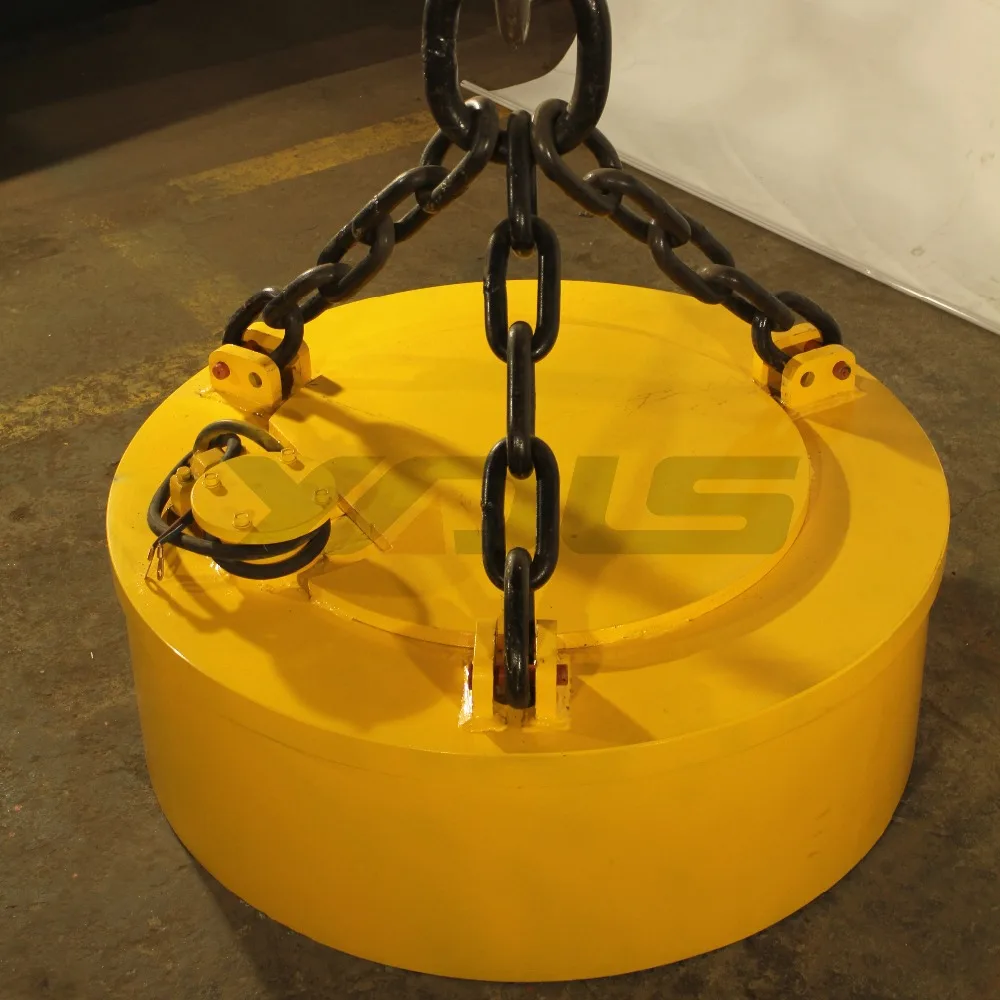

Overband Suspended Round Shape Electro Magnet
- Category: >>>
- Supplier: Yueyang Dalishen Electromagnetic Machinery Co. Ltd.
Share on (375796850):
Product Overview
Description
Suspended magnet
Overband Electro Magnet Separator (RCDB) provides the most effective removal of the magnetic tramp iron from thicker materials bed and coal. hard coke, ores, limestone, spall, corns and wooden shavings under bigger granularity.
Main technical data

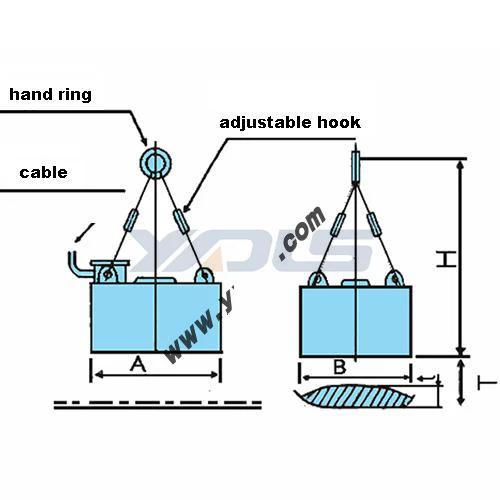

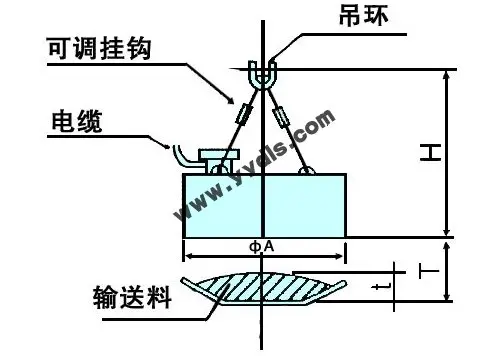

Model | Erection height (mm) | Belt width (mm) | Dimensions | Voltage (V) | Power (KW) | Mass (kg) |

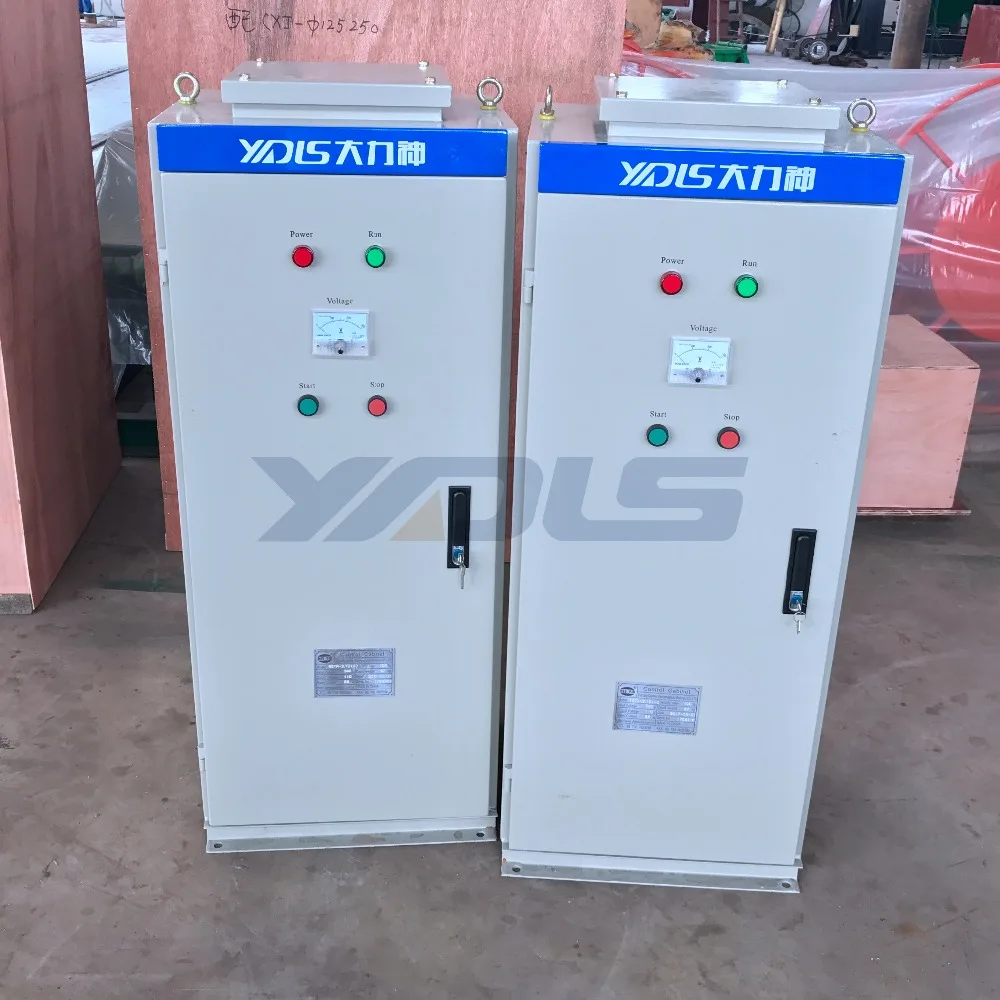

| Commutation Controlling unit | |
ΦA | H | ||||||||
MC03-30T(RCDB-3) | 100 | 300 | 300 | 600 | DC-48 | 0.18 | 77.5 | SSTM-0.5D-D | |
MC03-40L(RCDB-3A) | 120 | 350 | 400 | 740 | DC-50 | 0.48 | 120 | ||
MC03-50L(RCDB-4) | 150 | 400 | 500 | 700 | DC-75 | 0.8 | 198 | SSTM-1.5D-D | |
MC03-60L(RCDB-5) | 180 | 500 | 600 | 1000 | DC-110 | 1.15 | 318 | ||
MC03-70L(RCDB-6A) | 210 | 600 | 700 | 860 | 1.89 | 500 | SSTM-3.1D-D | ||
MC03-80L(RCDB-6) | 250 | 650 | 800 | 900 | 2.36 | 640 | |||
MC03-90L(RCDB-8A) | 260 | 750 | 900 | 1140 | 2.48 | 968 | |||
MC03-100L(RCDB-8) | 290 | 800 | 1000 | 890 | 3.94 | 1070 | SSTM-4.2D-D | ||
MC03-110L(RCDB-9) | 320 | 900 | 1100 | 1450 | DC-220 | 4.1 | 1079 | SSTQ-6.2D-D | |
MC03-130L(RCDB-10) | 400 | 1000 | 1300 | 1200 | 6.18 | 2036 | SSTQ-9.3D-D | ||
MC03-150L(RCDB-12) | 420 | 1200 | 1500 | 1350 | 8.58 | 3100 | SSTQ-12D-D | ||
MC03-160L(RCDB-13) | 440 | 1300 | 1600 | 1400 | 9.5 | 3600 | SSTQ-12D-D | ||
MC03-165L(RCDB-14) | 460 | 1400 | 1650 | 1500 | 10.5 | 4028 | SSTQ-12D-D | ||
MC03-180L(RCDB-16) | 500 | 1600 | 1800 | 1640 | 11.1 | 4882 | SSTQ-12D-D | ||
