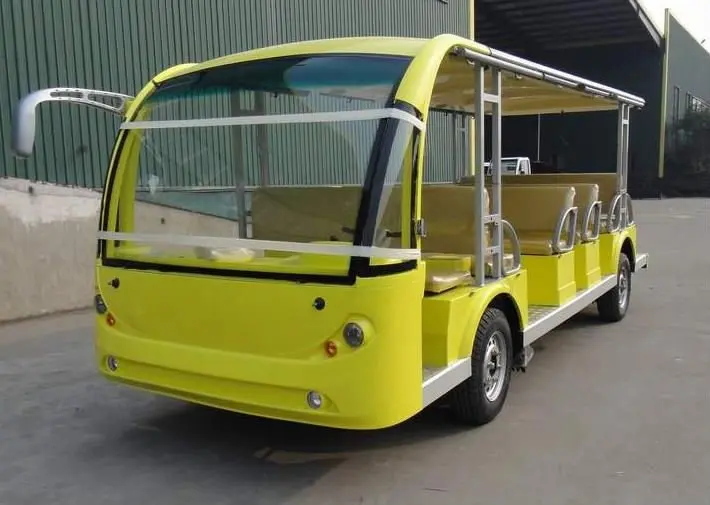

23 seats electric mini bus with powerful motor from Suzhou Eagle

Share on (376025943):


Price:

Quantity:


Product Overview

Description


Eagle Advantages.jpg



Features

Our 23 seats electric mini bus has following features:

  • Independent suspension, helix spring and shock absorber
  • Digital meter with headlights, fog lights, taillights and so on
  • Radio and MP3 receiver with 6 pcs speakers
  • Front disc brake and rear drum brake, with vacuum booster
  • Curtis controller and Trojan Battery are imported from US manufacturer directly




Application

 Our 23 seats electric mini bus can be used in many places.

  • Resort
  • Hotel
  • Theme Park
  • Amusement Park
  • Residential Community
  • Campus
  • Station, Port
  • Any place where a green, quiet and cost effective vehicle is needed


Product Description



SpecificationsModelEG6230K
Key ComponentsPower SourcePure Electric
Electric SystemBoth AC and DC system are available
BatteryTrojan battery
MotorChinese Motor
ControllerCurtis controller
ChargerChina origin, input 110V-240V~50Hz-60Hz,
PerformancePassenger capacity23
Range (loaded) based on flat road at a speed of 20km/h (km)*Up to 70
Max. speedUp to 45
Minimum turning radius (m)6.5
Max. climbing ability (loaded) Up to 20%
Max. movement after brake at speed of 20km/h≤7m
Max. loading weight1840kgs
DimensionsOverall dimensions (mm)5950*1950*2170
Min. ground clearance (mm)165
Wheelbase (mm)3200
Front wheel tread (mm)1692
Rear wheel tread (mm)1700
Body and FrameFrameWelded steel framework with sand blasting+paint treatment
BodyFibreglass
RoofFibreglass+aluminum frame, with roof handle
Electric systemLighting system and hornHeadlights,front turn signals, fog lights, rear turn signals, taillights,fog light, 1 reverse light, with DC-DC converter, horn.
Steering and SuspensionSteering systemSingle-stage rack and pinion steering system, automatic rocker compensating function
Brake systemFour wheel hydraulic drum brake+hand parking brake+vacuum booster
Suspension systemFront suspension:Independent suspension, helix spring + shock absorber;Rear suspension:rear plate spring + shock absorber
Driving modeClutch, 5F+1R gear box, transmission shaft
Rear axleIntegrated
Wheel & TyreTire 215/70R15C-6PR, with steel wheel and wheel cap
Options2point seat belt
Overshadowing Curtain/Enclosure
Inner rear view mirror
License plate light
CD player to replace MP3 receiver
Microphone Wired
with water sprayer
Solar panel
On-board charger
Body Color Up to 6 kinds of standard color for option



Packaging & Shipping

23 seats electric mini bus will be packed in steel crate

Container loading qtyDisassembledAssembled
Qty/20'//
Qty/40'21
Qty/40'HQ21



  testimonials1 copy.jpg



contact us copy.jpg



Our main products category includes

Electric Golf CartElectric Golf People MoverElectric Utility Vehicle
Electric sightseeing bus (shuttle bus)Electric Personal CarrierElectric Hunting buggy (Lifted Car)
Electric Industrial TruckElectric Garbage TruckElectric Fire Truck
Electric Hotel/Resort CarElectric Classic CarOther Special Vehicle



Company Information
  • One of the first movers of low speed 4 wheel electric vehicles business in China;
  • Private company with capital of USD16,000,000.00;
  • Founded in 1999 with more than 400 employees including more than 70 engineers;
  • ISO9001, IS14001, SGS, WMI certified;
  • Annual sales volume of more than 10,000 to more than 80 countries around the world;
  • 20,000 square meters workshop with 3 production lines

Find some photos below for your reference! You can view our Company Profile for more information!



Certifications

Suzhou Eagle has passed and got the certificates of ISO9001-2008 for quality management system and ISO14001-2004 for environmental management system.This golf cart has pass CE  (EMC) test.



Certificate(with title).jpg

FAQ

1. What is your lead time for production?

The typical lead time of our vehicles is 2-3 weeks.

2. What kind of warranty Eagle provides?

We provide 13 months warranty to the vehicles sold from the shipping date. At the same time, we will provide some FOC spare parts for rapid worn parts.

3. What kind of payment methods can you accept?

Normally we can accept T/T and L/C at sight.

4. What is your MOQ?

We do not have MOQ request. You can order just 1 sample car. However, additional packing and operating cost will be charged if delivered in LCL way.

5. Can I put my own Logo on the vehicles?

Yes, you can put your own Logo on the vehicles.

6. Do you provide OEM service?

Yes, we do provide OEM service. However, we will require minimum 500 units vehicles yearly for OEM project.

7. Can you customize the vehicles according to our special request?

Yes, we can customize the vehicles according to your request unless the customization is not related to the chassis and mold of any parts.

8. Do you supply spare parts if I buy your vehicles?

Yes, we supply all the spare parts used in our vehicles at reasonable price and lead time. Furthermore, for the model which we stopped production, we even supply spare parts in 5 years from the year we stopped it.

9. Do you provide after service if I buy your vehicles?

We will provide spare parts and technical support for after service. However, if any parts need to replace, you will need to do this yourselves, we will provide instruction if needed.

10. Do you provide spare parts book and operational manual?

Yes, we provide them. The operational manual will be sent together with the vehicles. The spare parts book will be sent via email separately.

11. What is the order procedure?

The typical order procedure is as following.

  1. You send us the PO with all your request;

  2. We send you back the International Sales Contract, Sales Confirmation and Proformal Invoice ;

  3. You signed back the International Sales Contract and Sales Confirmation;

  4. You arrange the down payment or issue the L/C (send us the draft first for confirmation before original one is issued);

  5. We arrange the production after receive the down payment or original L/C;

  6. We book the space according to the estimated finish date of the vehicles;

  7. You arrange the balance payment before container loading if the payment term is T/T in advance;

  8. We send you the shipping documents after shipping date;

  9. You arrange the balance payment if the payment term is L/C at sight.

12 Do you provide Trade Assurance via Alibaba?

Yes, we do. Trade Assurance order is welcomed!
