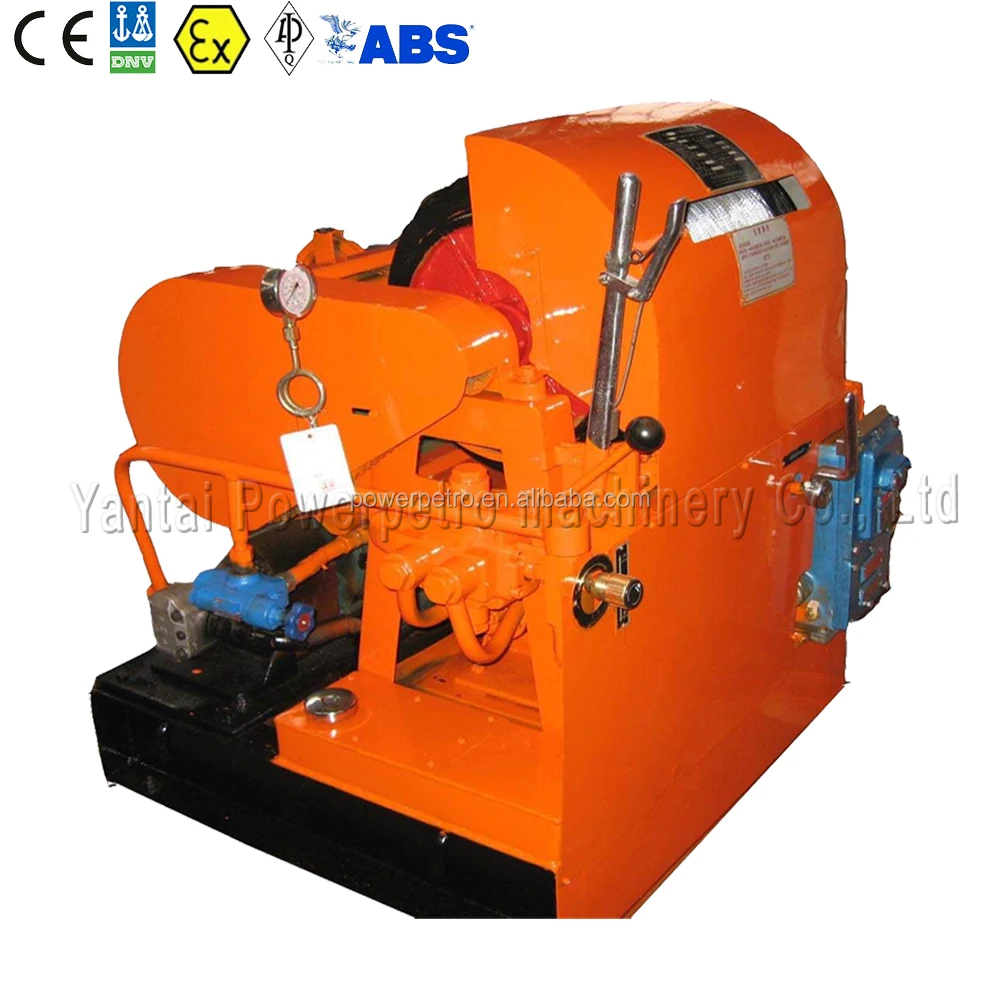

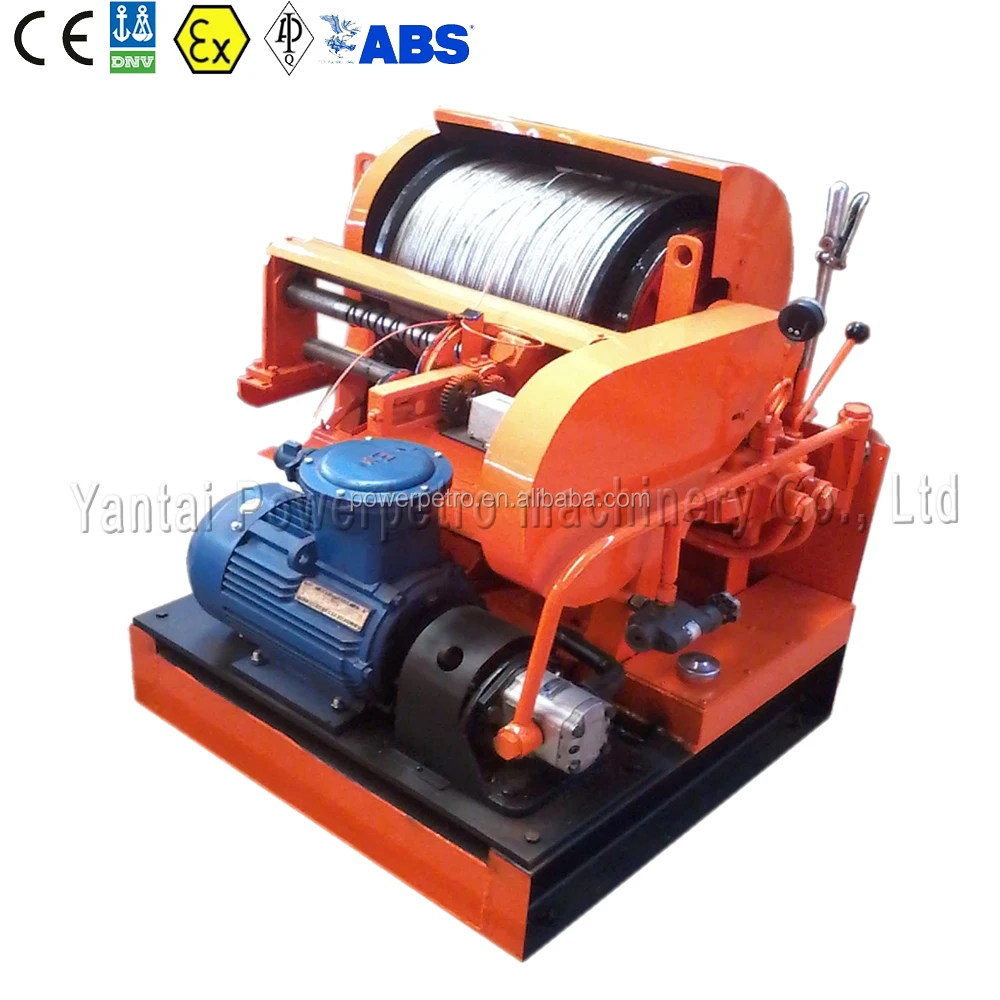

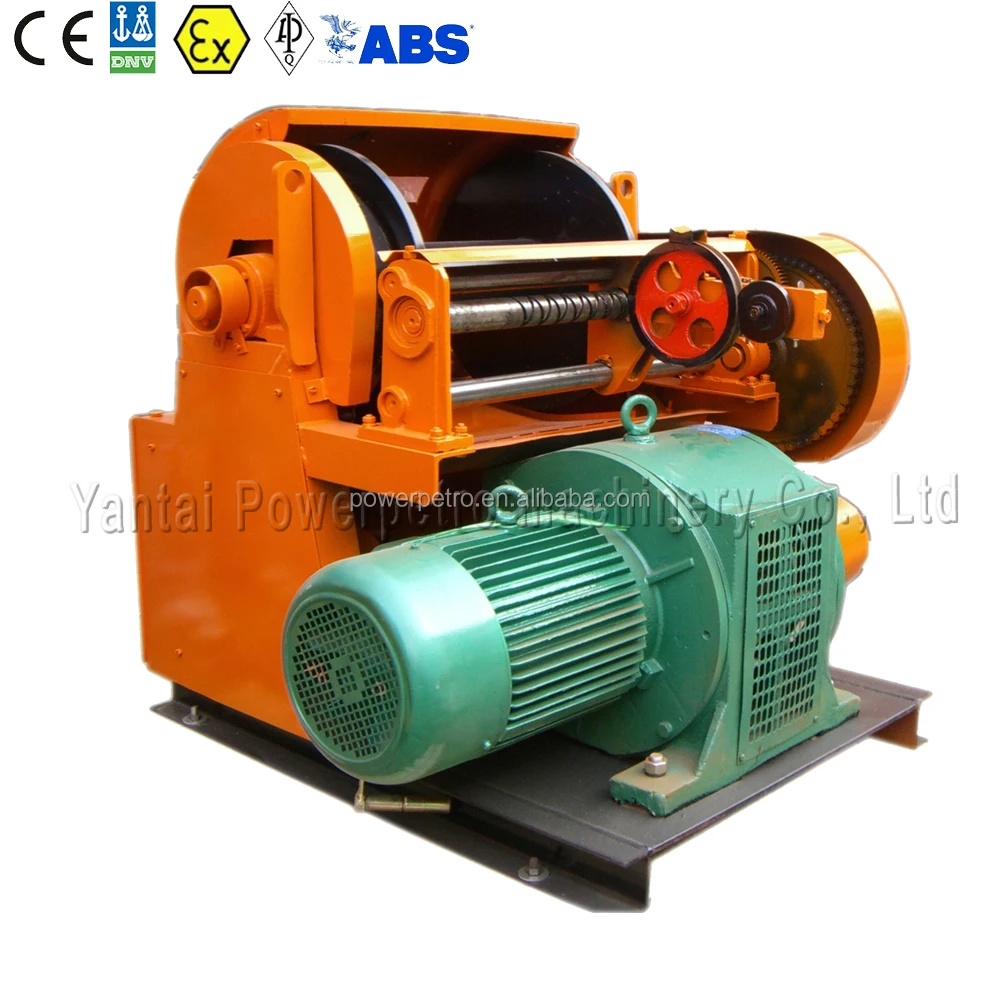

Electric Logging Winch for Oilwell 4000M

Product Overview

Description

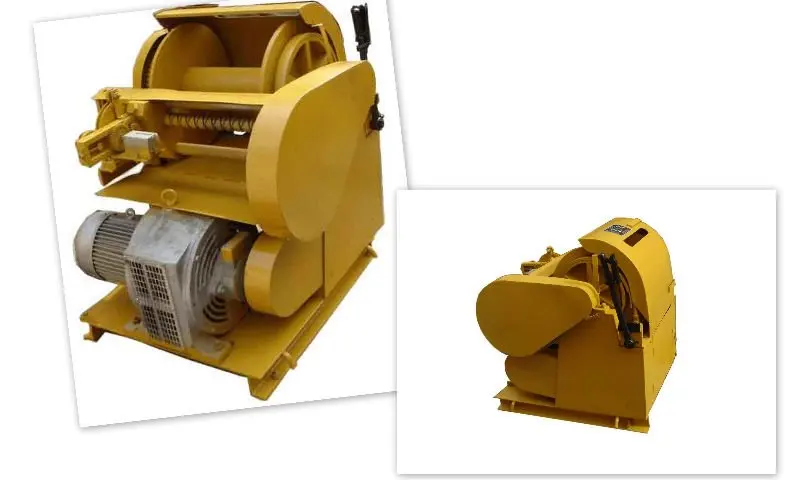

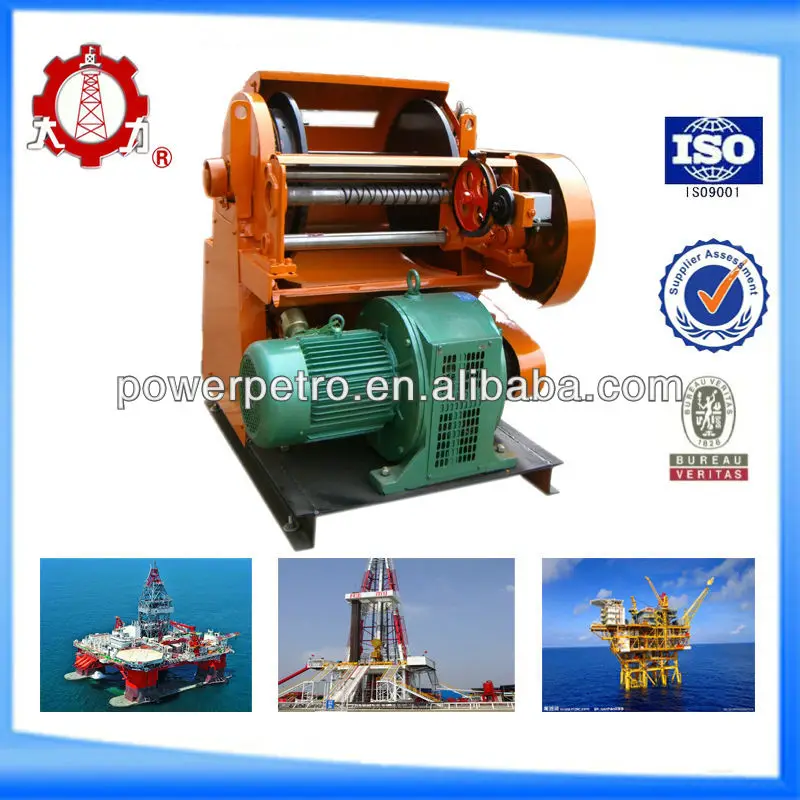

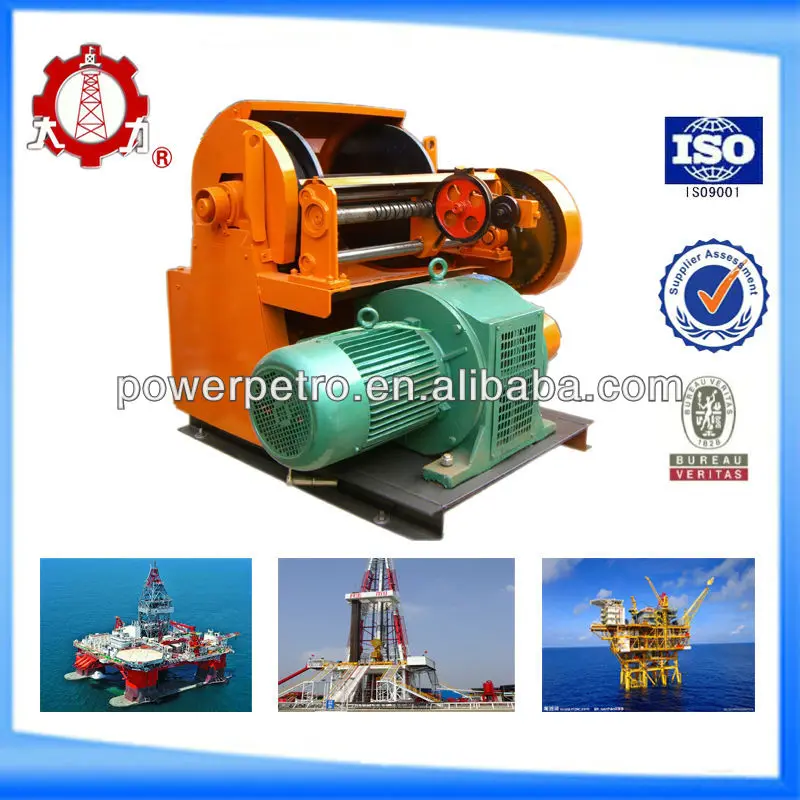

Electric Logging Winch:

DCJ Electric Logging Winch is mainly applied in the measurement of petroleum wells (vertical, directional, cluster), by lifting and lowering measurement instruments to obtain the gradient, location and depth of the wells. It is driven by the electromagnetic governor motor, transferring torque to the drum through sprockets, equipping with speed controller to control the rotary speed of the drum. It is ideal equipment for logging petroleum wells.



Features:

1. Automatic spooling device;

2. Brake system is reliable and easy to operate;

3. Wide range of measurement with high precision;

4. Automaticaly show the depth and easy to reset.

5. Enclosed Construction keeps out dirt and dust and seals in oil and grease for complete lubrication of all moving parts.



Specifications:



Electric Power(KW)		4-7.8
Logging Depth(m)		4000-7000
Roller Speed(R/min)		15-150
Max Lifting Weight(KG)		80
Dimensions	Length(mm)	859
	Width(mm)	920
	Height(mm)	975
Wire diameter(mm)		2.2-2.5
Weight(KG)		430

We hereby confirm that Electric Logging Winch can be tailor-made to meet your special needs and requests, with highest quality, prompt delivery and first-rate after-sale service.
