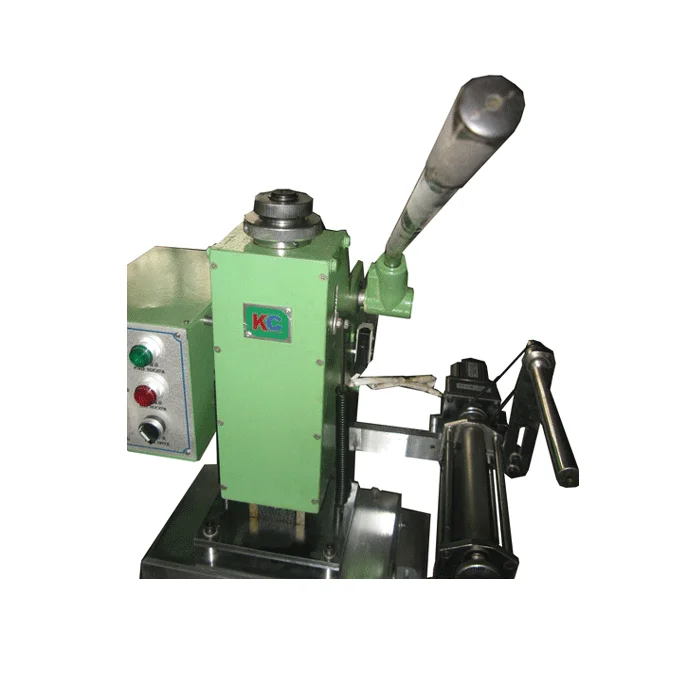

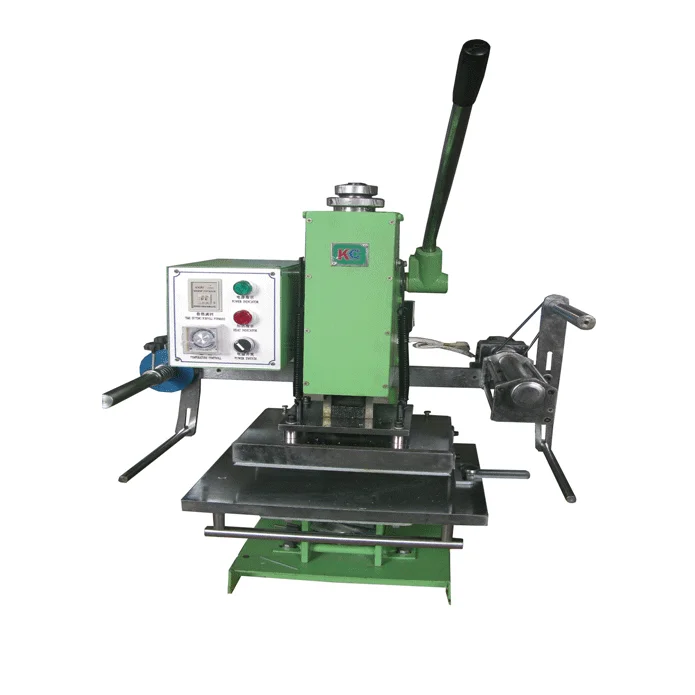

large pressure Manual highest market share Leather Hot stamping machine

Share on (377117121):


Price:$1,250.00

Quantity:


Product Overview

Description


Hot foil stamping effects

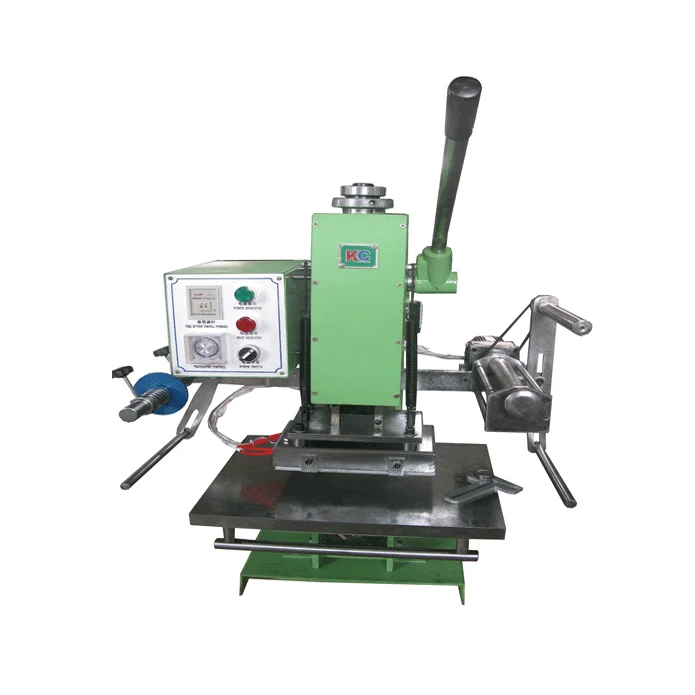

Hot stamping machine description




















Usage

Bronzing; Baking; Embossing.


This is one type flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;

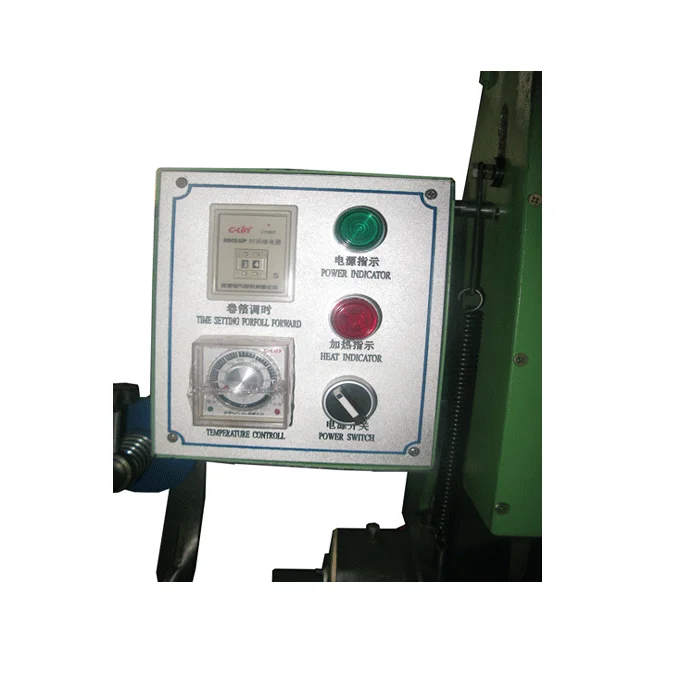

Manual-operating. automatic feed foil, automatic temperature controlling ensure stamping quality.
Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.

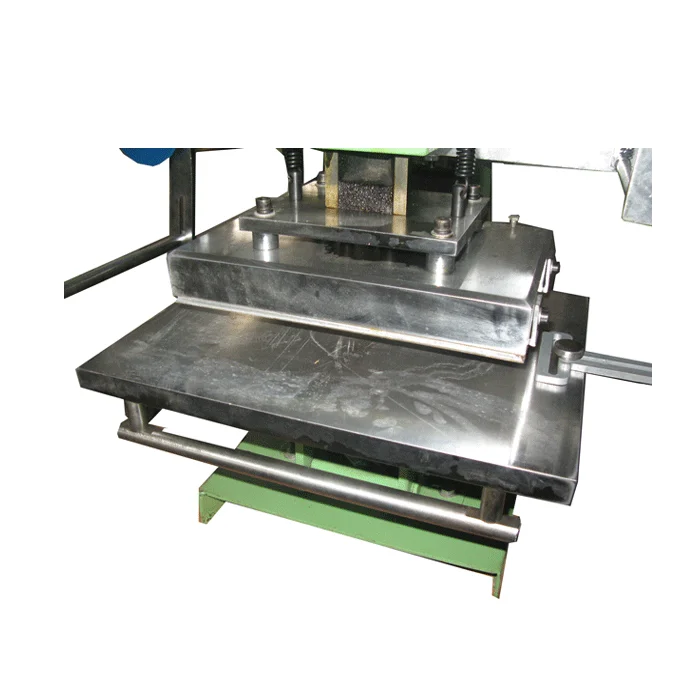

Working table size is 240*320mm, Stamping plate 125*220mm.


Technical Parameter* Size of Hot Plate : 125 x 220 mm
* Work Table Size : 240 x 320 mm
* Max. Pressure: 300 Kg
* Max. Head Stroke : 40 mm
* Max. Opening (Flat) :210 mm
* Voltage Supply : 110 V / 220 V / 240 V
* Heater Capacity: 800 W
* Foil Controller : Motor Drive
* Thermo Controller :0-400oC
* Net Weight : 93 Kg
* Gross Weight (kg) :127 Kg
* Dimension (L x W x H):530 x 530 x 706 mm
* Box Size (L x W x H) :635 x 760 x 790 mm .
Production Advantage

1.Minimum air consumption;
2.Capable of adjusting the stamping pressure, the temperature and the speed;
3.Worktable capable of slight adjustment to rear-and-front, left-and-right and rotation;


4.The height of the stamping head adjustable accordingly;
5.Automatic foil feeding and rolling with adjustable function;

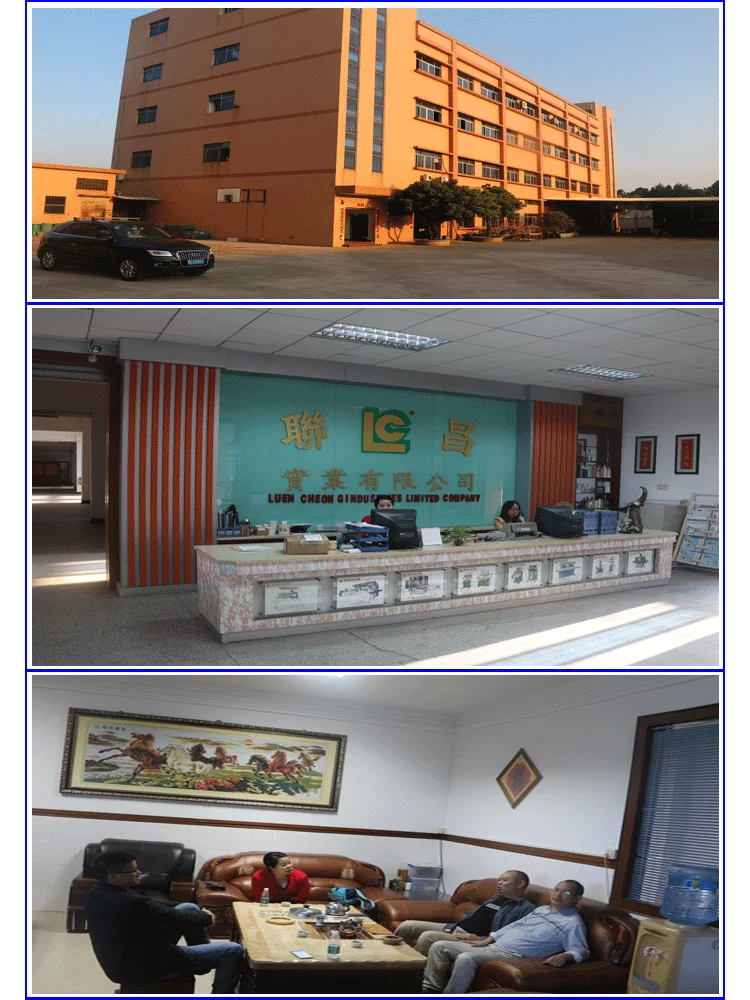

Company Information


       The world is only one China, China only one LC, we are the production and sale of pad printing machines, silk screen machines, bronzing machines and automatic printing equipment and world famous!

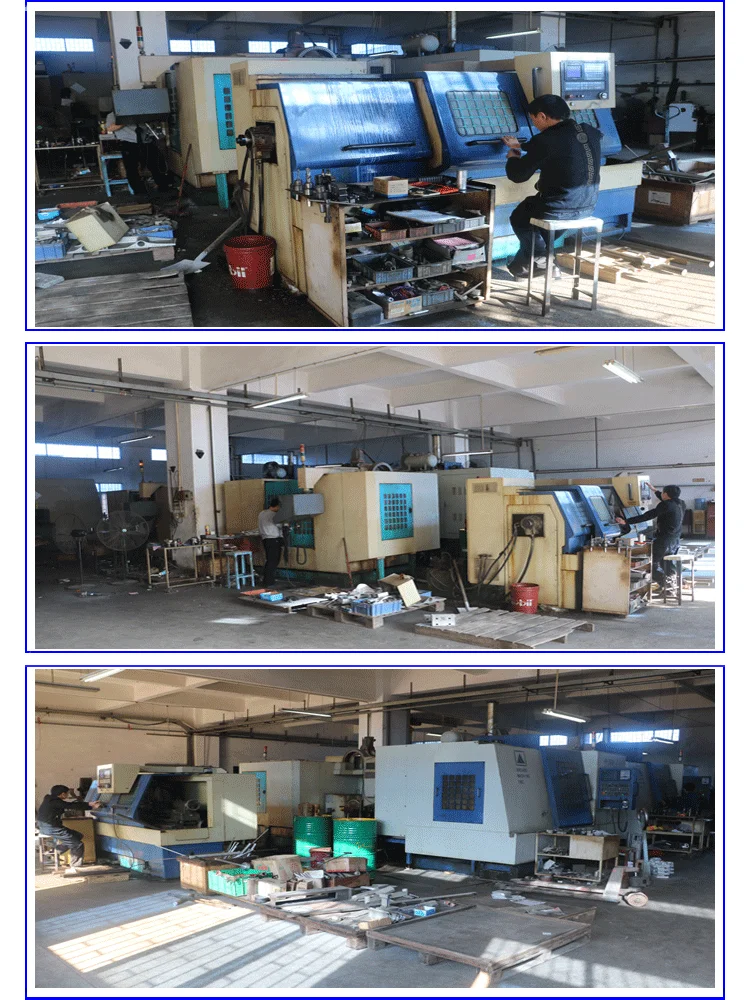

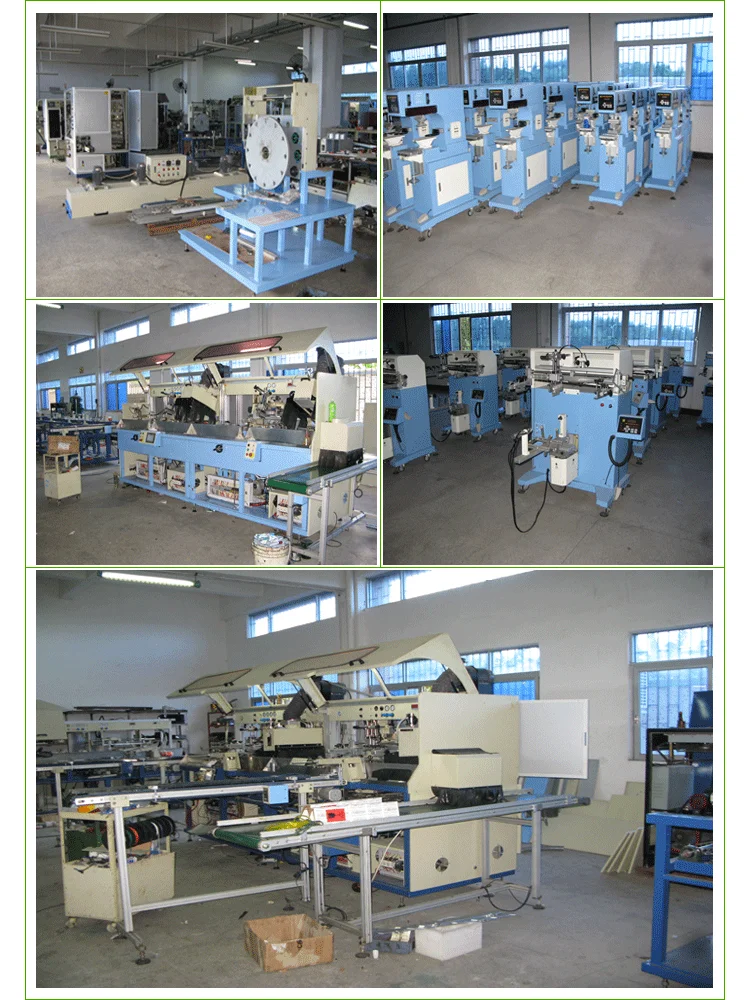

           Excellence in product quality depends on the high precision machining equipment;
      The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.Excellence in product quality depends on the high precision machining equipment;
      The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.













Pad printers:



  •  1 color, 2 colors, 4 colors, 6 colors, 8 colors, 10 colors

  •  Closed cup pad printer and open inkwell pad printer;

  •  Customize full automatical pad printer;


Screen printer:



  • Plain screen printing machine and Multi-function screen printing machine

  • Pneumatical screen printing machine, Motor screen printing machine

  • Full automatical screen printing machine


Hot foil stamping machine



  • Manual, Sem-auto plain hot stamping machine and Cylinder hot stamping machine

  • Hydraulic hot foil stamping machine;

  • Full automatical hot foil stamping machine










All Machine has CE certification.


    CE of pad printers


     CE of screen printers


     CE of hot foil stamping machine


     CE of UV exposure machine and UV curing machine.          Etc







Our clients







Our Services








  • Printing machinery industry  Alibaba 15 years golden supplier .

  • 18 years of sales experience. areal understanding of customer need.

  • Clearly marked price, earn consciencemoney. Profits no more than 20%.






Packaging & Shipping




  PVC film for machine


      * Dust-proof


      * Moisture


  Wooden case


      * Fumigation free


      * Plywood




      Machine is very heavy, It is recommended to use mechanical forklift move and handling, avoid i nversion, Impact, Shake.







By Air:


   Suitable small machine, machine parts, Emergency order.


   Dast delivery but cost expensive.





By sea


    Suitable big machine, Liquid materials, industrial application; world widely use





By train


    Suitable middle-asia country.




















 All machine parts, Small machine, Shipment document will be shipped with express company.


Please follow it via office website.





Product Description


Paper packaging using bump embossing and embossing foil will significantly improve the visual impact. The way to achieve embossing and embossing is to use embossed stamping to press the paper into a three-dimensional projection. Embossing and embossing have a wide range of uses in paper packaging.




    1) The difference between embossing and foil embossing:


The embossing and embossing only forms a raised three-dimensional effect on the surface of the paper, and the embossing and stamping will complete the foil stamping at the same time in the raised area. Embossing is not applicable to foil stamping, and embossing stamping uses foil stamping paper. Hot stamping for embossing and embossing has no steps, while hot stamping for bump stamping has a step to avoid hot stamping on hot stamping areas.


   2) Plane bump process and three-dimensional bump process


 Only the embossing process using the plane stamping and bump embossing process will form a flat plateau on the surface of the paper. At the same time, the embossing process and embossing foil stamping process using hot stamping and resin mastering can form uneven and scattered embossed patterns on the surface of the paper.




   3) Requirements for hot stamping machine


 For sheet fed and roll fed, the structure of the hot stamping machine has obvious differences. For sheet-fed hot stamping machines, hydraulic hot stamping machines, pneumatic hot stamping machines, and opening and closing electric hot stamping machines are all common types.











FAQ


1) What are your main products?
     Pad printers,


     Silk screen printers,


     Hot stamping machines,


     and the supply chain related to the above-mentioned industrial printing, we will also provide users with complete printing solutions.





2) What kind of pre-sale service do you provide.



   Free technical consultation, pictures, technical materials, and video materials are provided. For those that cannot be provided, we may provide design solutions.





3) What kind of payment method should I choose?



 For new users, if the amount is smaller, you can use the credit guarantee order, TT, and if the amount is larger, you can consider a letter of credit. In order to protect the safety of customers' funds, we do not recommend customers to transfer to personal accounts, or use Western Union, paypal and other personal payment methods. Unless the customer makes a special request.










4) How to order the machine?
   When you confirm to buy the machine, we will provide PI, and pay according to the payment method guided by PI. We will produce the machine and arrange the calculation until you get the machine safely.










5) Questions about proofing?
For direct users, it is very important to confirm whether the machine is suitable for their products and require the factory to carry out proofing as the standard for machine delivery, because pad printing machines, screen printing machines and hot stamping machines usually require fixtures, printing plates, and inks. The perfect match of the bronzing paper can meet the requirements. For the proofing of the customer's confirmed order, we are free. For the proofing without the confirmed order, we will charge a certain proofing fee. When you confirm the order, the proofing fee will be deducted from the machine purchase price.










6) How about after-sales service?



Companies that sell through the Internet are usually small in scale, and none of them have set up after-sales service points overseas. After-sales service requires online support from sales staff. In general, pad printers, screen printers and hot stamping machines are relatively simple machines, and most problems can be solved through online communication.







7) How do you evaluate the quality of your products?
   When each user purchases a product, he balances price and quality. This balance may be difficult to grasp, but this is how you do business. Most of the products sold on the Internet are in the middle of whether the price is not low or the quality is not bad. end. You have to negotiate professionally with the sales staff for better products. There are roughly 300 similar manufacturing plants and more than 8,000 trading companies in China. It is not difficult to choose products that suit you.
